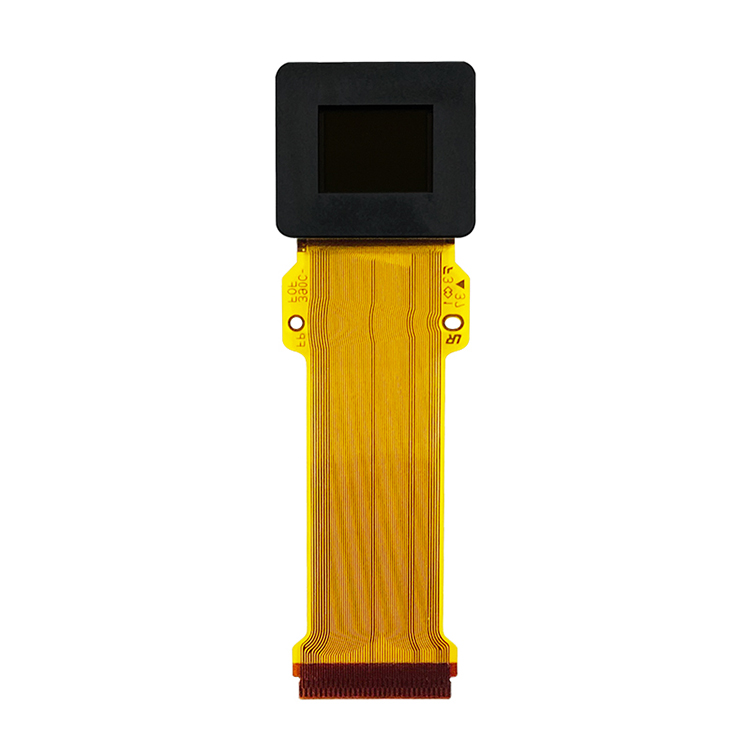

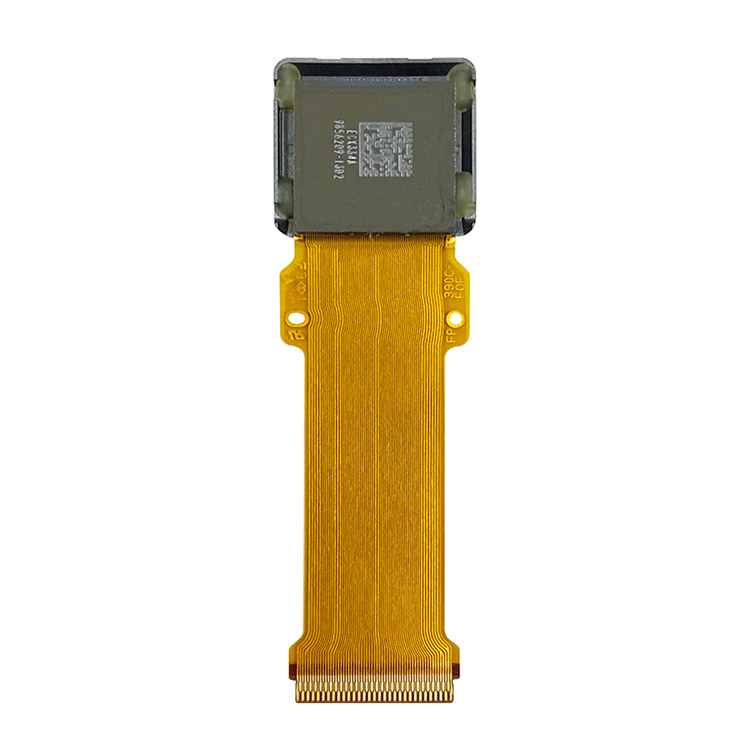

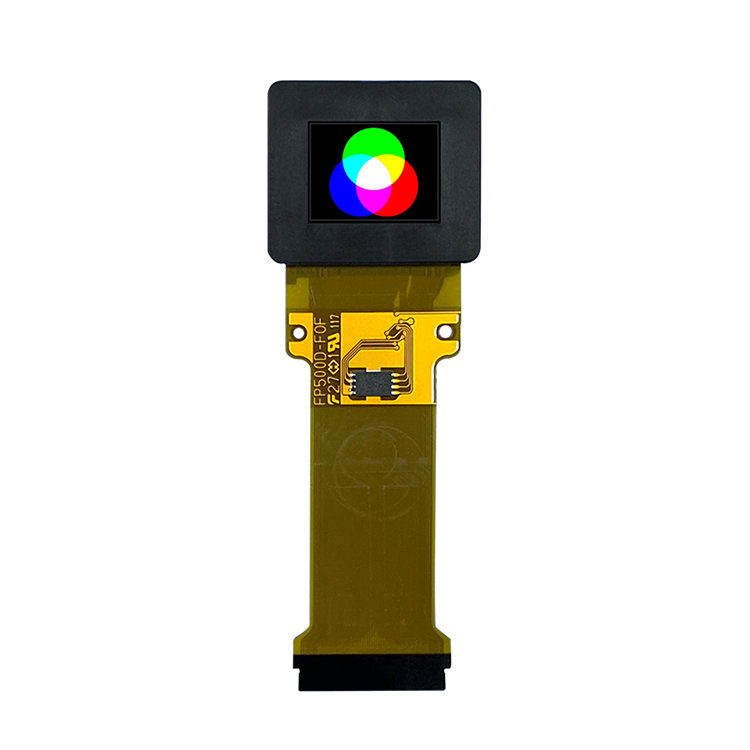

0.39 inch OLED Microdisplay 1024(RGB)X768


DESCRIPTION

The HOECX334AF is a 1.0 cm (type 0.39) diagonal, 1024 (RGB) × 768 dots active matrix color OLED panel module using single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

(Applications: View finders, head mounted displays, very small monitors, etc.)

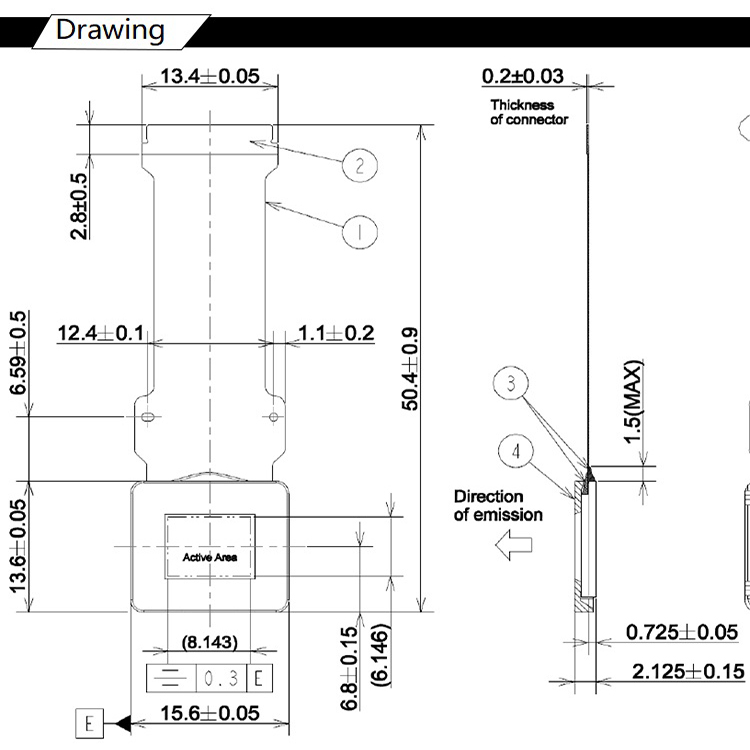

DRAWING

SPECIFICATIONS

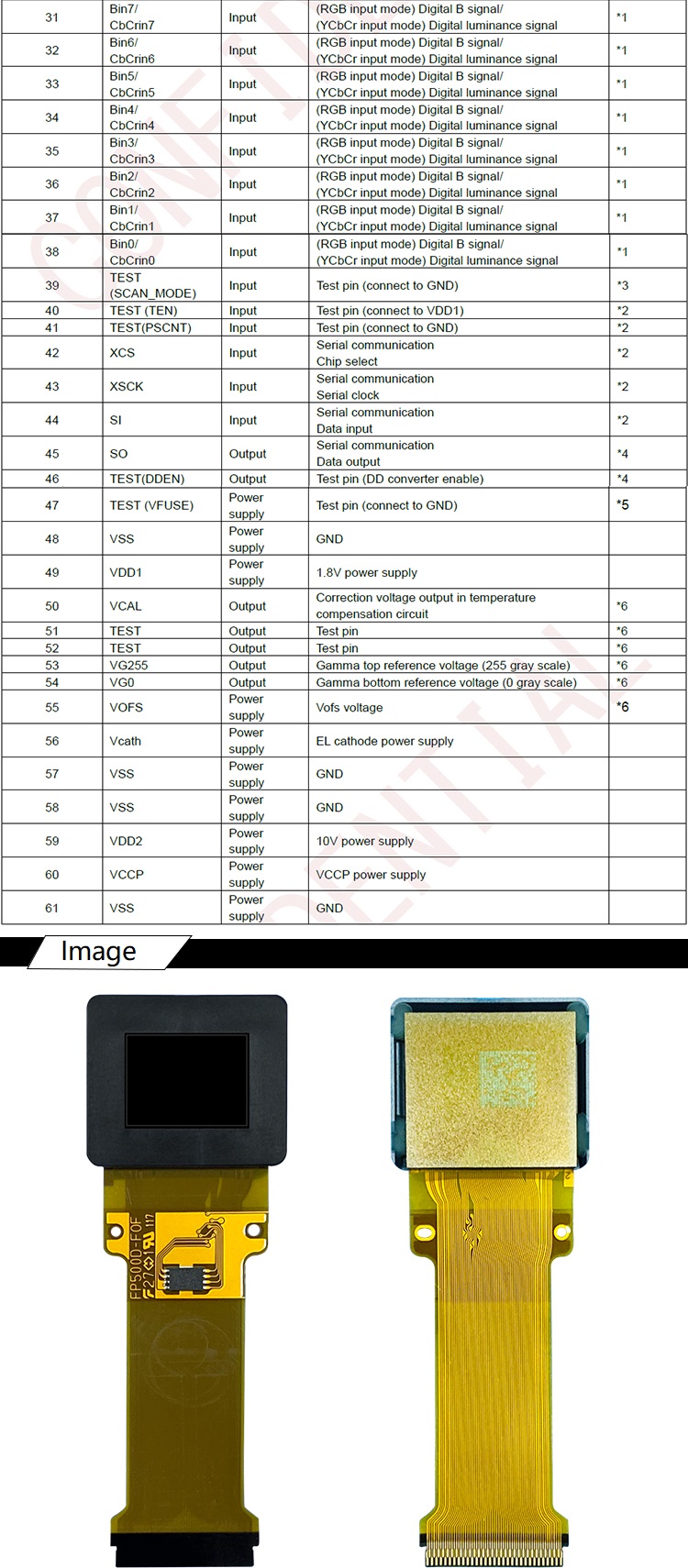

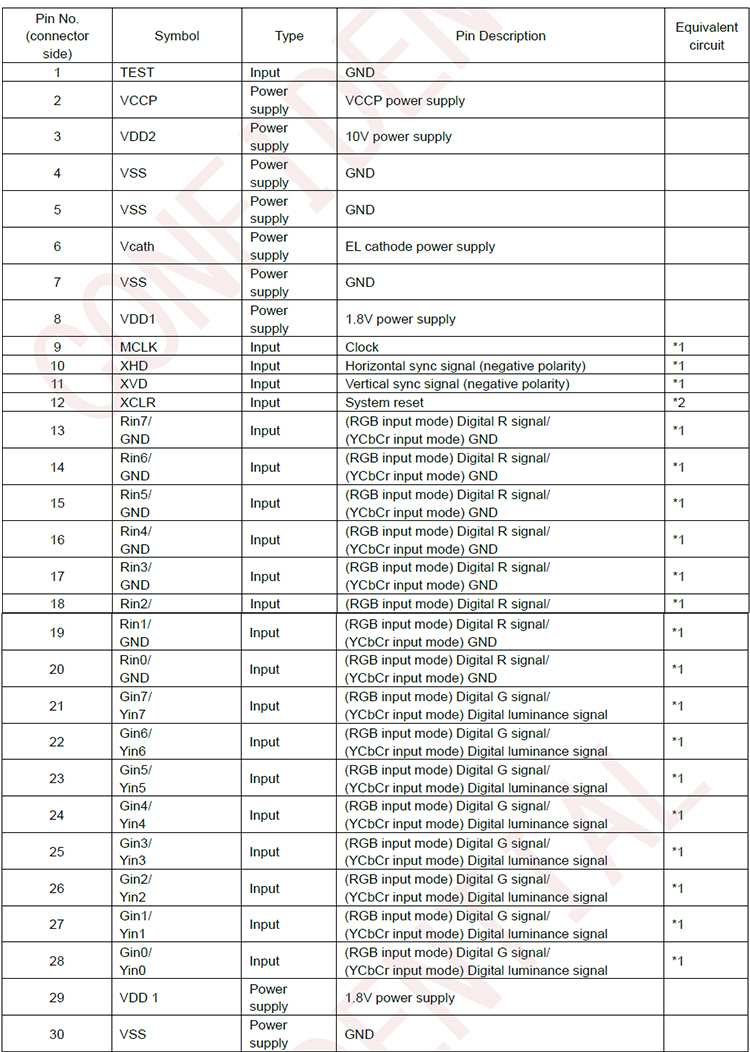

Interface Pin Function



General Specification



Display Type:  oled display
Display Mode:  Passive Matrix
Model Number:

HG-ECX334AF

Diagonal Screen size: 0.39 nch
Interface:

parallel RGB 24-bit/YCbCr 16-bit input

Number of Pixels:

1024 (RGB) × 768

Panel Size:

15.6 x 13.6 x 0.2 (mm)

Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

-10~70°

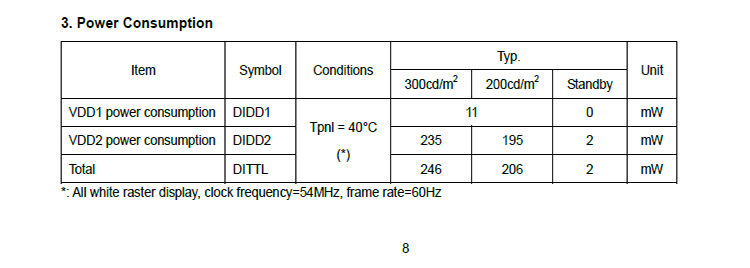

Electrical Characteristics

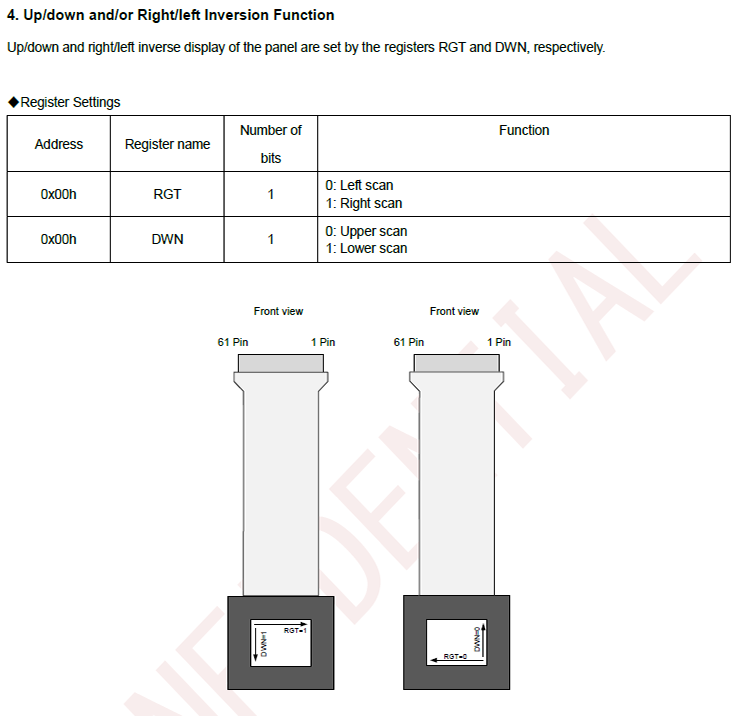

Register Settings
