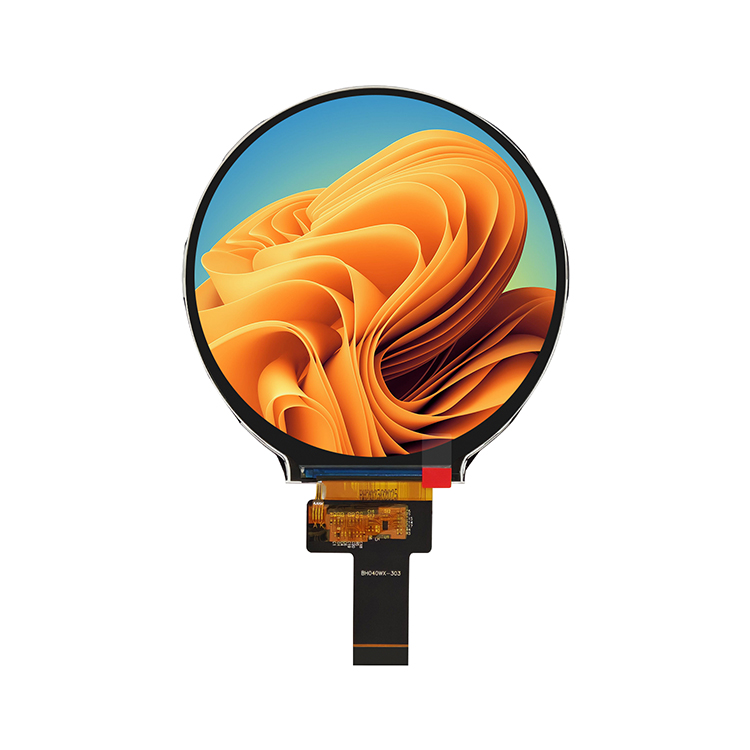

Industrial 4.0 Inch Round TFT LCD Module 720x720 1500 Nits with HDMI Board

Industrial 4.0 Inch Round TFT LCD Module 720x720 1500 Nits with HDMI Board

Size: 4 inch circular
Controller IC:JD9365DA
Resolution: 720x720
Interface:4 Lane mipi
Product description: B2B supplier of industrial 4 inch round TFT LCD displays. Features 720x720 resolution, 1500 nits high brightness, HDMI driver board, and wide temperature range (-30~80°C). Custom options and bulk supp
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

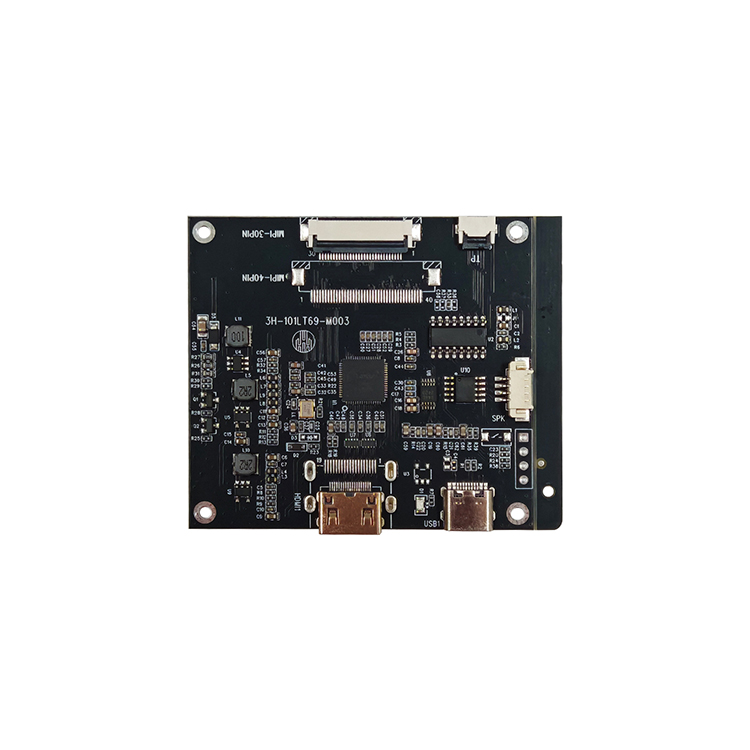

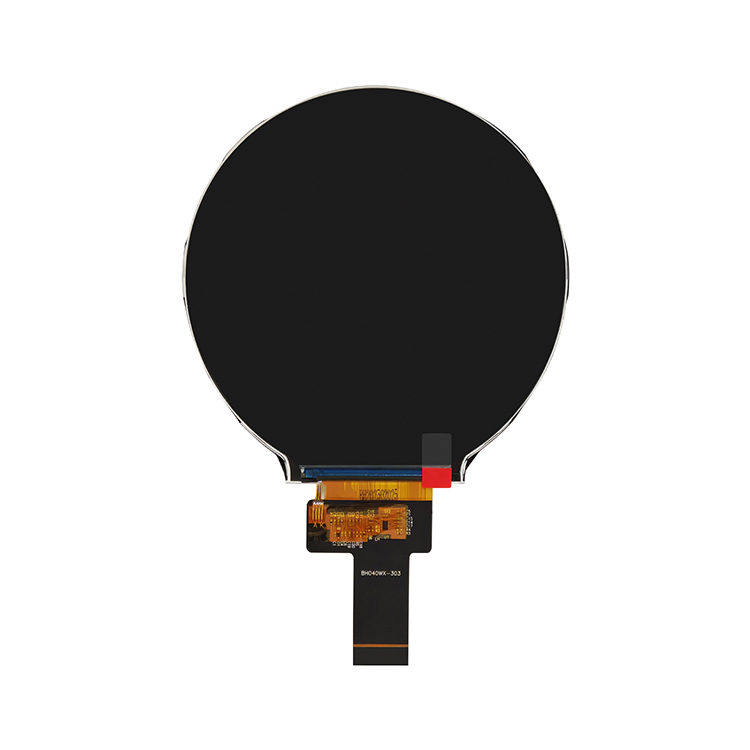

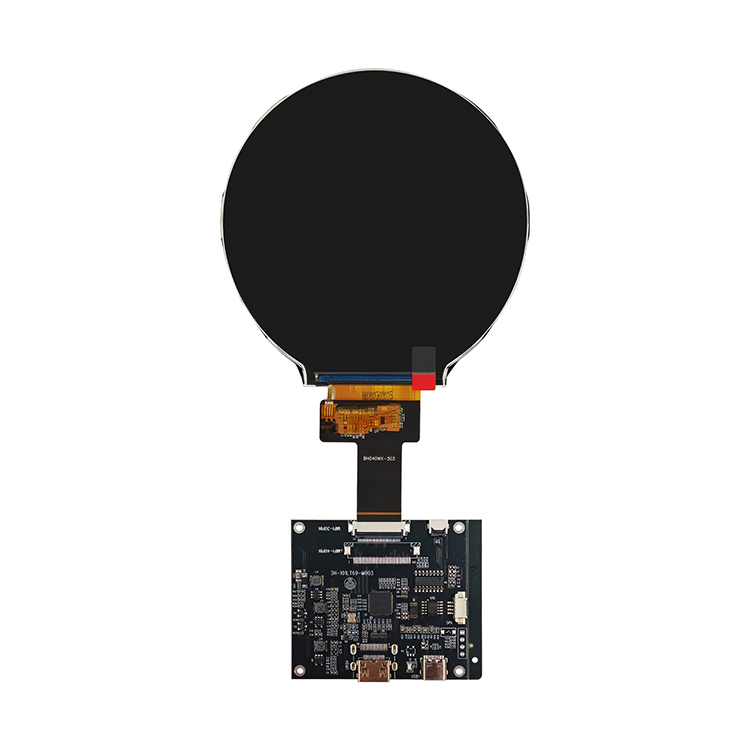

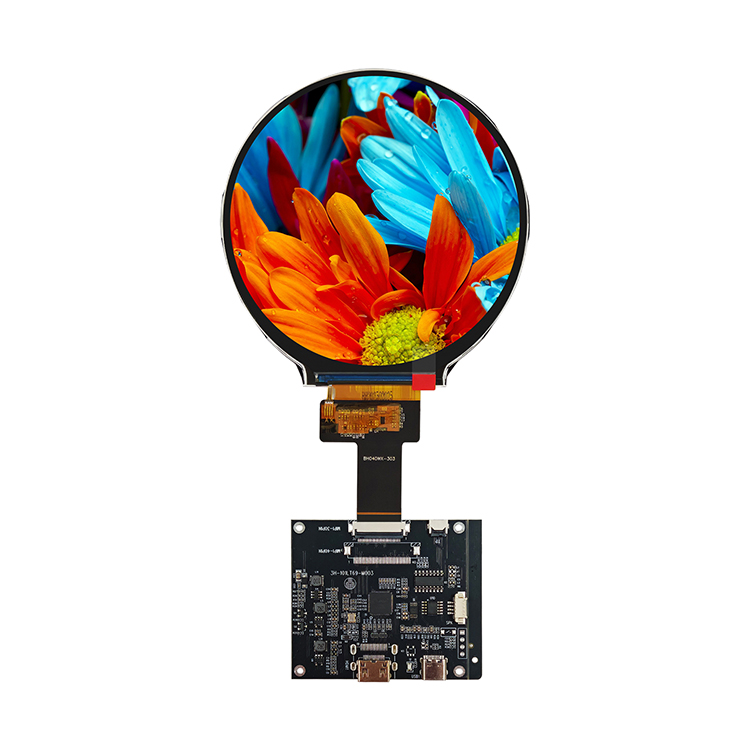

HICENDA 4-inch round TFT LCD display features a 720×720 high-resolution IPS panel with 1500 nits brightness, making it clearly visible even under direct sunlight or bright indoor lighting. The module comes pre-assembled with an HDMI driver board, allowing plug-and-play connection to Raspberry Pi, mini PCs, and other HDMI-output devices without additional adapters.

The circular form factor and full-color IPS panel make this display well suited for applications where a traditional rectangular screen doesn't fit the design — such as smart home control panels, automotive-style gauge clusters, industrial instrument displays, elevator control interfaces, and retail kiosk indicators.

Custom sizes, touch panel options, and OEM branding are available for bulk orders. Contact us for datasheets, samples, and volume pricing.

GENERAL SPECIFICATION

Category	Feature	Specification
Model Info	Model No.	HT040WX-303-1007V1
Characteristics	Size	4.0 inch
	Resolution	720 (horizontal)x 720 (vertical)
	Interface	4-Lane MIPI
	Connect Type	Connector
	Pin No.	30P
	Color Depth	16.7M
	Technology Type	a-Si
	Pixel Pitch	0.047 x 0.047 mm
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	LCD Driver IC	JD9365DA
	Viewing Direction	ALL
	Gray Scale Inversion	ALL
	Luminance	1500 cd/m2
	Contrast Ratio	1200:1
	Operating Temperature	-30 ~ 80℃
	Storage Temperature	-30 ~ 85℃
Mechanical	LCM ( $W x H x D$ )	107.605x111.865x 3.8 mm
	Active Area ( $W x H$ )	101.52 x 101.52 x mm
	With / Without TSP	Without TSP
	Weight	TBD
	LED Numbers	10 LED

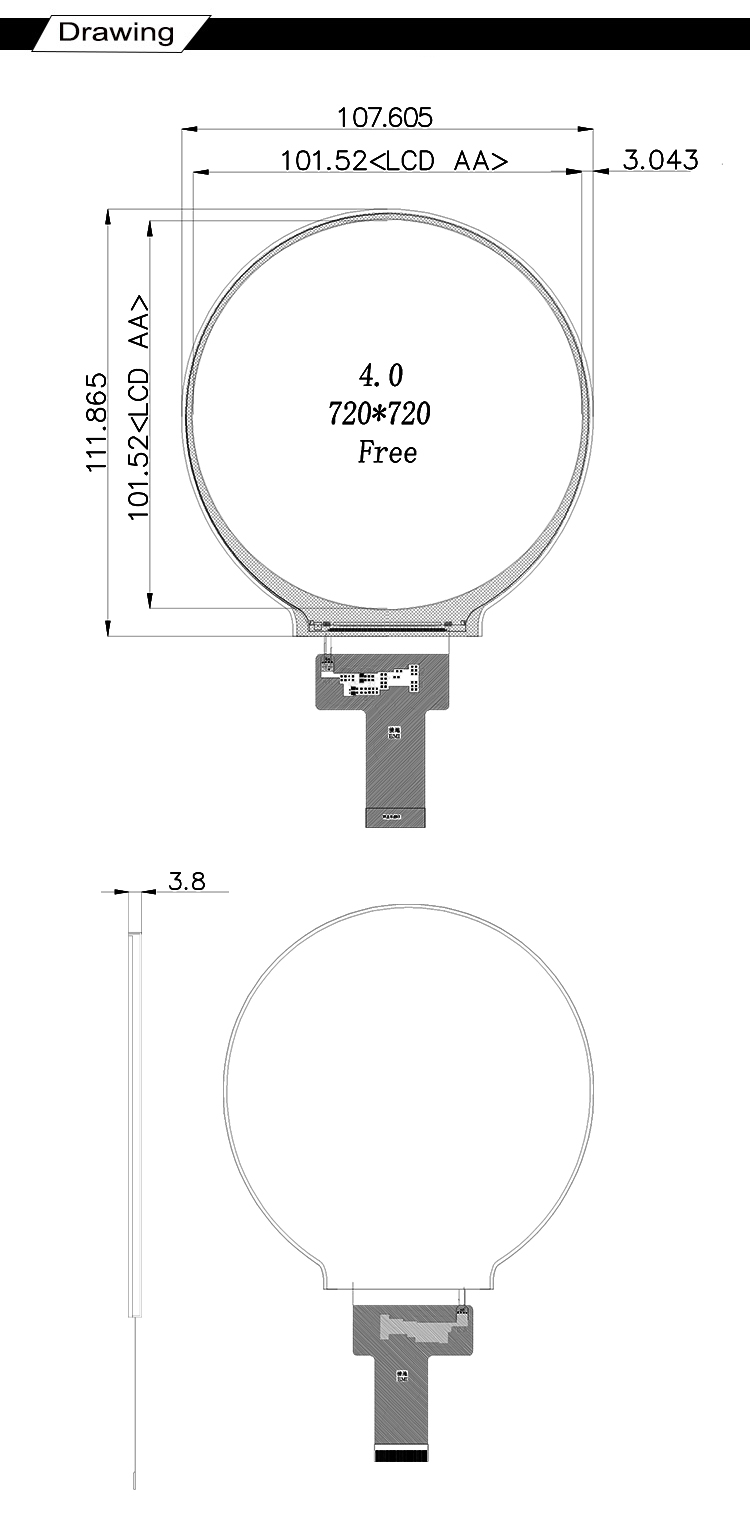

DRAWING

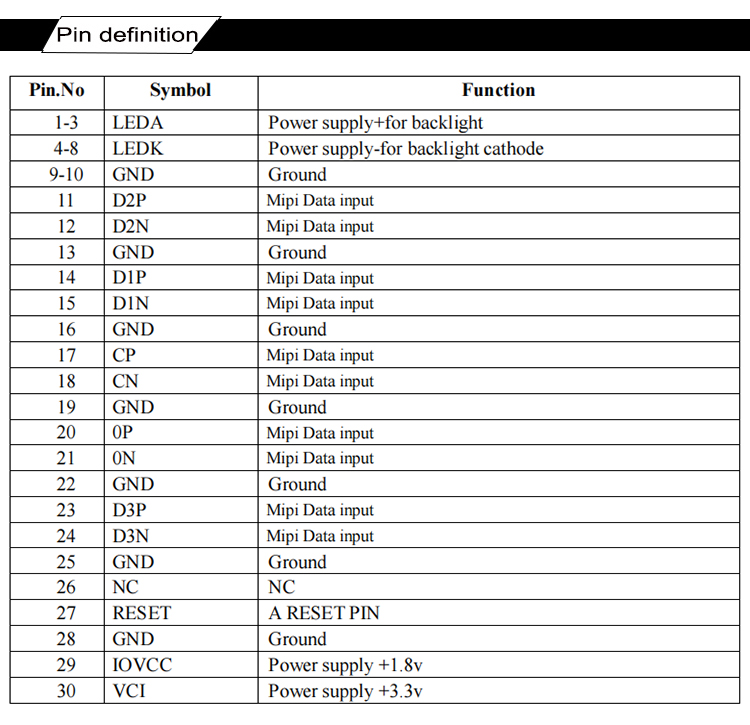

INTERFACE PIN FUNCTION

Key Features

- 4-inch round display, 720×720 full-circle resolution
- IPS panel with 1500 nits brightness — sunlight readable
- Built-in HDMI driver board, plug-and-play with HDMI sources
- Wide viewing angle, accurate color reproduction
- Compatible with Raspberry Pi and other HDMI mini-computers
- Compact, bezel-minimized round form factor
- Suitable for smart panels, gauges, kiosks & industrial control
- Custom touch panel, size, and OEM/ODM options available
