Please kindly contact us for full data sheet of the display.

DESCRIPTION

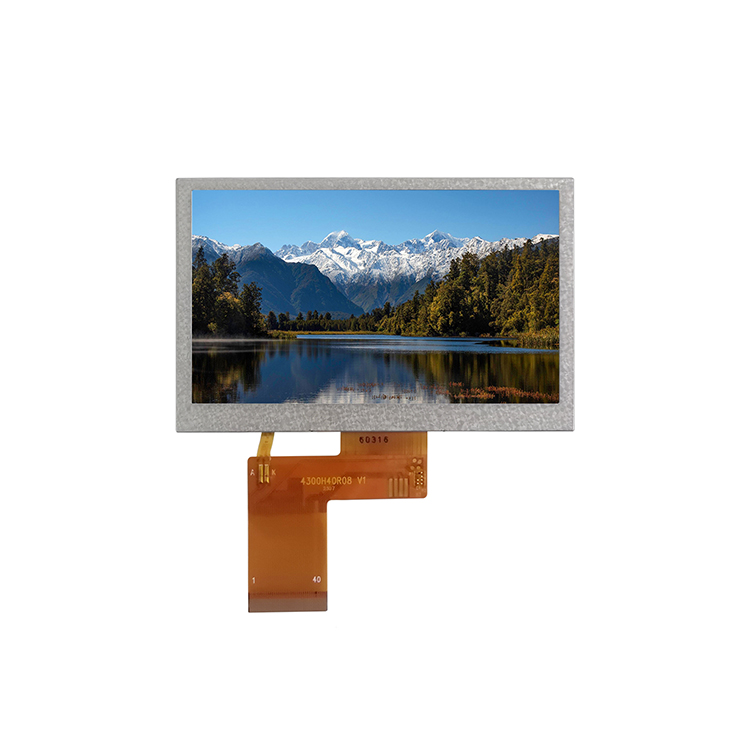

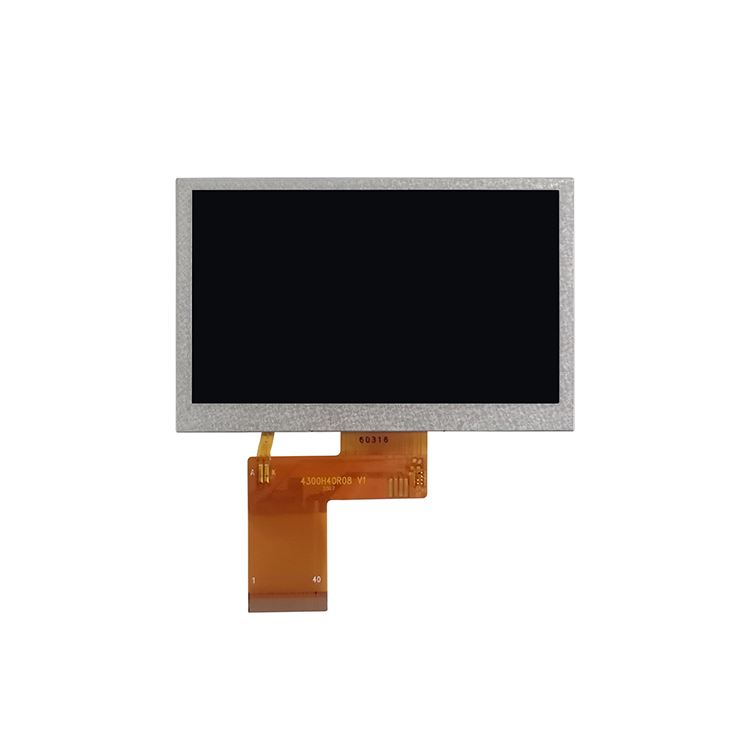

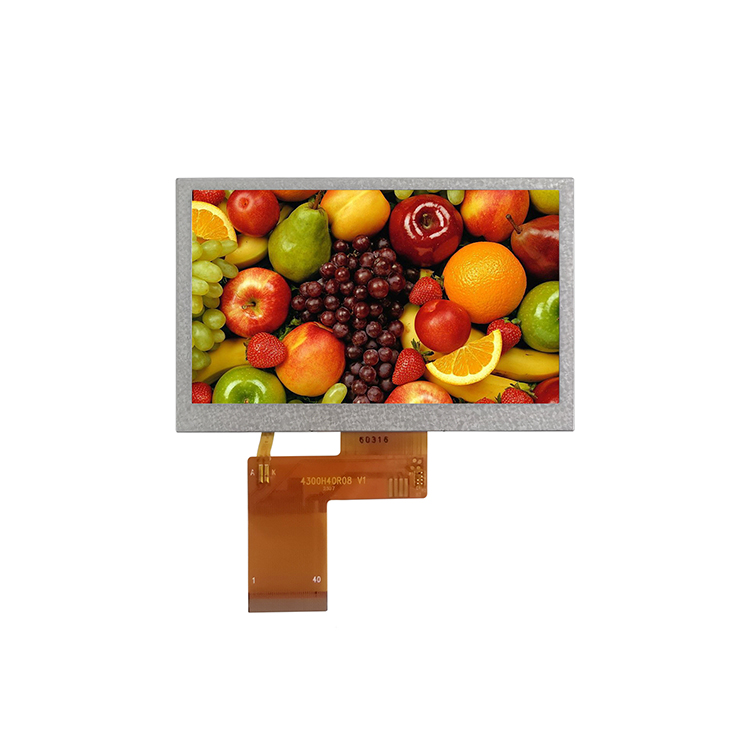

HICENDA HT-4300H40R08IPS-16D is a color active matrix LCD module incorporating
amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel,
driver IC, FPC and a back light unit. The module display area contains 480X272pixels. This
product accords with RoHS environmental criterion.

GENERAL SPECIFICATION

Display Type:	TFT display
Display Mode:	Passive Matrix
Model Number:	HT-4300H40R08IPS-16D
Diagonal Screen size:	4.3 inch
Interface:	Parallel RGB 24-Bit
Backlight:	10-LEDs (white)
Number of Pixels:	480(RGB)x272
Panel Size:	105.40x67.10x3.0(mm)
Driver IC:	ST7283
Active Area:	95.04x53.856(mm)
Display Mode:	Normally white/Transmissive
Pixel pitch:	0.1188(H)x0.1122(V) MM
Viewing direction:	ALL
Operating Temperature:	-20~70°

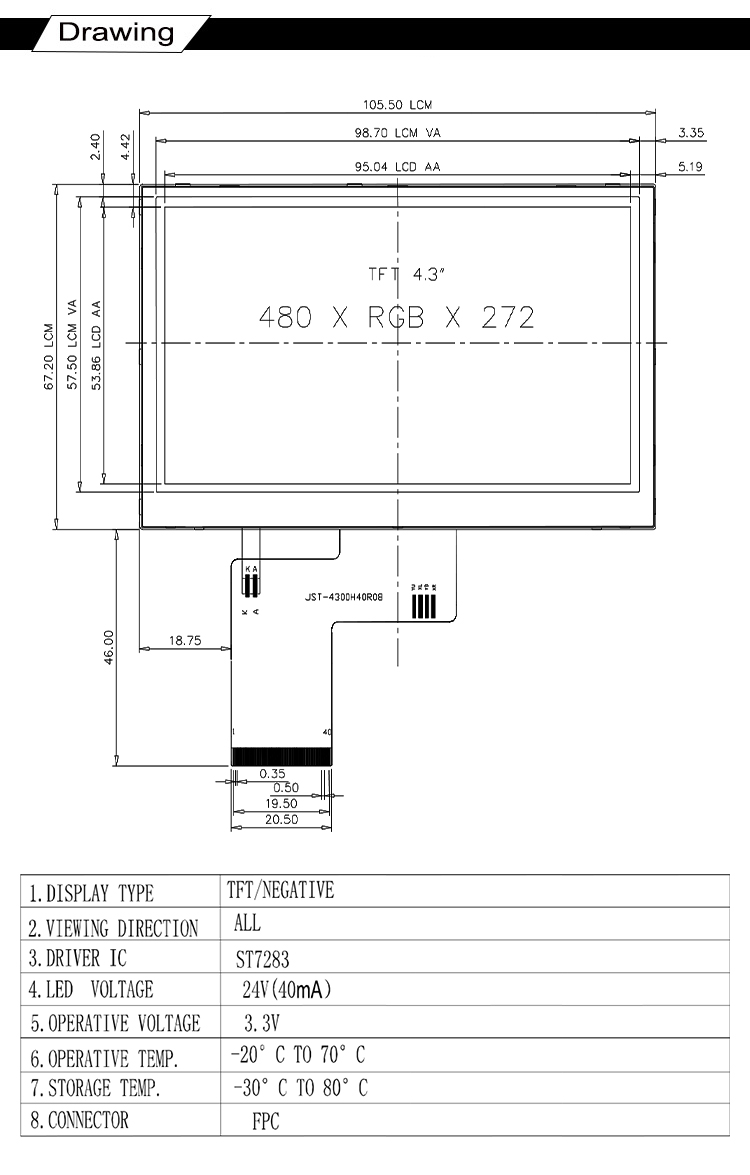

DRAWING

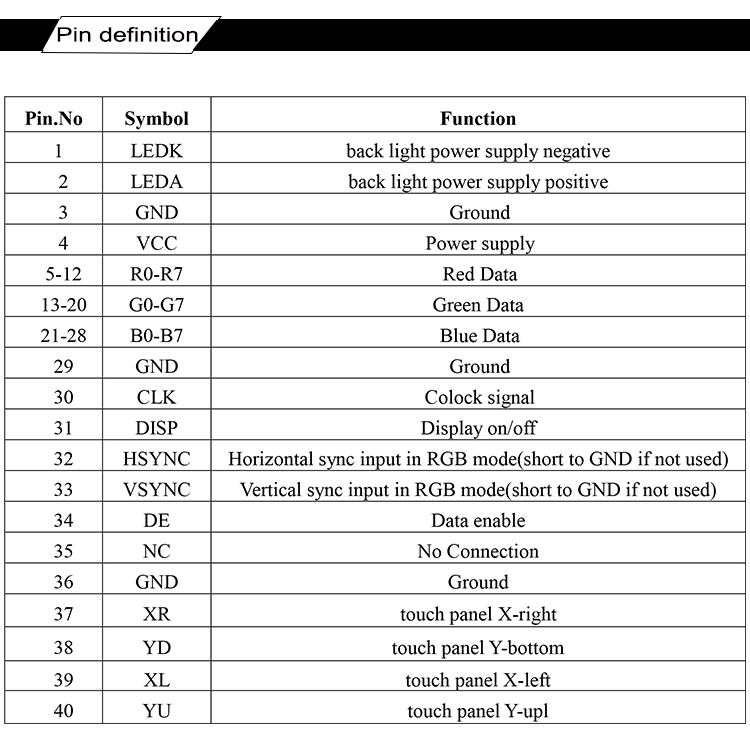

INTERFACE PIN FUNCTION
