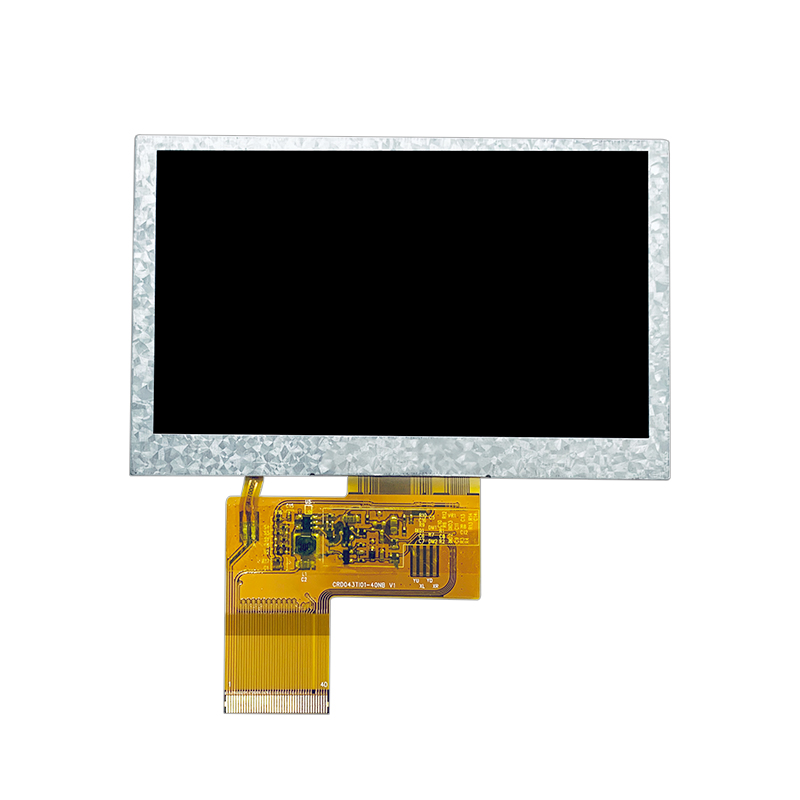

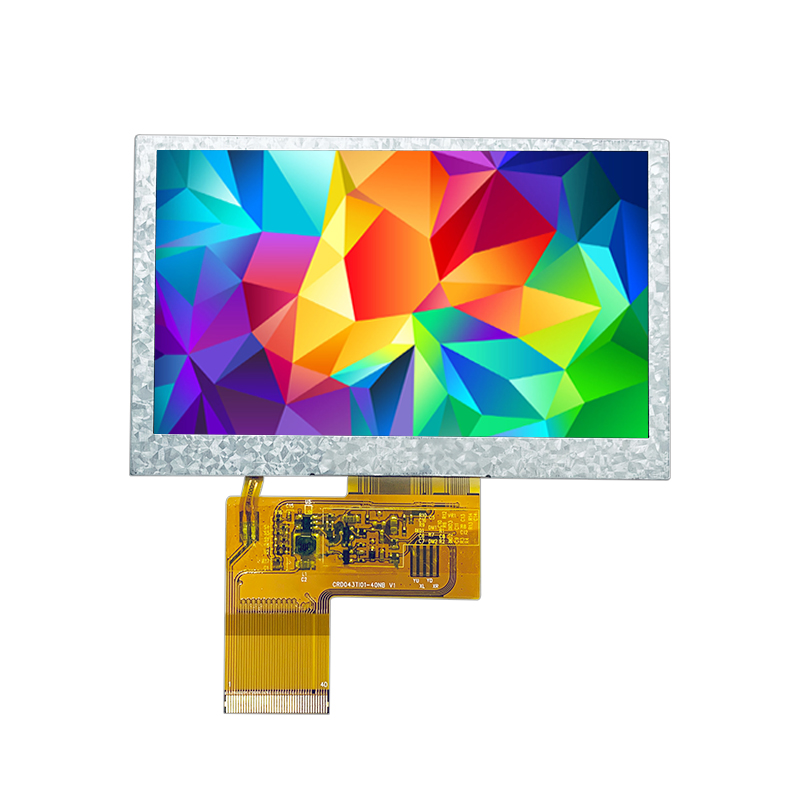

HD 4.3 inch TFT LCD display 480x800 square IPS ST7701 ic MIPI interface - 副本

  • Glass type:TFT—standard white
  • Size: 4.3
  • Resolution: 480*800
  • nterface:MIPI
  • Product description: Hicenda Technology Co.,ltd can supply high quality 4.3 inch small tft display for medical or industrial device.High brightness 480*800 dot matrix 4.3 Inch tft lcd monitor with MIPI 2LANE
  • INQUIRY


1. Display Specifications

  • LCD Size: 4.3inches
  • Dot Matrix Size: 480*800
  • Backlight Type :White LED backlight, 8 lights in parallel
  • Hardware Interface:MIPI
  • Driver IC:  ST7701
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  40Pin

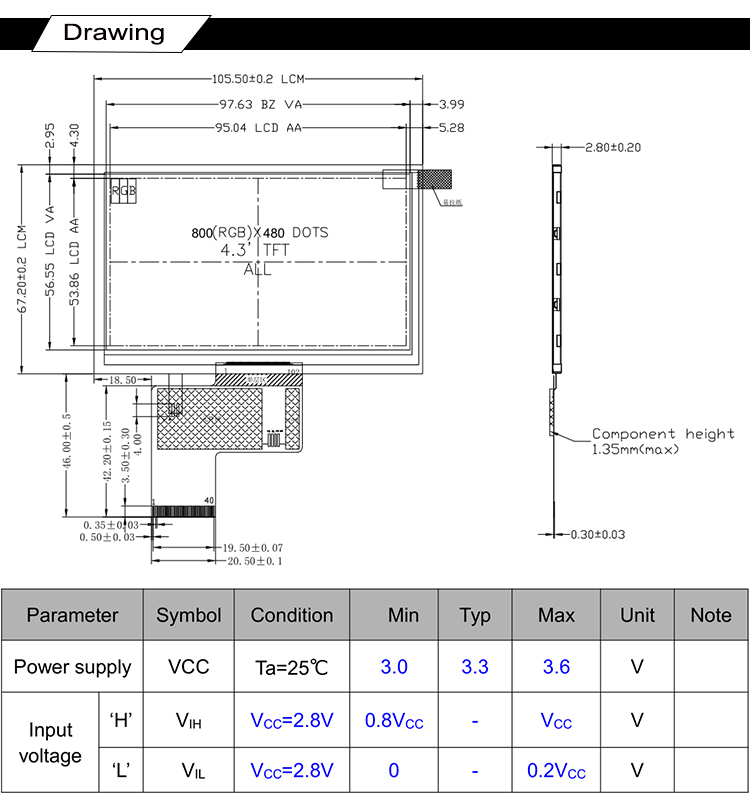

  • Display Area:51.84x86.31 mm
  • Size: 55.44(H)x96.2(V)x1.7(D)
  • Viewing Direction: ALL

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
