Please kindly contact us for full data sheet of the display.
DESCRIPTION

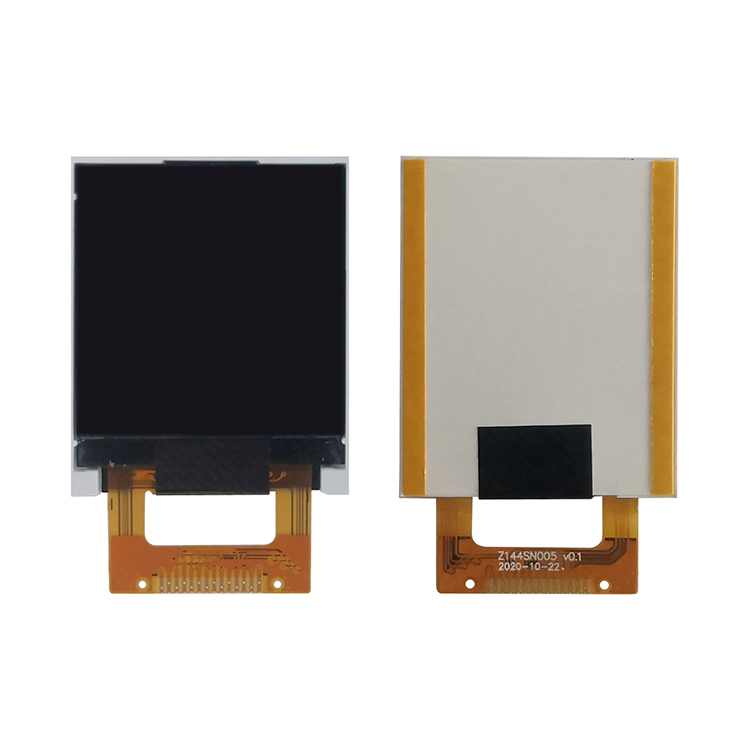

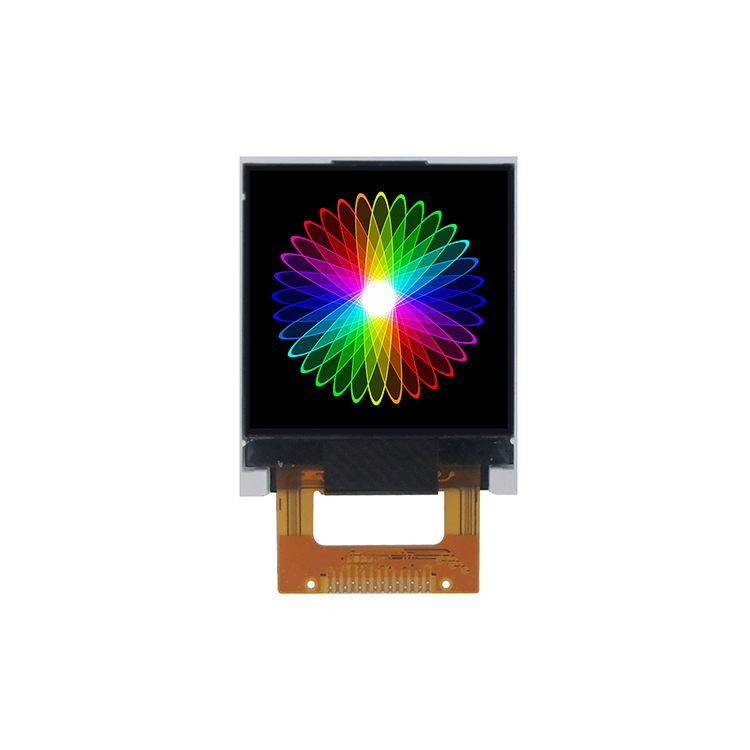

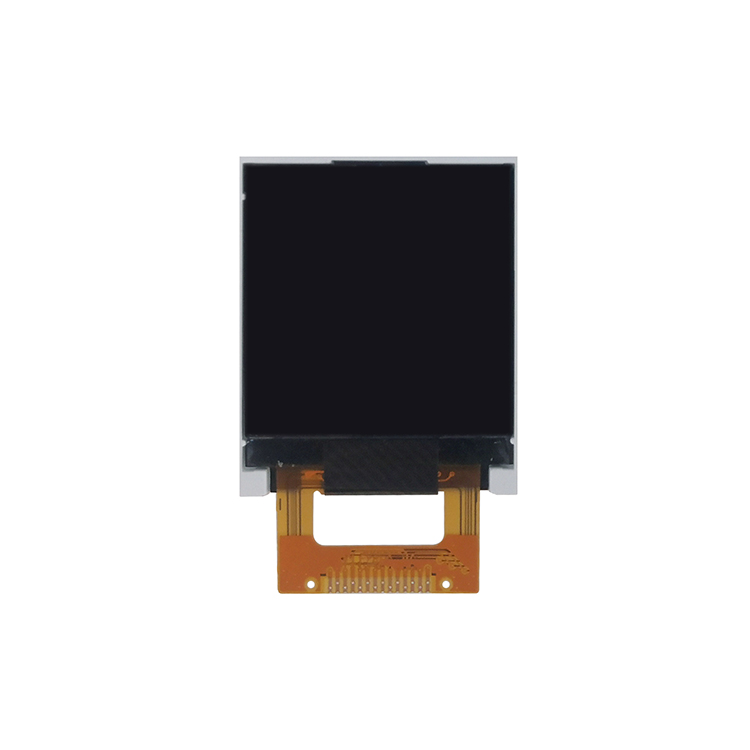

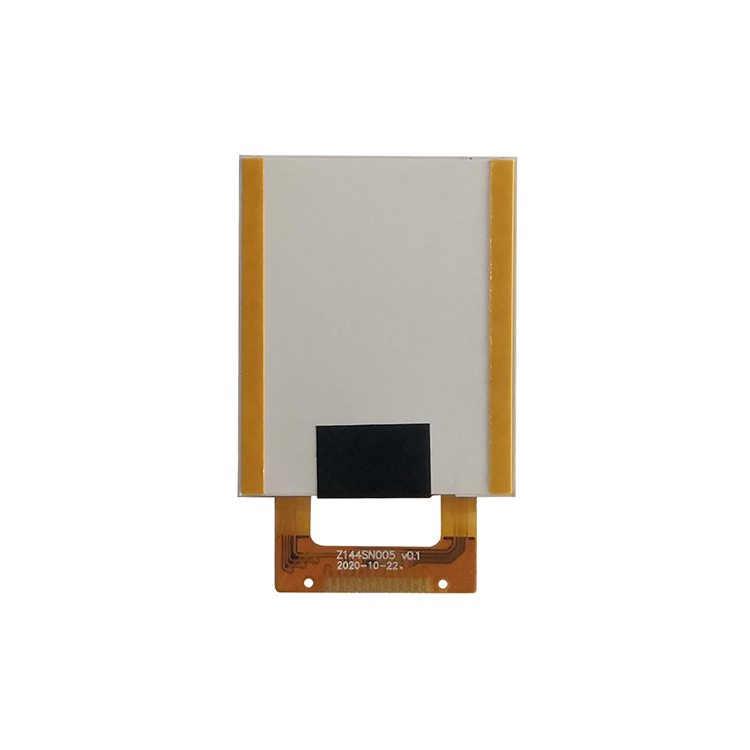

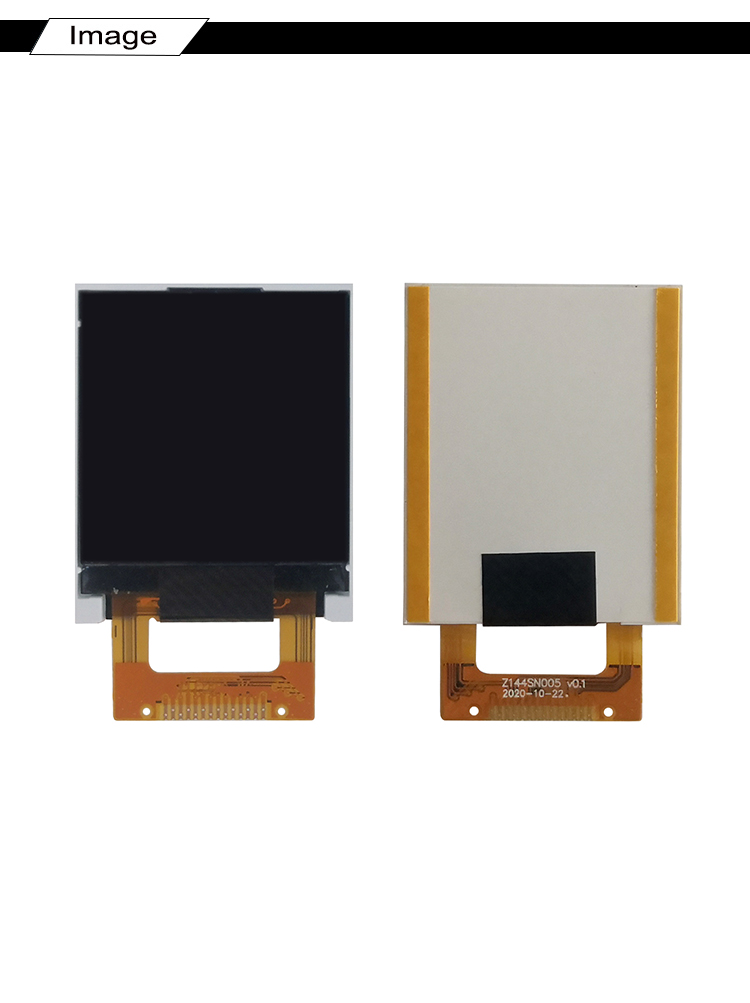

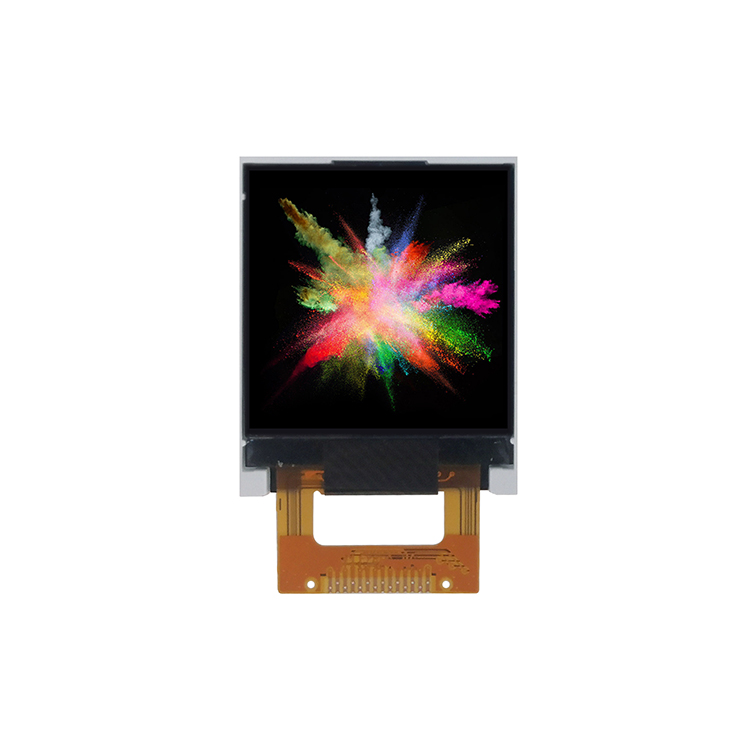

HICENDA 1.44" TFT is a 128RGB*128 dots matrix TFT LCD module. It has a TFT panel composed of
384sources and 128gates. The LCM can be easily accessed by micro-controller.
GENERAL SPECIFICATION
| Display Type: | TFT display |
| Display Mode: | color active matrix |
| Model Number: |
HT144SN005
|
| Diagonal Screen size: | 1.44 inch |
| Interface: |
SPI4 LINE SPI interface |
|
Luminance(cd/m2):
|
260 (TYP)
|
| Number of Pixels: |
128X128 |
| Panel Size: |
29.50(W)*36.50(H)*2.25+/-0.1(T)mm
|
| Driver IC: |
ST7735S |
| Active Area: |
25.50 (W)*26.50 (H)mm
|
| Pixel Pitch: |
0.20(W)*0.20(H)
|
|
Drive IC:
|
ST7735S
|
|
Weight: |
TBD |
|
Operating Temperature: |
-20~70° |
DRAWING

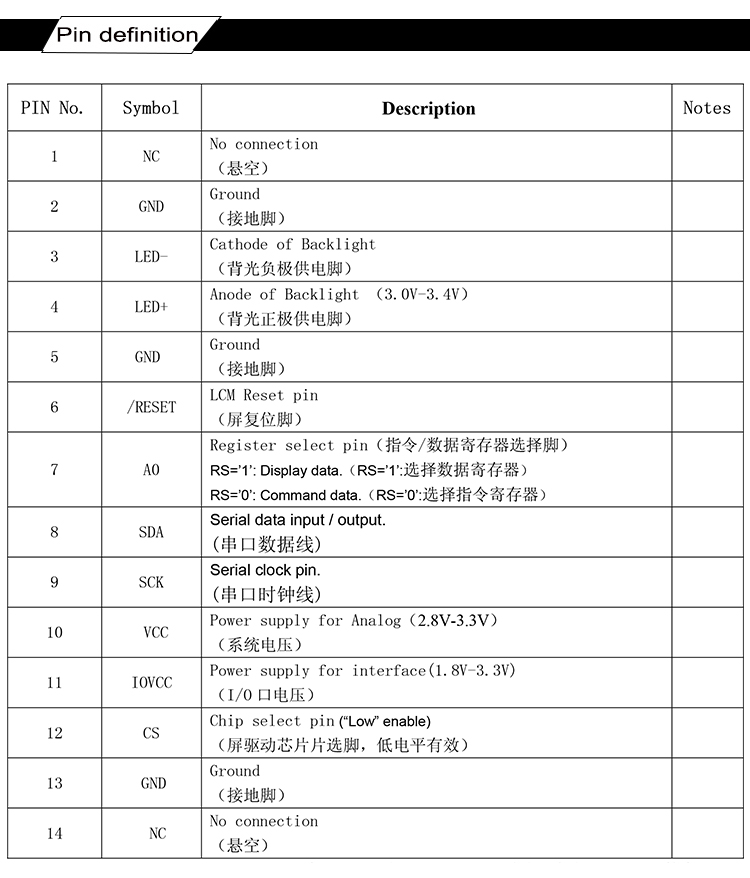

INTERFACE PIN FUNCTION
