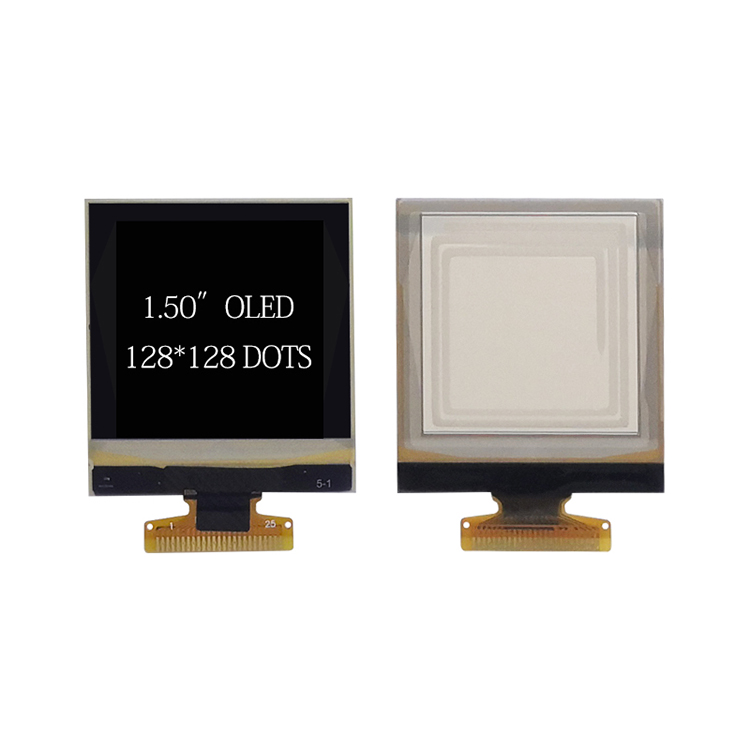

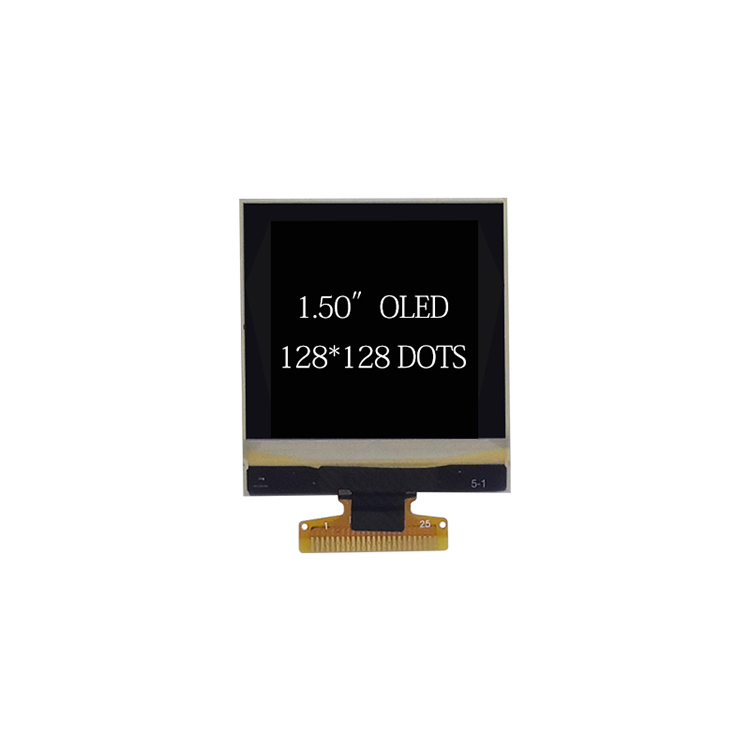

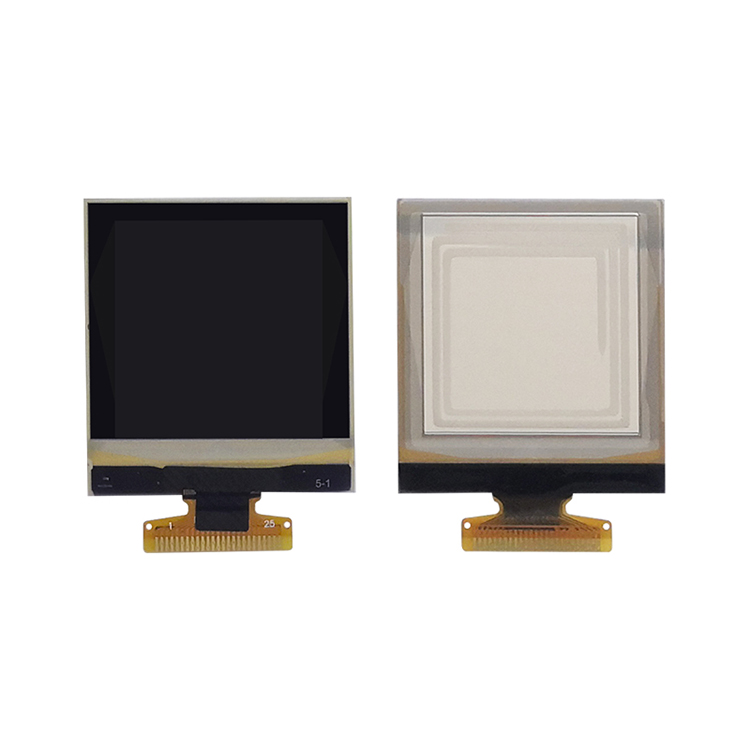

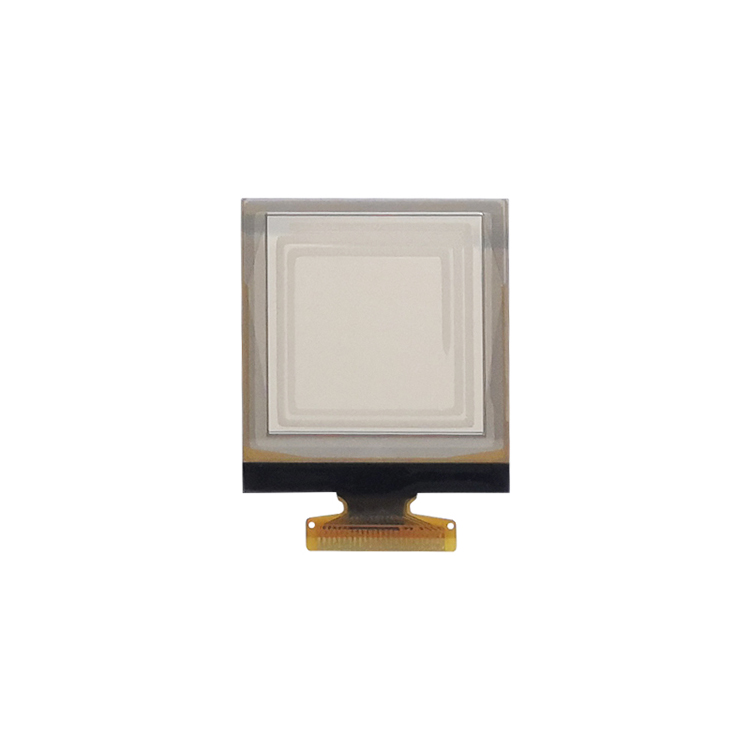

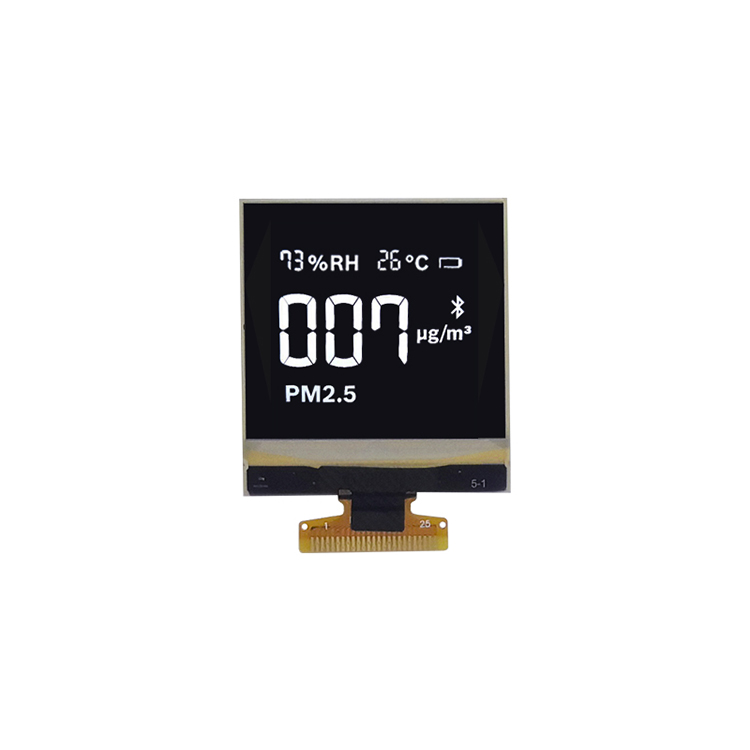

  • 1.5 inch mono OLED Display Module 128x128
  • 1.5 inch mono OLED Display Module 128x128
  • 1.5 inch mono OLED Display Module 128x128
  • 1.5 inch mono OLED Display Module 128x128
  • 1.5 inch mono OLED Display Module 128x128
  • 1.5 inch mono OLED Display Module 128x128
1.5 inch mono OLED Display Module 128x1281.5 inch mono OLED Display Module 128x1281.5 inch mono OLED Display Module 128x1281.5 inch mono OLED Display Module 128x1281.5 inch mono OLED Display Module 128x1281.5 inch mono OLED Display Module 128x128

1.5 inch mono OLED Display Module 128x128

  • Size: 1.5 OLED
  • Controller IC: SH1107
  • Resolution: 128*128
  • Interface: 8-bit 6800/8080-series/Serial Peripheral/I2C
  • Product description: 1.5 inch mono OLED Display Module 128x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.5 is a  passive matrix micro OLED display module which is made of 128x128 dots. It has the module dimension of 33.8 (W) x36.5(H)mm and Active Area size 26.86× 26.86 mm. This OLED micro display is built in with SH1107 IC, it supports  6800/8080/SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.5 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type: oled display  (White)
Display Mode: Passive Matrix
Model Number:

HT-15OLED2

Diagonal Screen size: 1.5 inch
Interface:

8-bit 6800/8080-series/Serial Peripheral/I2C 25P (Soldering)

Drive Duty:

1/64 Duty

Number of Pixels:

128x128

Panel Size

33.8 × 36.5× 1.41 (mm)

Driver IC:

SH1107

Active Area:

22.86× 22.86 (mm)

Pixel Pitch:

0.21 x 0.21(mm)

Pixel Size:

0.19 x 0.19 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°


DRAWING







INTERFACE PIN FUNCTION
