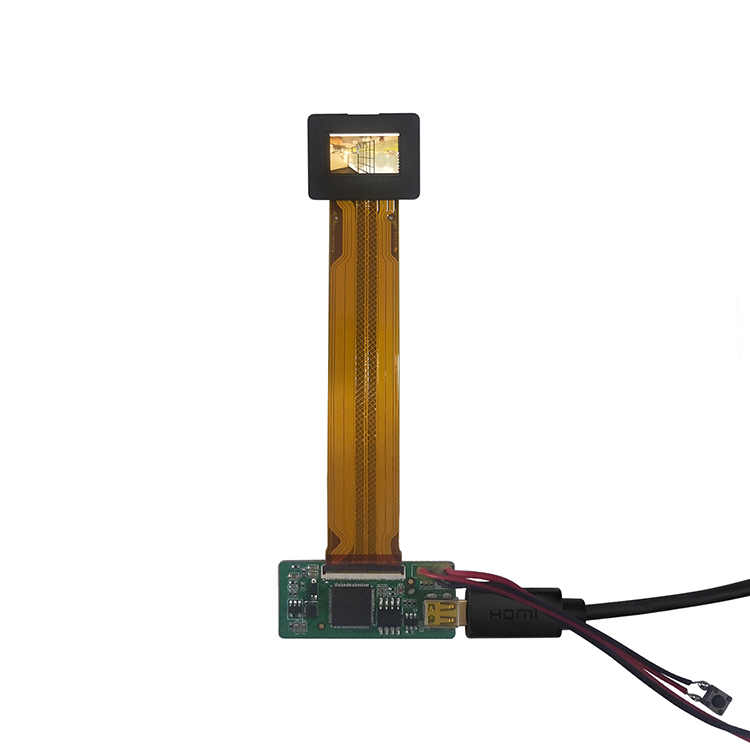

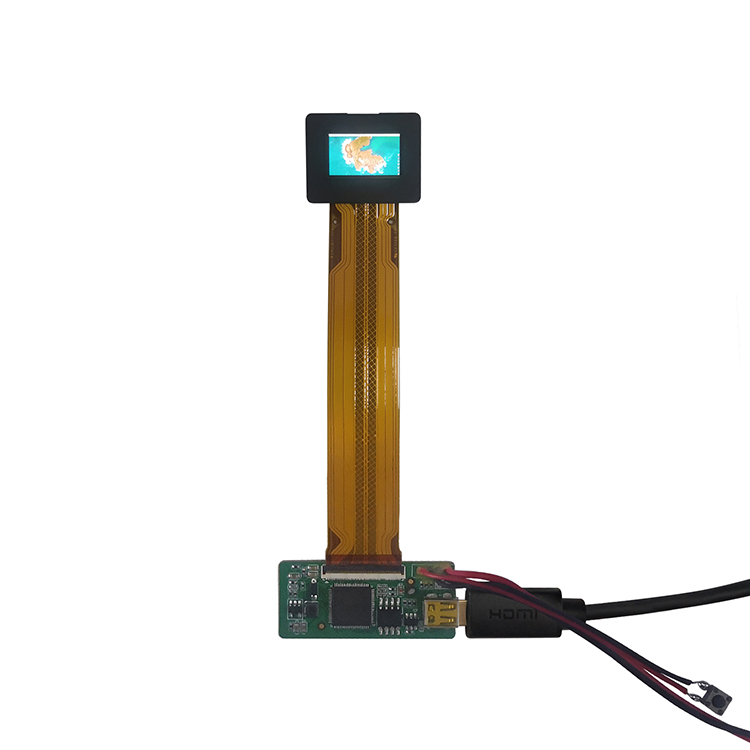

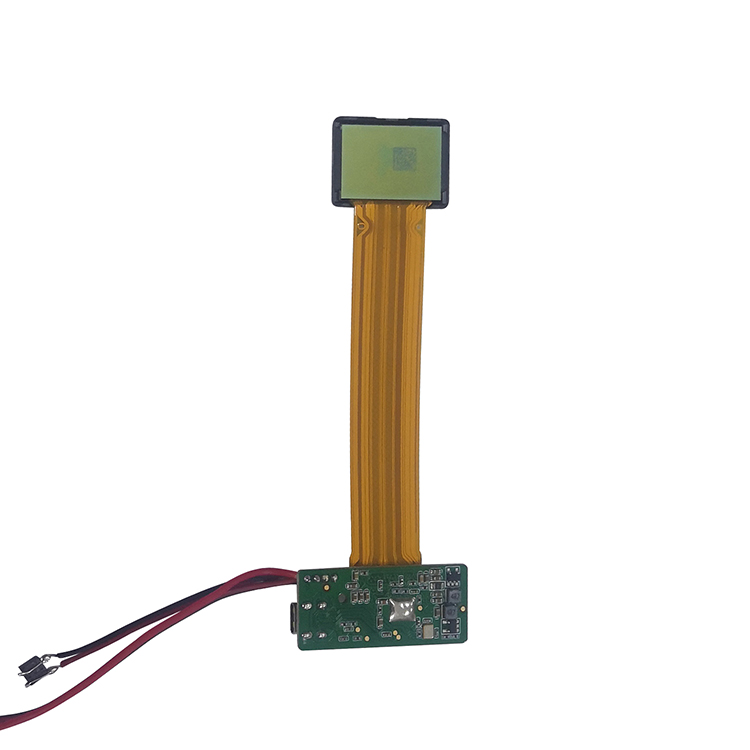

0.71 inch Micro AMOLED display,1920(RGB)X1080


DESCRIPTION

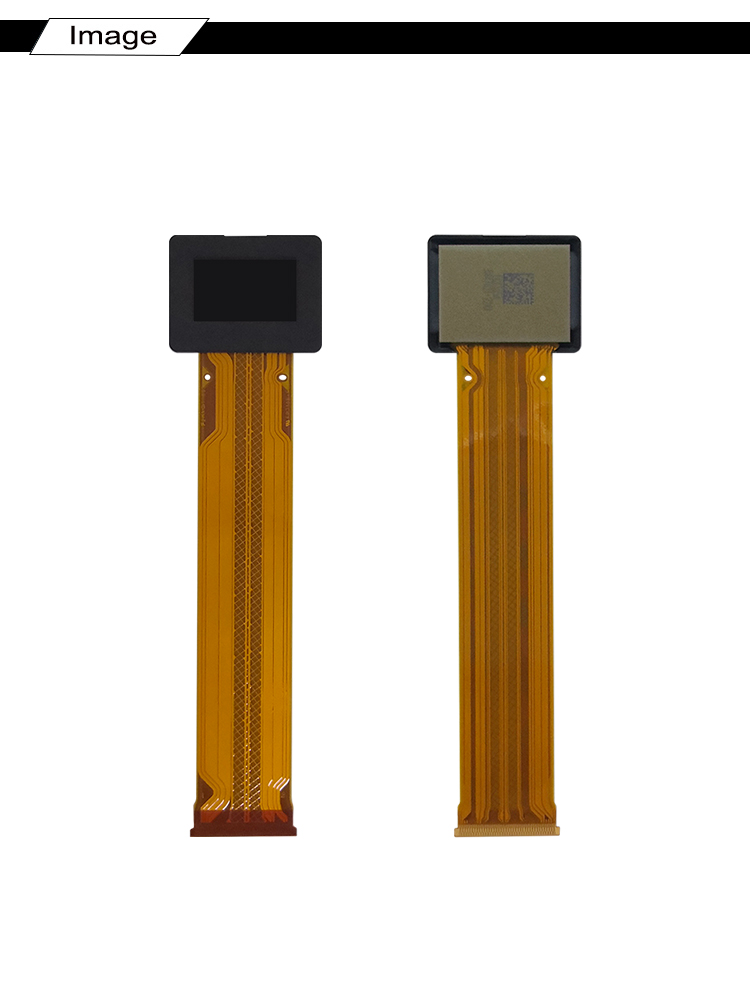

The HAECX335AF is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

(Applications: View finders, head mounted displays, very small monitors etc.)

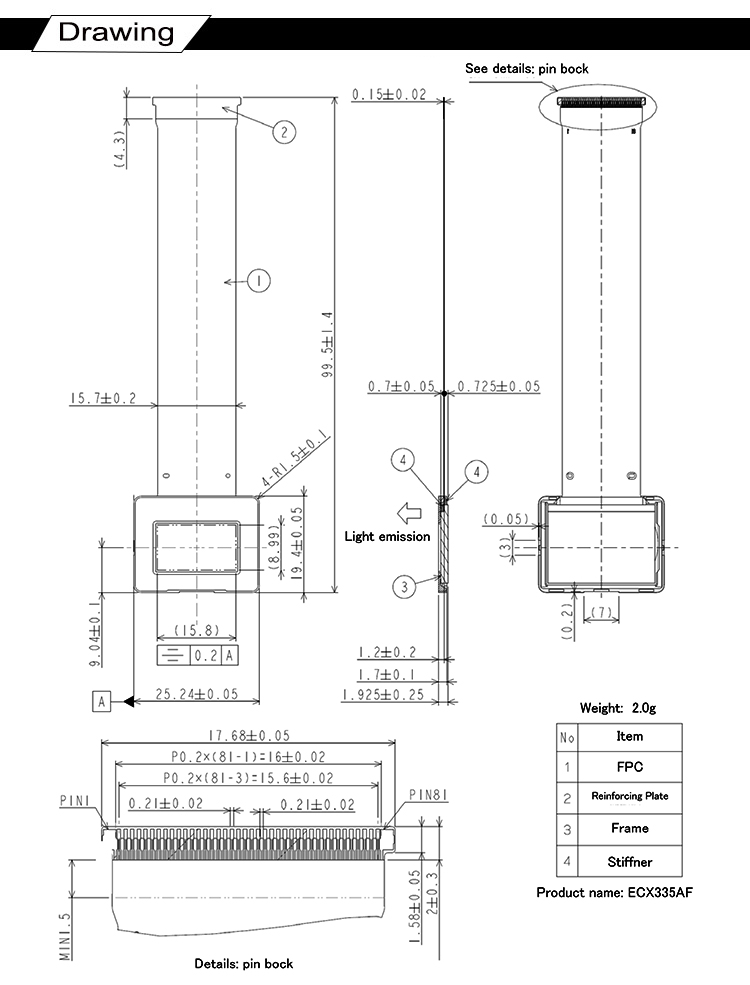

DRAWING


SPECIFICATIONS

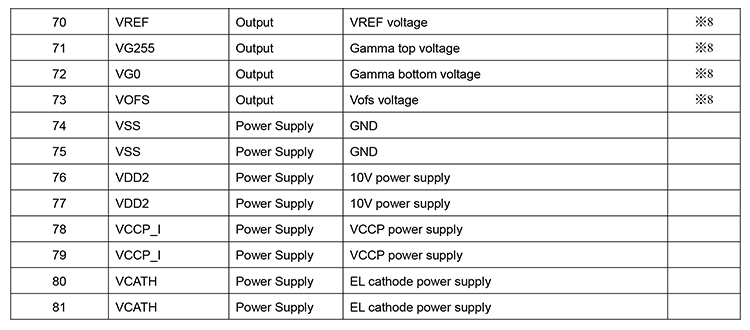

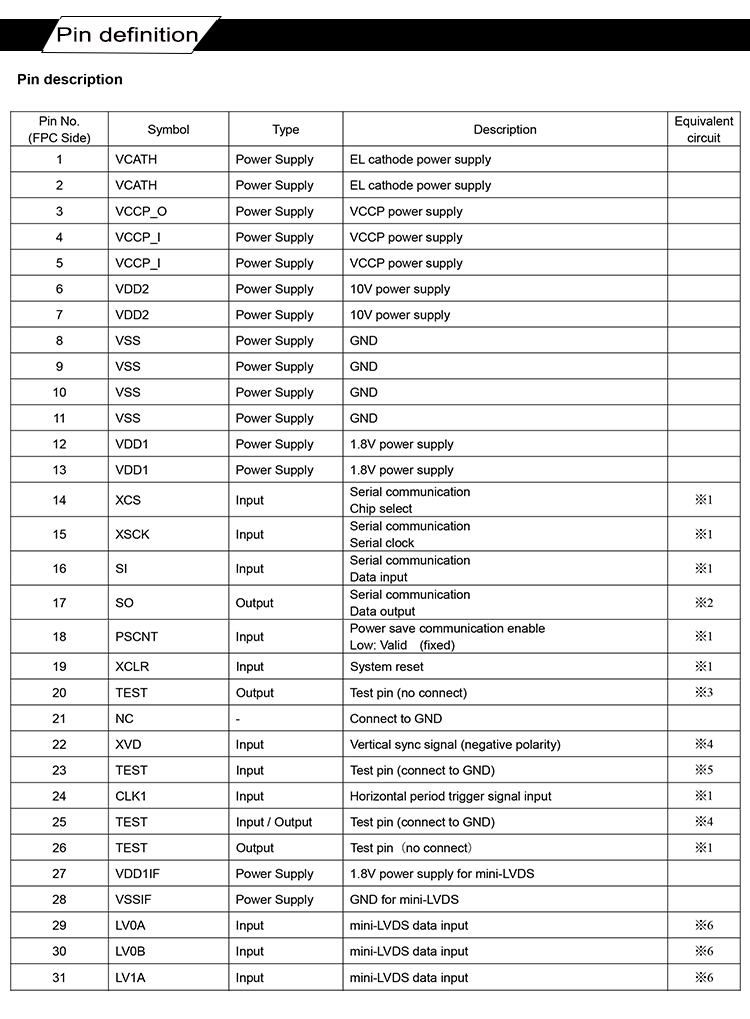

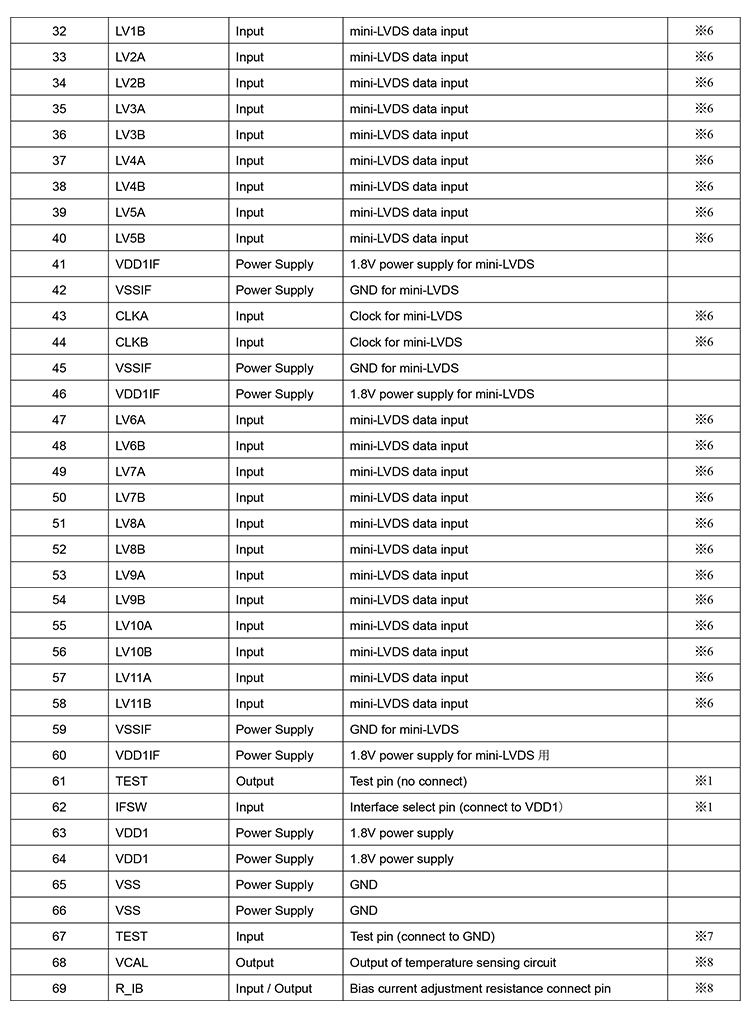

Interface Pin Function




General Specification



Display Type AM-OLED, OLED Display Brand SONY
Interface Screen Size 0.71
Orientation Landscape Display Color Full Color
Manufacturer SONY Resolution

1920 (RGB

)×1080

Driver IC
15.80(H) × 8.99(V)
Bezel Area(mm) -
Luminance 1500 cd/m² (Typ.) Viewing Angle -55。~55。
Color Depth 16.7M 100% Mass -
Refresh Rate - Signal Type

RGB

Voltage Supply - Operating Temp -30 ~ 70 °C
Storage Temp -40 ~ 85 °C Aspect Ratio 16:9 (H:V)
Mode Name HAECX335AF
Screen Type AM-OLED/OLED
Arrangement - Outline(mm) -
Treatment - Response -
Work Mode - Backlight No B/L
Used For AR Glass/Telescope/Gunsight/Thermal imager Touch Panel none
Contrast Ratio >100,000 : 1 Outdoor Visibility

Sunlight

readable




Absolute Maximum Ratings



Electrical Characteristics
