1. Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/64 Duty
4) Wide viewing angel: 12 o'clock
5) Brightness: 150 cd/m2
6) Dark Room Contrast: >2000:1
7) Sleep Mode Current for VCC: 1uA

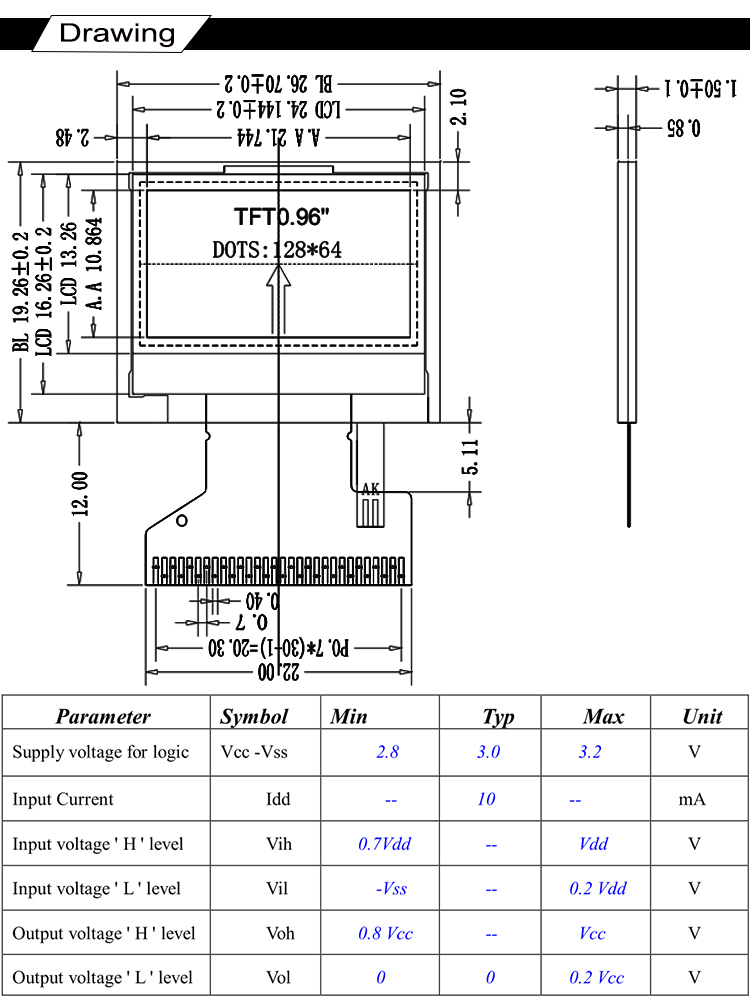

2. Mechanical Specifications
| Display Type: | tft display |
| Display Mode: | Passive Matrix |
| Model Number: |
QT096A3001 |
| Diagonal Screen size: | 0.96 inch |
| Interface: |
4-wire SPI |
| Drive Duty: |
1/64 Duty |
| Number of Pixels: |
128x64 |
| Panel Size: |
26.70 × 19.26 × 1.5 (mm) |
| Driver IC: |
ST7735 |
| Active Area: |
21.744 × 10.864 (mm) |
| Pixel Pitch: |
0.17 x 0.17(mm) |
| Pixel Size: |
0.154 x 0.154 (mm) |
|
Weight: |
1.54 (g) |
|
Operating Temperature: |
-40~85° |
