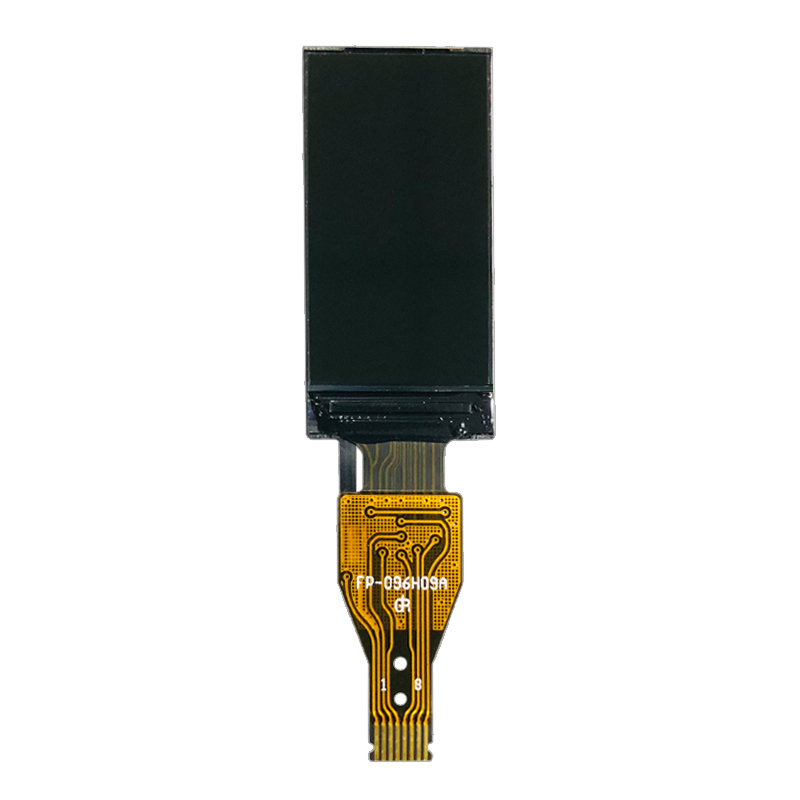

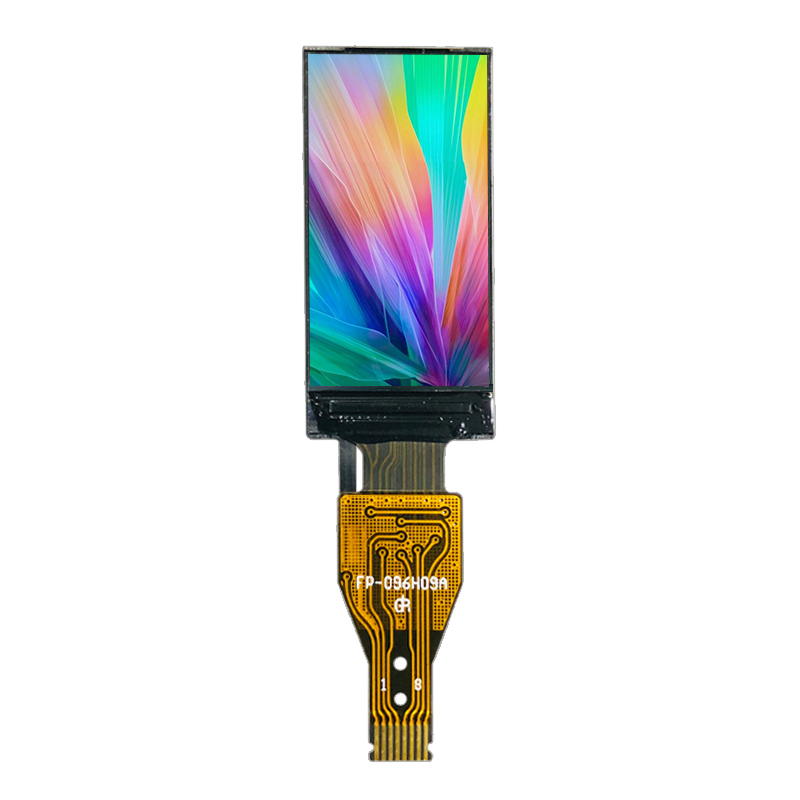

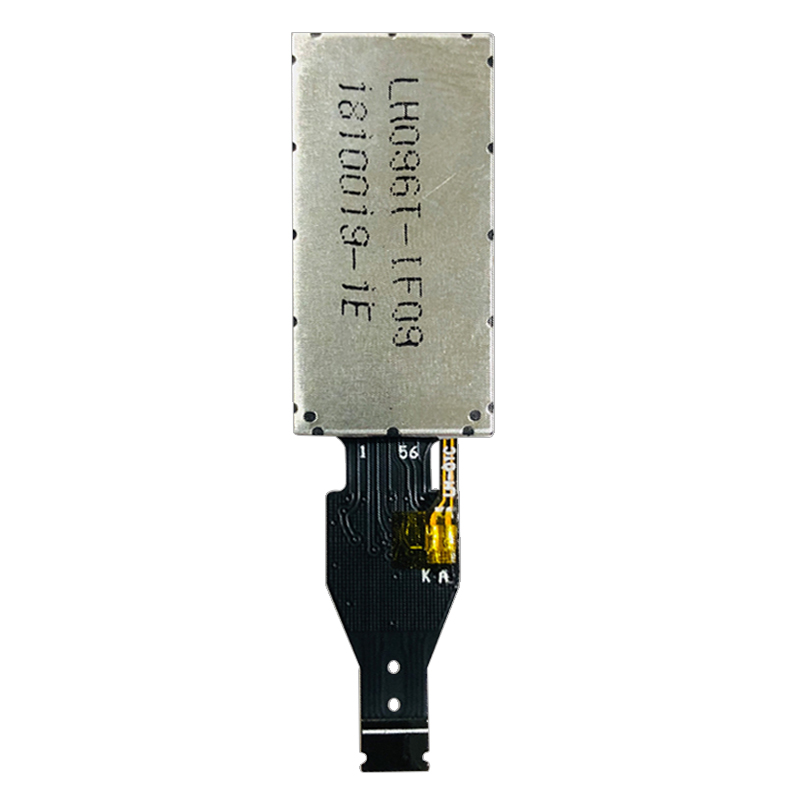

  • 0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices
  • 0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices
  • 0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices
0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices

0.96 inch customized 128*64 tft lcd display, SPI display module ST7735 0.96 inch tft lcd for mini devices

  • Price: $1.89-$2.59
  • Size: 0.96
  • Resolution: 160*80
  • Interface: SPI
  • Product description: Hicenda Technology Co., Ltd can supply 0.96" inch tft Display multicolour 128*64 SPI Driver Chip ST7735,80x160 Tft Lcd 0.96 Tft Spi 8pin tft display,tft lcd display module from Shenzhen hecenda.
  • INQUIRY

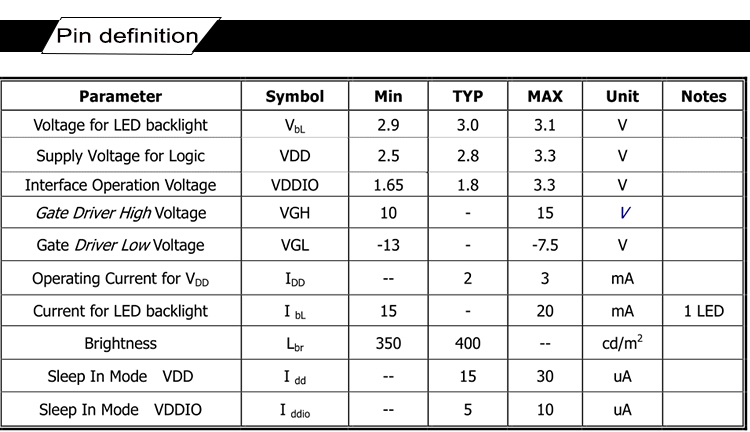

1. Display Specifications

1) Display Mode: Normally black
2) Luminance(cd/m2) : 400 (TYP)
3)Interface : 4 Line SPI

4) Wide viewing angel: All View

5) Backlight: 1 White LED

6) Operating Temp.: -20℃~ + 70℃

7) Storage Temp:-30℃~+ 80℃

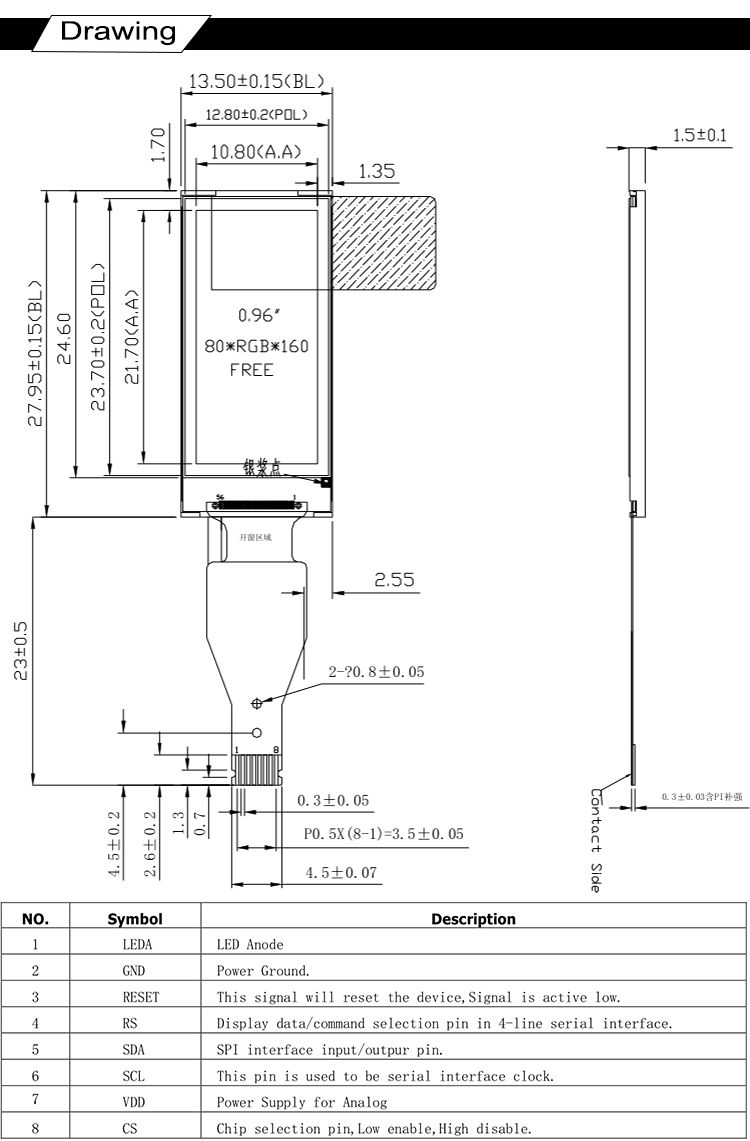

2. Mechanical Specifications


Display Type: LCD TFT
Display Mode: Normally black
Model Number:

HT096-0B

Diagonal Screen size: 0.96 inch
Interface:

4-wire SPI

Drive Duty:

1/64 Duty

Number of Pixels:

80*160

Panel Size:

13.5× 27.95 × 1.5 (mm)

Driver IC:

ST7735

Active Area:

10.8 × 21.7 (mm)

Pixel Pitch:

0.135(H) x 0.1356(V) mm

Pixel Size:

80*160 (mm)

Weight:

1.1  (g)

Operating Temperature:

-20℃~ + 70℃
