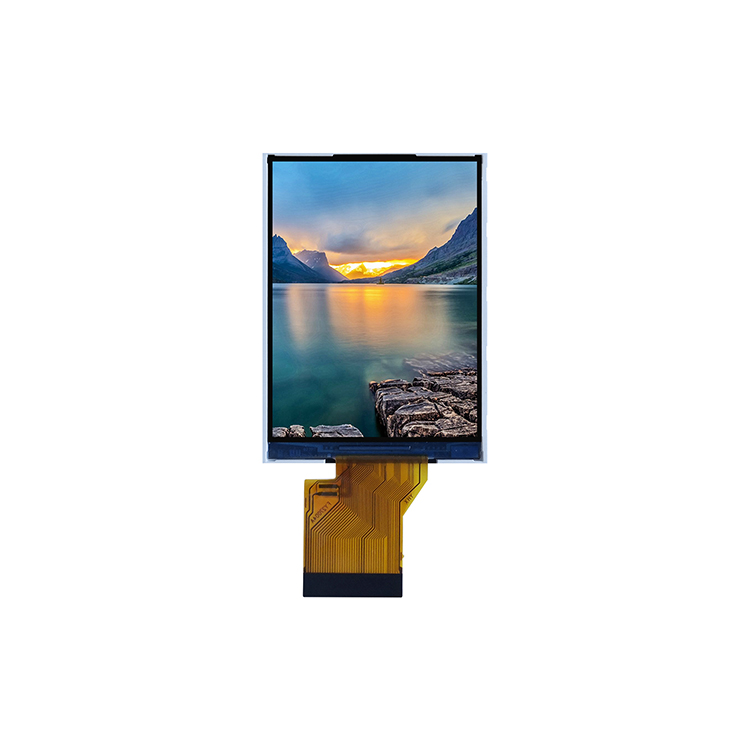

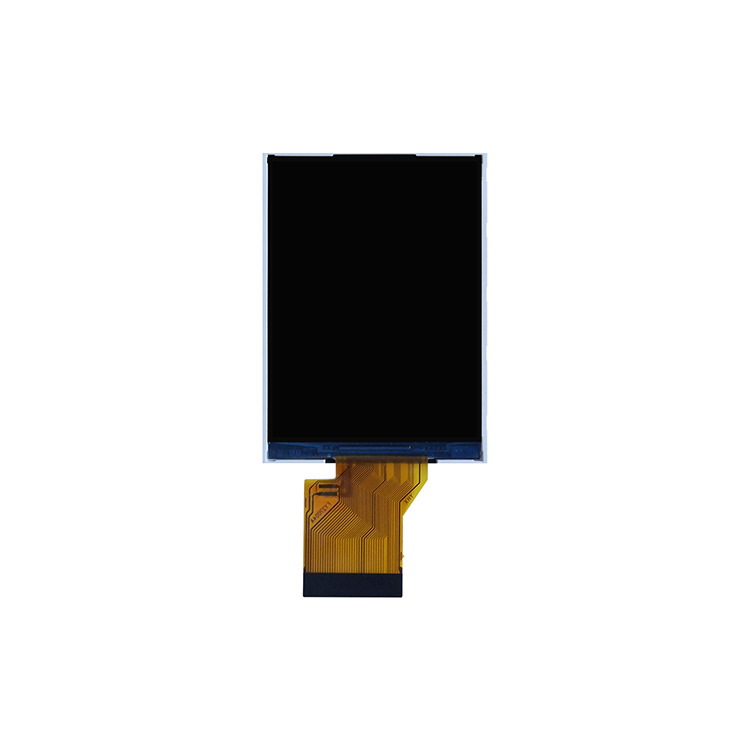

2.7 Inch TFT LCD Display,960(RGB)x240

  • Size: 0.68 OLED
  • Controller IC: ILI8961
  • Resolution: 960(RGB)x240
  • Interface: RGB
  • Product description: 2.7 Inch TFT LCD Display,960(RGB)x240
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 2.7 is a TFT Display, the model HT27004A is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 2.7 inch diagonally measured active display area with (960 horizontal by 1920 vertical pixel) resolution




GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:

HT27004A

Diagonal Screen size: 2.7 inch
Interface:  RGB
Backlight:

White LED x2

Number of Pixels:

960X240

Panel Size:

46.60(W) × 63.50 (H) × 2.35(T) (mm)

Driver IC:

 ILI8961

Active Area:

40.50 × 54.00 (mm)

Pixel Pitch:

0.054 * 0.054 (mm)

Pixel Size:

0.162 × 0.162 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

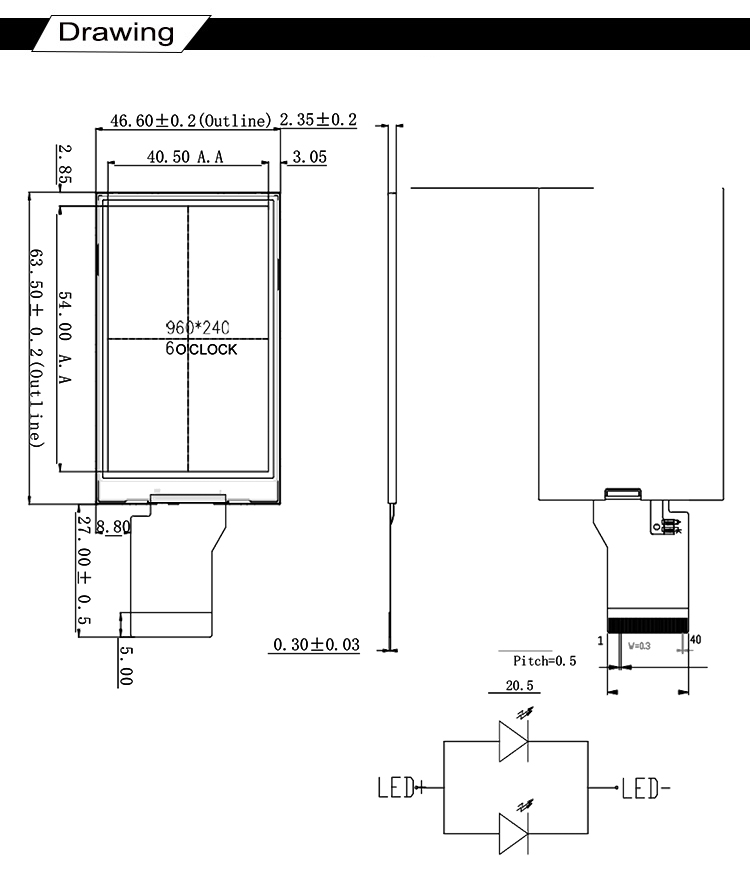

DRAWING

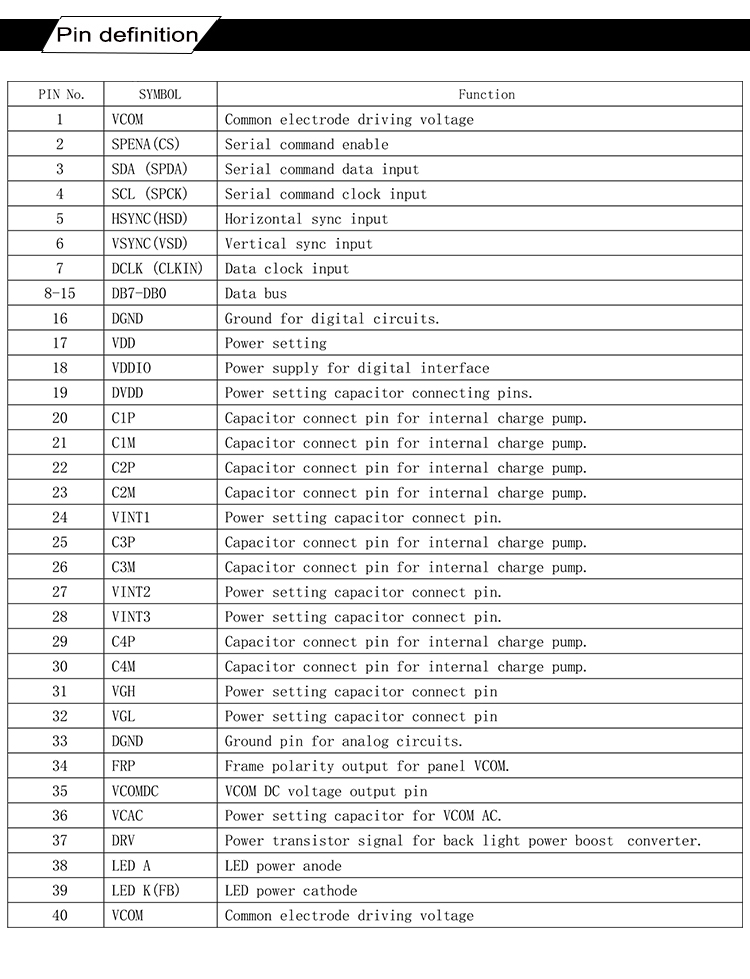

INTERFACE PIN FUNCTION
