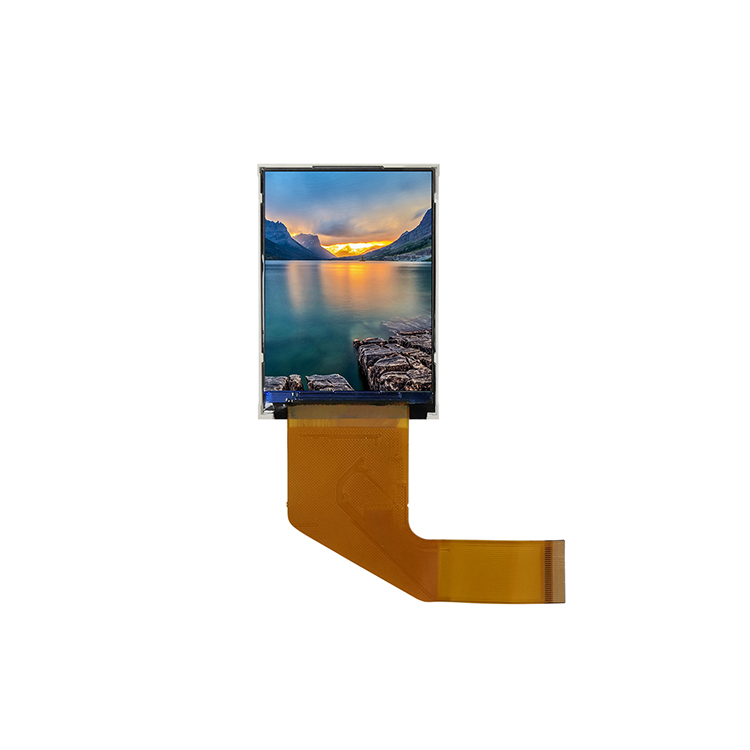

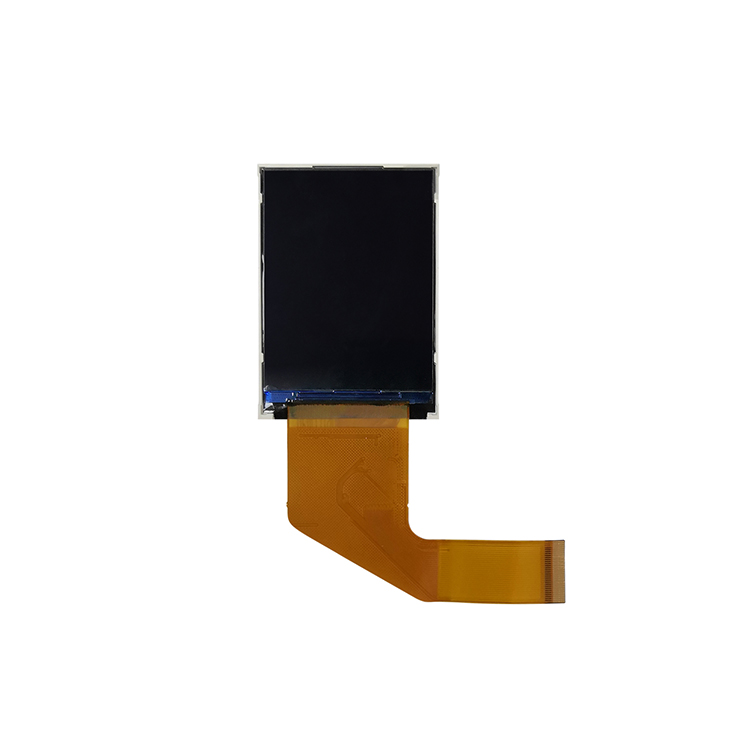

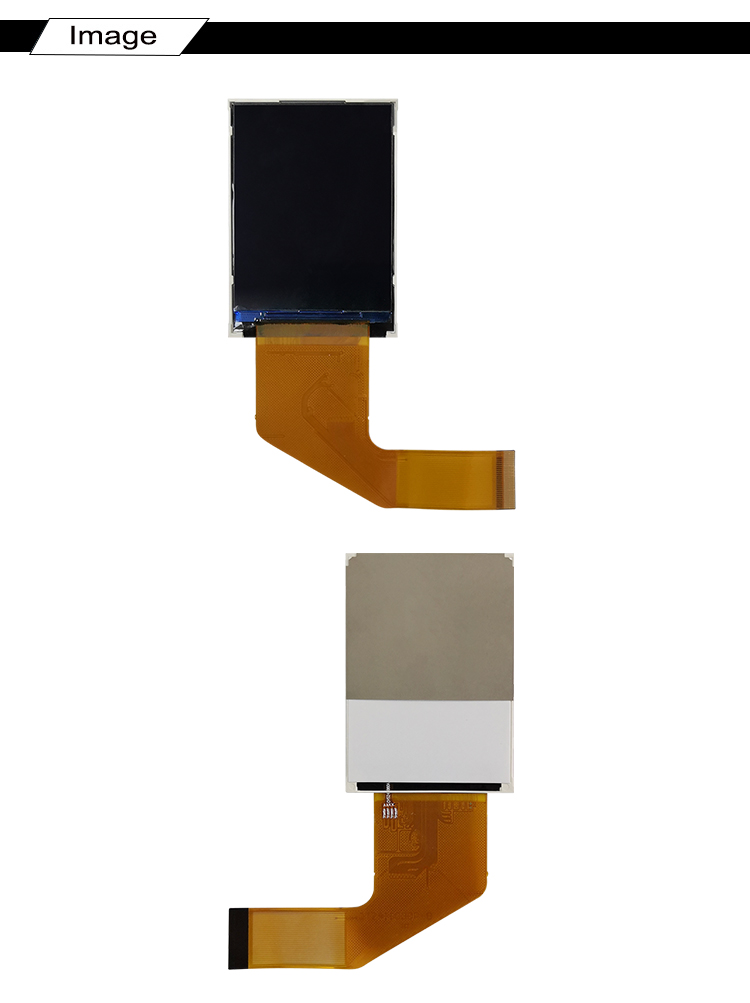

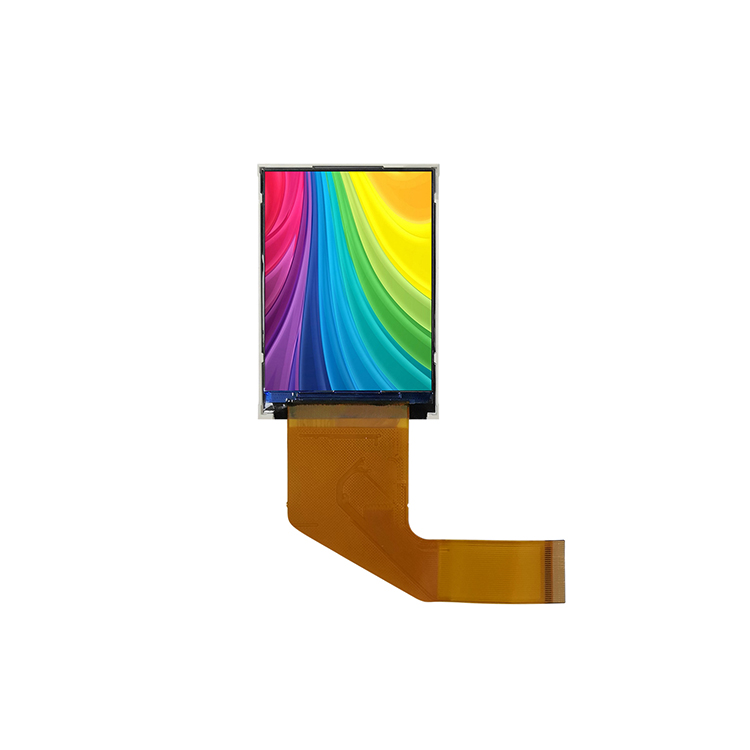

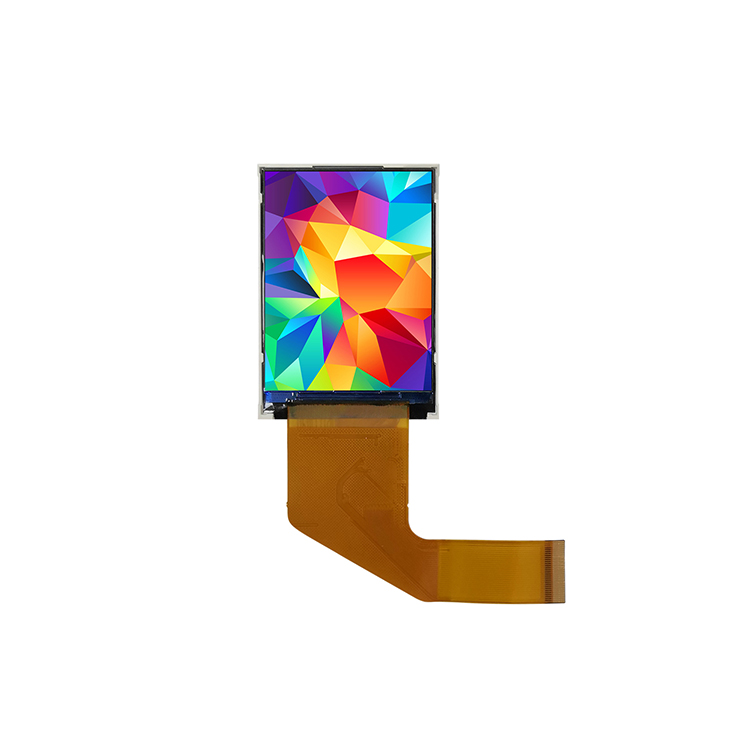

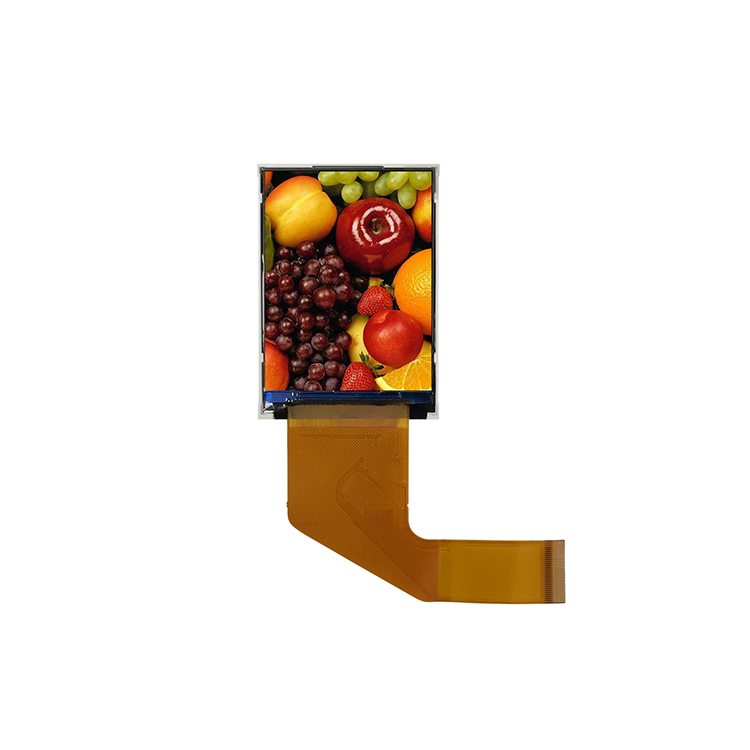

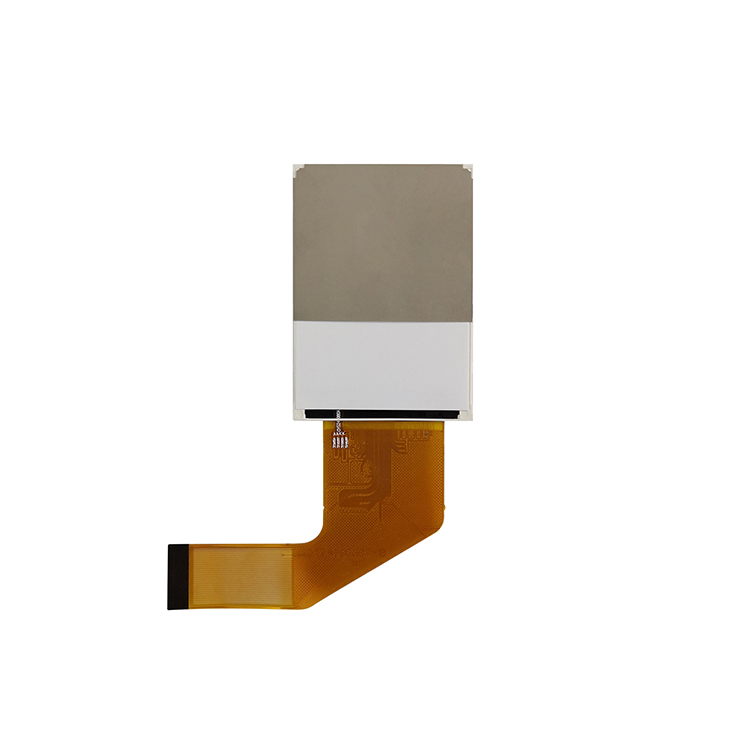

2.41 Inch TFT LCD Display,480(RGB)x640

  • Size: 2.41 TFT
  • Controller IC:7701S
  • Resolution:480(RGB)x640
  • Interface: RGB
  • Product description: 2.41 Inch TFT LCD Display,480(RGB)x640
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 2.41 is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 2.41 inch diagonally measured active display area with (480 by 640 pixel) resolution




GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
Diagonal Screen size: 2.41 inch
Interface: RGB
Backlight:

4 Chip White LED
Number of Pixels:

480(RGB)x640

Panel Size:

60.26(W) ×42.72 (H) × 2.3(T) (mm)
Driver IC:

ILI8961ILI9341V

Active Area:

40.50 × 54.00 (mm)
Pixel Pitch:

0.054 * 0.054 (mm)
Pixel Size:

0.162 × 0.162 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°



DRAWING

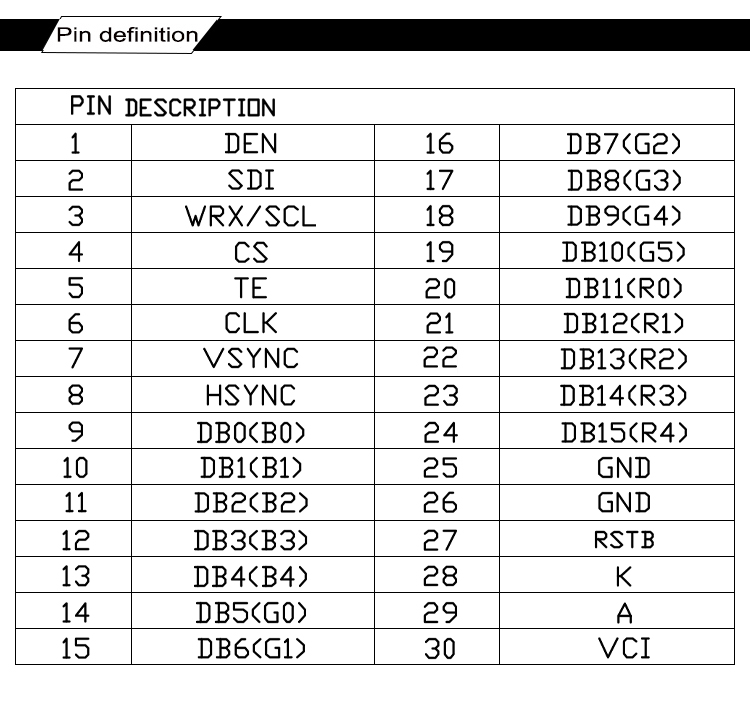

INTERFACE PIN FUNCTION
