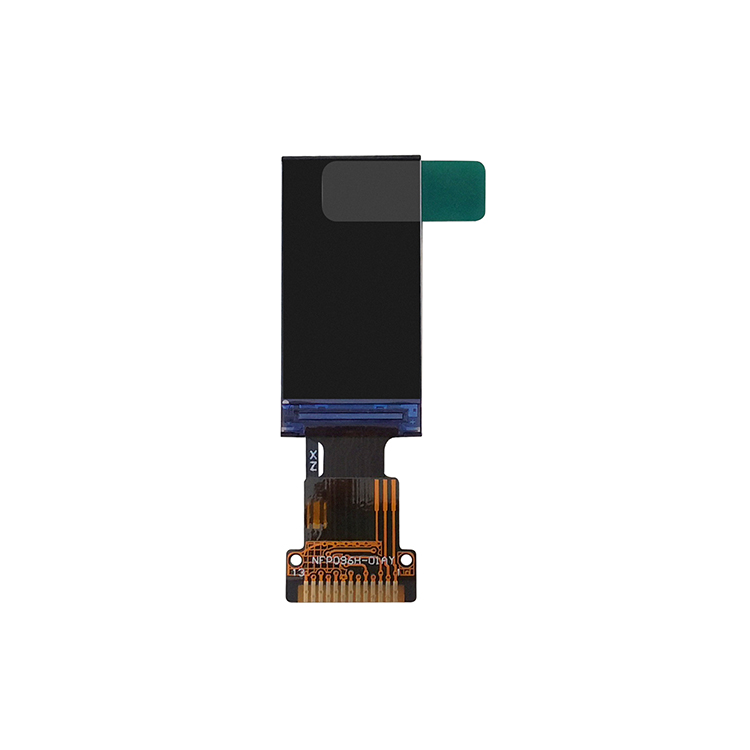

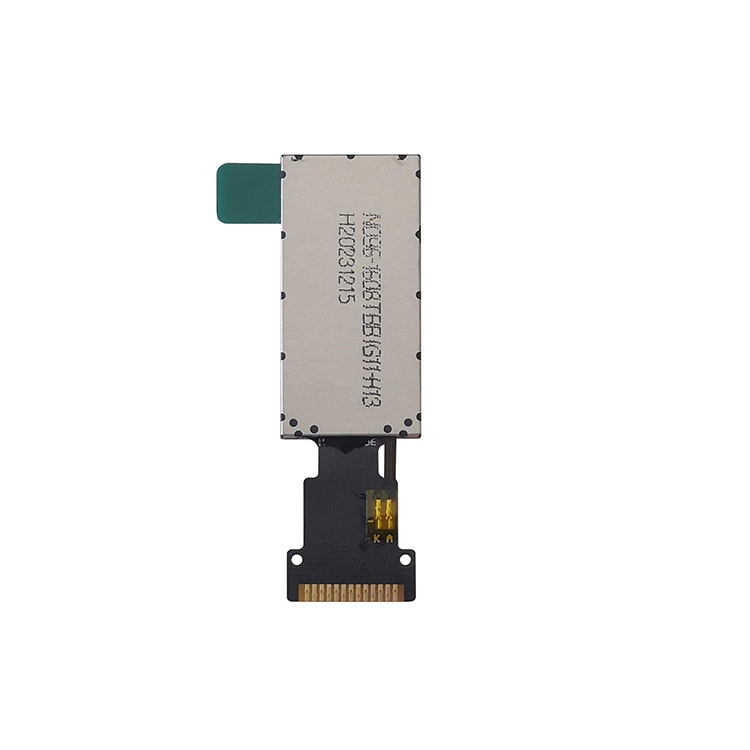

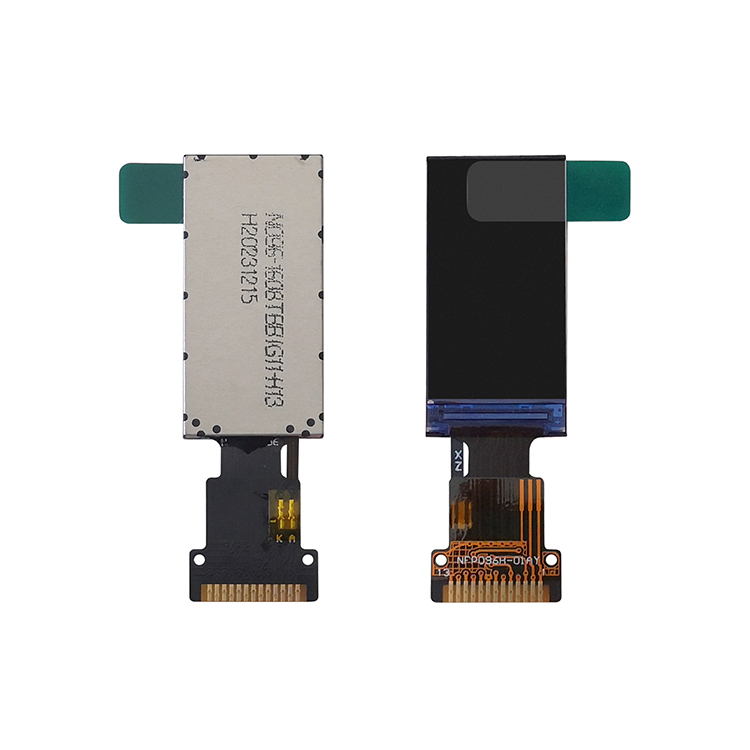

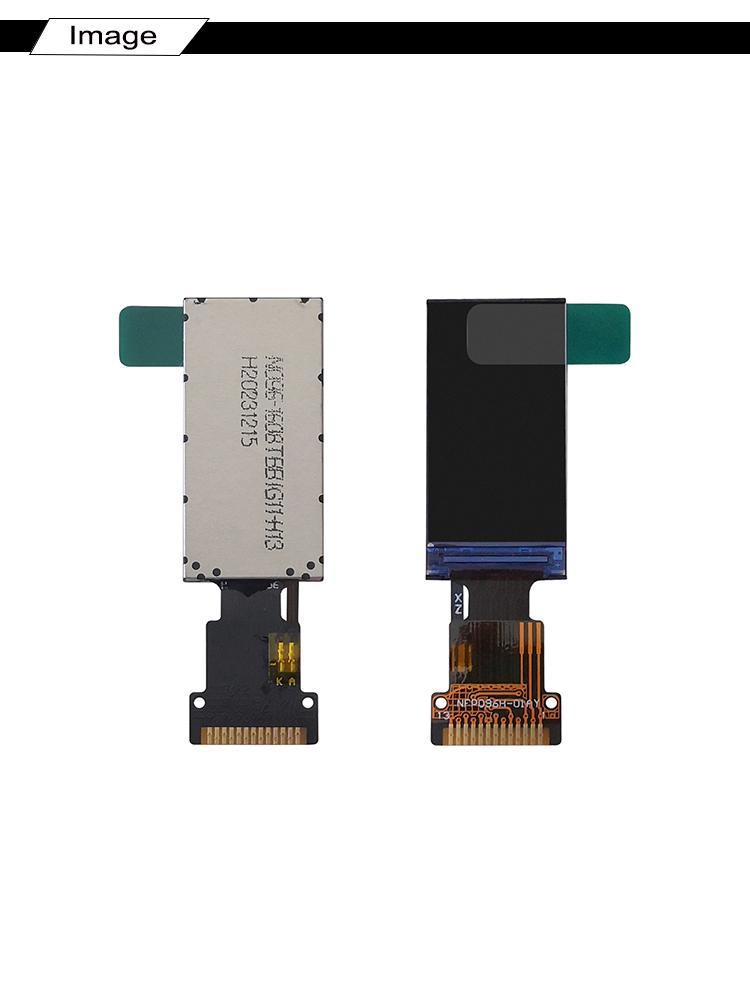

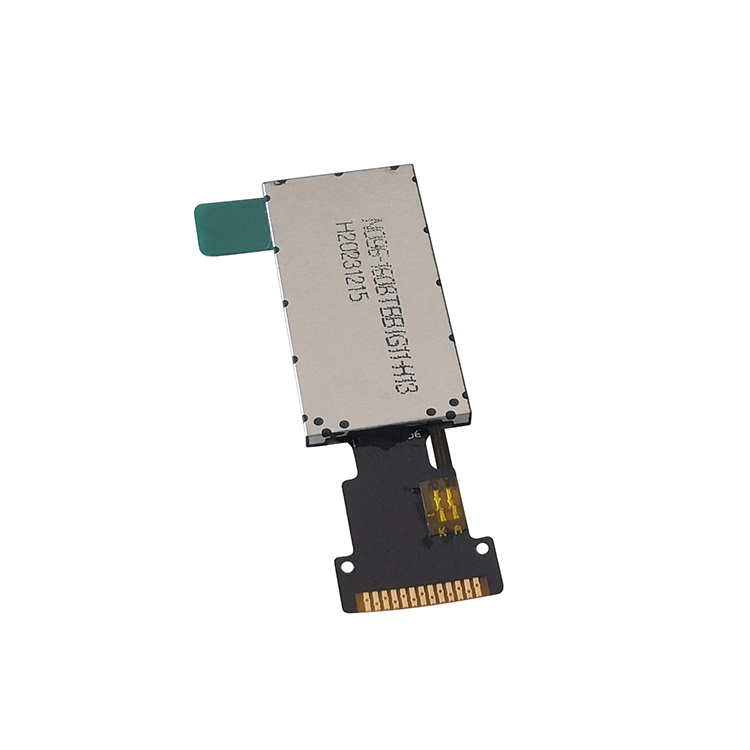

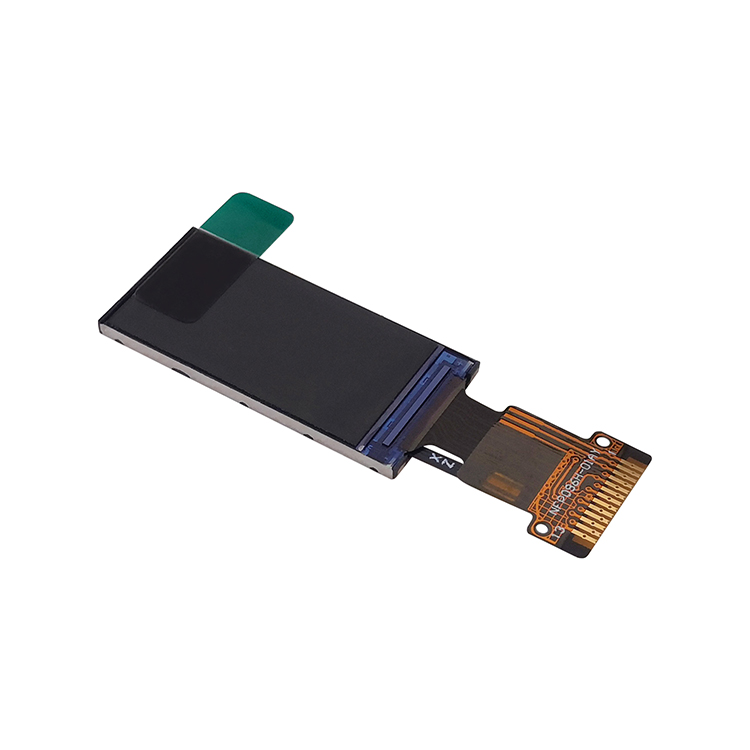

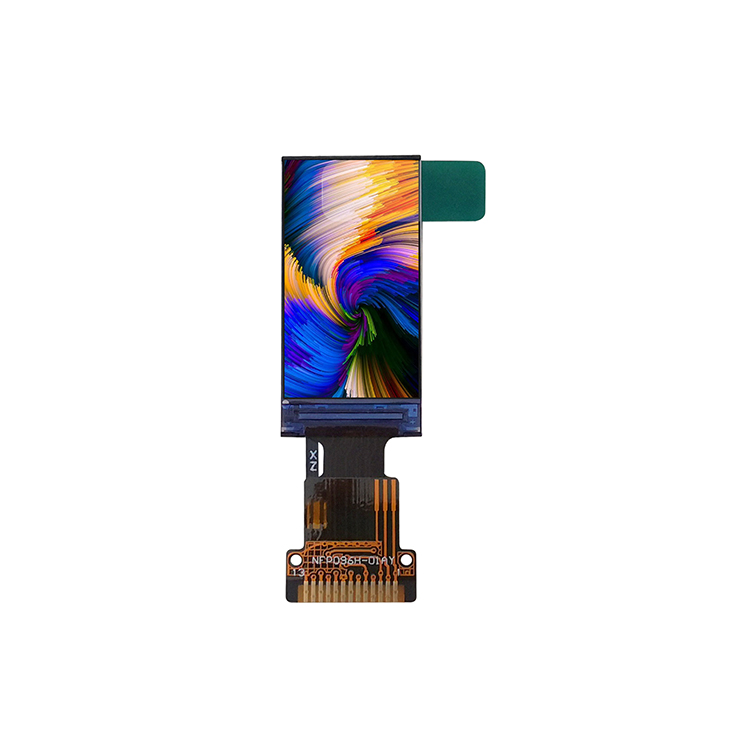

0.96 Inch TFT LCD Display Module with ST7735S Driver IC

0.96 Inch TFT LCD Display Module with ST7735S Driver IC

Size: 0.96
Controller IC:ST7735S
Resolution: 80(R.G.B)*160 dots
Interface: SPI4 LINE
Product description: 0.96 Inch TFT LCD Display Module with ST7735S Driver IC
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA TFT 0.96 inch TFT LCD display module, model LCM-H096002H, is designed with an 80(R.G.B) × 160 dots resolution and operates on a 4-line SPI interface. It adopts a 262K color a-Si TFT transmissive panel in normal black mode, supported by the ST7735S driver IC. With an IPS viewing direction, it ensures consistent image quality across angles. Compact yet powerful, the module features an active area of 10.8 × 21.696 mm, pixel dimensions of 0.135 × 0.1356 mm, and a white LED backlight. Its operating range spans -20℃ to +70℃, with storage tolerance extending from -30℃ to +80℃, making it a robust choice for diverse applications.

GENERAL SPECIFICATION

Parameter	Specification
Model No.	LCM-H096002H
Display Size	0.96 inch
Resolution	80(R.G.B) × 160 dots
Display Type	262K, a-Si TFT, transmissive, normal black
Viewing Direction	IPS
Outline Dimension	13.5 × 27.95 × 1.47 mm
Active Area	10.8 × 21.696 mm
Pixel Size	0.135 × 0.1356 mm
Driver IC	ST7735S
Backlight	White LED (1 pc)
Interface	4-line SPI
Operating Temp.	-20℃ ~ +70℃
Storage Temp.	-30℃ ~ +80℃

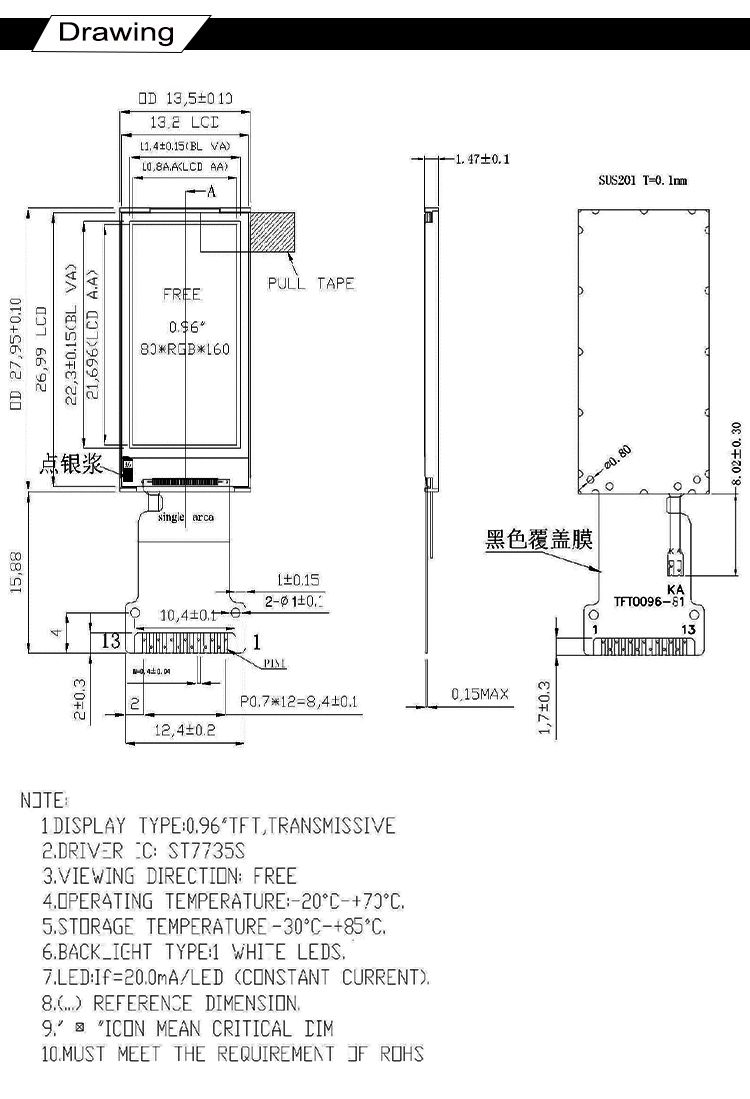

Structural Design and Specifications

The LCM-H096002H stands out as a miniature full-color display engineered for portable electronics and embedded systems. Its structural design is carefully optimized to balance compact form and reliable performance.

Key Mechanical Parameters

Outline Dimension: 13.5 × 27.95 × 1.47 mm

Active Area: 10.8 × 21.696 mm

Pixel Arrangement: RGB vertical stripe

Pixel Size: 0.135 × 0.1356 mm

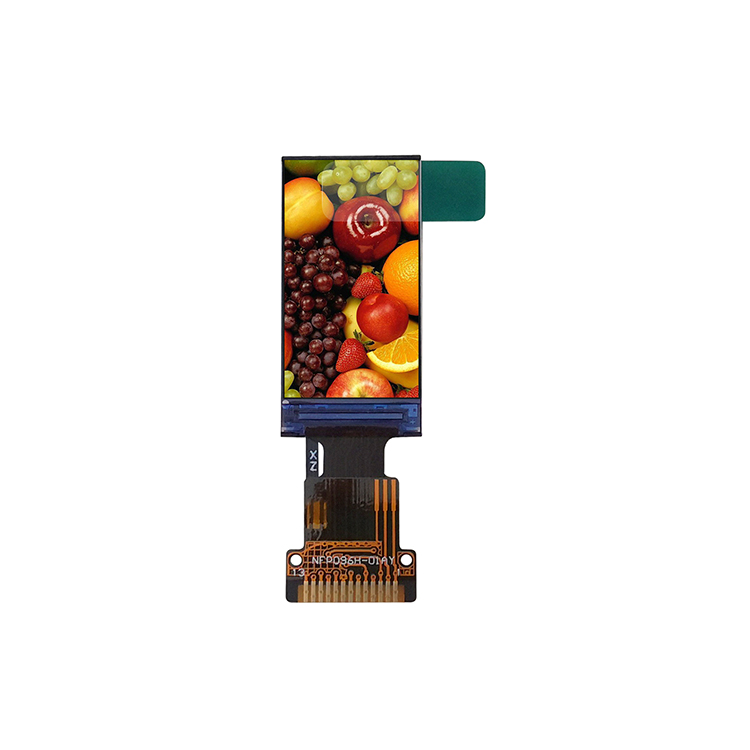

Optical Performance

The display is built on IPS (In-Plane Switching) technology, which guarantees uniform color reproduction and stable viewing across wide angles. With 262K colors, it achieves smooth gradients and rich visuals, suitable for both graphical and text-based interfaces.

Viewing Features

Mode: TFT transmissive, normal black

Viewing Direction: IPS, all-angle readability

Display Format: 80(R.G.B) × 160 dots

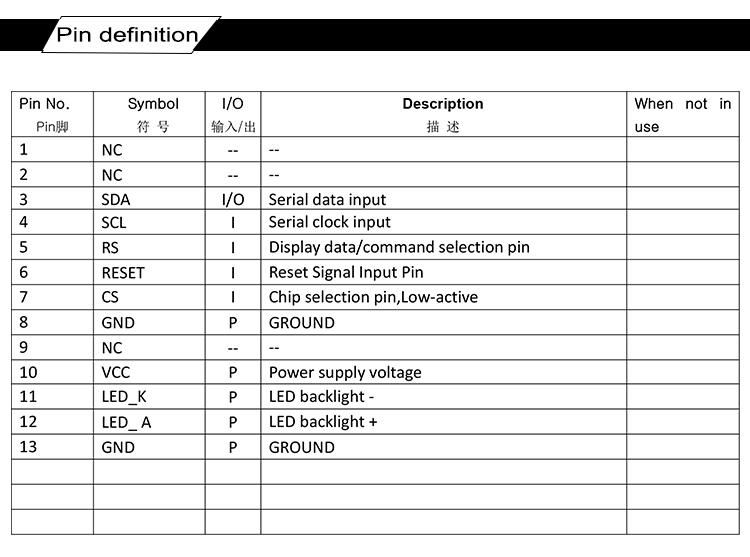

Electrical and Interface Characteristics

Powered by the ST7735S driver IC, this module offers efficient image rendering through a 4-line SPI interface. This serial interface significantly reduces pin requirements, making it ideal for compact designs and microcontroller-based projects.

Interface and Driver Details

Driver IC: ST7735S

Interface Type: 4-line SPI

Backlight: Single white LED

Environmental Reliability

Reliability is central to this module’s design. The operating temperature range of -20℃ to +70℃ and storage temperature range of -30℃ to +80℃ ensure stability under varying environmental conditions. This enables its integration into outdoor instruments, handheld devices, and consumer electronics with confidence.

Application Potential

Thanks to its compact size, vibrant display capability, and efficient SPI interface, this module is well-suited for portable instrumentation, smart wearables, handheld terminals, and industrial monitoring equipment. Its durability under environmental stress further enhances its suitability for both consumer and industrial-grade applications.
