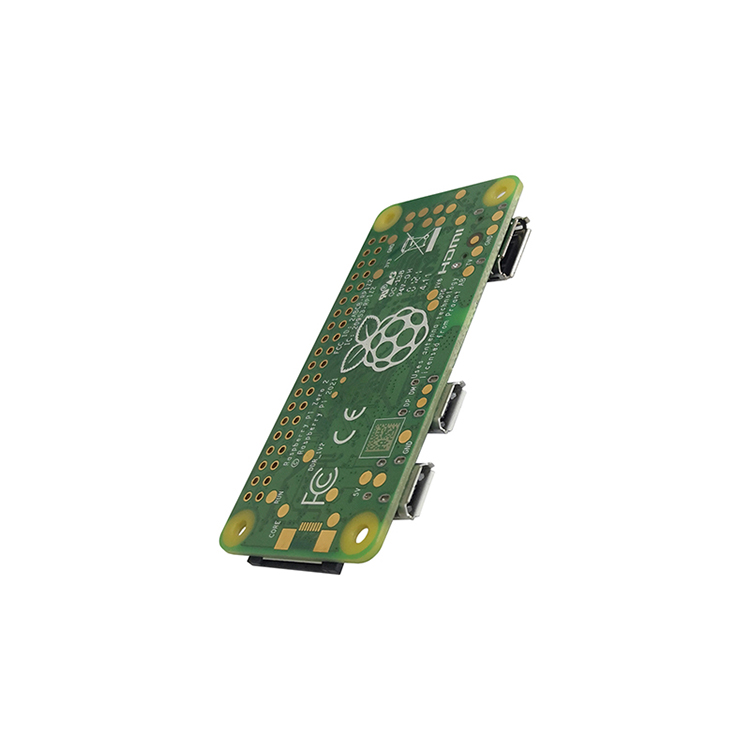

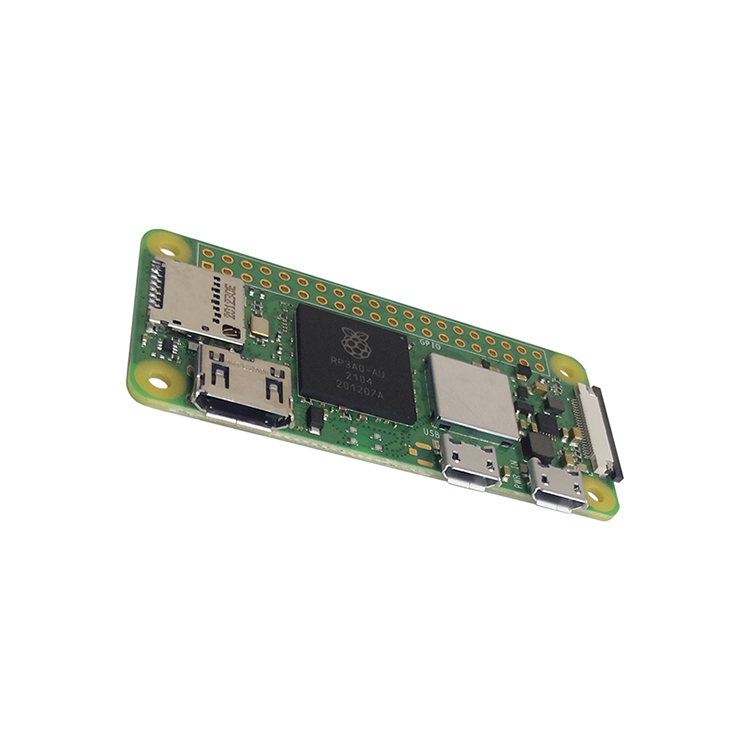

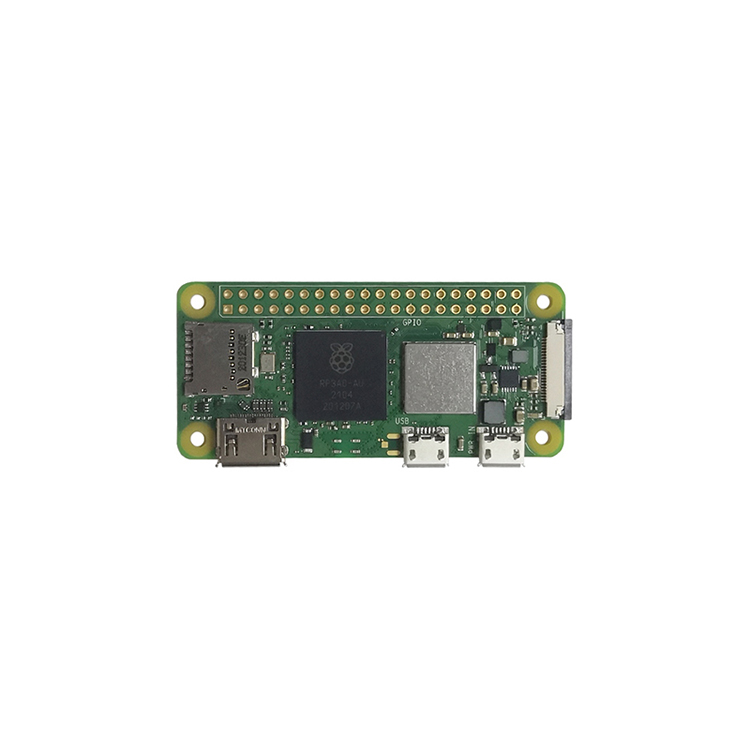

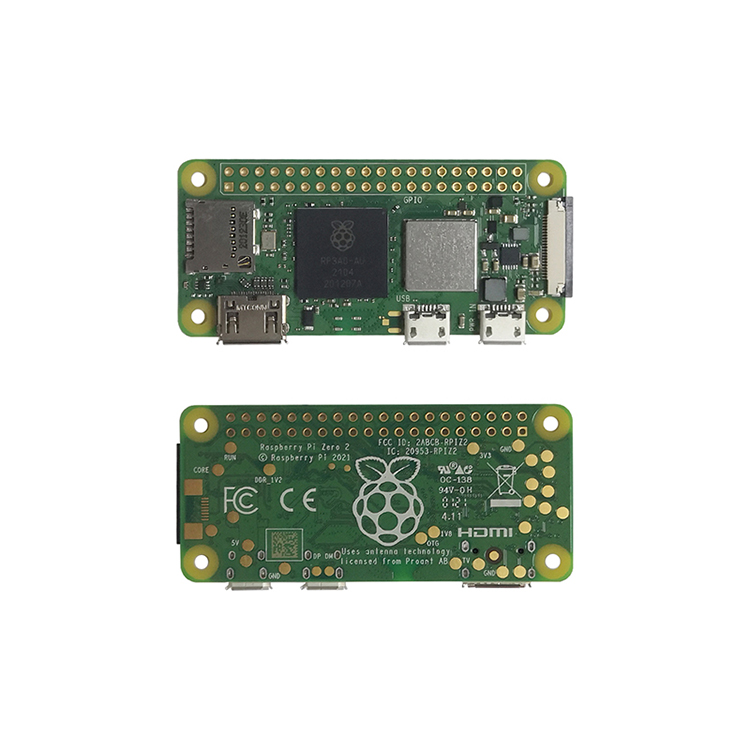

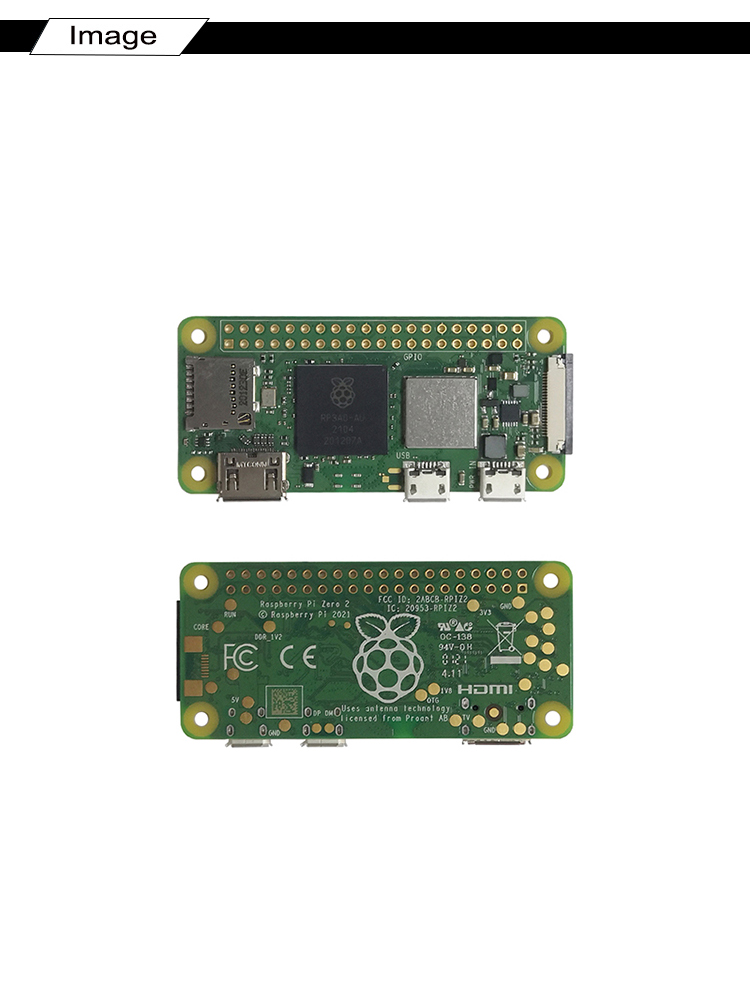

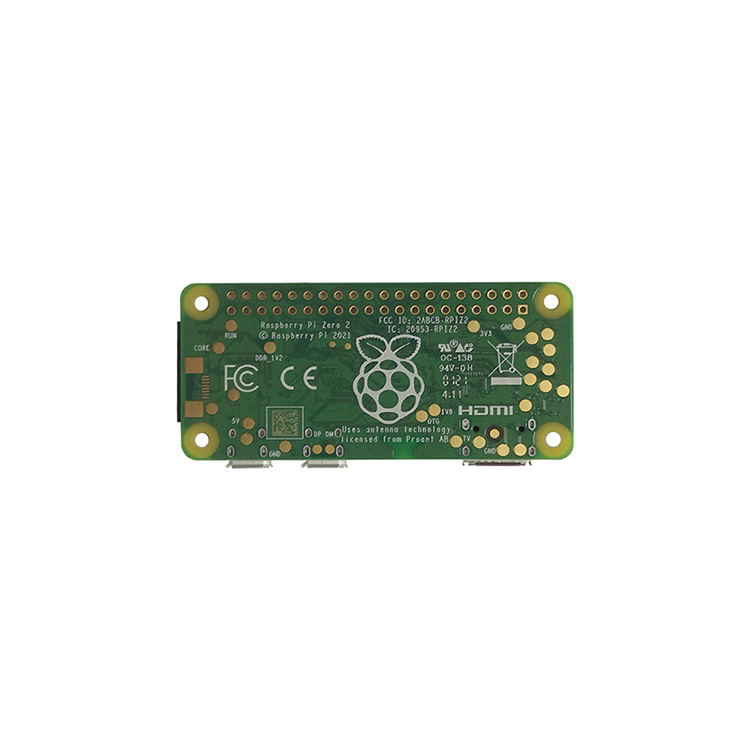

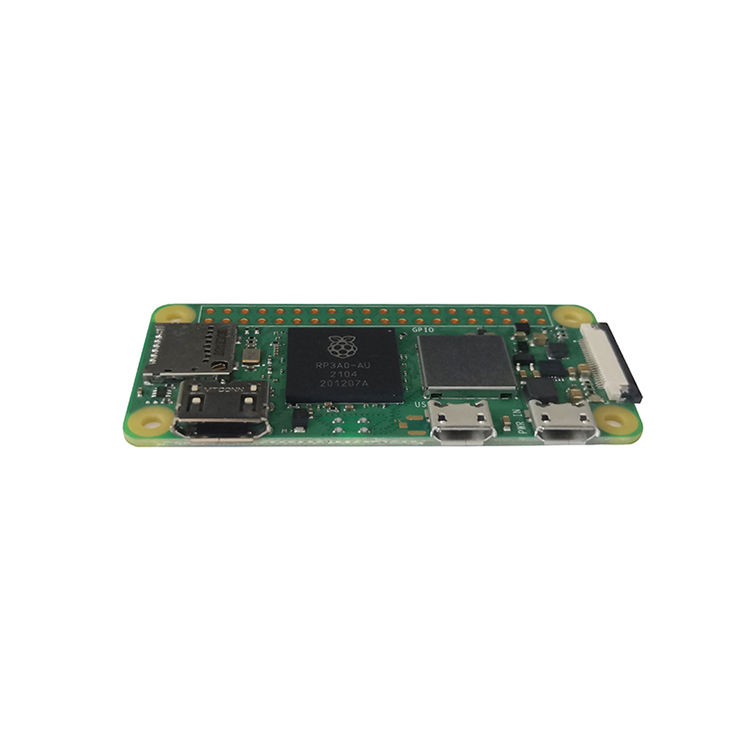

Raspberry Pi Zero 2W

  • Size: 65mm × 30mm
  • Input power: 5V DC 2.5A
  • Memory: 512MB LPDDR2
  • Operating temperature: -20°C to +70°C
  • Product description: Raspberry Pi Zero 2W
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


Raspberry Pi Zero 2 W is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, Zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects.




GENERAL SPECIFICATION


Form factor: 65mm × 30mm


Processor: Broadcom BCM2710A1, quad-core 64-bit SoC(Arm Cortex-A53 @ 1GHz)


Memory: 512MB LPDDR2


Connectivity:
• 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE,onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector


Video:
• HDMI interface
• Composite video


Multimedia:
• H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics


Input power: 5V DC 2.5A


Operating temperature: -20°C to +70°C

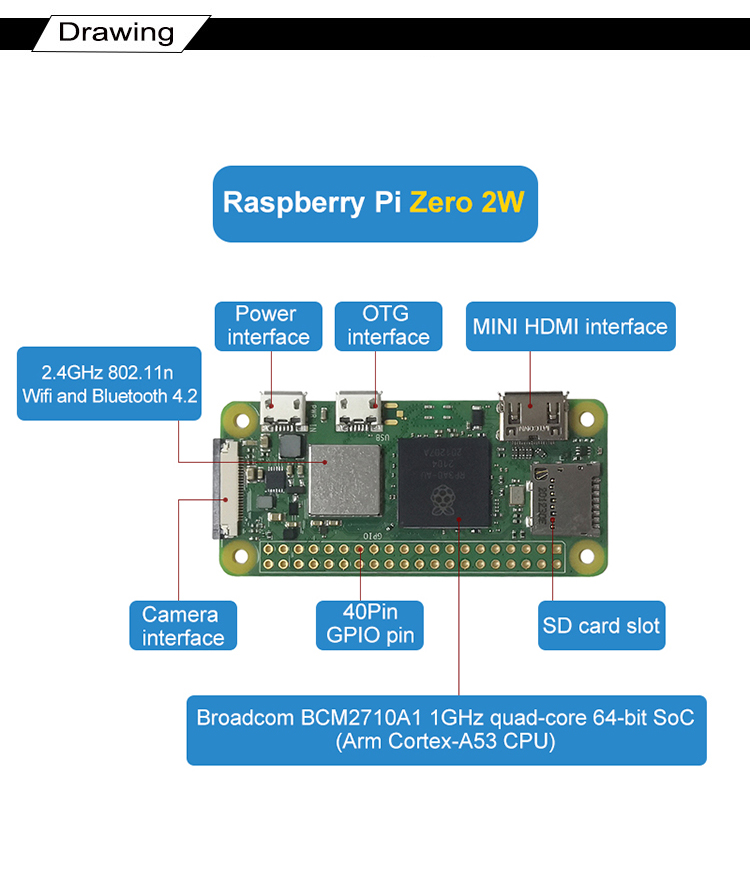

DRAWING
