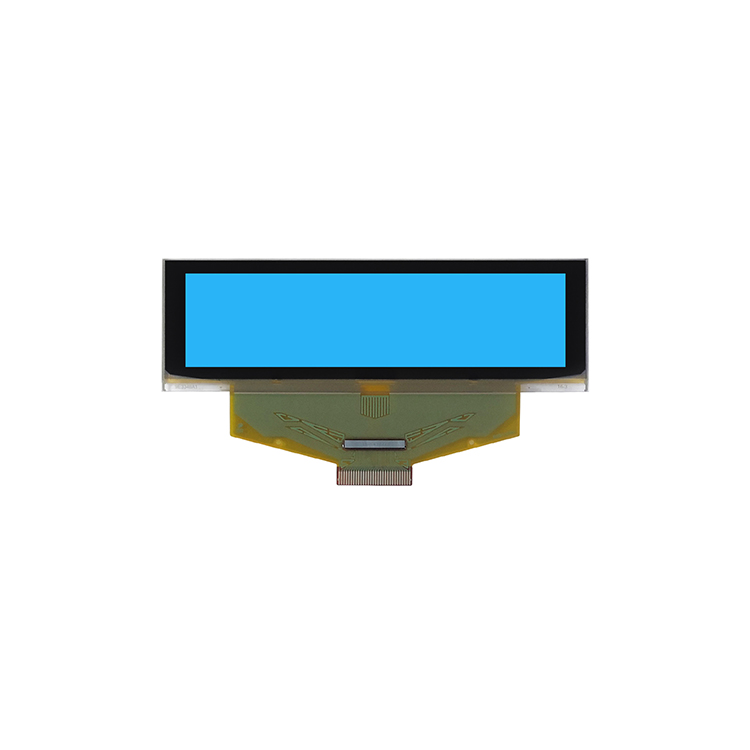

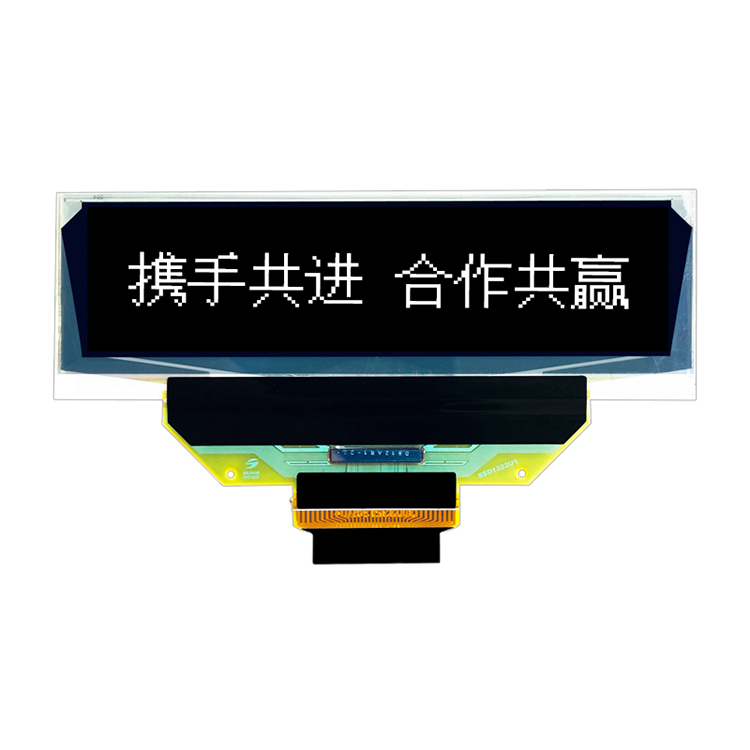

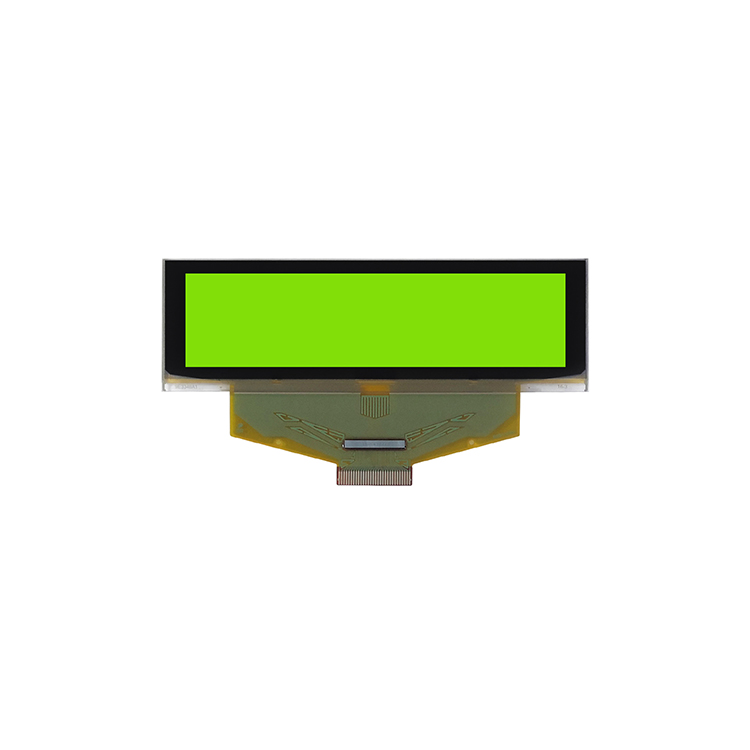

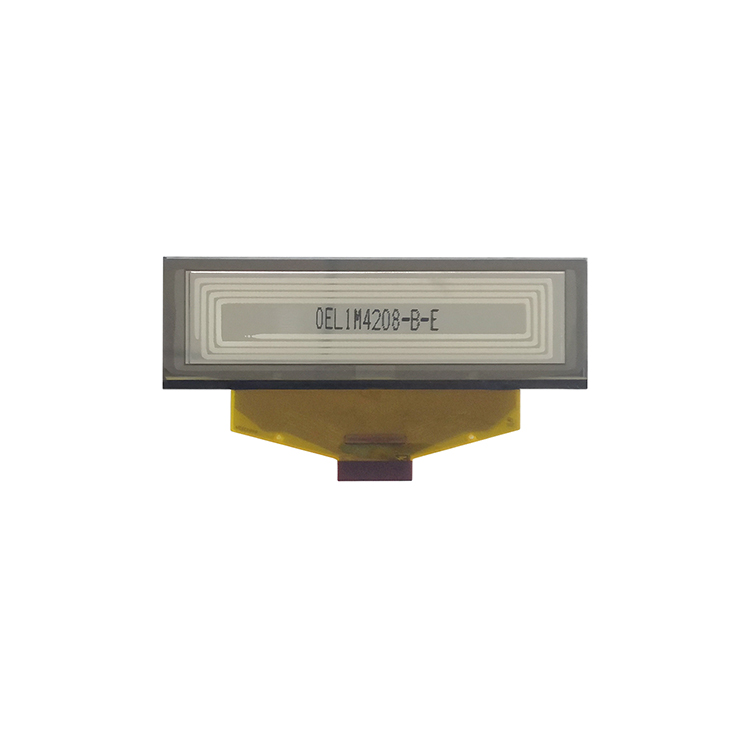

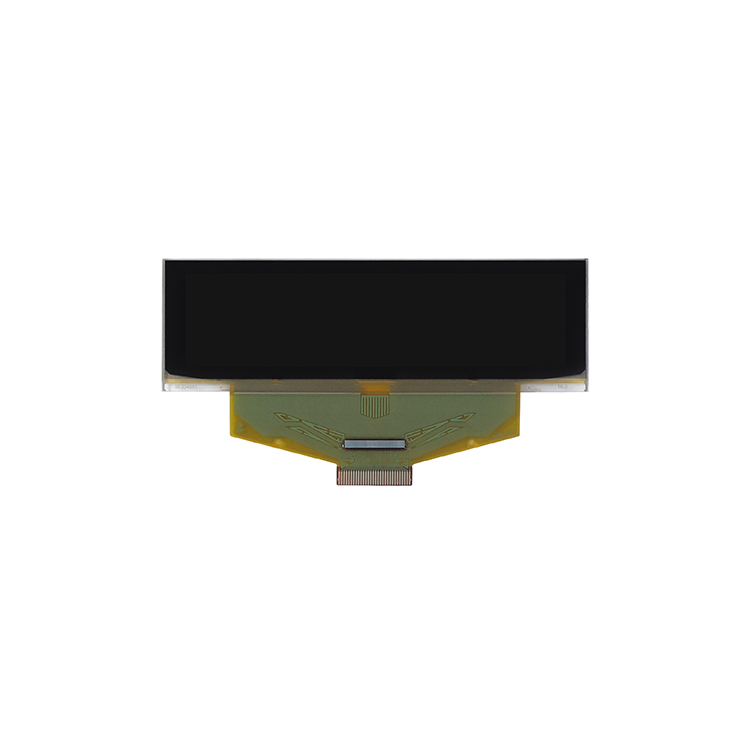

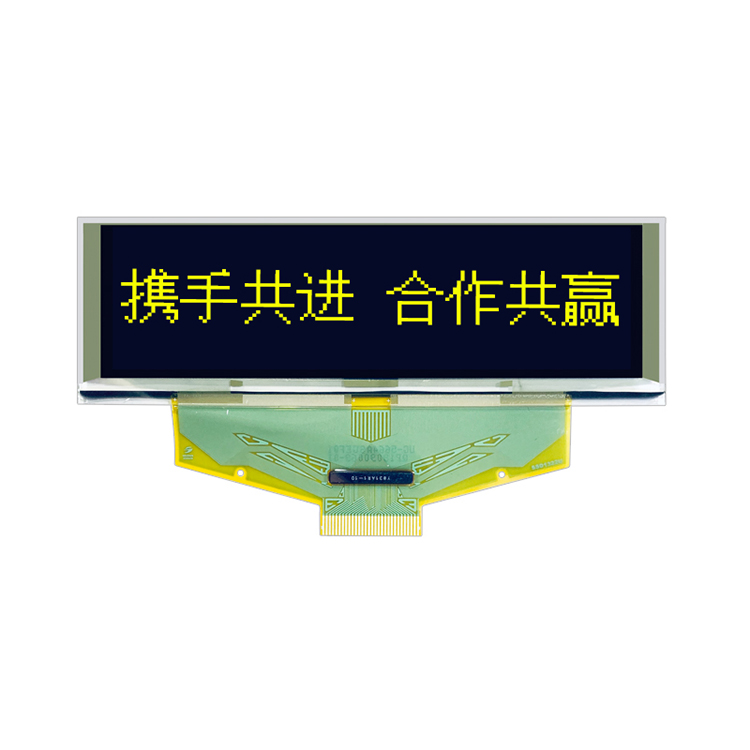

  • Size: 3.12 OLED
  • Controller IC:SSD1322
  • Resolution: 256X64
  • Interface: 6800/8080/4-Wires SPI
  • Product description: 3.12 Inch OLED Display 256X64 Graphic Display Module
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

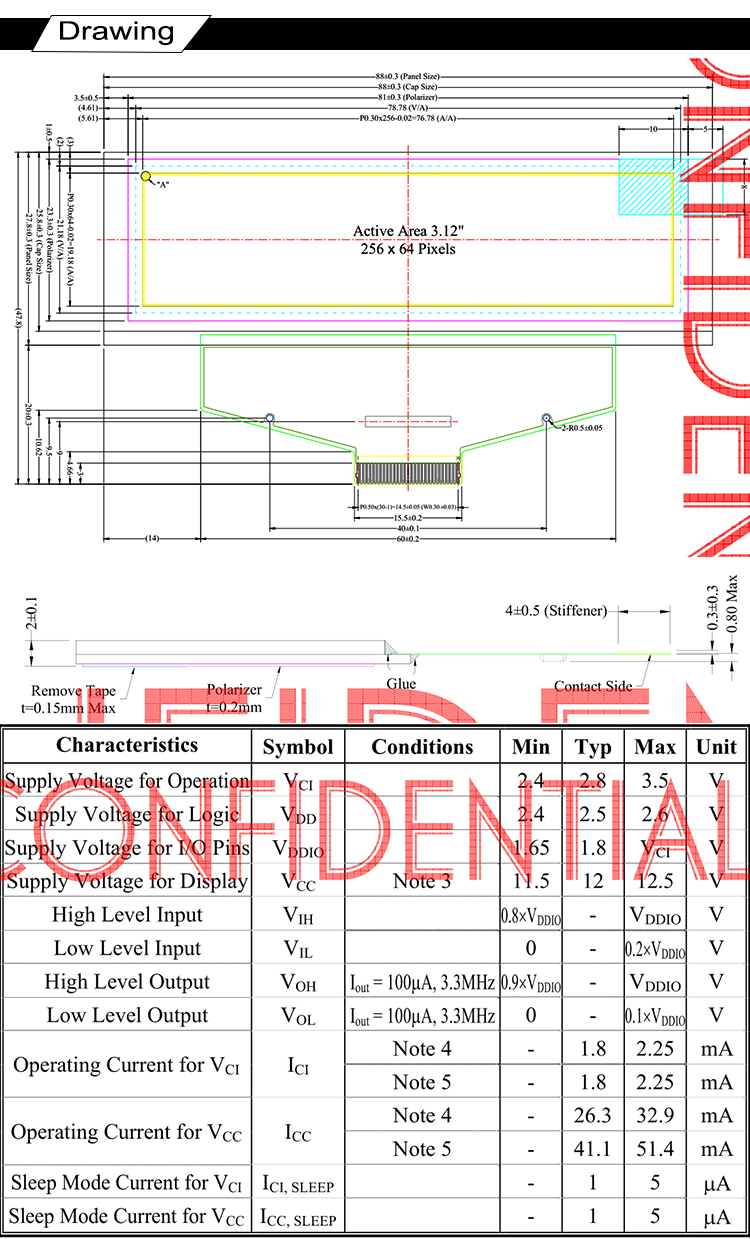

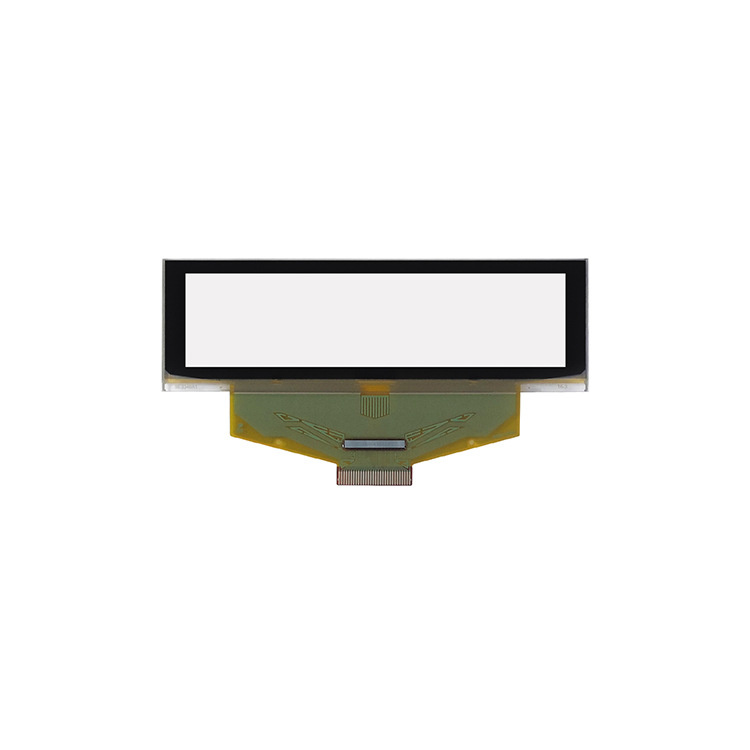

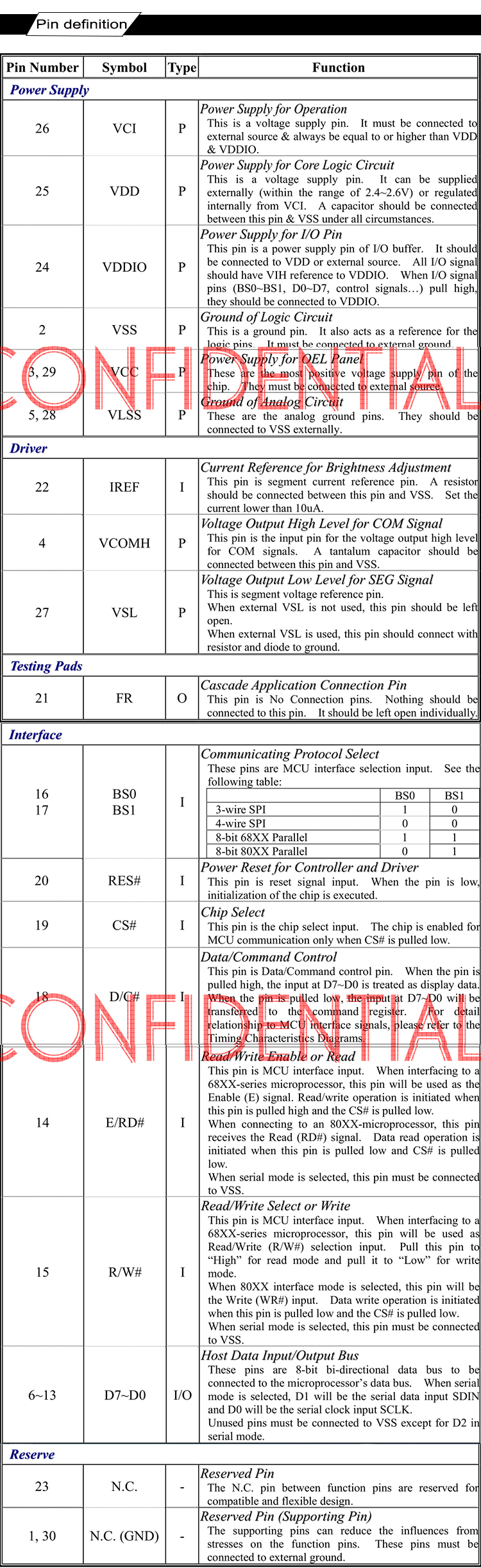

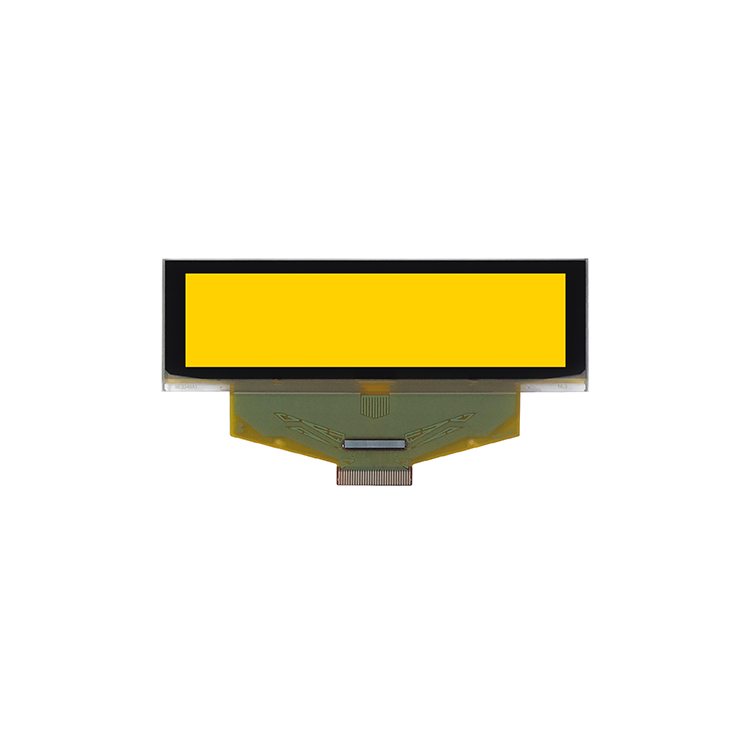

HICENDA OLED 3.12 is a  passive matrix micro OLED display module which is made of 256X64 dots. It has the module dimension of 88.0 × 47.80 × 2.00 mm and Active Area size 76.78 × 19.18 mm. This OLED micro display is built in with SSD1322 IC, it supports  6800/8080/SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 3.12 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION


Display Type:                                          oled display  (White/Yellow/GREEN/BLUE)
Display Mode: Passive Matrix
Model Number:

HG-5664ASYEF01
Diagonal Screen size: 3.12 inch
Interface:

6800/8080/4-Wires SPI 30P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

256X64

Panel Size

88.0 × 47.80 × 2.00 (mm)
Driver IC:

SSD1322

Active Area:

76.78 × 19.18 (mm)
Pixel Pitch:

0.43 x0.43(mm)

Pixel Size:

0.28 × 0.28 (mm)

Weight:

9.95 (g)

Operating Temperature:

-40~85°
