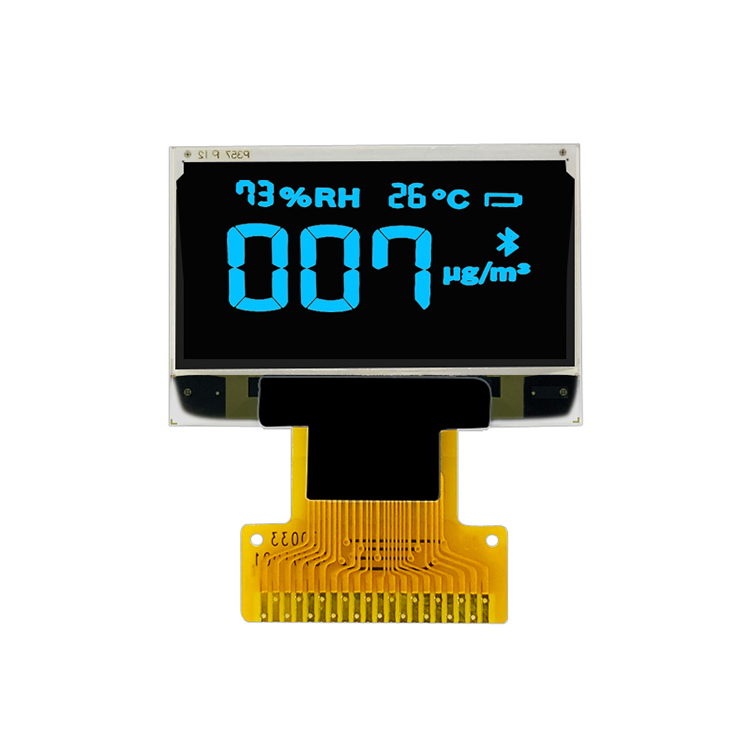

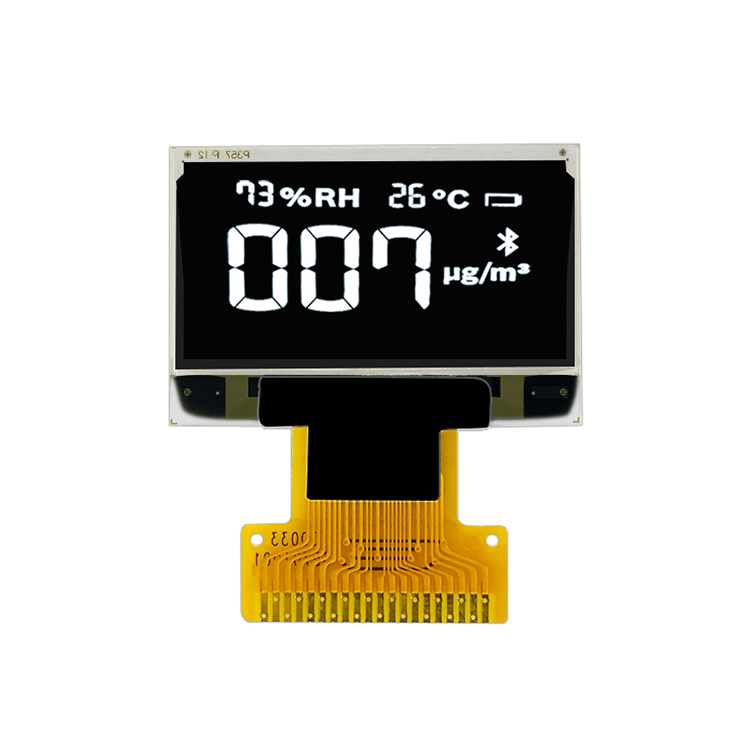

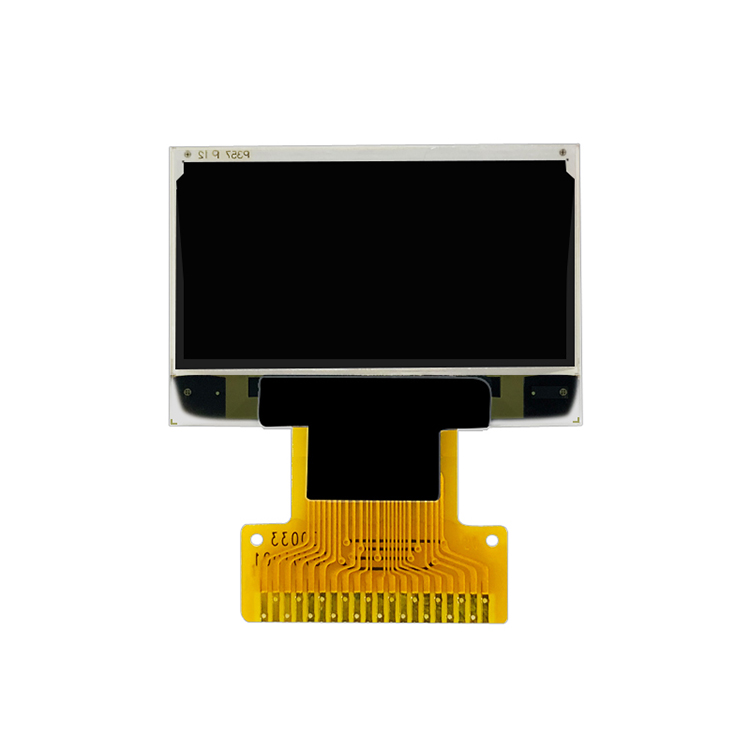

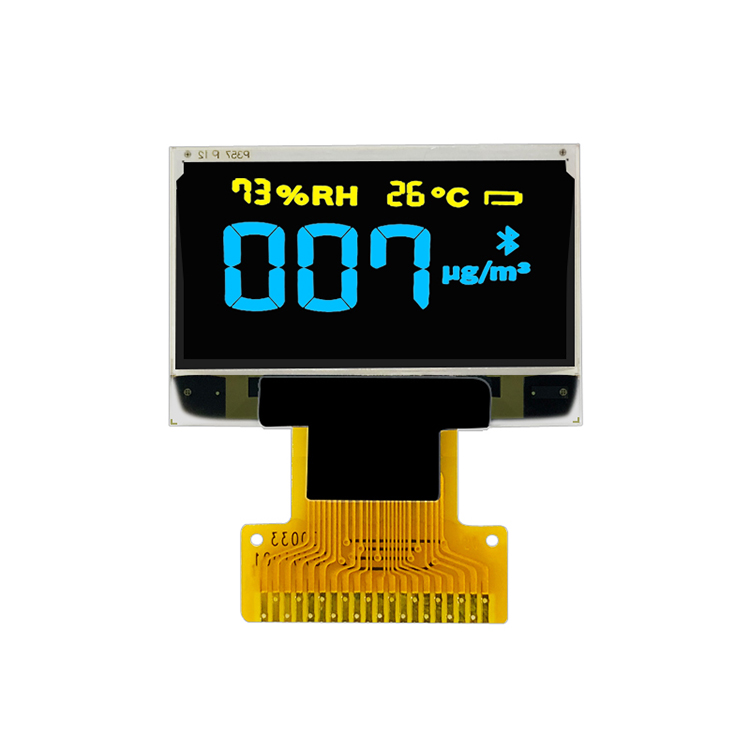

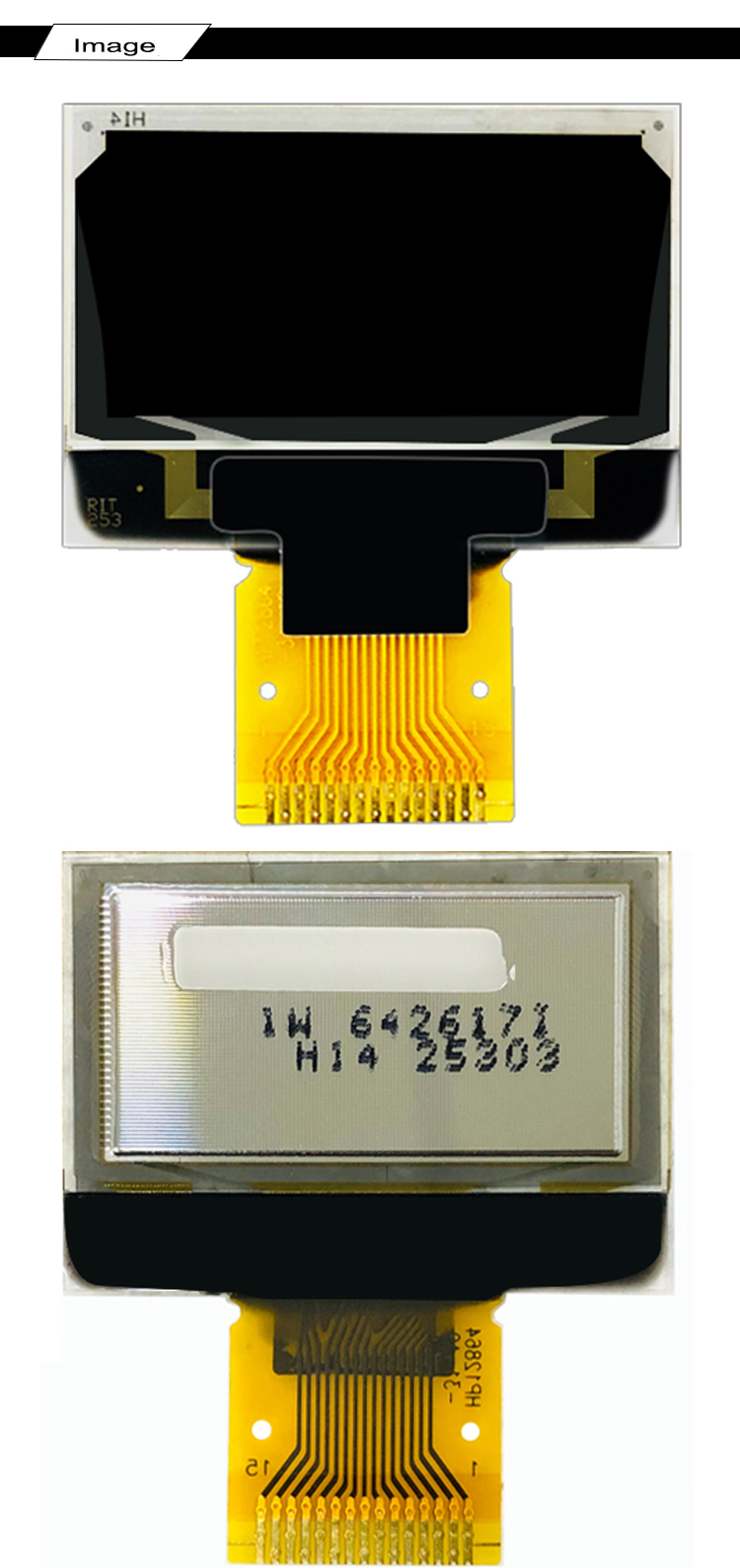

OLED Graphic Display 0.96", 128x64 15P

  • Size: 0.96 OLED
  • Controller IC:SSD1306
  • Resolution: 128*64
  • Interface: SPI/I2C 15P
  • Product description: OLED Graphic Display 0.96", 128x64 15P
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 0.96 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 26.7 × 19.26 × 1.41  mm and Active Area size 23.74 × 12.864 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.96 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                                  oled display   (White/Blue/Yellow Blue)
Display Mode: Passive Matrix
Model Number:

HG--096-2864KSWEG15

Diagonal Screen size: 0.96 inch
Interface:

I2C 15P (Soldering)

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size

26.7 × 19.26 × 1.41 (mm)

Driver IC:

SSD1306

Active Area:

23.74 × 12.864 (mm)

Pixel Pitch:

0.17 x 0.17(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

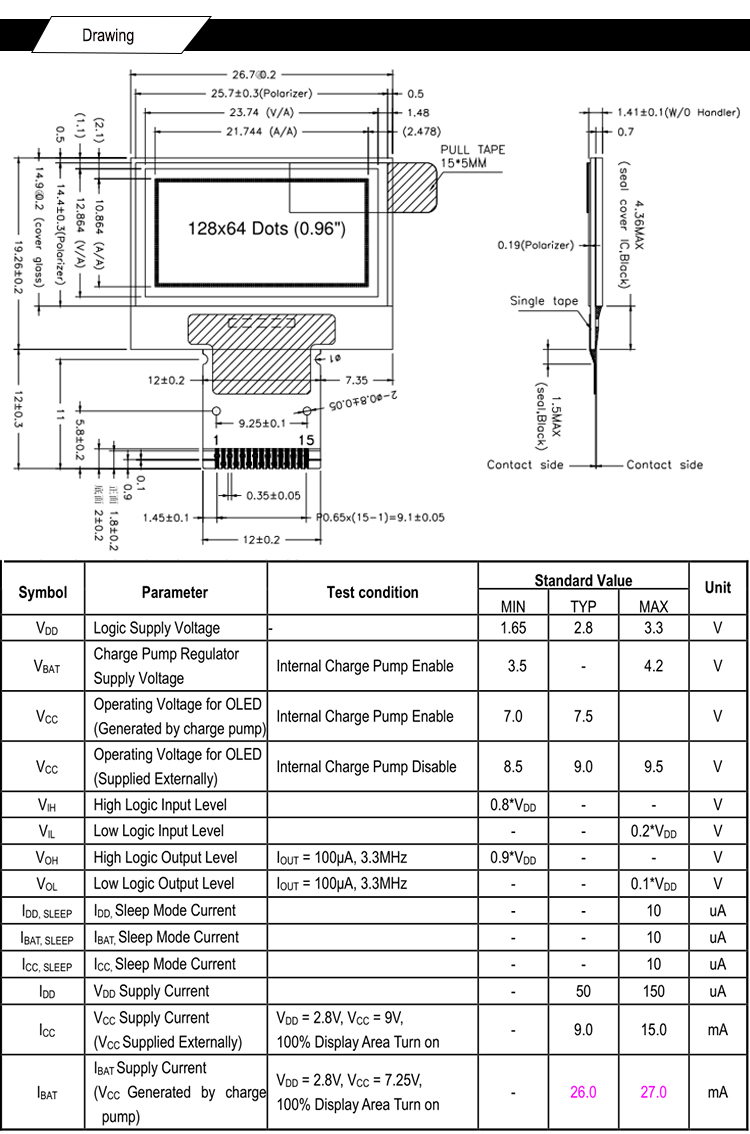

DRAWING

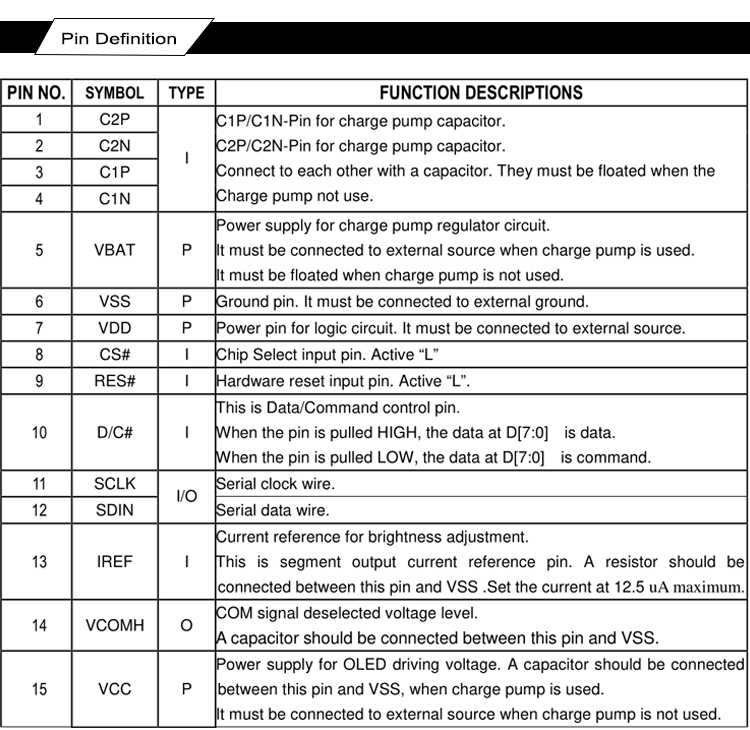

INTERFACE PIN FUNCTION
