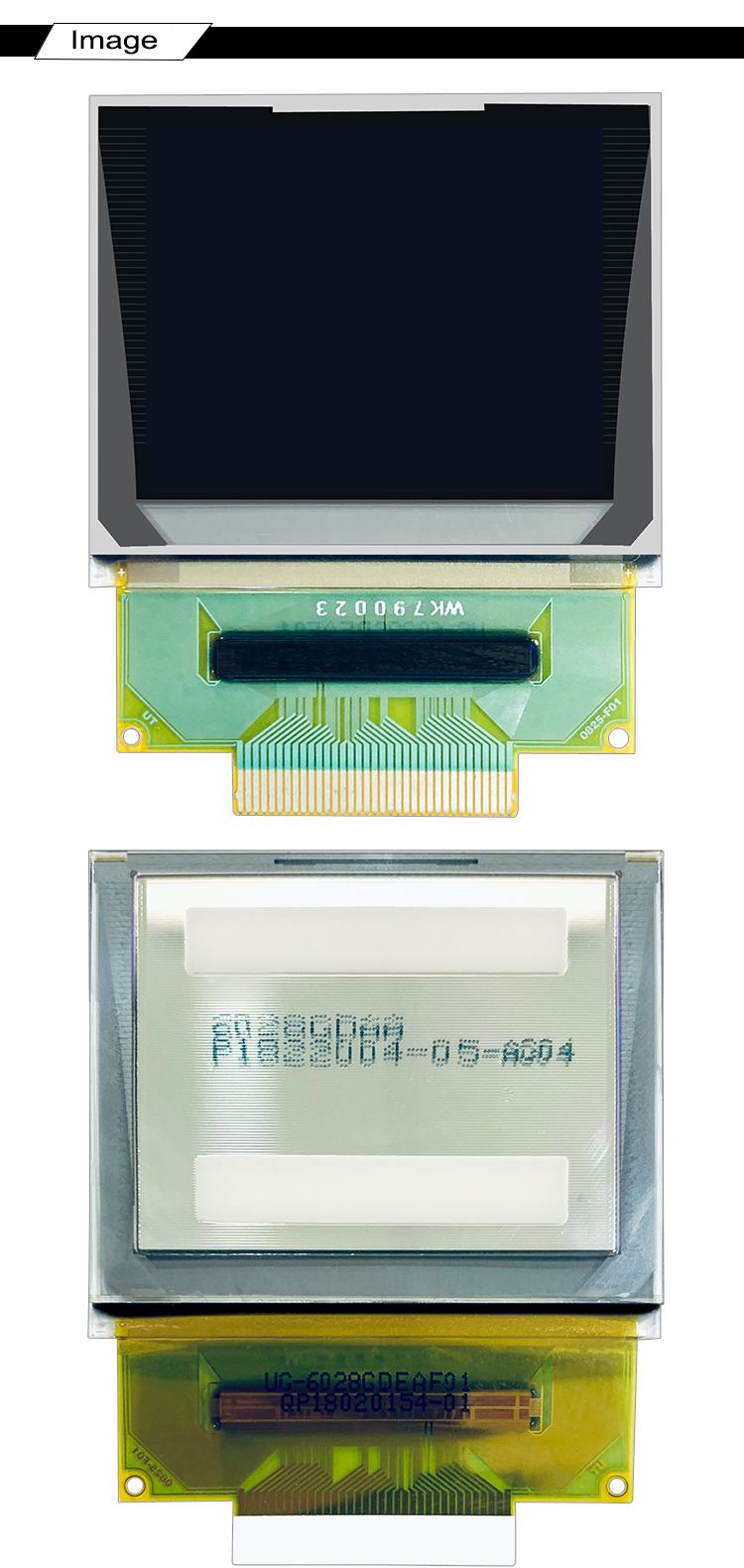

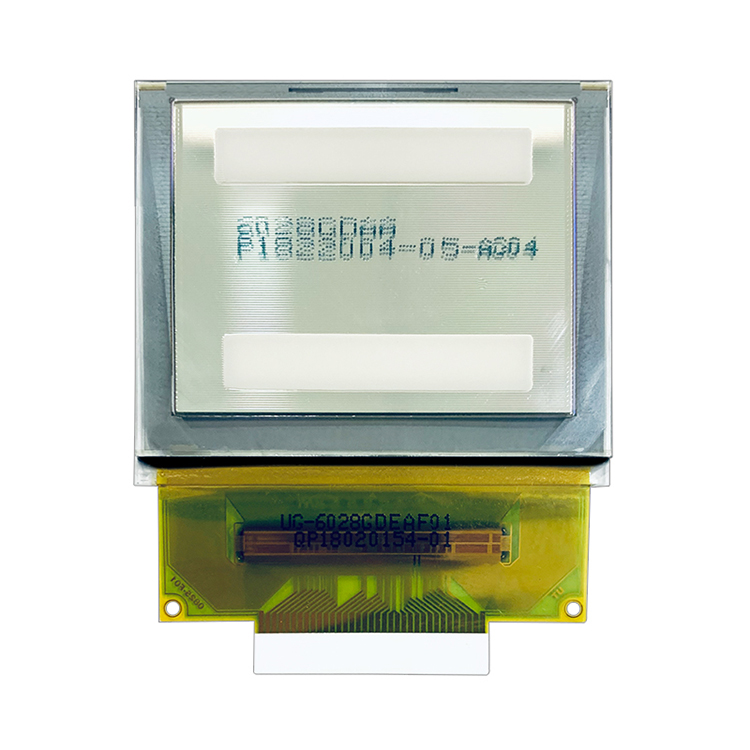

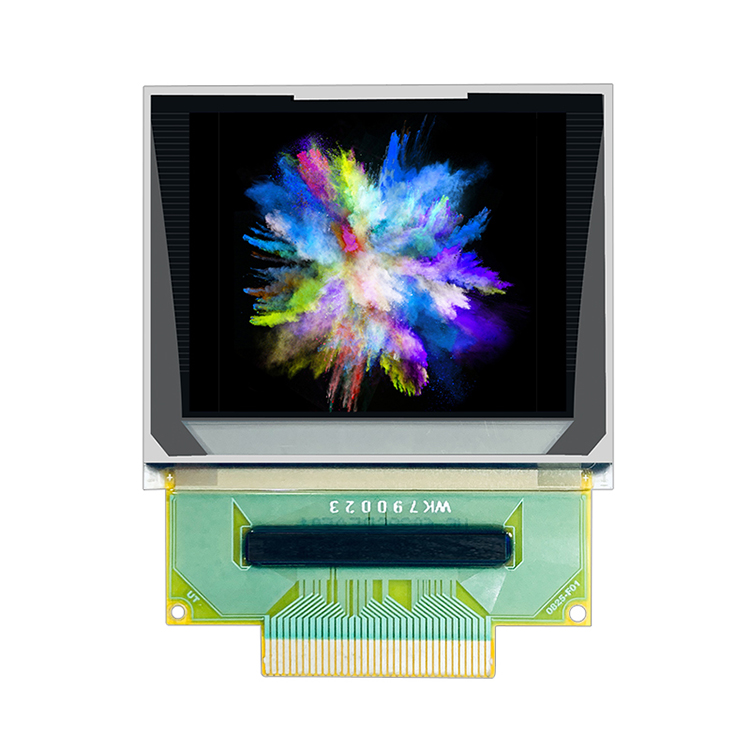

DESCRIPTION

HICENDA OLED 1.45 is a  passive matrix micro color OLED display module which is made of 160X128 dots. It has the module dimension of 35.8 x 45.3 ×1.6 mm and Active Area size 28.78 ×23.024 mm. This OLED micro display is built in with SEPS525 IC, it supports 8080/SPI/ 6bits RGB interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.31 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display   (full color)
Display Mode:	Passive Matrix
Model Number:	HG--145-96KSWEG15
Diagonal Screen size:	1.45 inch
Interface:	8080/SPI/ 6bits RGB 35P
Drive Duty:	1/96 Duty
Number of Pixels:	160x128
Panel Size	35.8 x 45.3 ×1.6 (mm)
Driver IC:	SEPS525
Active Area:	28.78 ×23.024 (mm)
Pixel Pitch:	0.17 x 0.17(mm)
Pixel Size:	0.154 x 0.154 (mm)
Weight:	1.54 (g)
Operating Temperature:	-40~85°

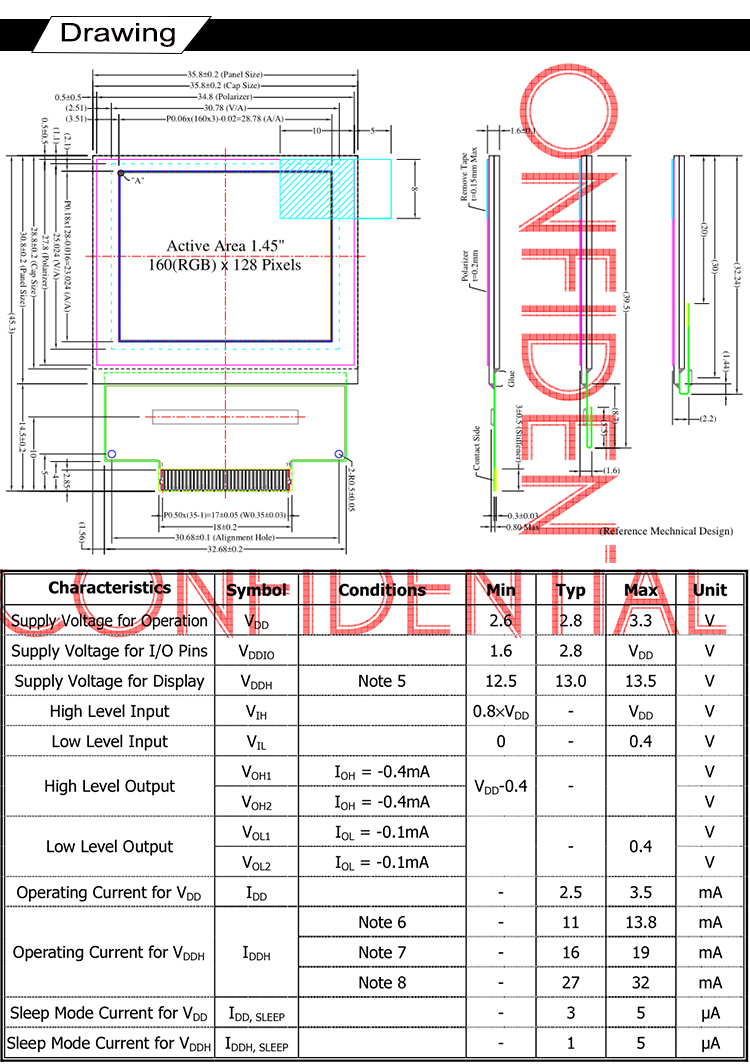

DRAWING

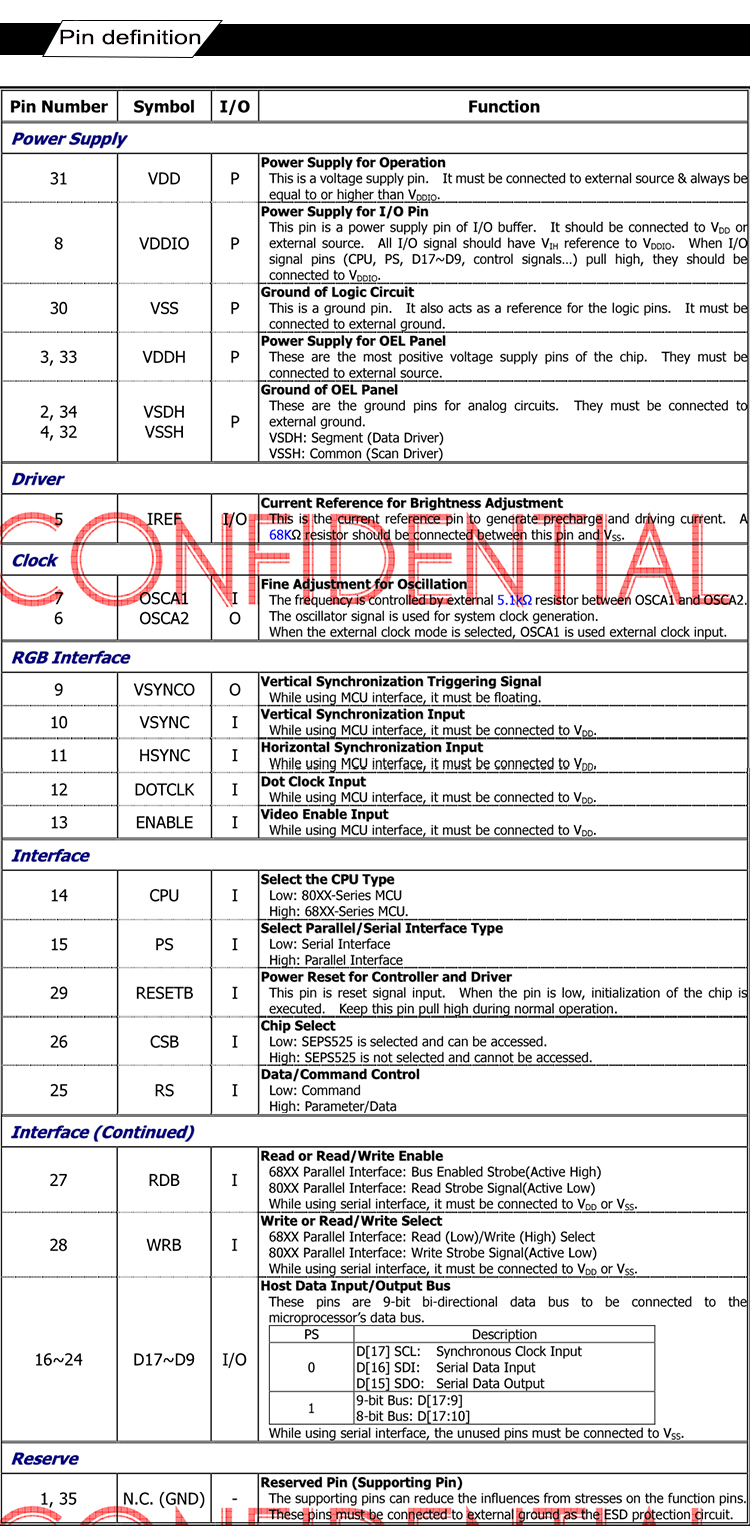

INTERFACE PIN FUNCTION
