OLED COLOR Display 1.5" 128x128

  • Size:1.50 color OLED
  • Controller IC:SSD1351
  • Resolution: 128x128
  • Interface:8080/6080/ SPI/ 30P
  • Product description: OLED COLOR Display 1.5" 128x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.50 is a  passive matrix micro color OLED display module which is made of 128X128 dots. It has the module dimension of 33.8 x 48.35 ×1.6 mm and Active Area size 26.854 ×26.854 mm. This OLED micro display is built in with SSD1351 IC, it supports 6080/8080/SPI  interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.50 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                                      oled display   (full color)
Display Mode: Passive Matrix
Model Number:

HG--150-96KSWEG16

Diagonal Screen size: 1.50 inch
Interface:

8080/6080/ SPI/  30P

Drive Duty:

1/128 Duty

Number of Pixels:

128x128

Panel Size

33.8 x 48.35 ×1.6 (mm)

Driver IC:

SSD1351

Active Area:

26.854 ×26.854 (mm)

Pixel Pitch:

0.07 x 0.21(mm)

Pixel Size:

0.045 x 0.194(mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

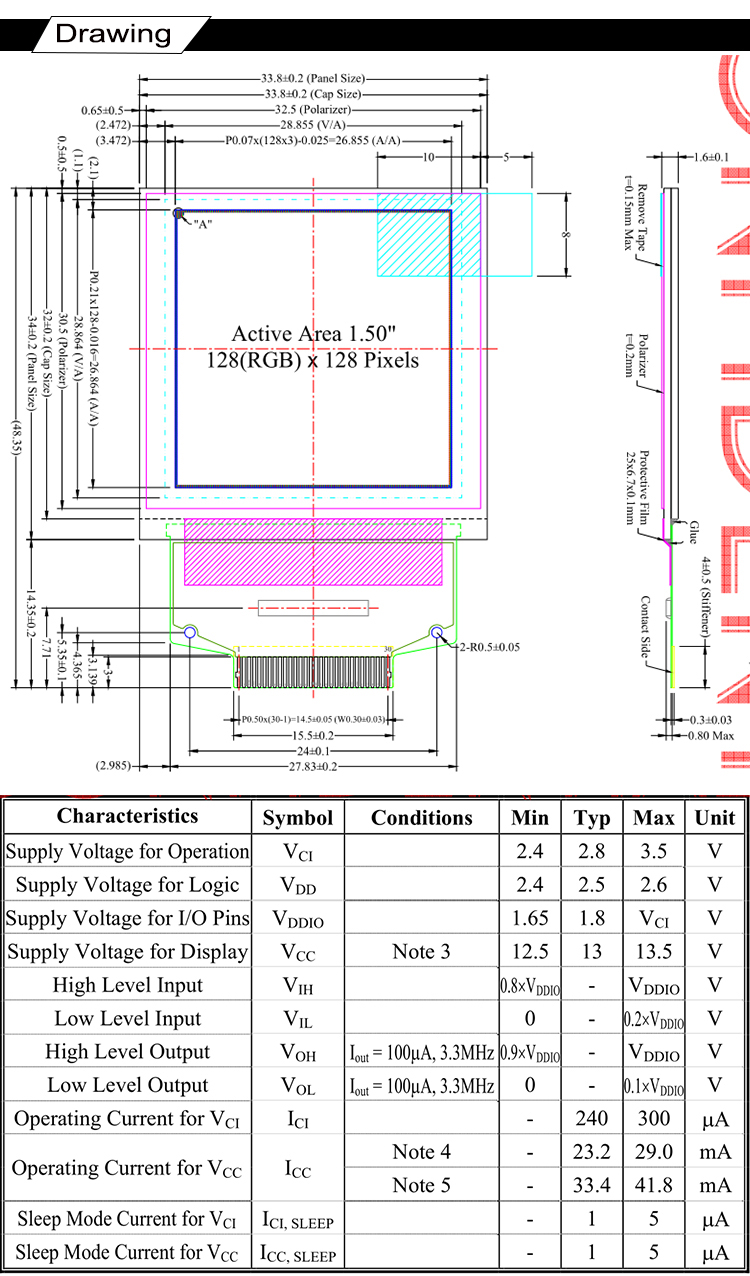

DRAWING



INTERFACE PIN FUNCTION
