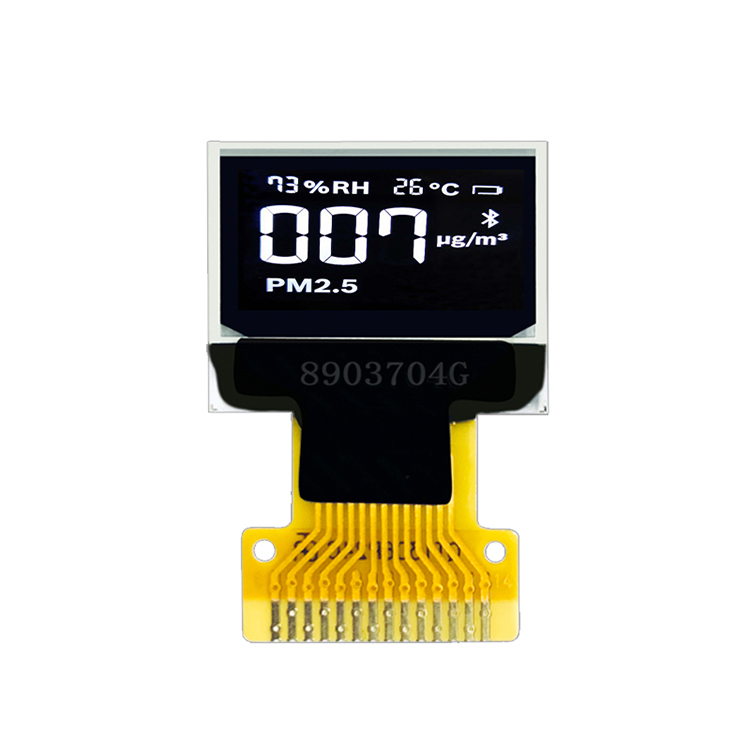

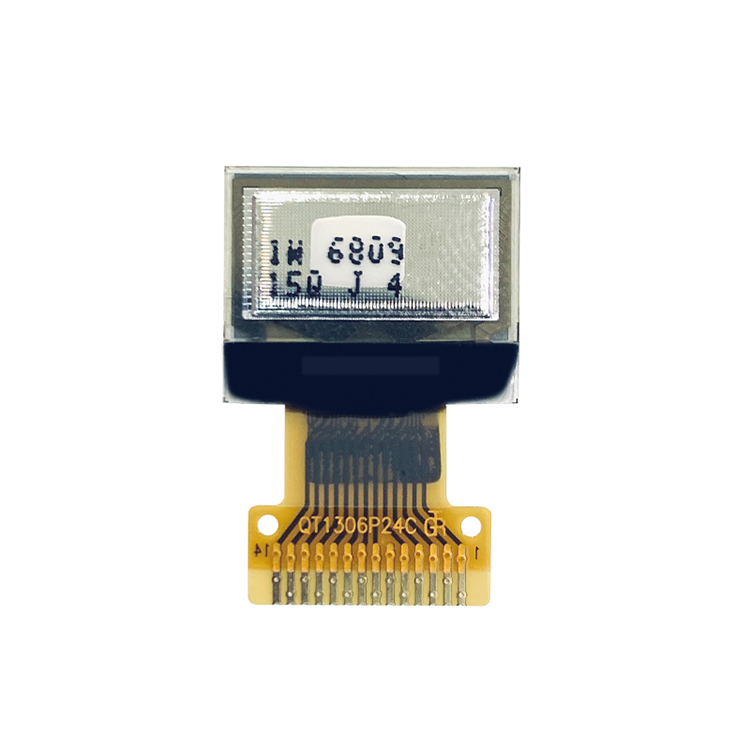

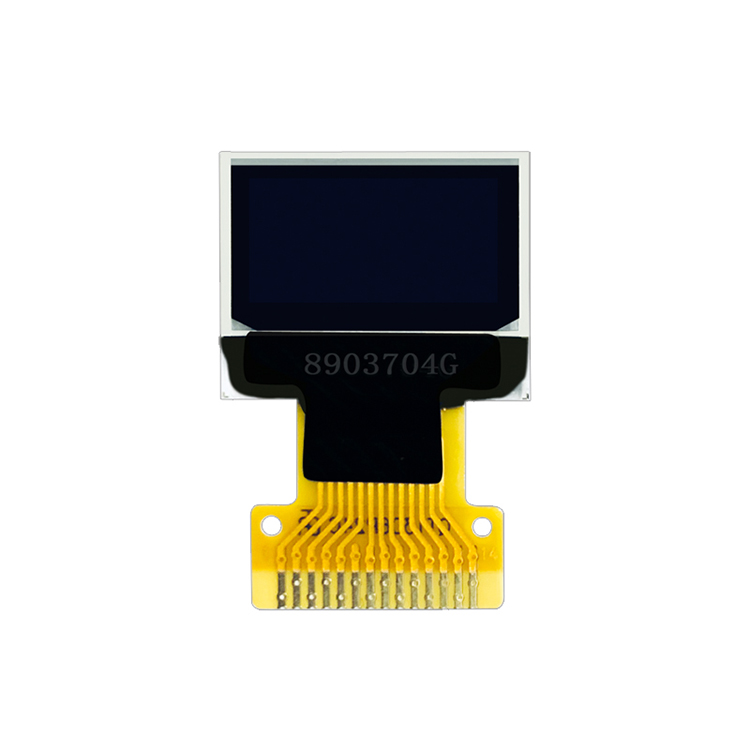

0.49" 64x32 OLED Micro Display

  • Size: 0.49 OLED
  • Controller IC:SH1106
  • Resolution: 64*32
  • Interface: I2C
  • Product description: 0.49" 64x32 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.




DESCRIPTION

HICENDA OLED 0.49 is a  passive matrix micro OLED display module which is made of 64x32 dots. It has the module dimension of 14.5x11.3x1.2 mm and Active Area size 11.18 × 5.58 mm. This OLED micro display is built in with SSD1306 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.49 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION

Item                                     0.49 inch Monochrome White 64x32 OLED display
Part no GH-9567
Number of pixels 64x32
Panel size (mm) 14.5x11.3x1.2
VA size (mm) 12.58x6.98
AA size 11.18x5.58
Color Monochrome White
Interface  4 wire SPI
Driver IC SH1106
Tolerance(mm) +/- 0.3

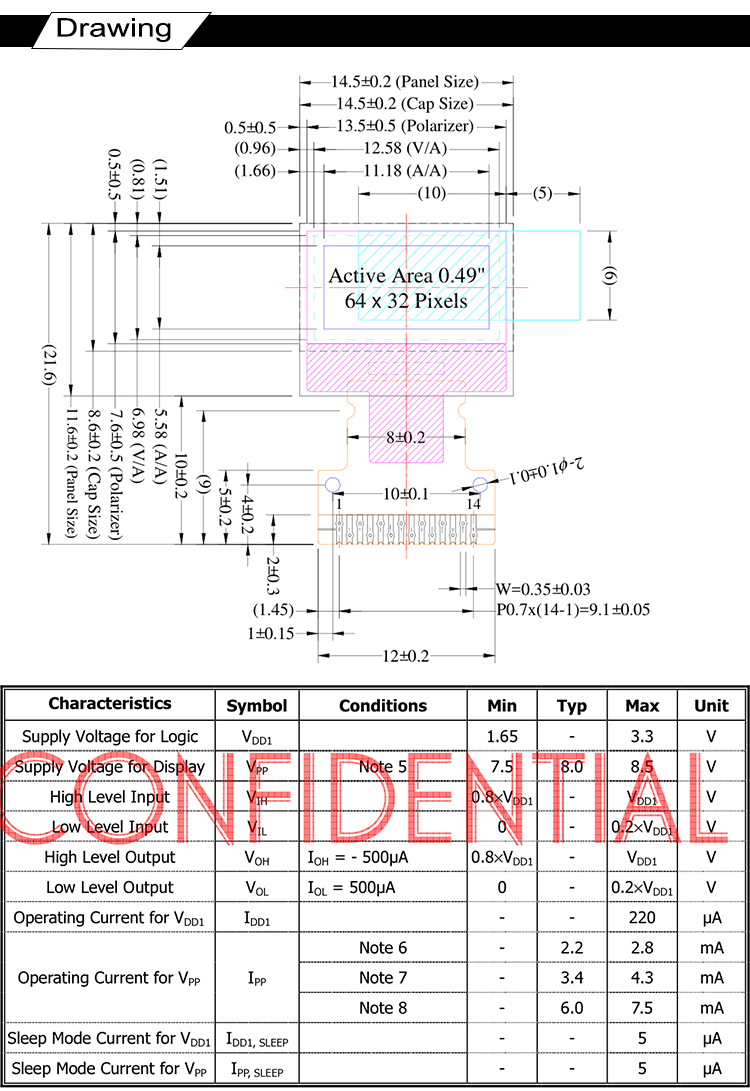

DRAWING

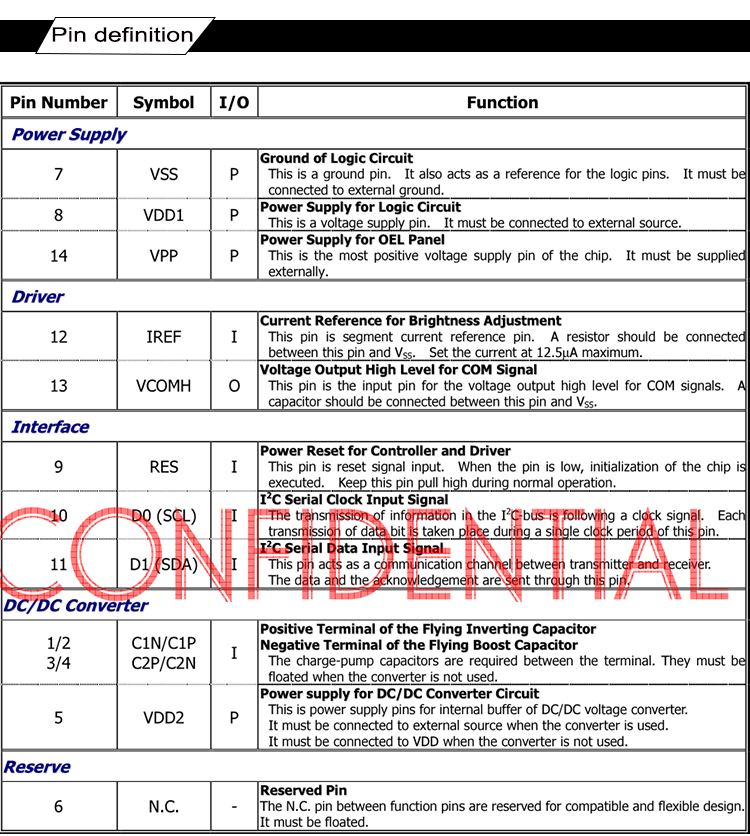

INTERFACE PIN FUNCTION
