4 INCHLCD Display, Graphic LCD 192x64

  • Outline dimension: 130X65X12.5
  • Resolution:192x64
  • Display mode: STN/FSTN
  • Pins No: 20 pins
  • Product description: 192x64 sunlight readable graphic LCD with negative voltage generator and temperature compensation.
  • INQUIRY

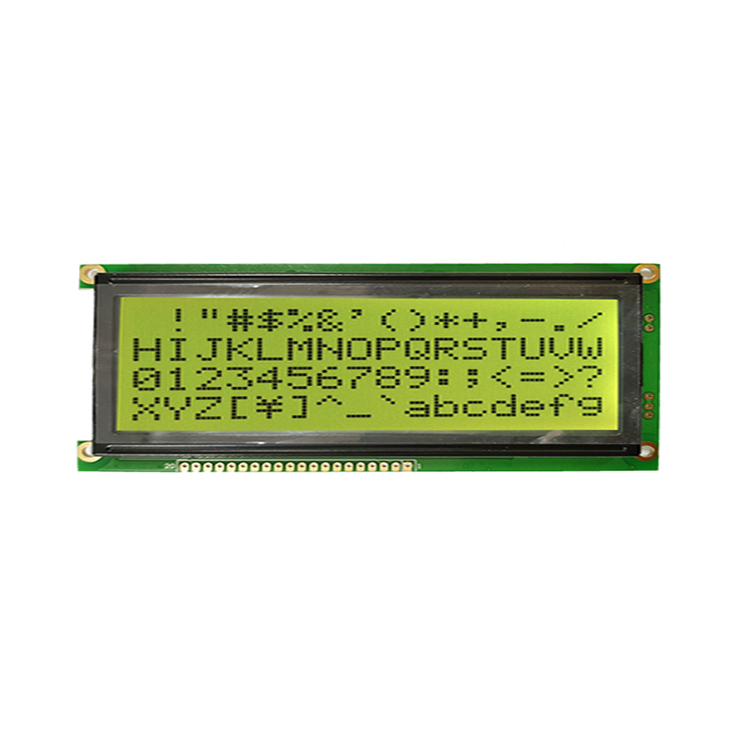

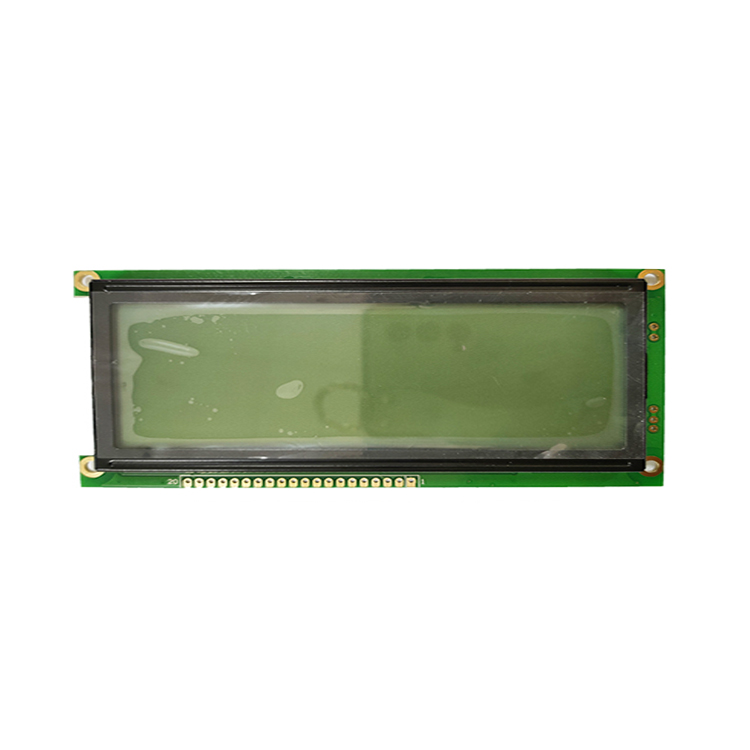

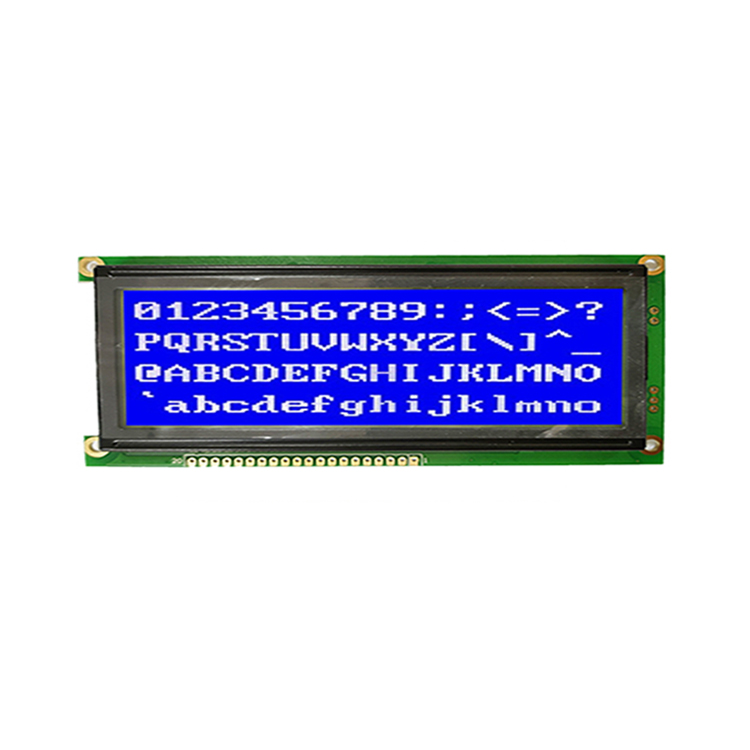

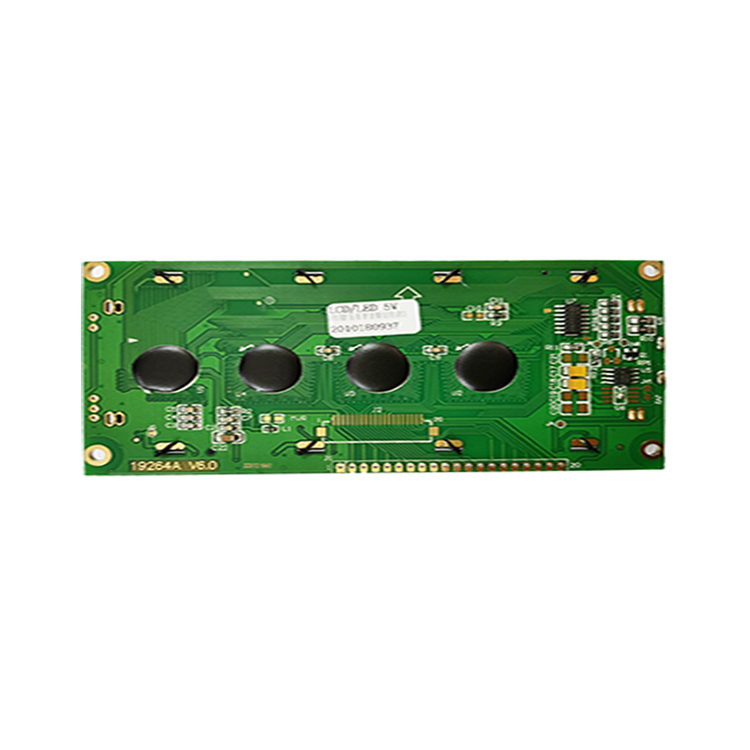

192x64 Dot Matrix Graphic LCD Display Module Panel


DESCRIPTION

HL19264A is a monochrome graphic LCD 192x64 dot matrix display which is having the module dimension of 130x65 mm and AA size of 96x32 mm. This 4” LCD display is built in with NT7107 IC; it communicates via 6800 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This HL19264A module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

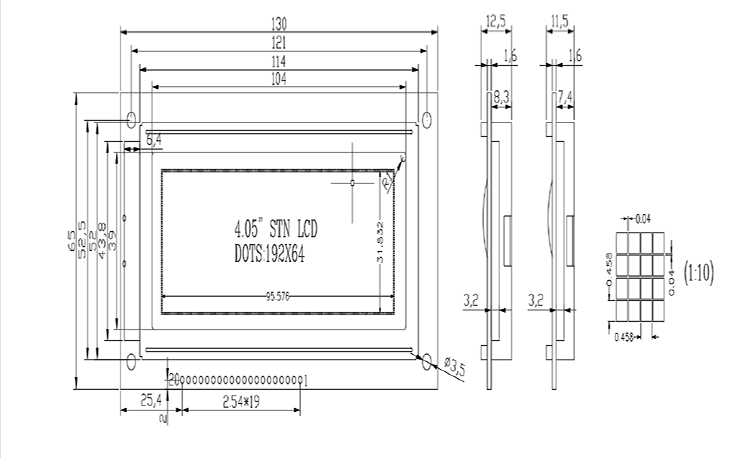

DRAWING

SPECIFICATIONS

Interface Pin Function


Pin No. Symbol Description
1                                                 VSS                                    Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Chip select IC1 ( Column 1 ~ 64)
16 RES Controller reset signal, Active Low
17 CS2 Chip select IC2 ( Column 65 ~ 128)
18 CS3 Chip select IC3 ( Column 128 ~ 192)
19 Vee Negative Voltage Output
20 A Power supply for B/L +



General Specification



Product Name
19264A Dots Graphic character lcd display module
Model
HL19264A
Type
COB LCD Display, dots graphic Display
Dot Format
192*64Dots
Display format
192character*64lines
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2
Outline Dimension
130X65X12.5mm
Viewing Area
104x39mm
Active Area
95.5x39mm
Dot Size
0.458X0.458mm
Dot Pitch
0.498x0.498mm
Viewing Direction
6 O'Clock
Interface
8-bit Parcellel, 20 Pins
Driving Method
1/64 Duty, 1/9Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃



Electrical Characteristics


Item Symbol Standard Value
typ.
Unit
Input Voltage                                         VDD 5.0                                V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 8.0 V
