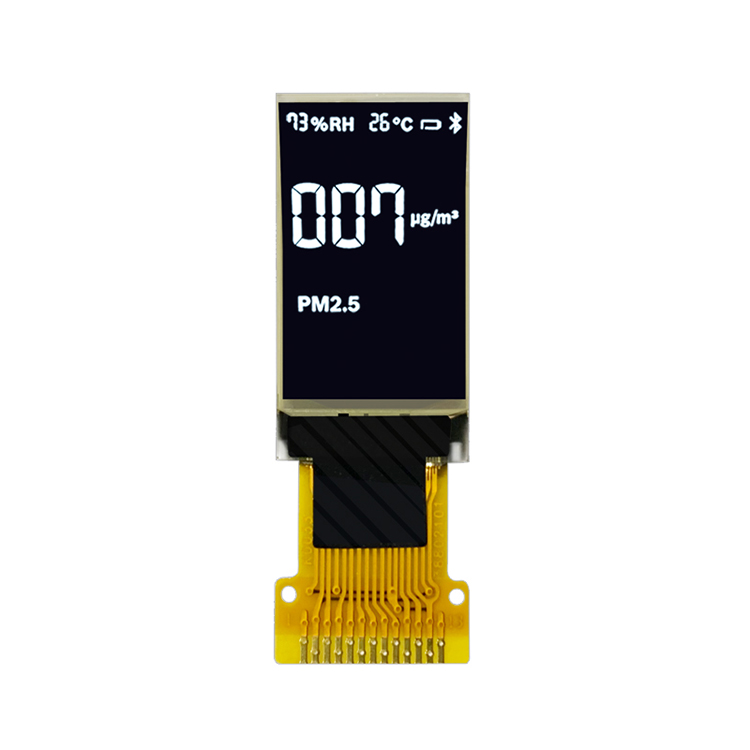

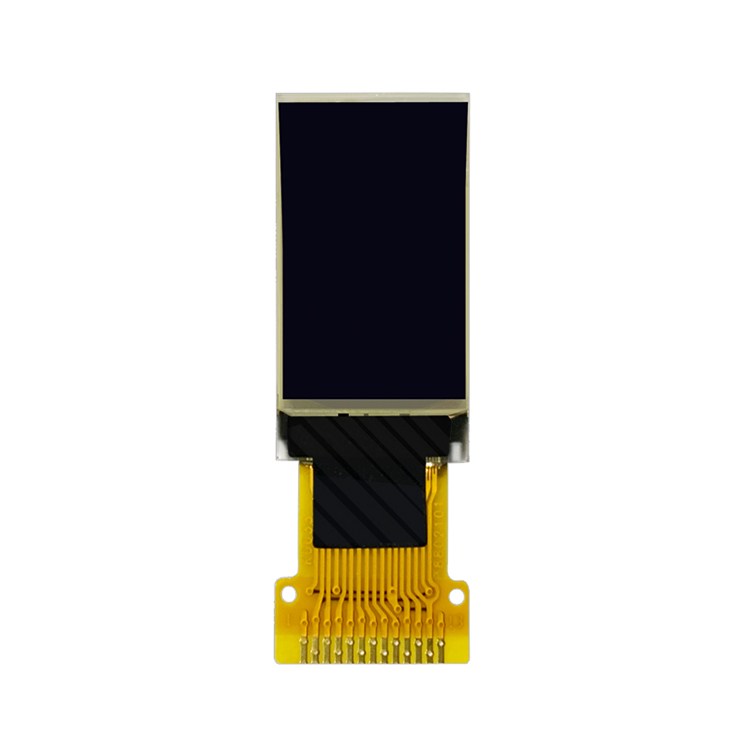

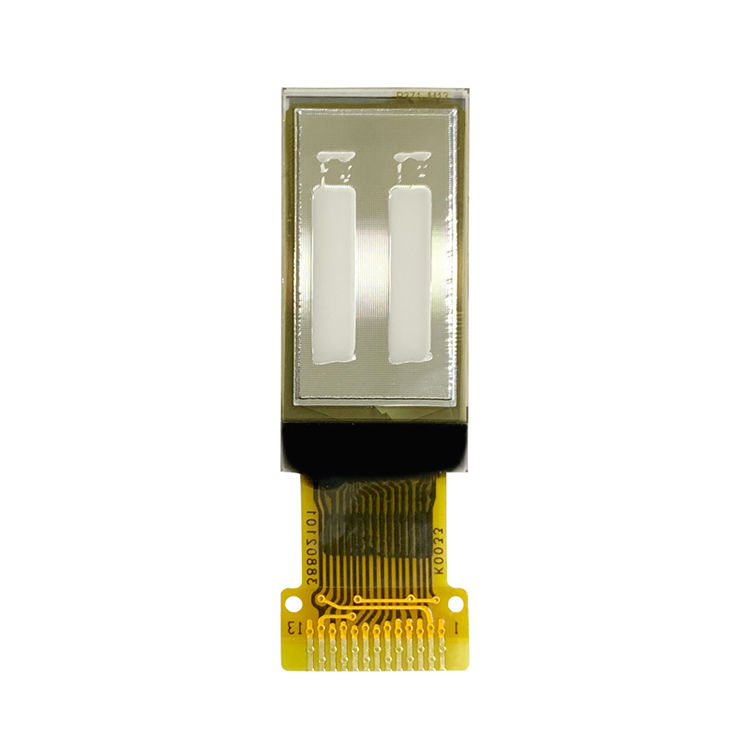

0.78" 80x128 OLED Micro Display

  • Size: 0.78 OLED
  • Controller IC: SH1107
  • Resolution: 80*128
  • Interface:SPI 13p
  • Product description: Micro OLED Display,0.78" 80x128 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.78 is a  passive matrix micro OLED display module which is made of 80*128 dots. It has the module dimension of 25.27(W) x28.50 (H) x 1.22(T) mm and Active Area size 9.68 × 17.26 (H) mm. This OLED micro display is built in with SH1107 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.78 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Display Type:                                                            oled display
Display Mode: Passive Matrix
Model Number: HG-078-80128TSWKG03
Diagonal Screen size: 0.78 inch
Interface:

3/4wire-SPI/I2C

Drive Duty:

1/88 Duty

Number of Pixels:

80x128

Panel Size:

25.27(W) x28.50 (H) x 1.22(T)(mm)

Driver IC:

SH1107

Active Area:

9.68 × 17.26(mm)

Pixel Pitch:

0.17 × 0.17 (mm)

Pixel Size:

0.15 × 0.15 (mm)

Weight:

1.05 (g)

Operating Temperature:

-40~85°

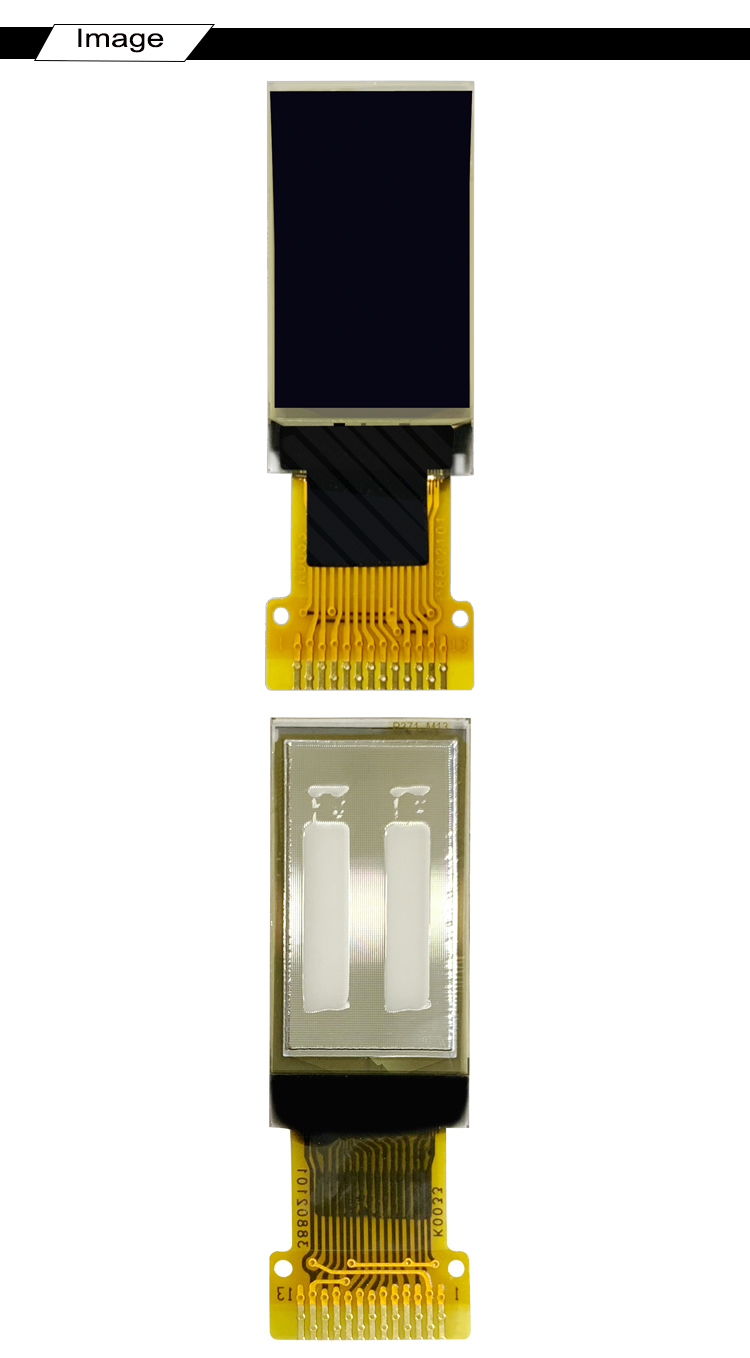

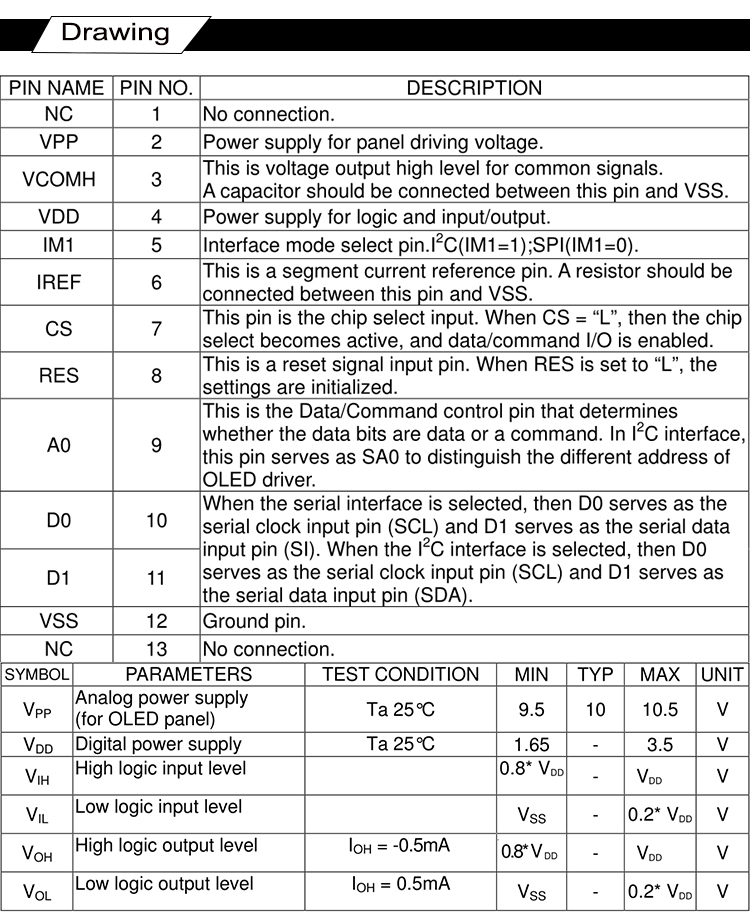

DRAWING

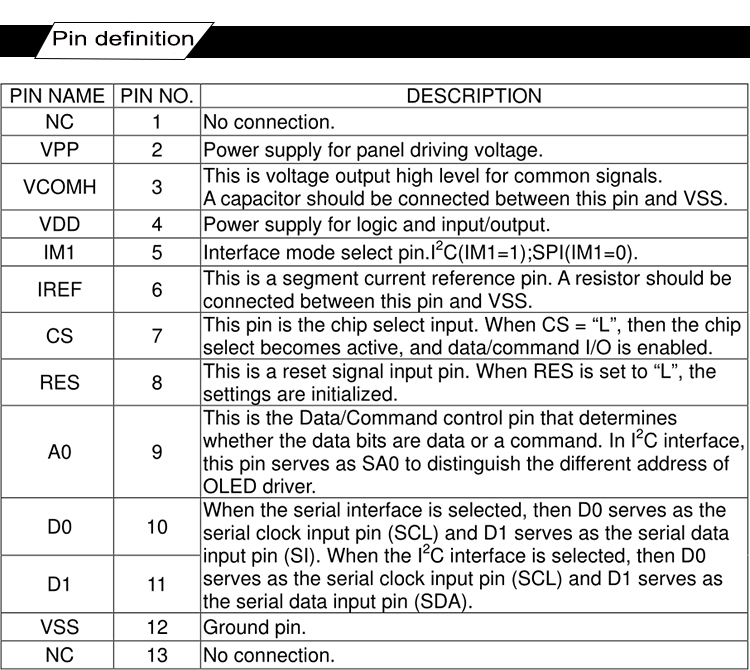

INTERFACE PIN FUNCTION
