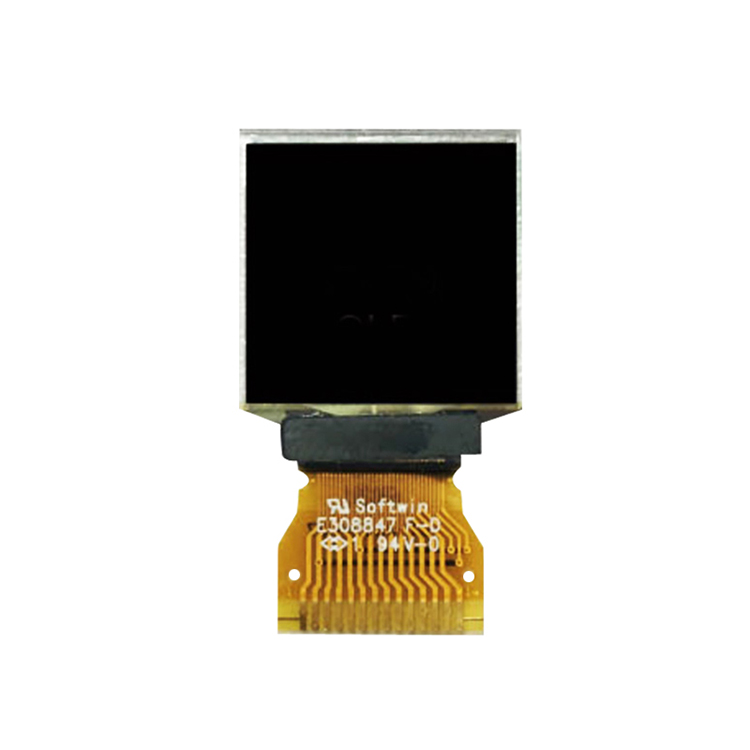

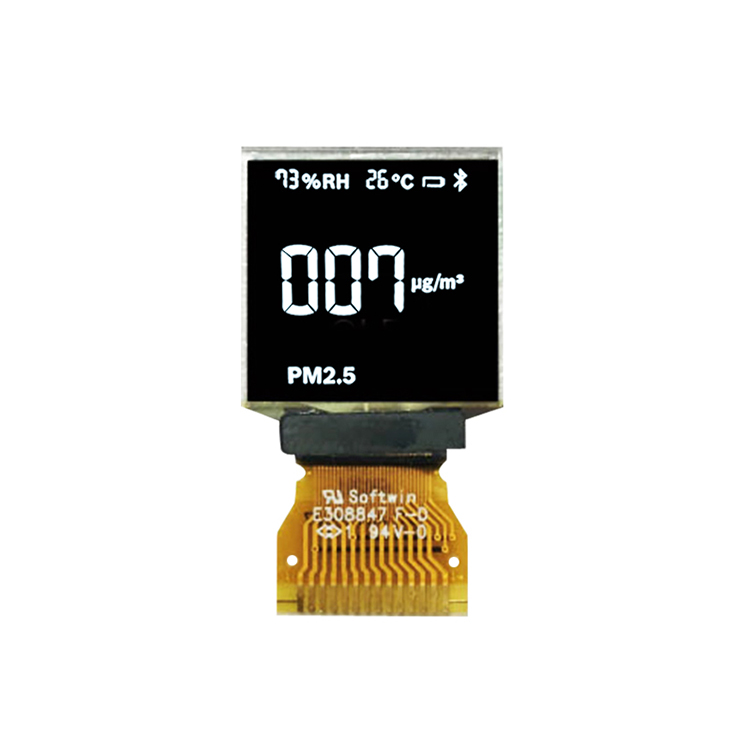

  • Size: 0.75 OLED
  • Controller IC: SH1107
  • Resolution: 96*96
  • Interface:SPI/I2C 14P
  • Product description: Micro OLED Display, 0.75 Inch 96x96 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



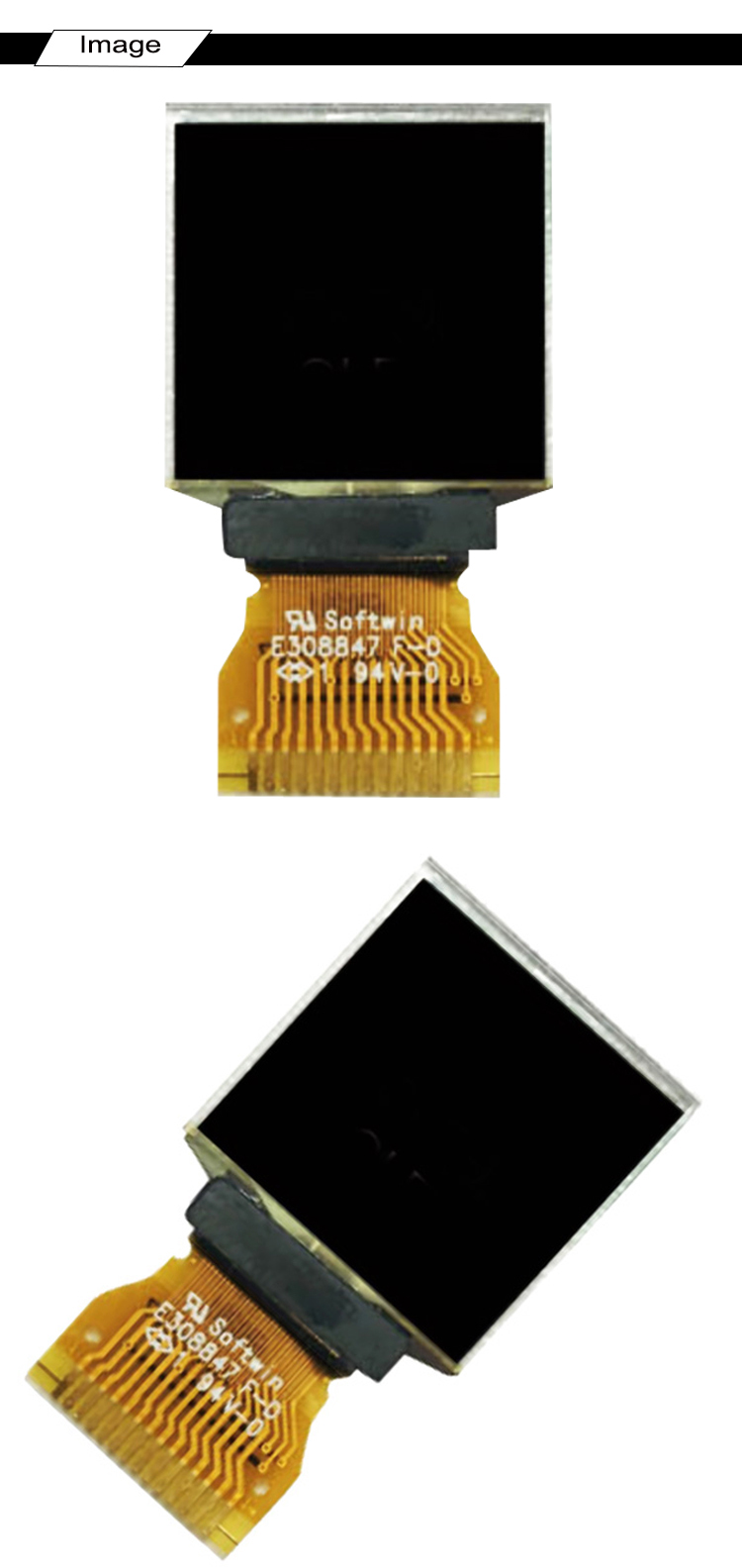

DESCRIPTION

HICENDA OLED 0.75 is a  passive matrix micro OLED display module which is made of 96x96 dots. It has the module dimension of 14.6(W) x22.34 (H) x 1.22(T) mm and Active Area size 10.54 × 15.34 (H) mm. This OLED micro display is built in with SH1107 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.75 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Display Type:                                                     oled display
Display Mode: Passive Matrix
Model Number: HG-075-9696TSWKG03
Diagonal Screen size: 0.75 inch
Interface:

3/4wire-SPI/I2C

Drive Duty:

1/88 Duty

Number of Pixels:

128x88

Panel Size:

14.6(W) x22.34 (H) x 1.22(T)(mm)

Driver IC:

SSD1306

Active Area:

10.54 × 15.34(mm)

Pixel Pitch:

0.17 × 0.17 (mm)

Pixel Size:

0.15 × 0.15 (mm)

Weight:

1.05 (g)

Operating Temperature:

-40~85°



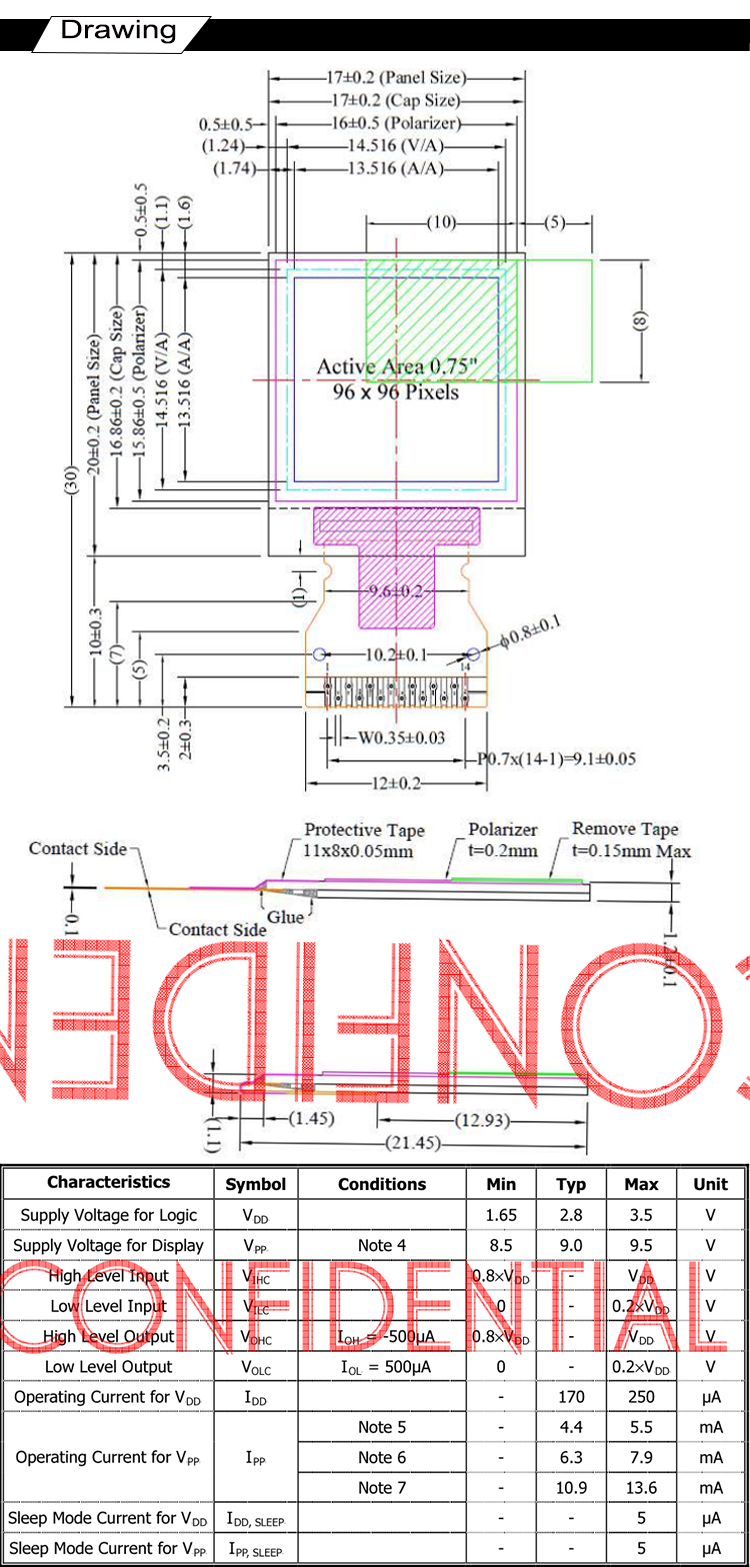

DRAWING

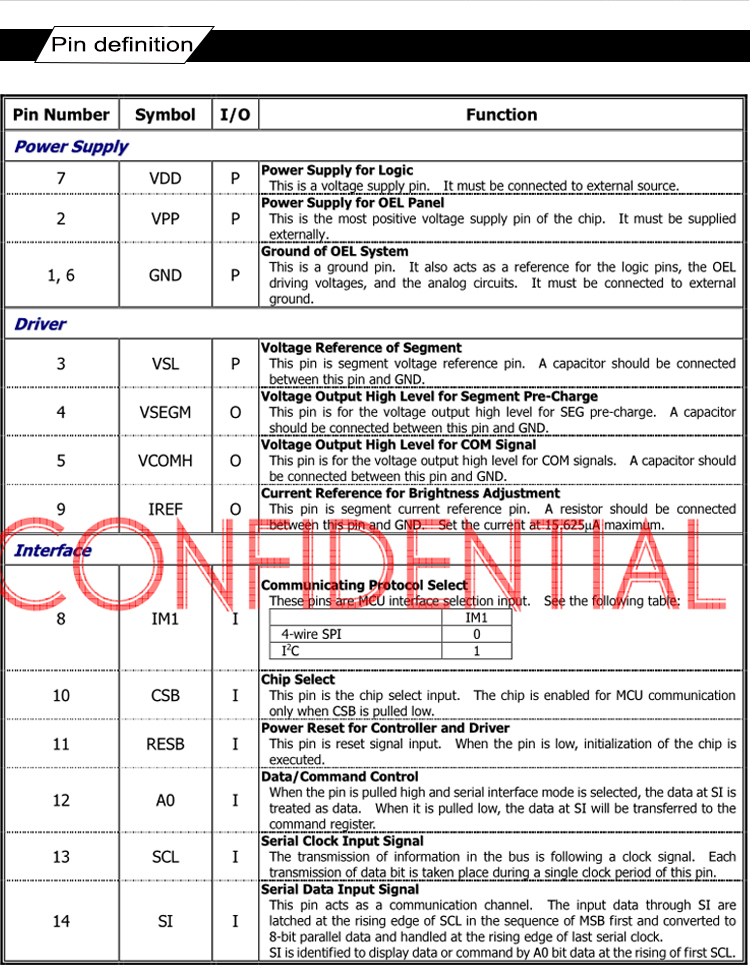

INTERFACE PIN FUNCTION
