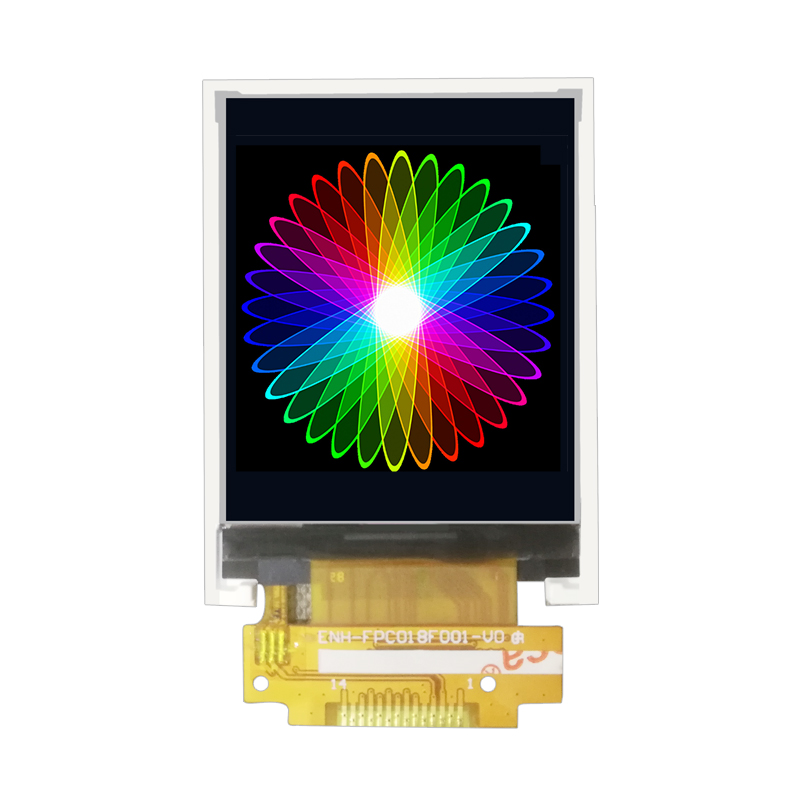

  • Panel Type: TN
  • Size: 1.77
  • Resolution: 128*160
  • Interface: MCU 8080 8BIT
  • Product description: Hicenda Technology Co.,ltd can supply high quality 1.77 inch small tft display module for medical or industrial device,1.77 Inch 26pin Tft Lcd multicolour mintor ST7735 Drive Ic
  • INQUIRY

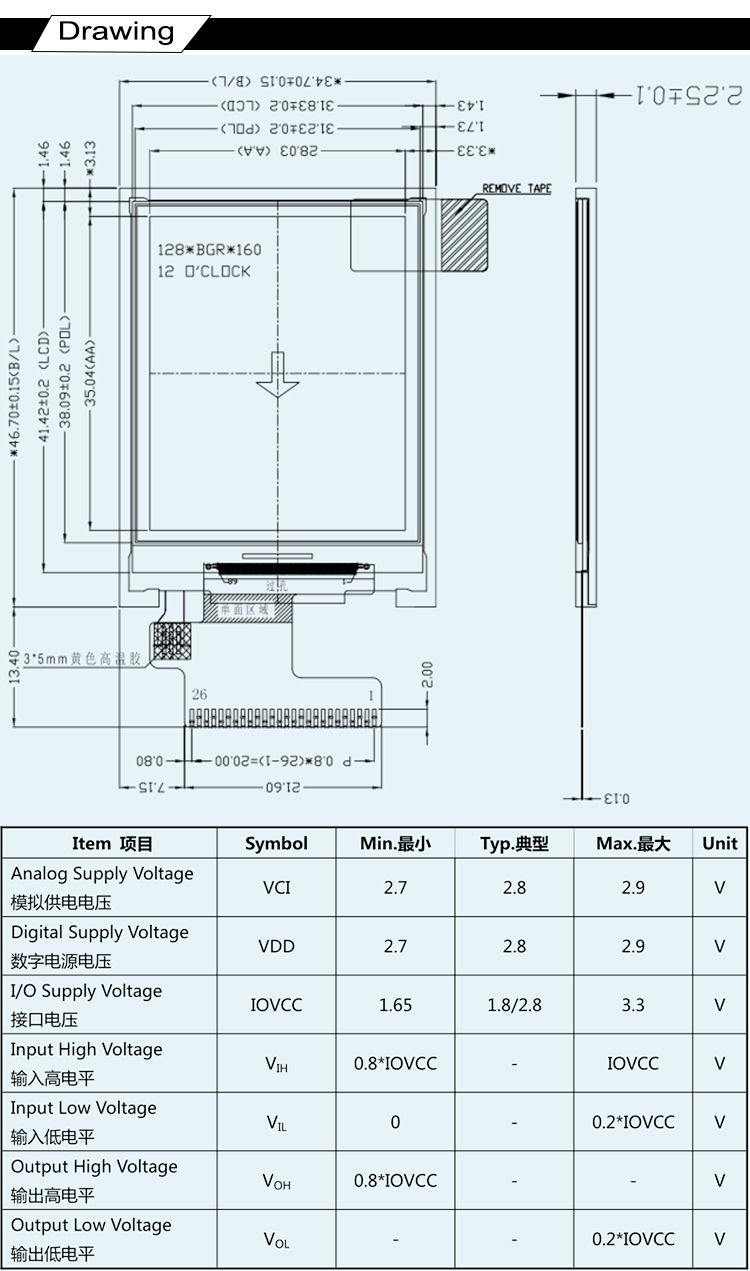

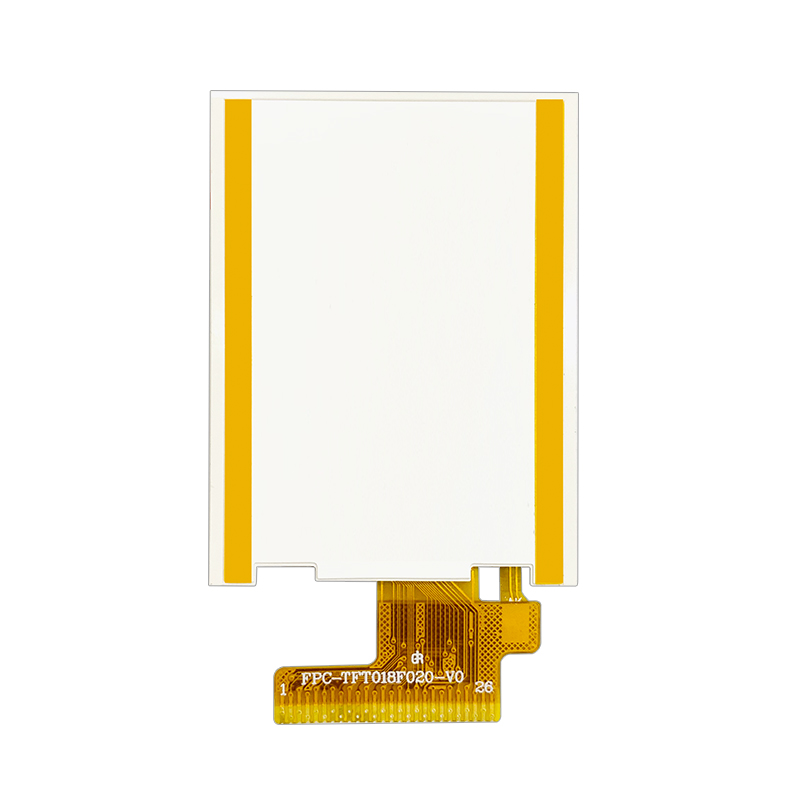

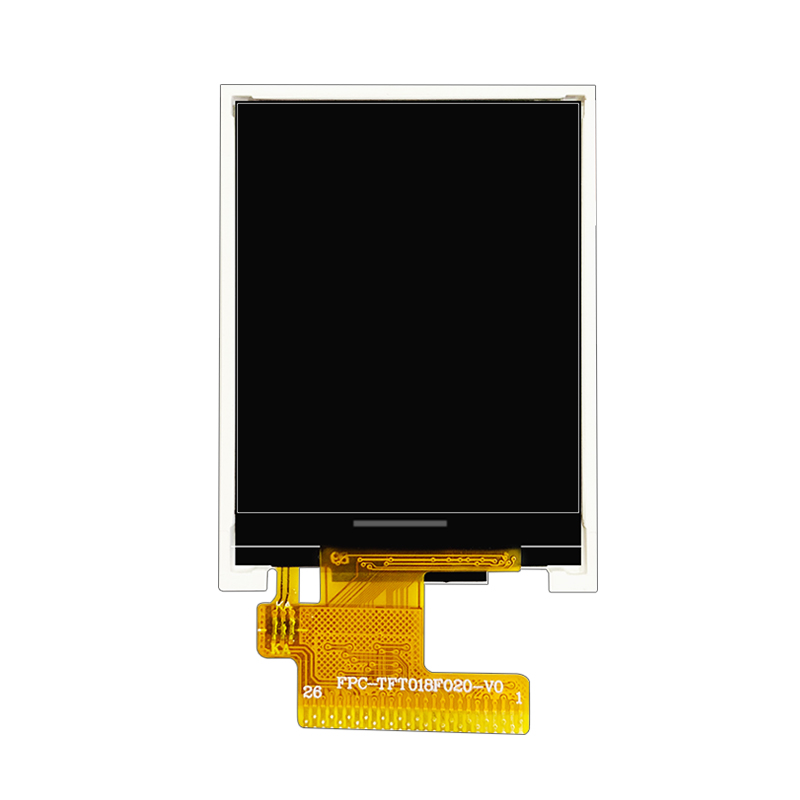

1. Display Specifications

  • LCD Size: 1.77 inches
  • Dot Matrix Size: 128*160
  • Number of Colors: 262K
  • Hardware Interface: MCU/8 bit 8080 interface
  • Driver IC: ST7735
  • Operating Temperature: -20 -~+70℃
  • Working Power Supply: 2.8V
  • PIN NO: soldering 26Pin
  • Display Area: 28.03*35.04mm
  • Size:34.7*46.7*2.25mm
  • Viewing Direction: 12 o'clock
  • Display Mode:Normally White

2. Mechanical Specifications

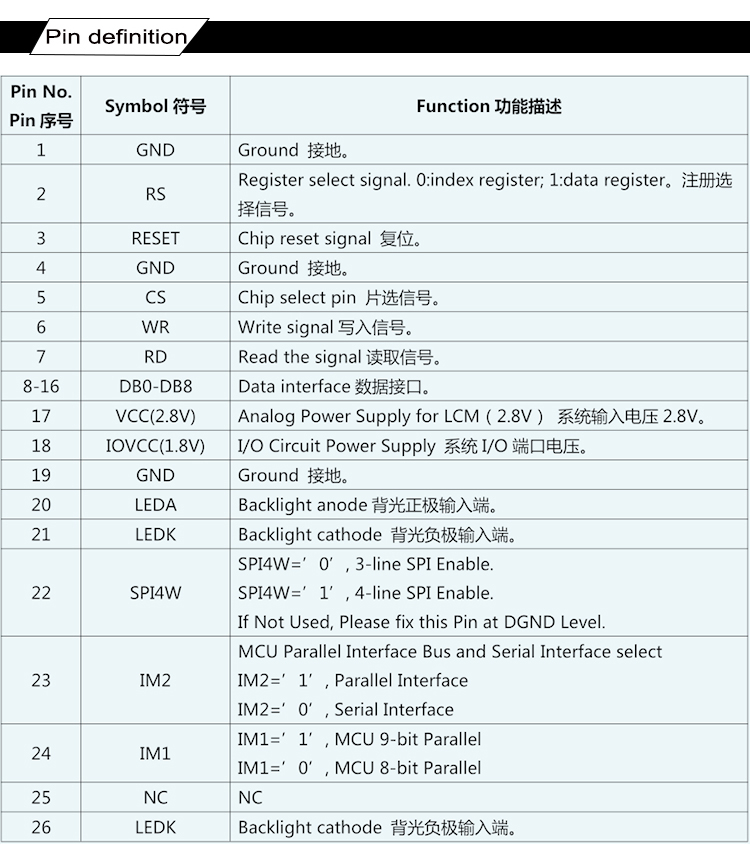

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 2.8V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
