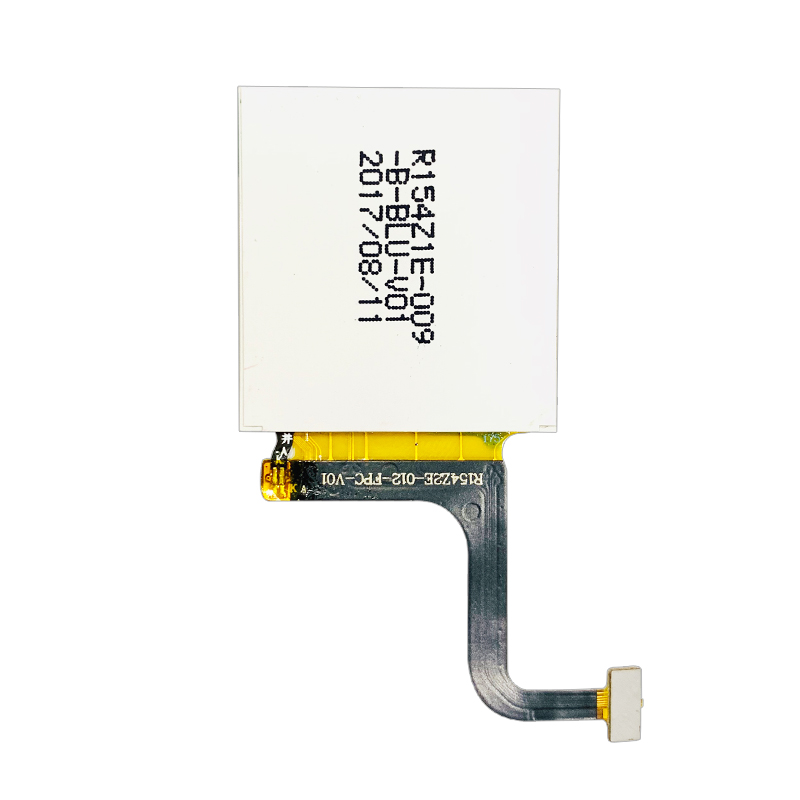

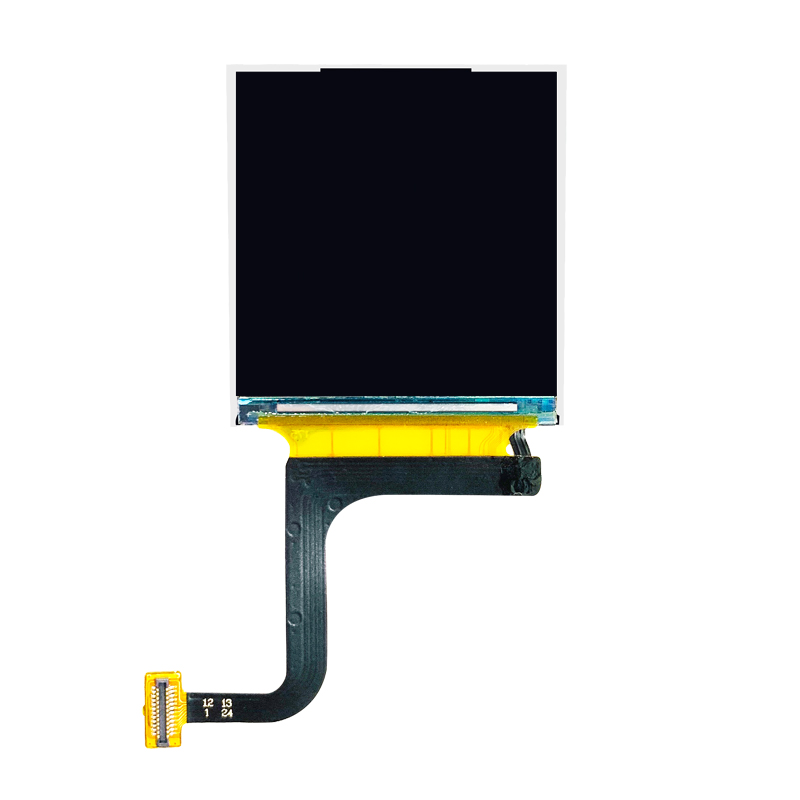

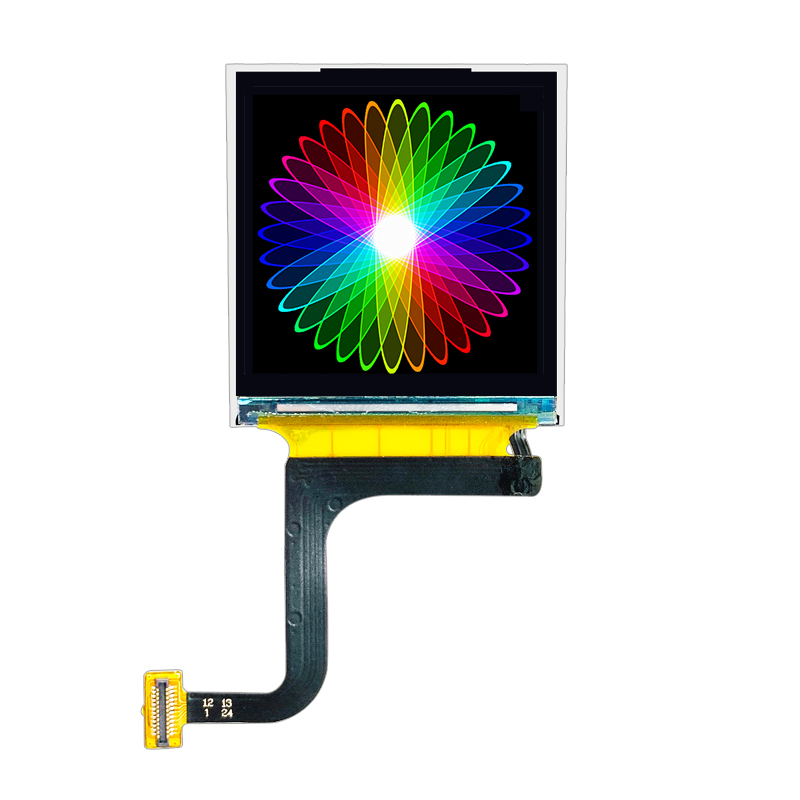

1.54 Inch Colorful TFT LCD Display customized 240*240 dots tft lcd display with plug 24pin for industry

  • Price: $2.89-$3.89
  • Size: 1.54
  • Resolution: 240*240
  • Interface: 3-wire SPI
  • Product description: Hicenda Technology Co., Ltd can supply tft display 1.54 inch with SS7789V Driver IC tft lcd display 1.54'' tft lcd monitor screen display with good qualityand special price,Colorful TFT LCD Display
  • INQUIRY


1. Display Specifications

  • LCD Size: 1.54 inches
  • Dot Matrix Size: 240*240
  • LCD Color: 262K
  • Hardware Interface:3-wire SPI
  • Driver IC: ST7789
  • Operating Temperature: -20 ~ +70℃
  • Working Power Supply: 3.2V

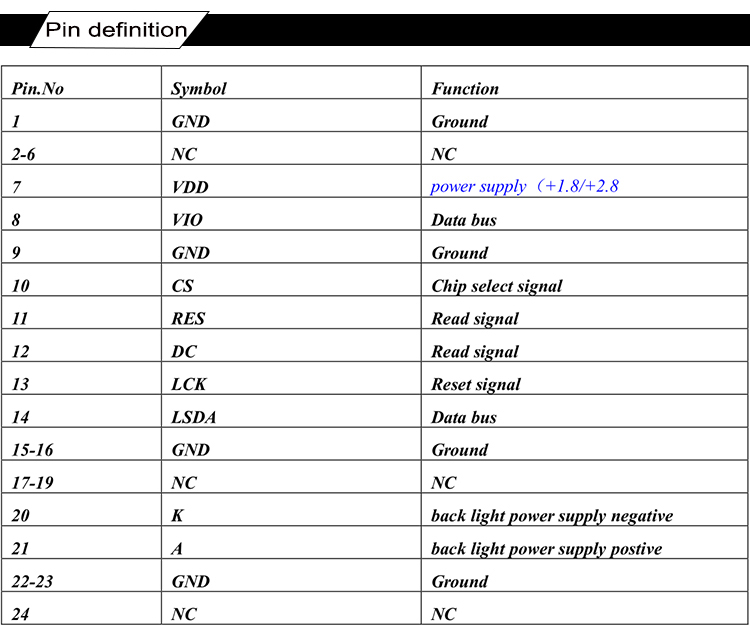

  • PIN NO: Plug 24Pin
  • Display Area: 27.72*27.72mm
  • Module outline (W x H x D):31.52x33.72x1.86 (mm)

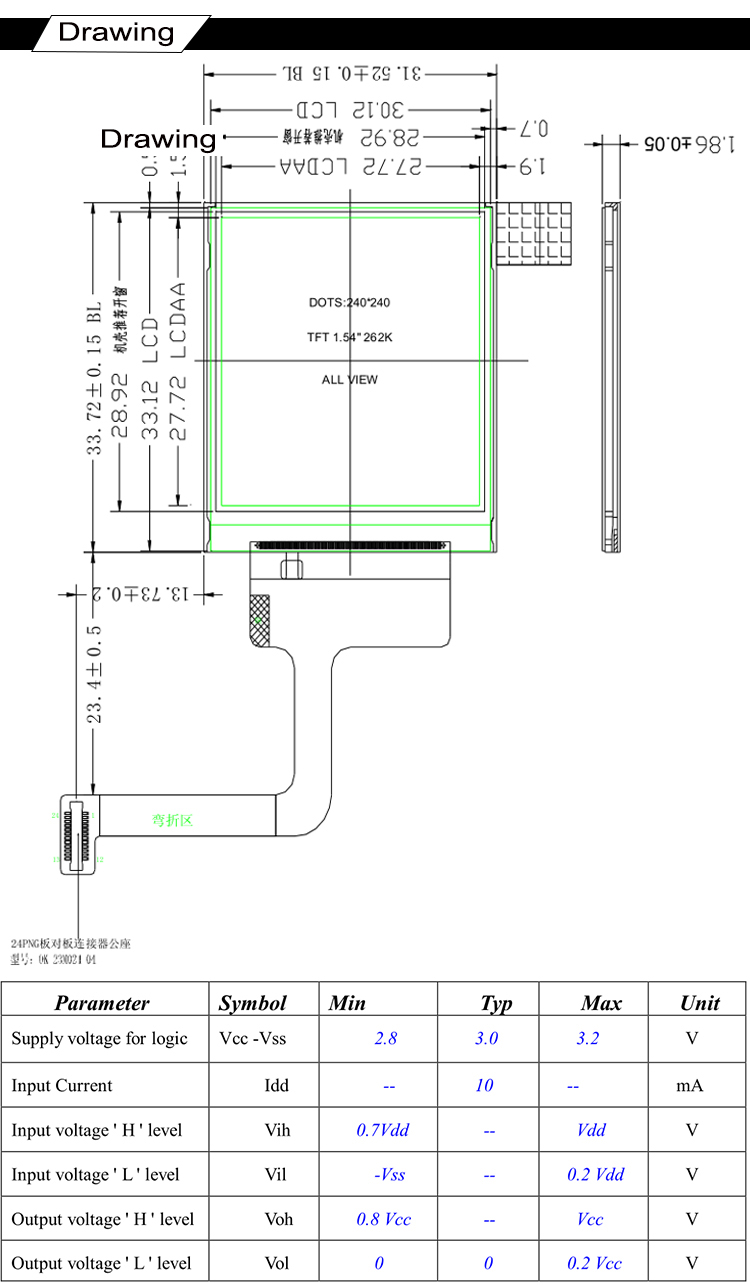

2. Mechanical Specifications

Product Name 1.54 Inch TFT Sreen
Active Area (WxH) 27.72(H) x 27.72(V)
Display Outline Size 31.52(H) x 35.1(V) x 1.72(D)
Resolution 240RGBx240DOTS
Polarizer Mode RGB Stripe
Backlight 3 White LED in Parallel
Interface Type SPI
Viewing direction ALL VIEW
Controller / Driver ST7789v
