1.45"

  • 1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface
  • 1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface
  • 1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface
1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface

1.45 inch OLED Amoled screen RM69080 Driver IC module 280*280 resolution MIPI interface

  • Display Mode:Amoled
  • Screen Size:1.45
  • Driver IC:RM69080
  • Color Configuration:RGB
  • Product description: Hicenda Technology Co., Ltd can supply 1.45 inch amoled display of adjusting the color of the light for smart device,display screen mintor oled amoled with 20pin,Special price and good quality of amol
  • INQUIRY

1. Display Specifications

1) Screen Size: 1.45''
2) Interface Type: MIPI
3) Resolution:280*280

4) Drive IC: RM69080

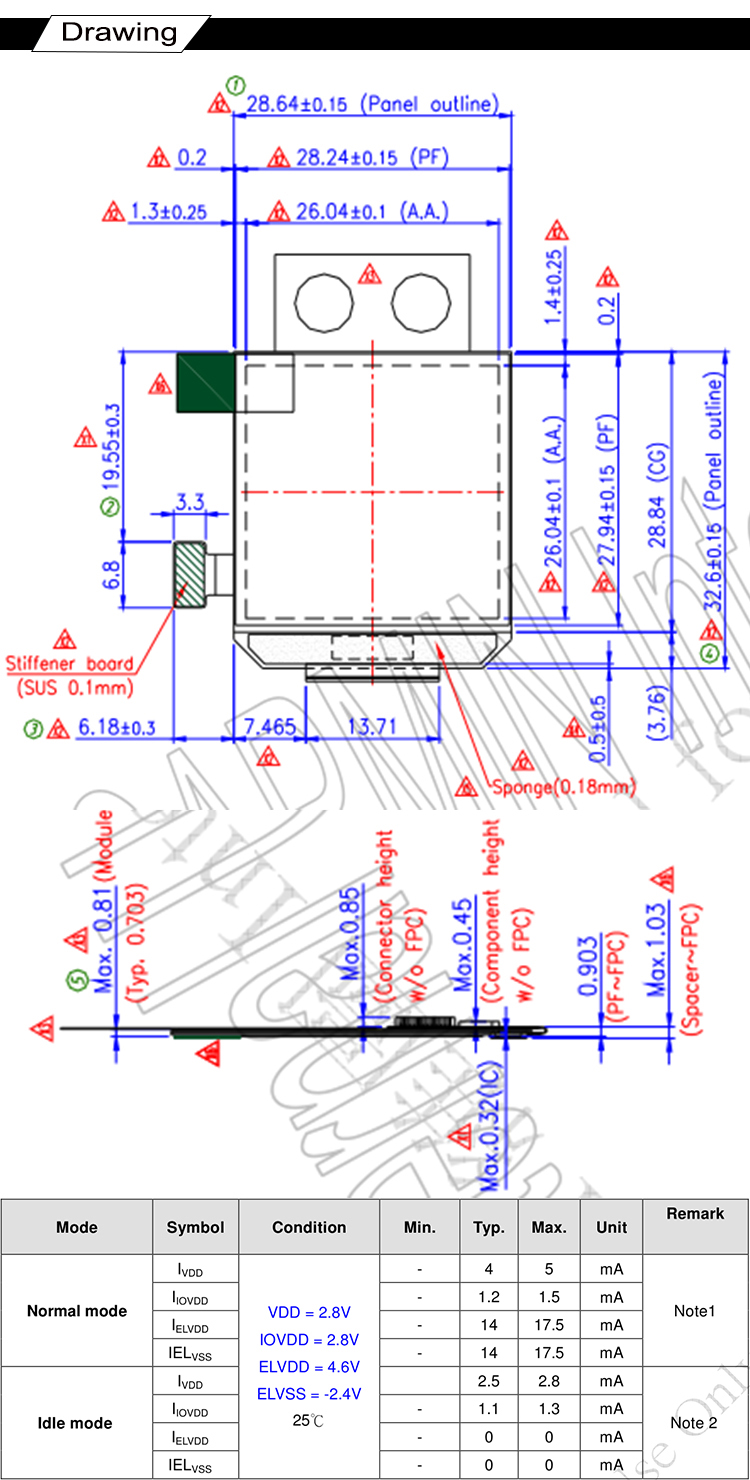

5) Active Area: 26.04 (H)*26.04(V)

6) Operating Temper:-40~+85℃

7) Display Color (M):16.7M

8)Warranty:12 Months

9)Color Configuration:R, G, B

10)Operating Voltage:2.75V~3.0V

11)Storage Temperature:-55℃~+125℃

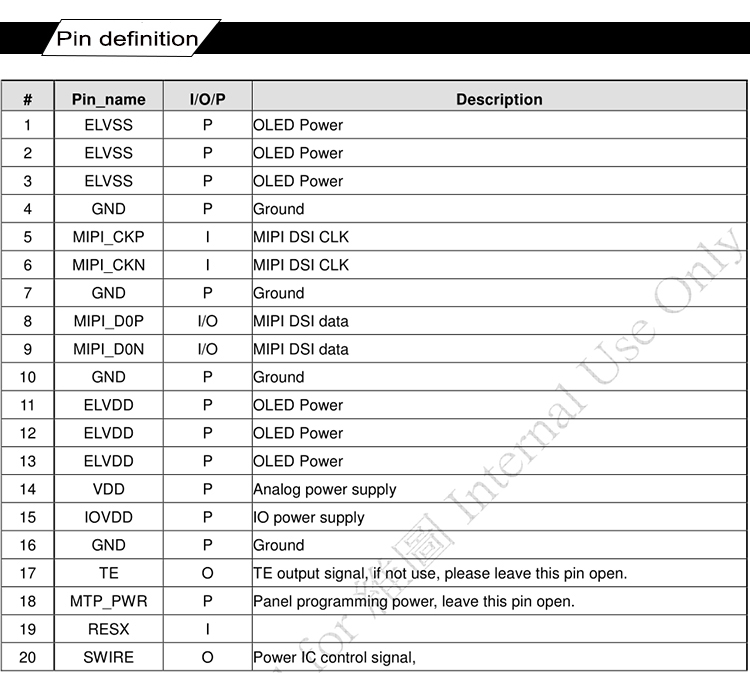

12)The number of pin:plug 20pin



PREVIOUS：1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin NEXT：1.63 inch 20pin Colorful Amoled Screen Module RM69032 Drive I2C Compatible for MIPI Interface 320*320 Dots
