AMOLED

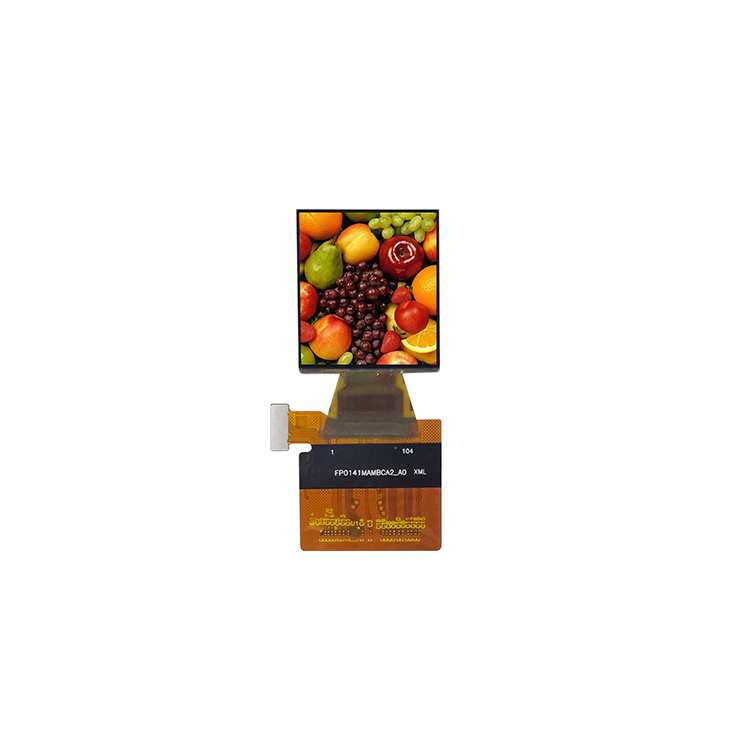

  • 1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin
  • 1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin
  • 1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin
1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin

1.41 inch oled amoled display 360*320 dots WT010 Driver IC MIPI interface amoled module screen with plug 30pin

  • Display Mode
  • Resolution (dot):320xRGBx360
  • Driver IC:WT010
  • Interface:MIPI
  • Product description: Hicenda Technology Co., Ltd can supply 1.41 inch 320xRGBx360 resolution colorful amoled display panel soldering plug with 30 pin interface WT010 driver IC for smart device,1.41'' flexible transparent
  • INQUIRY

1. Display Specifications

1) Display Mode: Amoled
2) Display Color: RGB
3) Driver IC:WT010

4) Wide viewing angel: >160 degree

5) Brightness: 350 cd/m2

6) Interface:MIPI

7) Display Color (M):16.7M

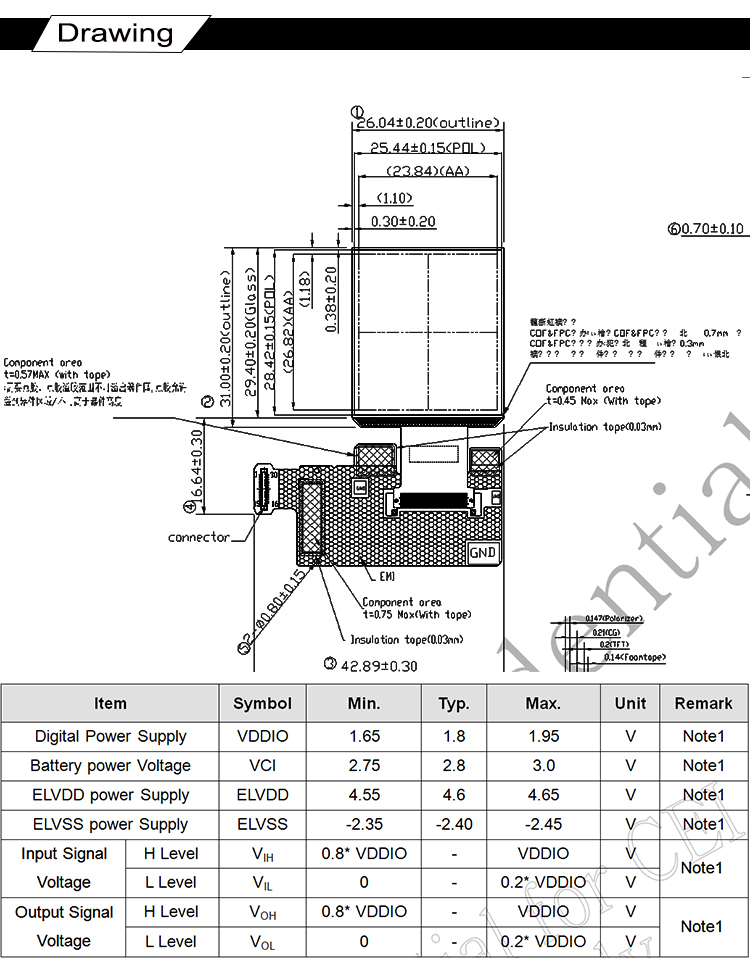

2. Mechanical Specifications


Display Type: amoled display
Display Mode: Initiative Matrix
Model Number:

HG--141

Diagonal Screen size: 1.41 inch
Interface:

MIPI



Number of Pixels:

320xRGBx360

Panel Size:

26.04 (H) * 31.00(V) * 0.66(T)

Driver IC:

WT010

Active Area:

23.84 (H)*26.82

Pixel Pitch:

0.17 x 0.17(mm)

Operating Voltage

2.75V~3.0V

Weight:

1.54 (g)

Operating Temperature:

-20℃~+60℃
