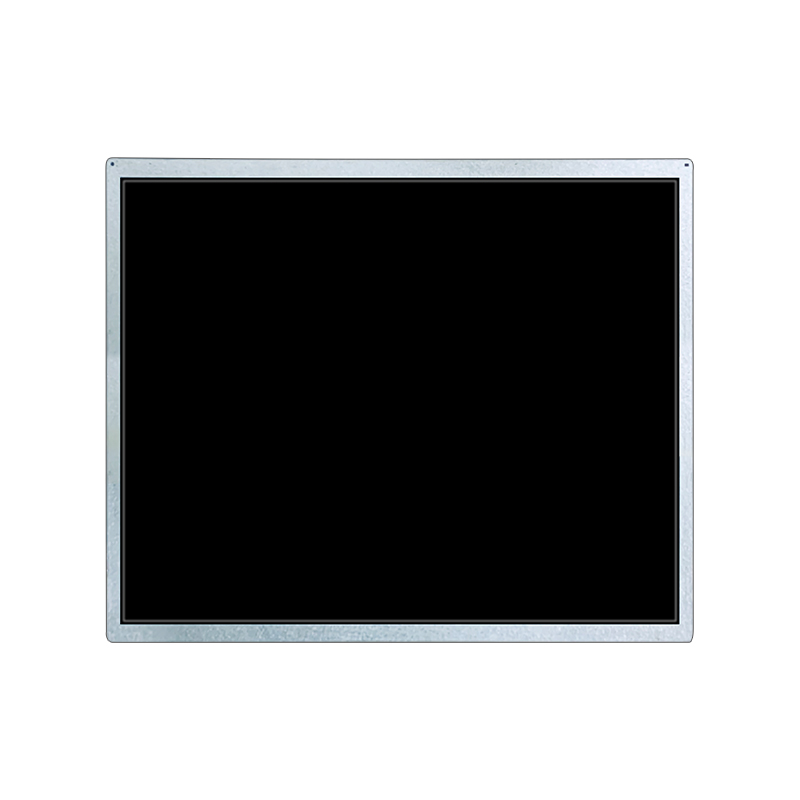

17 inch 1280*1024 M170ETNO1.1 LCD Screen Display Module test good 30pin

  • Display Mode :Normal White
  • Size: 17
  • Resolution: 1024*1280
  • Interface:LVDS
  • Product description: Hicenda Technology Co.,ltd can supply high quality 17inch tft display for medical or industrial device.HD 1280*1024 dot matrix 17 Inch tft lcd monitor,17 inch TFT-LCD LCM Screen Dual Channel LVDS
  • INQUIRY


1. Display Specifications

  • LCD Size: 17 inches
  • Dot Matrix Size: 1024*1280
  • lCD Module:a-Si TFT
  • Hardware Interface: LVDS
  • Display mode:Normally White
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  30Pin

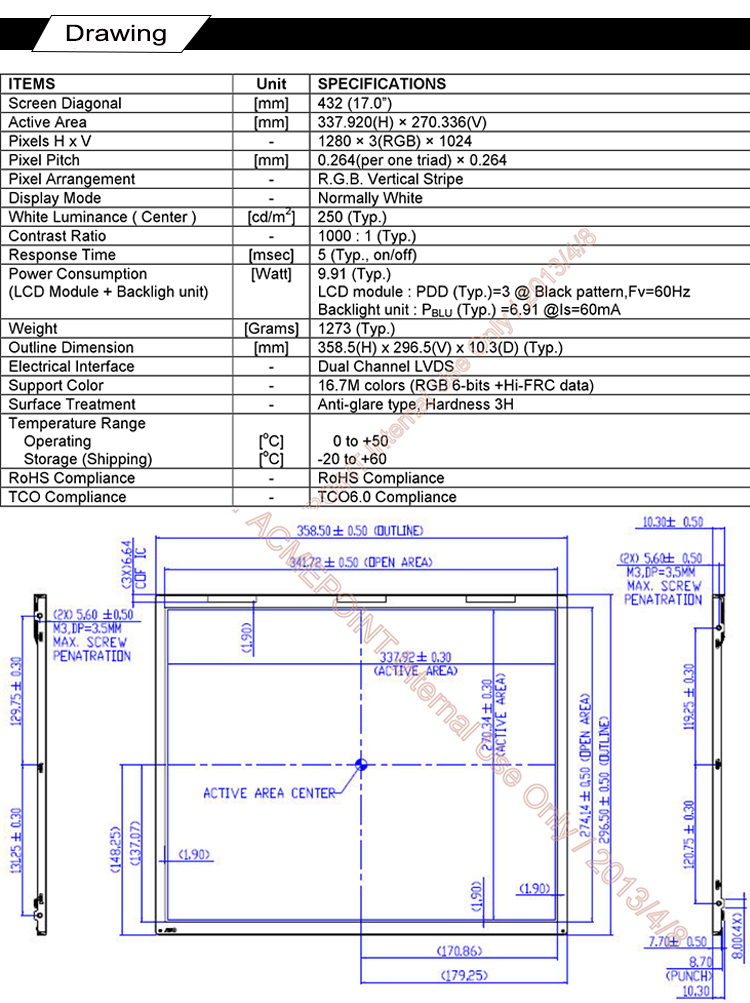

  • Display Area:337.92x270.336 mm
  • Size:358.5(H)x296.5(V)x10.3(D)
  • Viewing Direction: ALL

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
