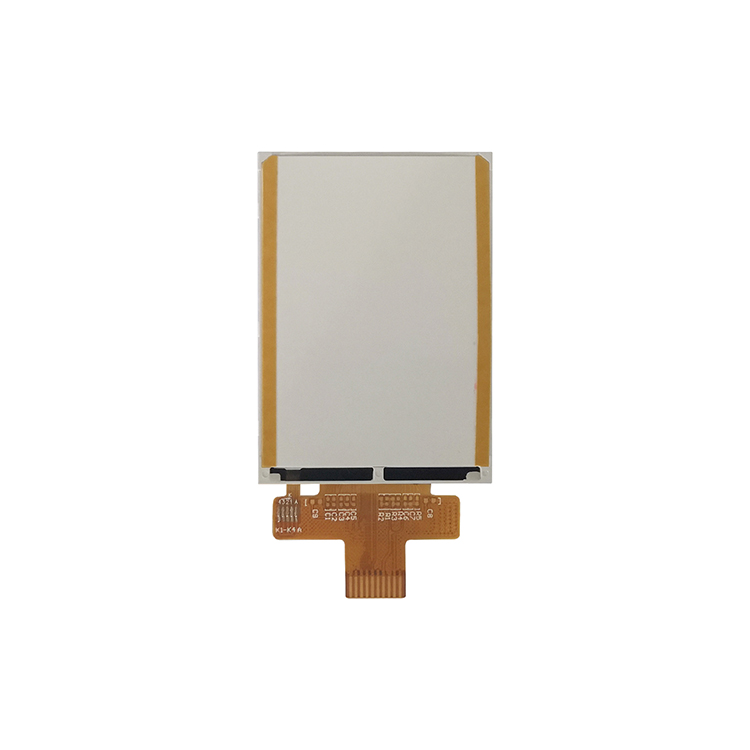

TFT LCD Display 2.4 inch,240(RGB)x 320

  • Size: 2.4 TFT
  • Controller IC: ST7789
  • Resolution:240(RGB)x 320
  • Interface: SPI 4L
  • Product description: TFT LCD Display 2.4 inch,320(RGB)x240
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 2.4 is a 240(R.G.B) x320 dot matrix TFT LCD module. It has a TFT panel  composed of 240(R.G.B) segments and320 commons. The LCM can be easily accessed by micro-processor-unit (MPU) via parallel interface.





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT2.4TFT-240320-10
Diagonal Screen size: 2.4 inch
Interface:
SPI 4L
Backlight:

LED B/L White×4
Number of Pixels:

240(H)RGBx 320(V) dots


Panel Size:

42.72(W) x 60.26(H) x 2.3 (D)(mm)
Driver IC:

ST7789


Active Area:

36.72(W) x48.96(H)(mm)
Display Mode:

Normally white/Transmissive
Pixel Size:

0.153(W) x 0.153(H)(mm)

Weight:

40 (g)

Operating Temperature:

-40~85°

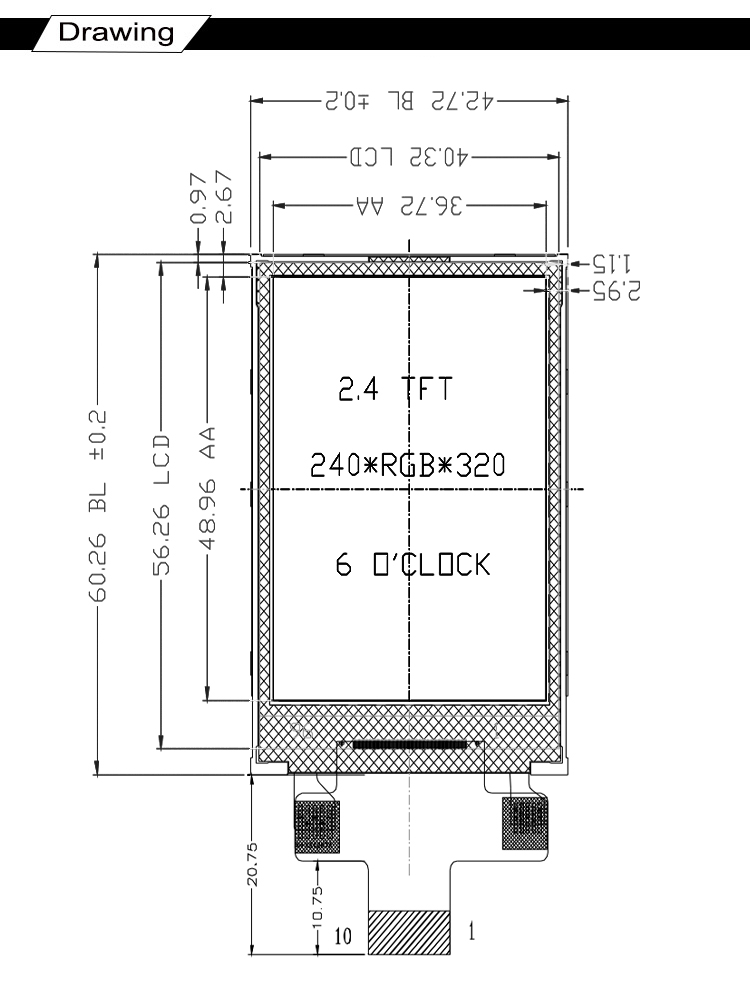

DRAWING

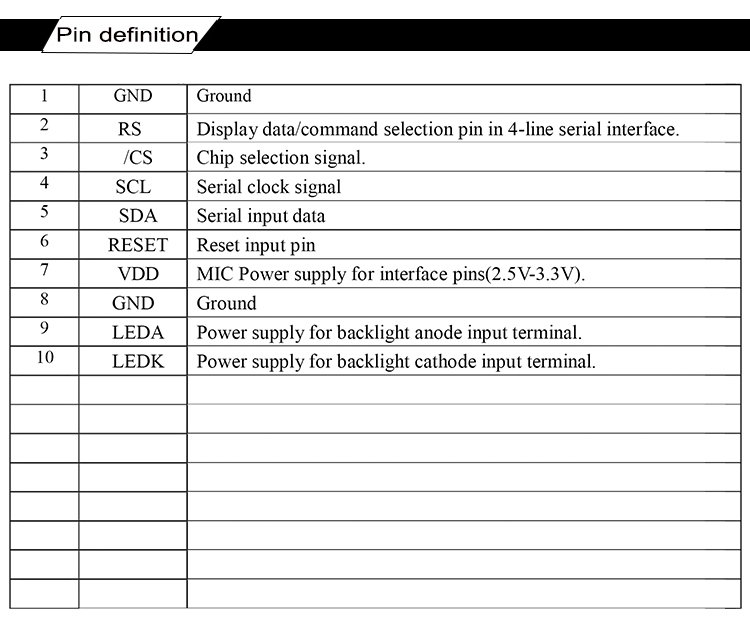

INTERFACE PIN FUNCTION
