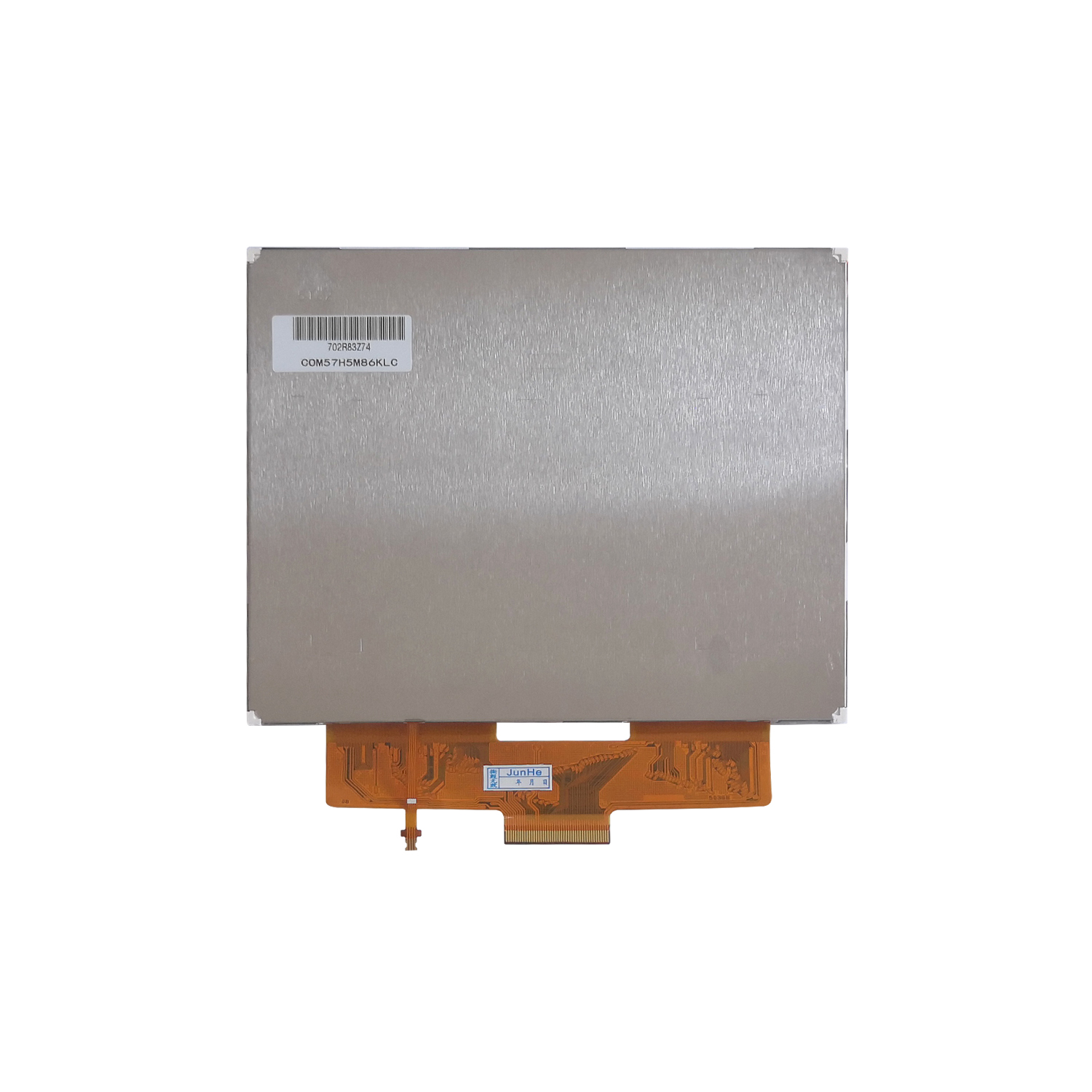

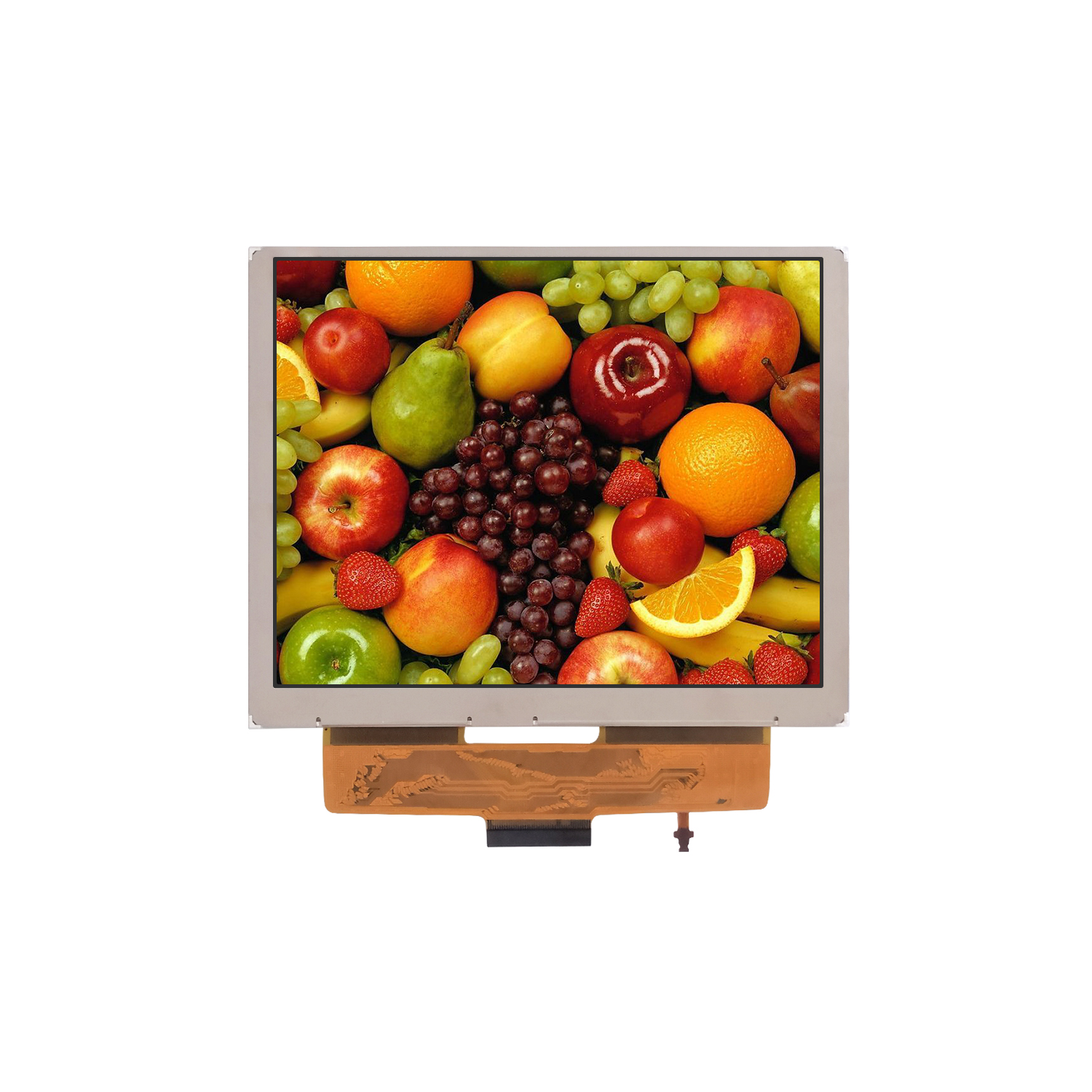

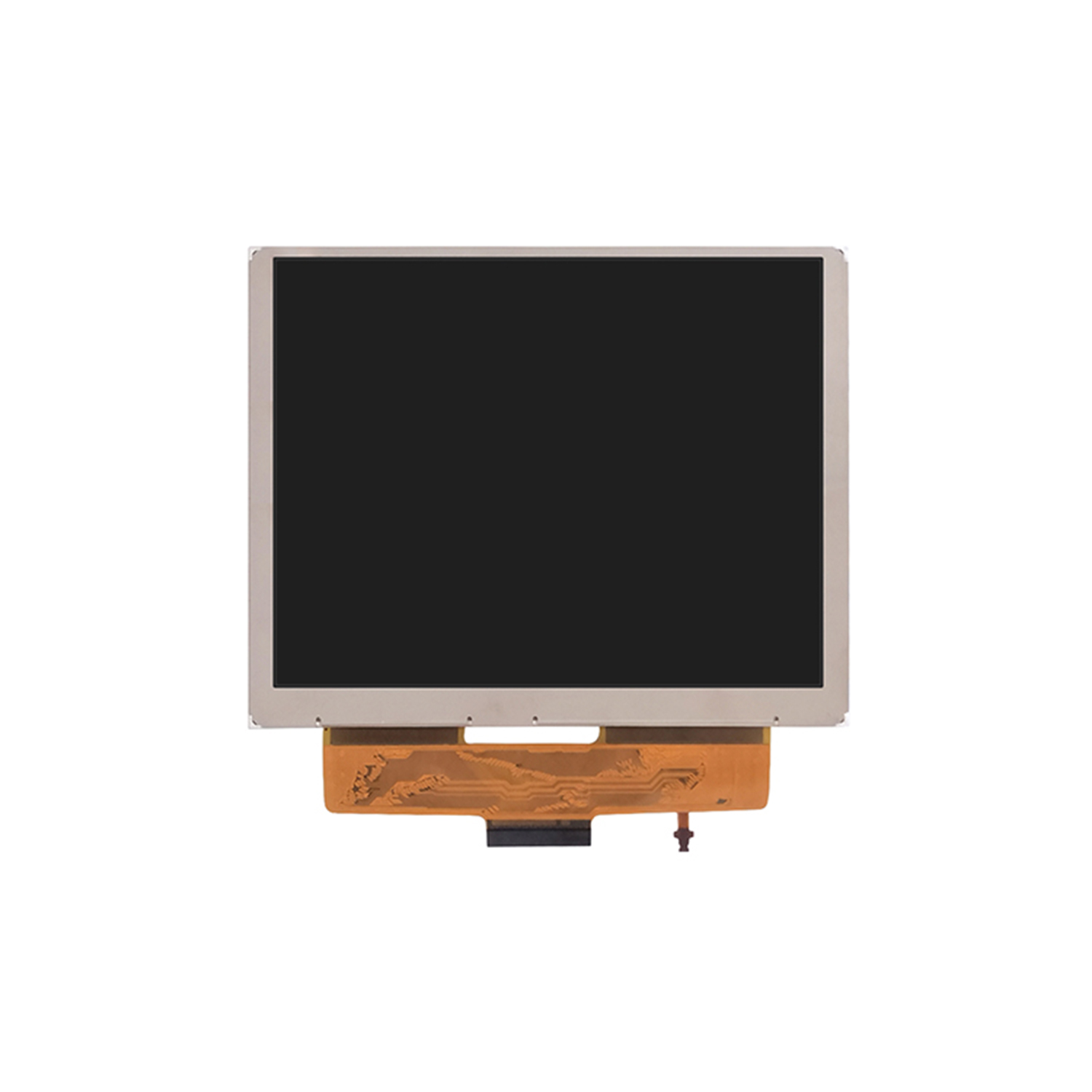

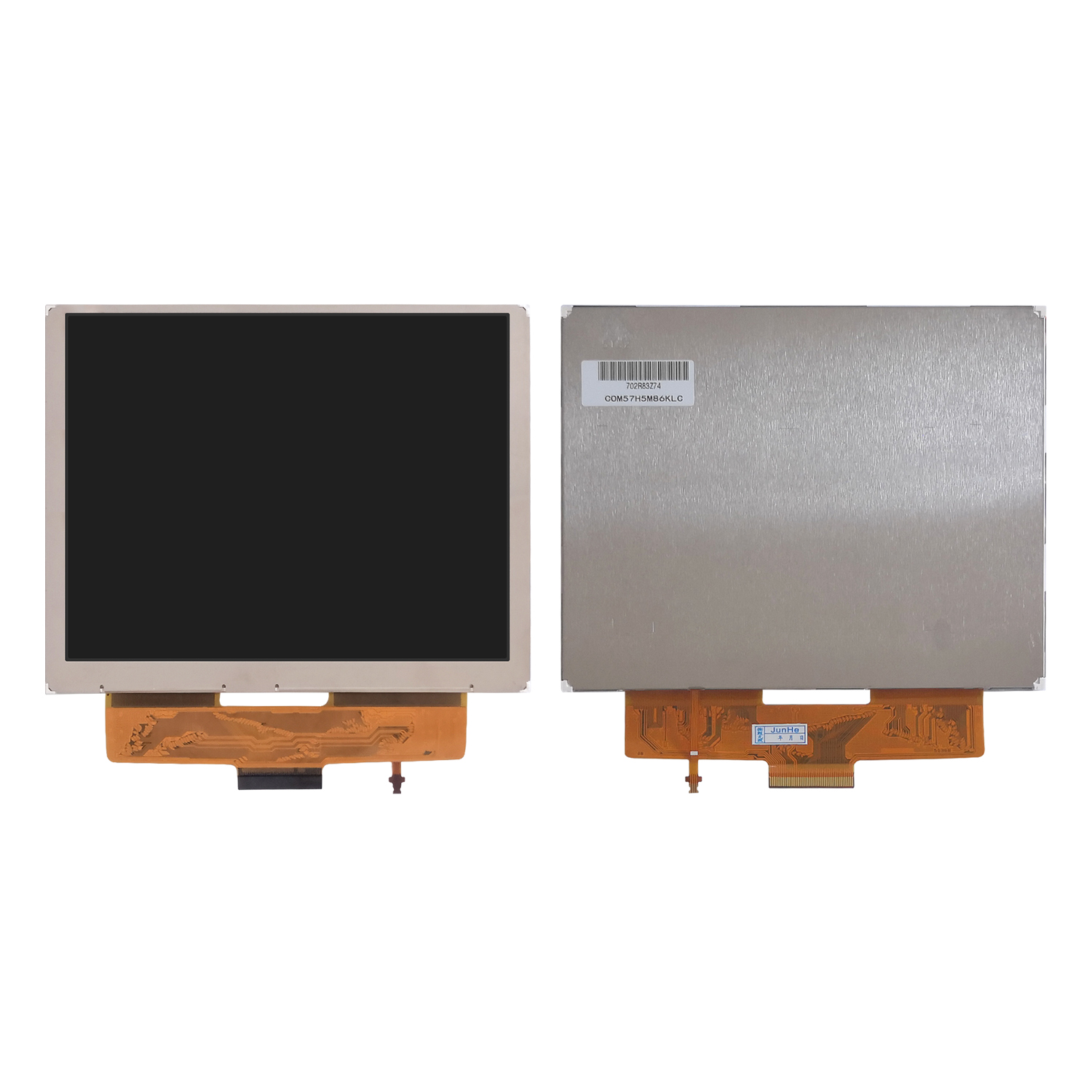

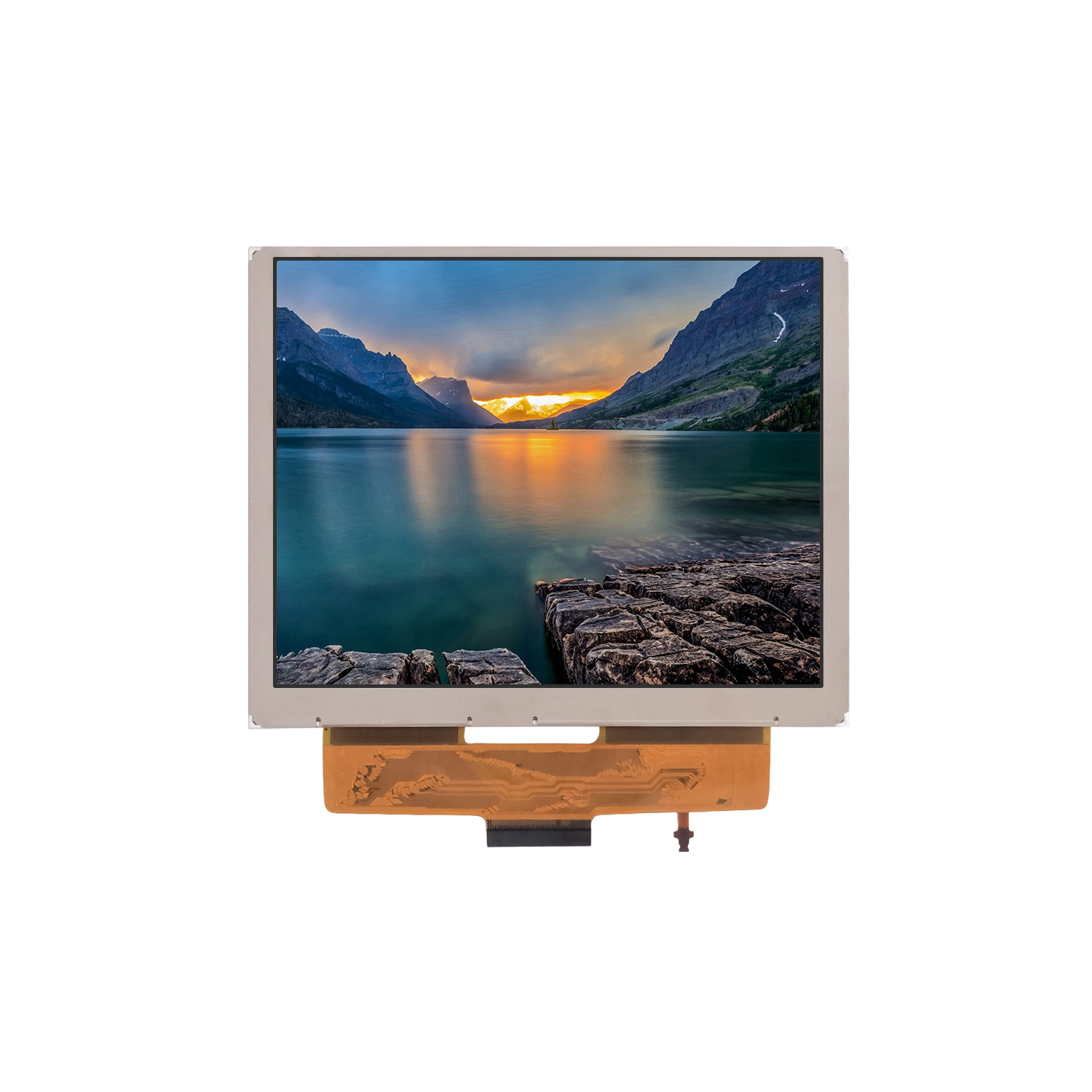

ORTUSTECH COM57H5M86KLC 5.7" tft lcd display,1920 dotsx480

  • Size: 5.7 TFT
  • Controller IC:
  • Resolution:1920(RGB)x480
  • Interface: Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
  • Product description: ORTUSTECH COM57H5M86KLC 5.7" tft lcd display,1920 dotsx480
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

ORTUSTECH COM57H5M86KLC 5.7 is High Resolution 1920(RGB)x480 is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as

switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a
backlight unit.





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number: COM57H5M86KLC
Diagonal Screen size: 5.7 inch
Interface:
6-bit RGB, parallel input.
Backlight:

High bright white LED back-light.
Number of Pixels:

1920(RGB)x480

Panel Size:

130.32[H] × 101.20[V] × 3.63[D](mm)
Driver IC:

-

Active Area:

115.20[H] × 86.40[V](mm)
Display Mode:

Normally white/Transmissive
Pixel Size:

60.00[H] × 180.00[V](mm)

Weight:

85 (g)

Operating Temperature:

-40~85°



DRAWING





INTERFACE PIN FUNCTION
