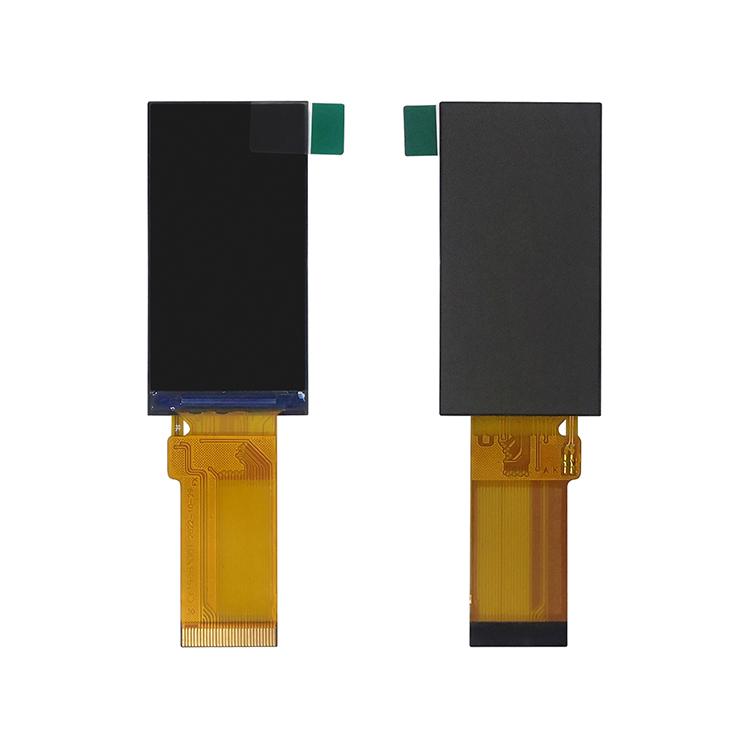

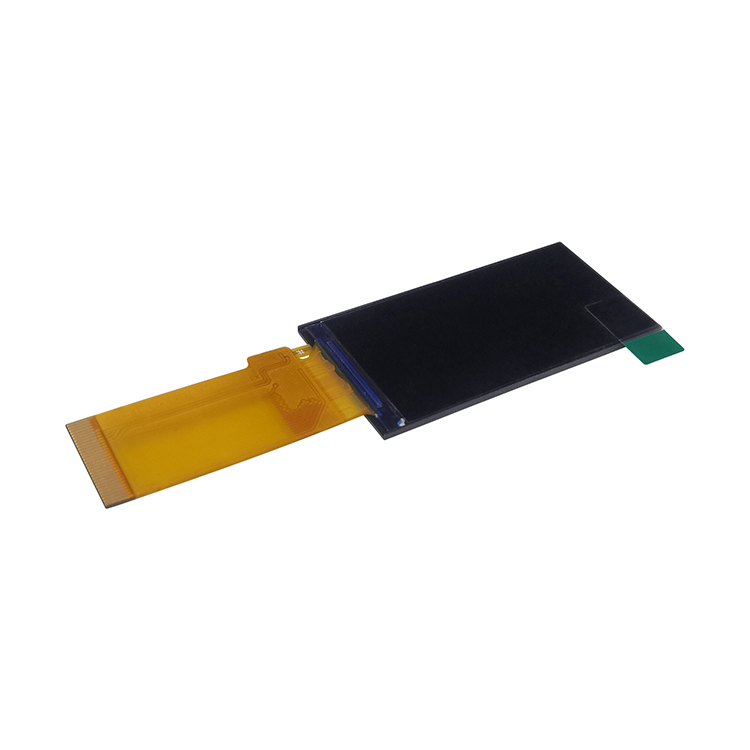

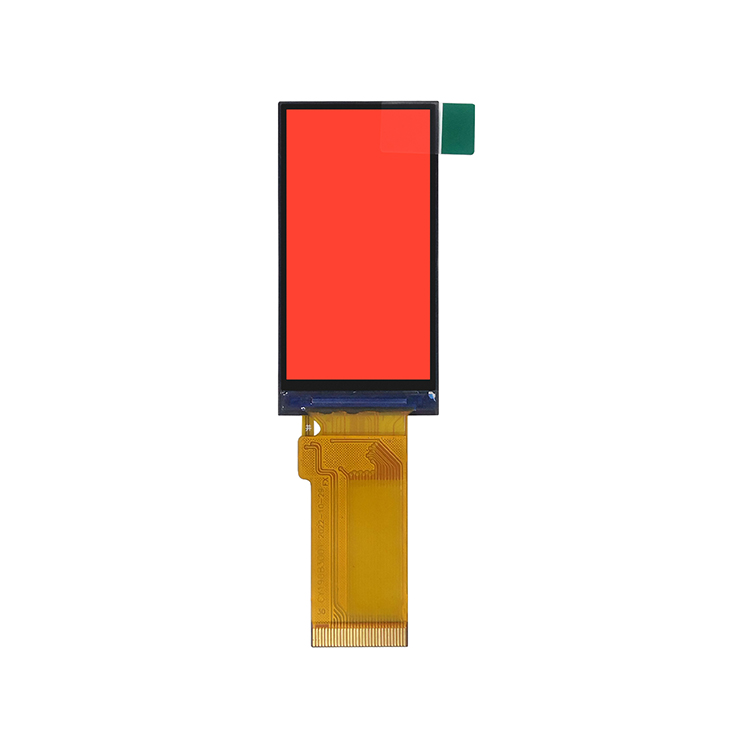

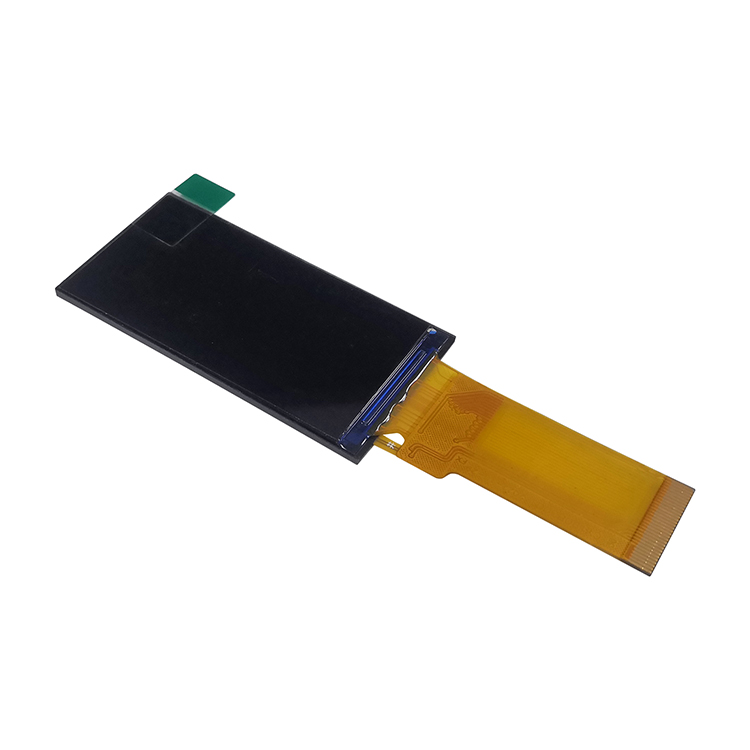

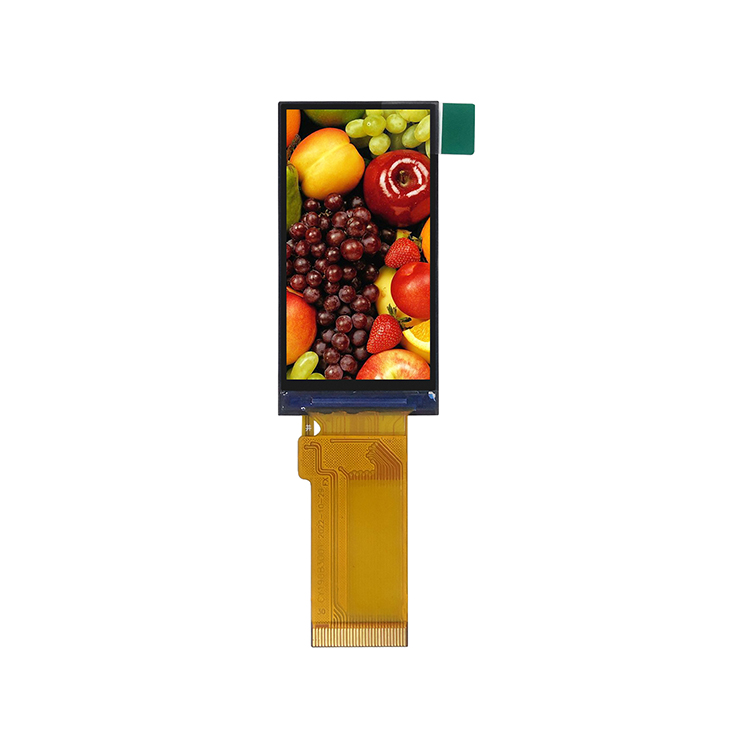

  • Small tft lcd 1.9 inch 170RGB x 320 Display Module
  • Small tft lcd 1.9 inch 170RGB x 320 Display Module
  • Small tft lcd 1.9 inch 170RGB x 320 Display Module
  • Small tft lcd 1.9 inch 170RGB x 320 Display Module
  • Small tft lcd 1.9 inch 170RGB x 320 Display Module
Small tft lcd 1.9 inch 170RGB x 320 Display Module Small tft lcd 1.9 inch 170RGB x 320 Display Module Small tft lcd 1.9 inch 170RGB x 320 Display Module Small tft lcd 1.9 inch 170RGB x 320 Display Module Small tft lcd 1.9 inch 170RGB x 320 Display Module

Small tft lcd 1.9 inch 170RGB x 320 Display Module

  • Size: 1.9 TFT
  • Controller IC:ST7789V2
  • Resolution:170(RGB)x 320
  • Interface:4-SPI/8bit 8080
  • Product description: Small tft lcd 1.9 inch 170RGB x 320 Display Module
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT display module is a transmissive type color active matrix TFT(Thin Film Transistor)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is
composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 1.9”
contains 170(RGB)X320 dots and can display up to 262k colors





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT1906C30
Diagonal Screen size: 1.9 inch
Interface:
4-SPI/8bit 8080
Backlight:

LED
Number of Pixels:

170(RGB)×320

Panel Size:

25.8(H) ×49.72(V)×1.43(T)(mm)
Driver IC:

ST7789V2


Active Area:

22.7 (H)×42.72(V)(mm)
Display Mode:

Normally white/Transmissive
 Driver IC:

ST7789V2

Weight:

TBD

Operating Temperature:

-20~70ºC

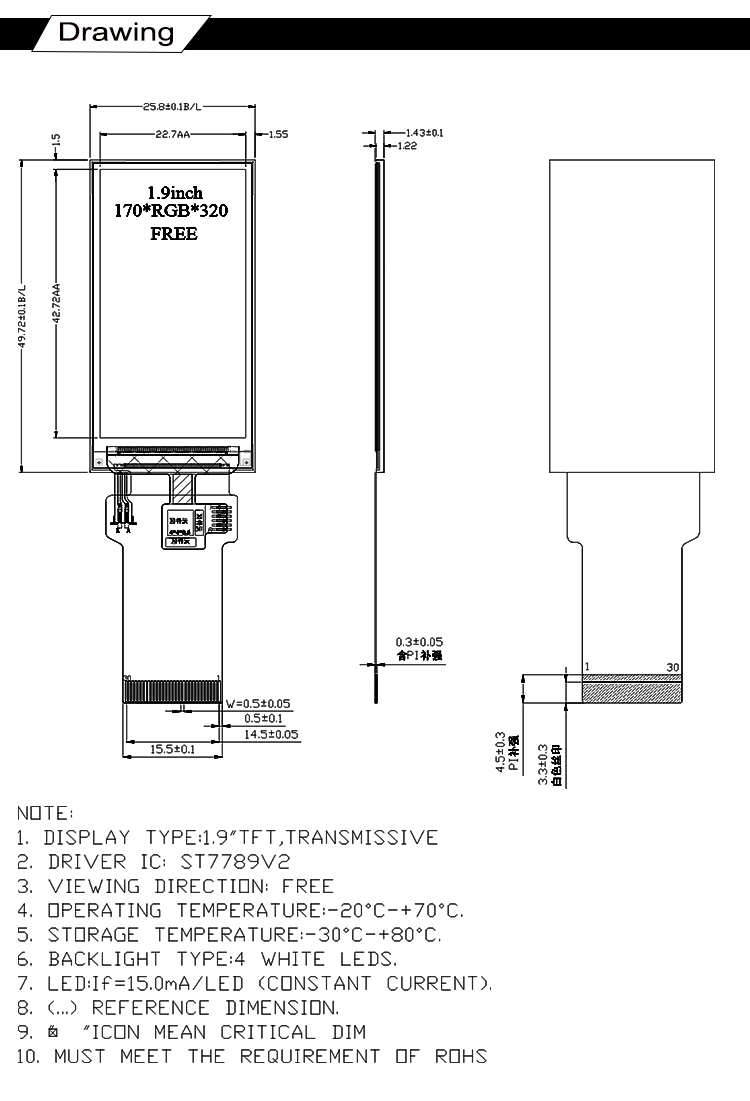

DRAWING

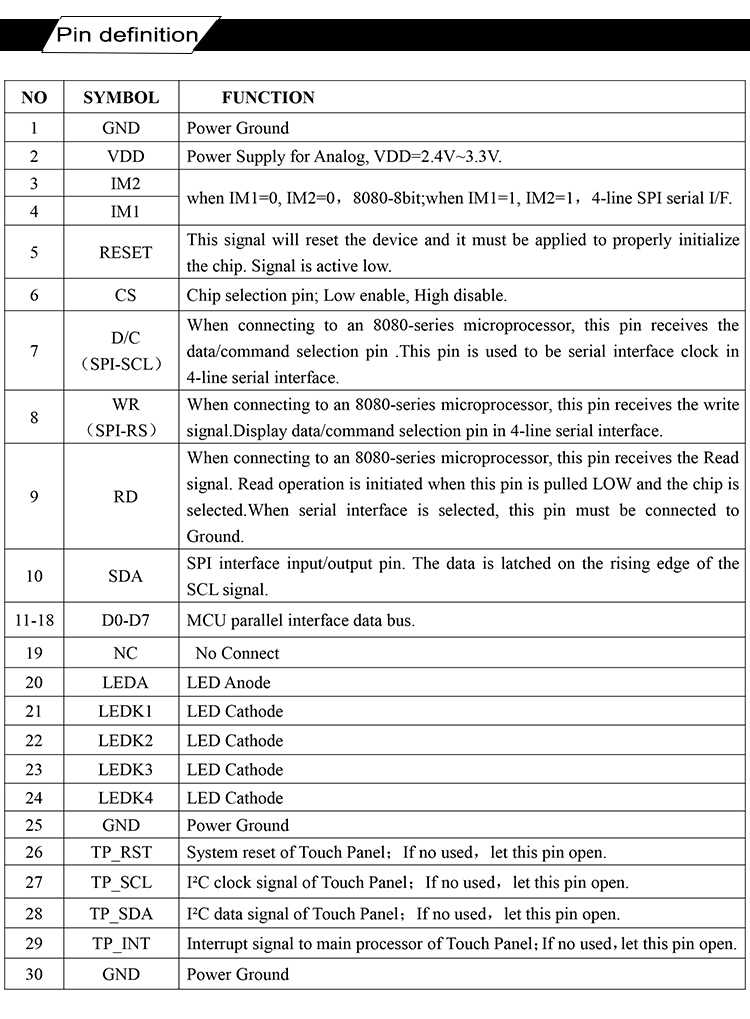

INTERFACE PIN FUNCTION
