OLED Mono 0.95 inch graphic Display 96x64 26P

  • Size: 0.95 OLED
  • Controller IC: SH1106G
  • Resolution: 96x64
  • Interface:6800/8080 SPI /I2C 26P
  • Product description: OLED Mono 0.95 inch graphic Display 96x64 26P
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.95 is a  passive matrix micro OLED display module which is made of 64*48 dots. It has the module dimension of 24.9x22.95x1.4 mm and Active Area size 19.935*13.424 mm. This OLED micro display is built in with SH1106G IC, it supports I2C interface, 2.6-3.5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.95 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Small molecular organic light emitting diode.
Color
White
Panel matrix
96x64
Driver IC
SH1106G
Excellent quick response time.
Extremely thin thickness for best mechanism design
1.41 mm
High contrast
2000:1
Wide viewing angle
160°
Interface
8-bit 8080, 8-bit 6800,4/3-wire SPI,I²C
Wide range of operating temperature
-40 to 70 °C

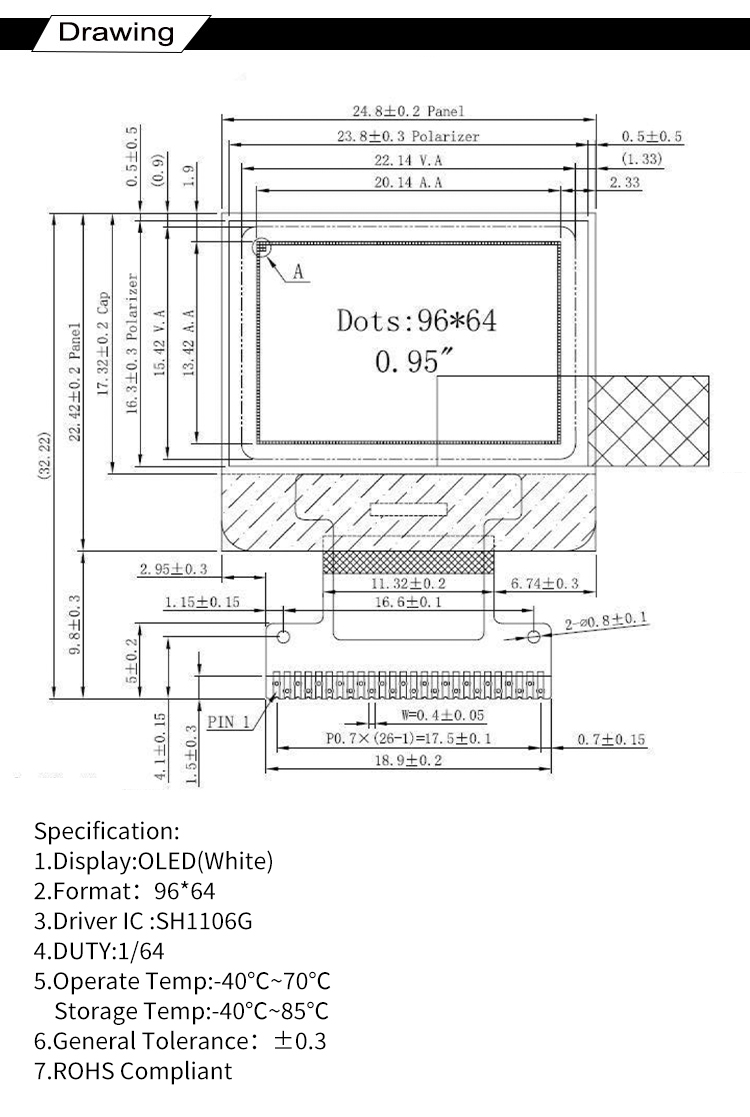

DRAWING

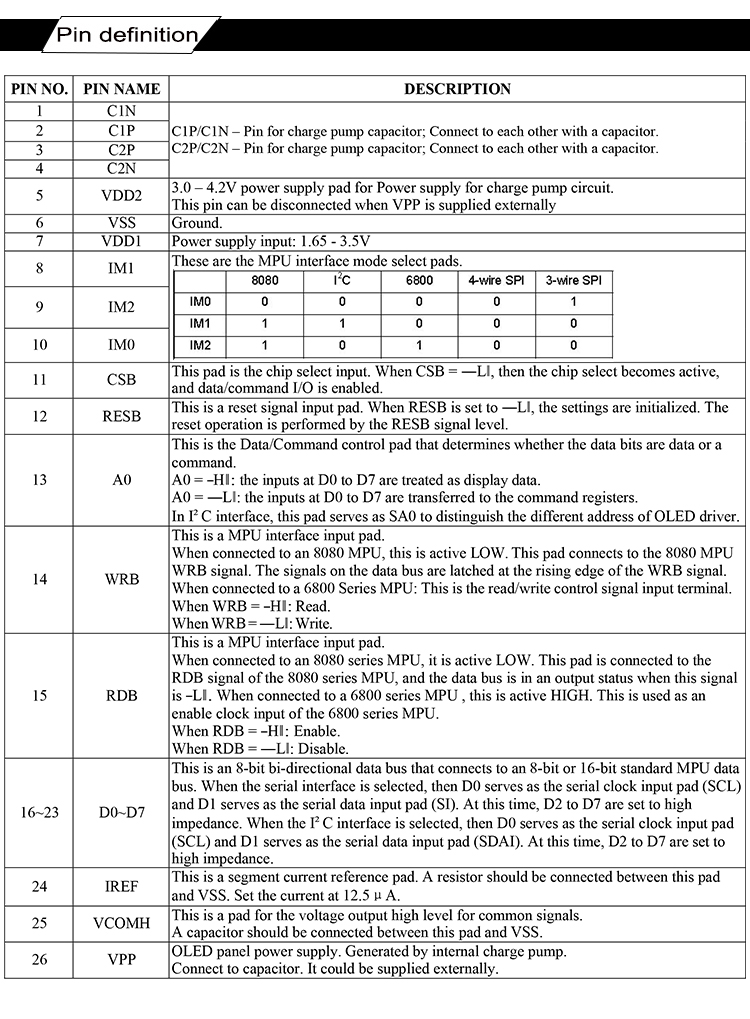

INTERFACE PIN FUNCTION
