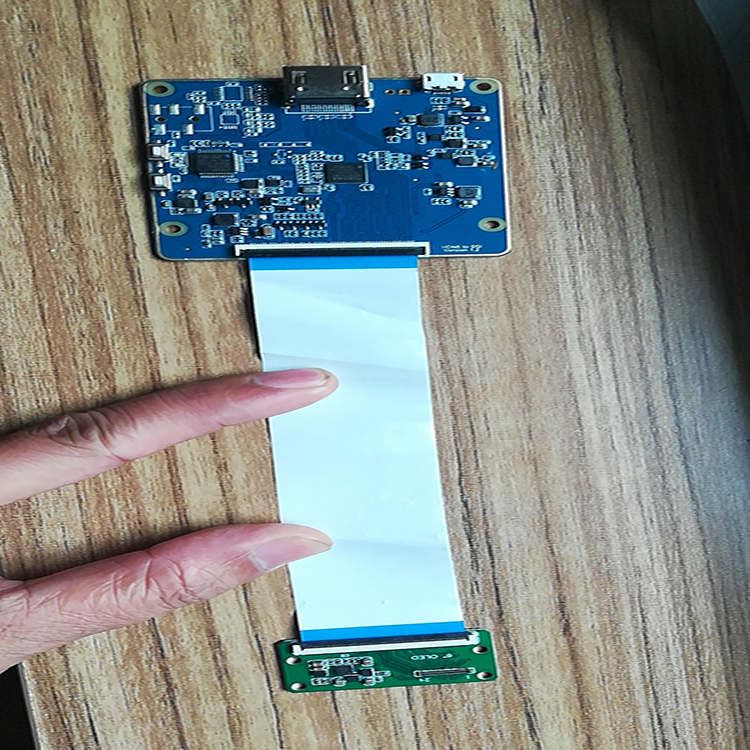

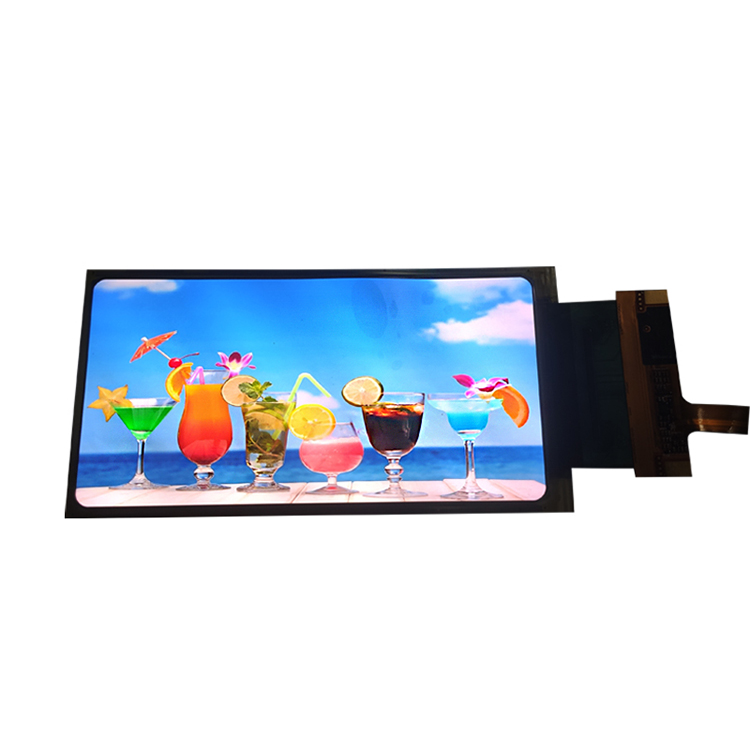

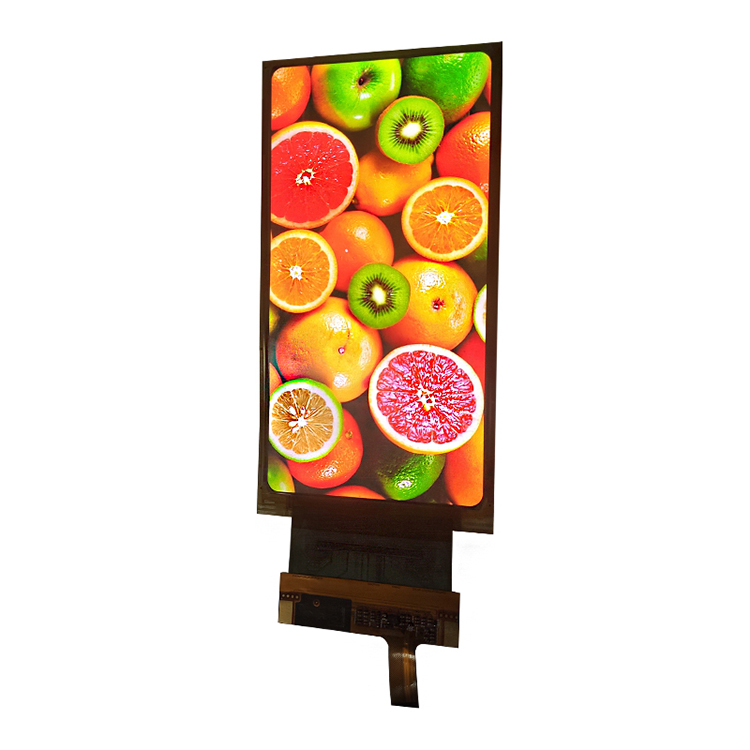

5.99" 6.0" inch Flexible OLED 1080x2160 AMOLED bendable display panel with capacitive touch screen,HDMI Board

  • Size:6.0
  • Resolution:1080x2160
  • Interface:MIPI
  • Touch Panel:capacitive touch screen

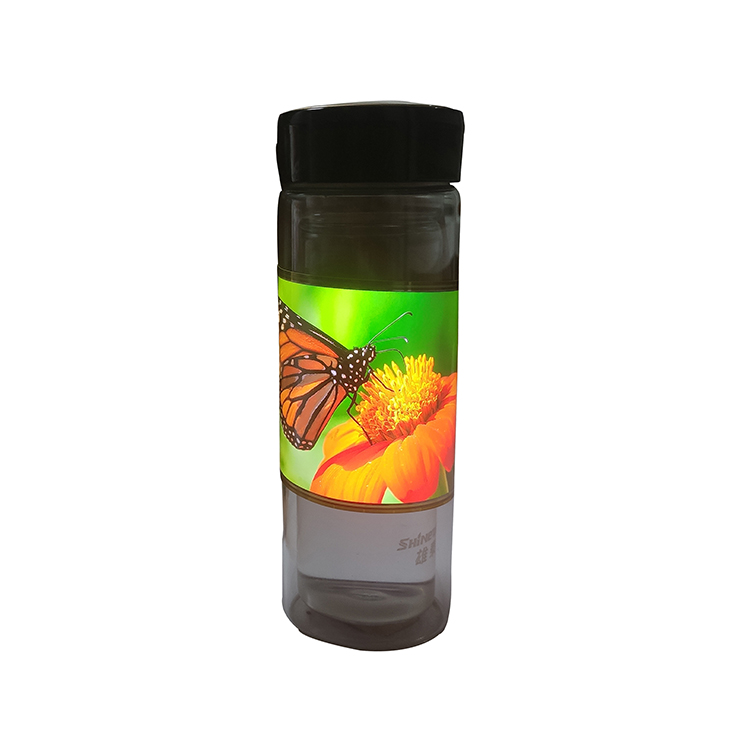

  • Product description: A flexible display or rollable display is an electronic visual display which is flexible in nature, as opposed to the traditional flat screen displays used in most electronic devices.
  • INQUIRY

6.0 inch Flexible OLED 1080x2160 AMOLED bendable display panel with capacitive touch screen,HDMI Board


DESCRIPTION

BOE 5.99” FHD is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin
Film Transistors) as active switching devices. This module has a 5.99inch diagonally measured active area with FHD resolutions (1080horizontal by 2160vertical pixel arrays). Each pixel is divided into RED and GREEN dots, or BLUE and GREEN dots, and two pixels share RED or BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

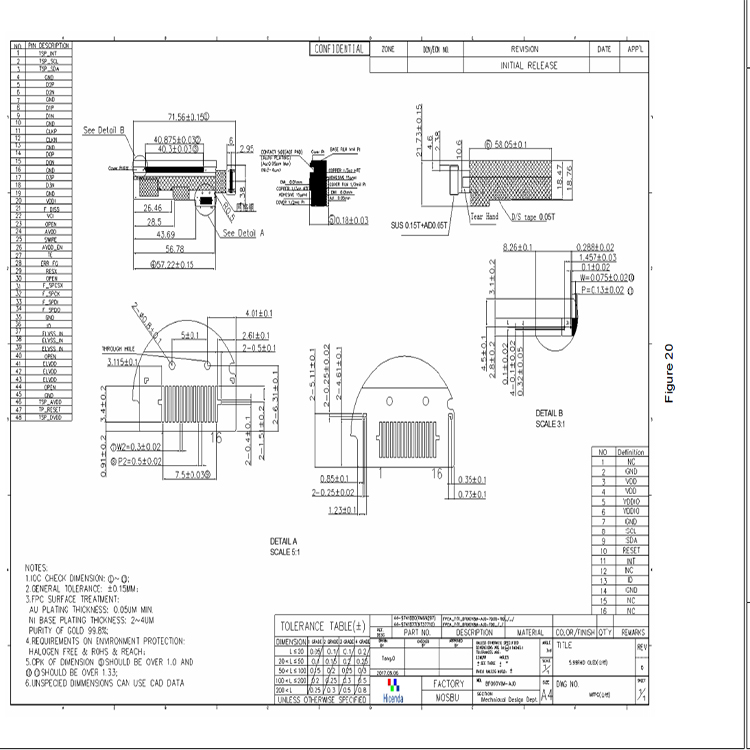

DRAWING

SPECIFICATIONS

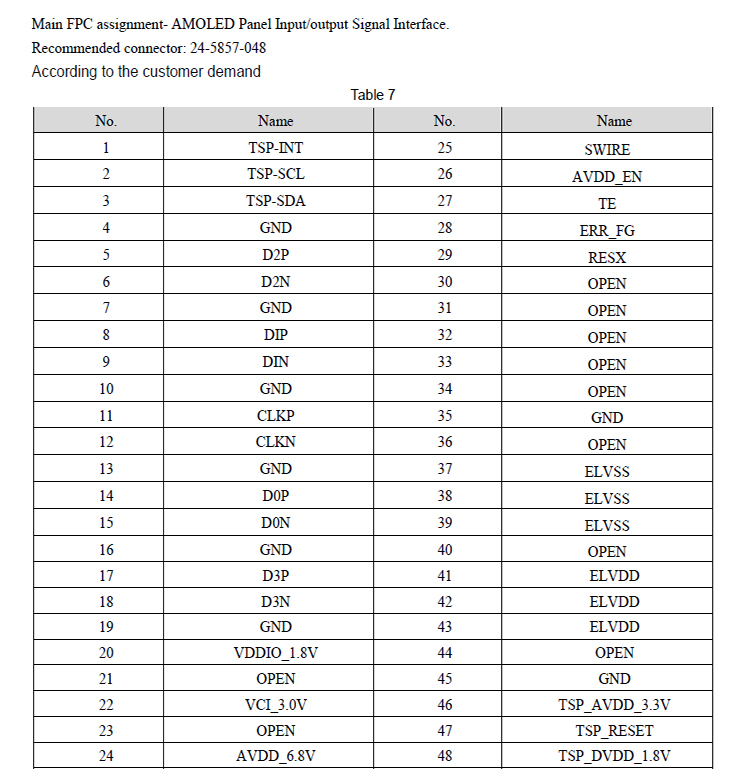

Interface Pin Function

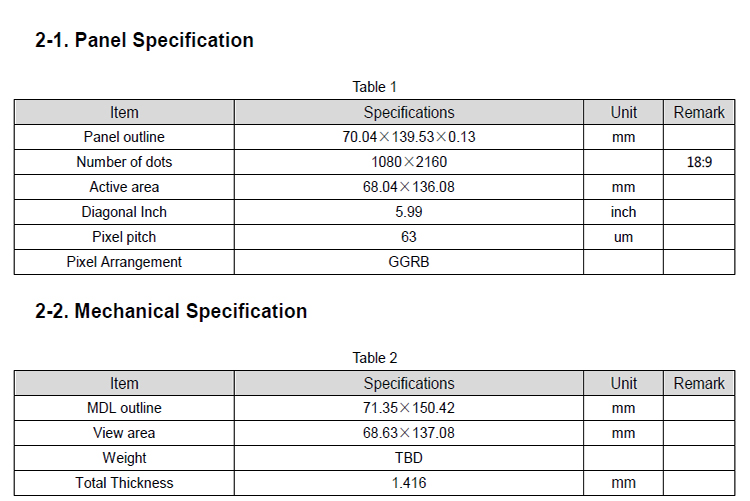

General Specification

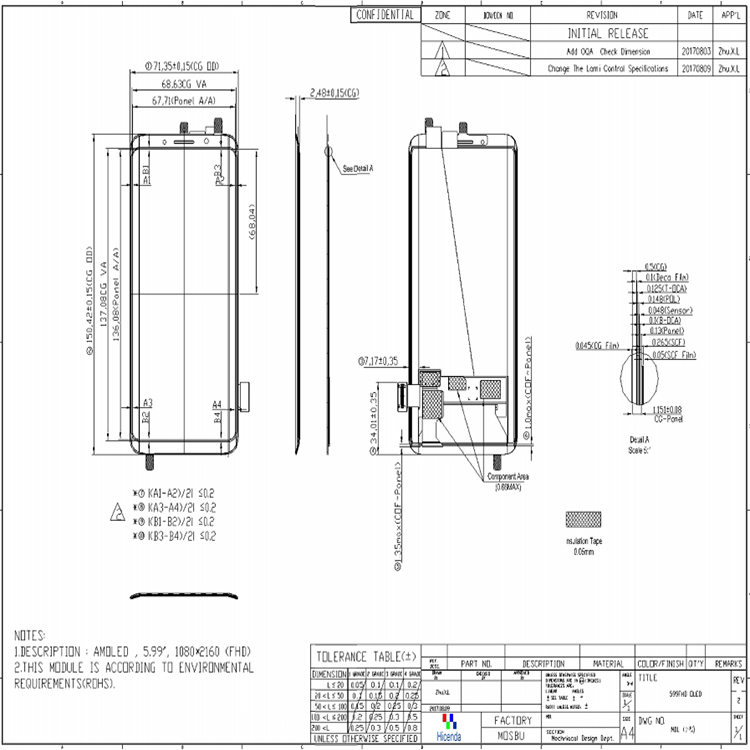

Total Outline
