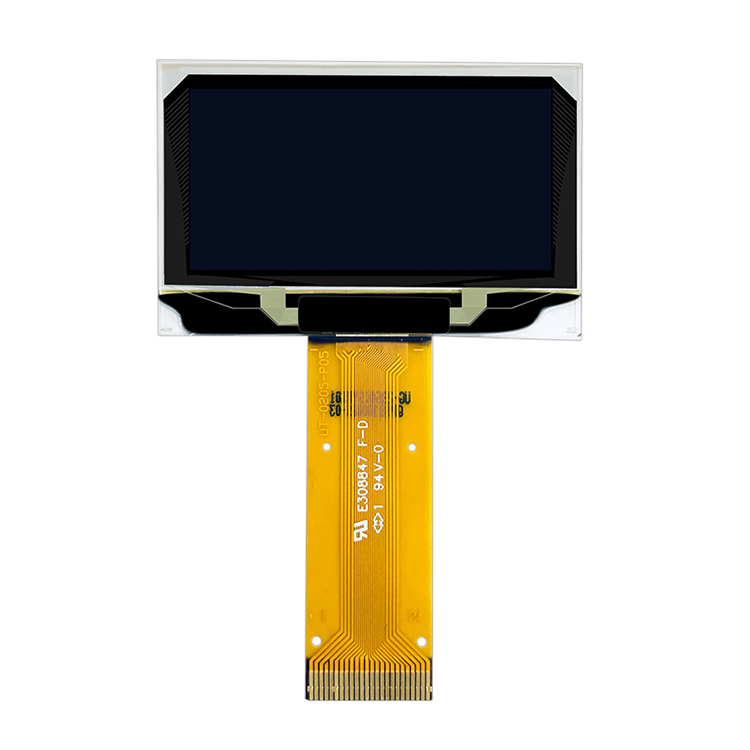

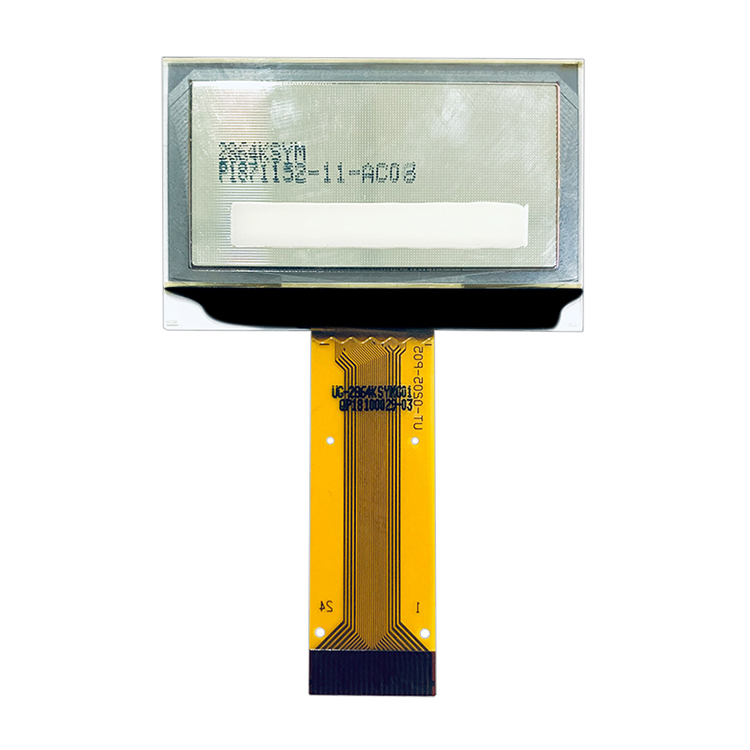

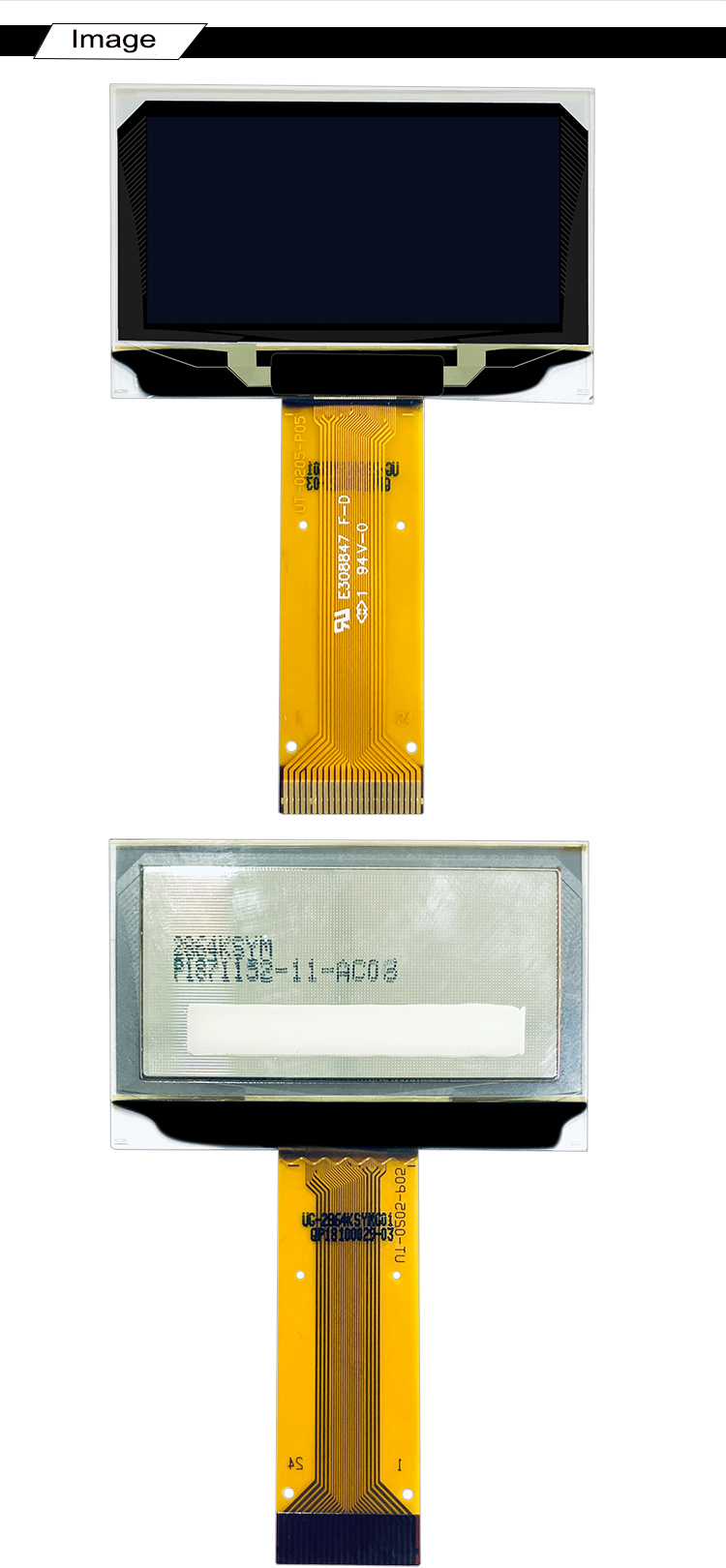

OLED Graphic Display 1.54", 128x64

  • Size: 1.54 OLED
  • Controller IC:SSD1309
  • Resolution: 128*64
  • Interface: 6800/8080/SPI/I2C 24P
  • Product description: OLED Graphic Display 1.54", 128x64 SSD1309
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.54 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 42.04 × 63.22 × 1.45 mm and Active Area size 35.052× 17.516 mm. This OLED micro display is built in with SSD1309 IC, it supports  6800/8080/SPI/I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.54 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

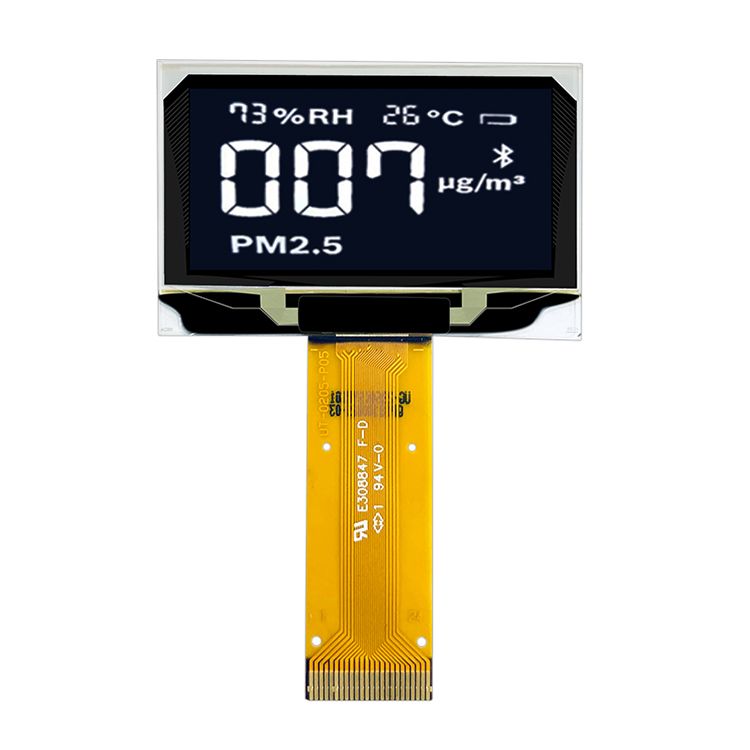

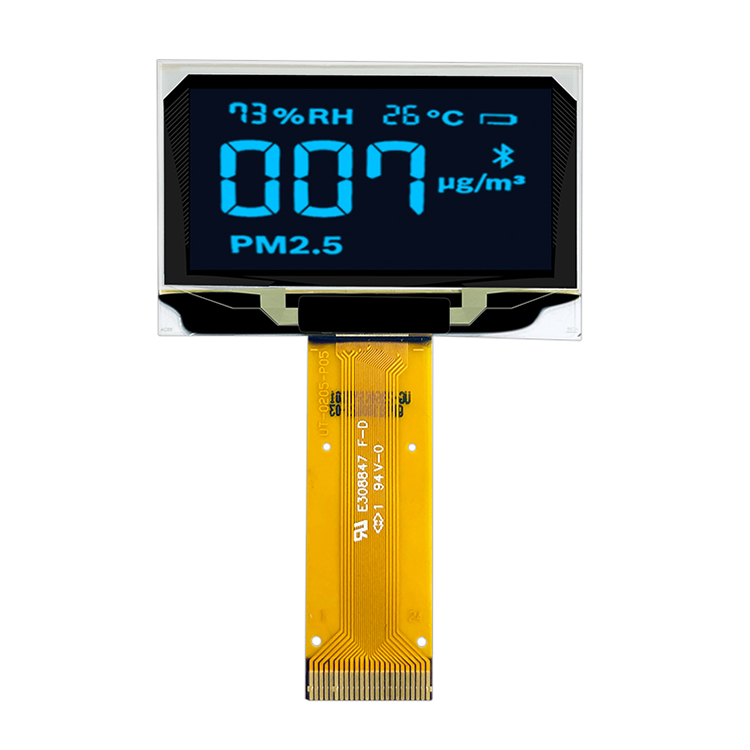

Display Type:                                                                    oled display  (White/Yellow/Blue)
Display Mode: Passive Matrix
Model Number:

HG--154-12864KSWEG18

Diagonal Screen size: 1.54 inch
Interface:

6800/8080/SPI/I2C 24P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size

42.04 × 63.22 × 1.45(mm)

Driver IC:

SSD1309

Active Area:

35.052× 17.516 (mm)

Pixel Pitch:

0.274 x 0.274(mm)

Pixel Size:

0.258 x 0.258 (mm)

Weight:

5.15 (g)

Operating Temperature:

-40~85°


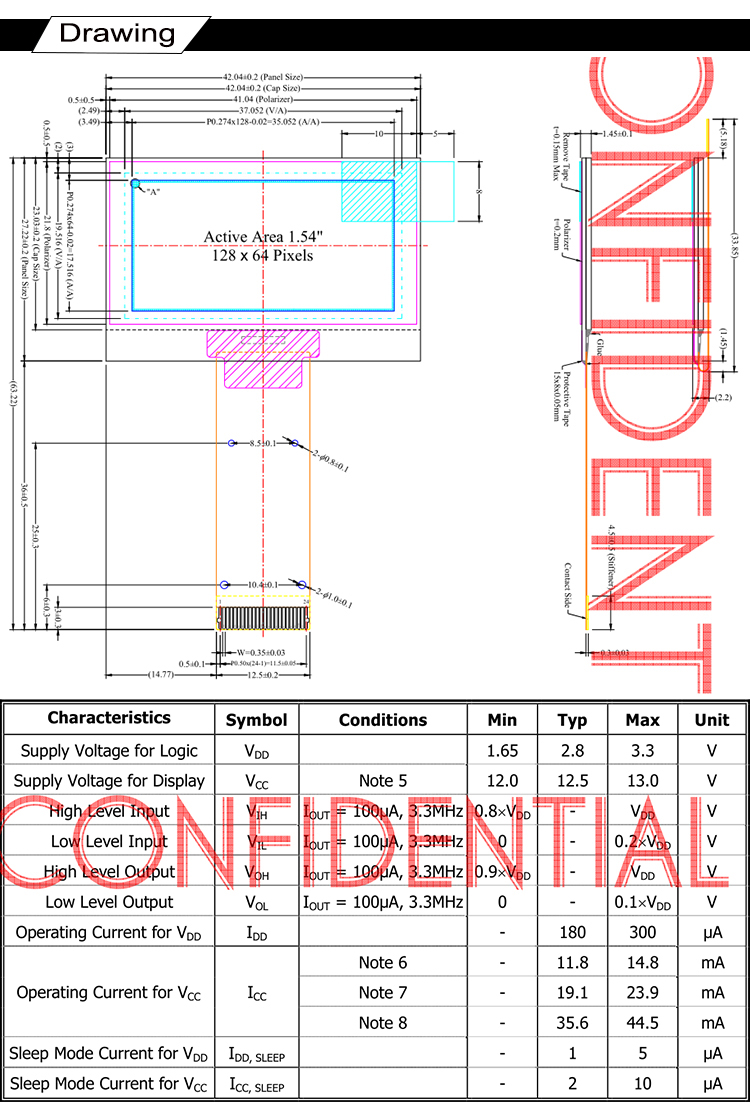

DRAWING







INTERFACE PIN FUNCTION
