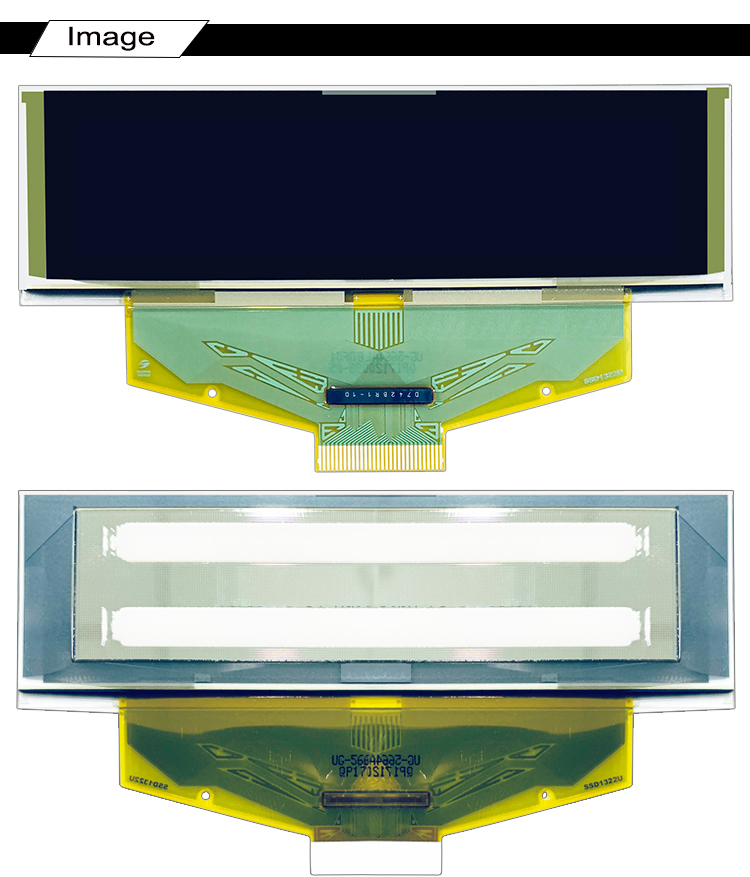

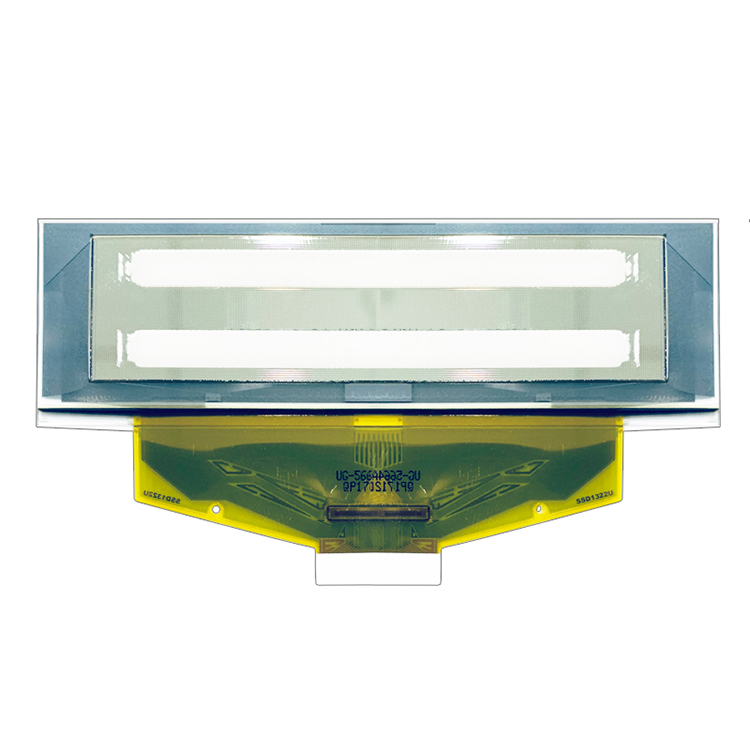

OLED Graphic Display 2.81", 256X64

  • Size: 2.81 OLED
  • Controller IC:SSD1322
  • Resolution:256X64
  • Interface: 6800/8080/SPI

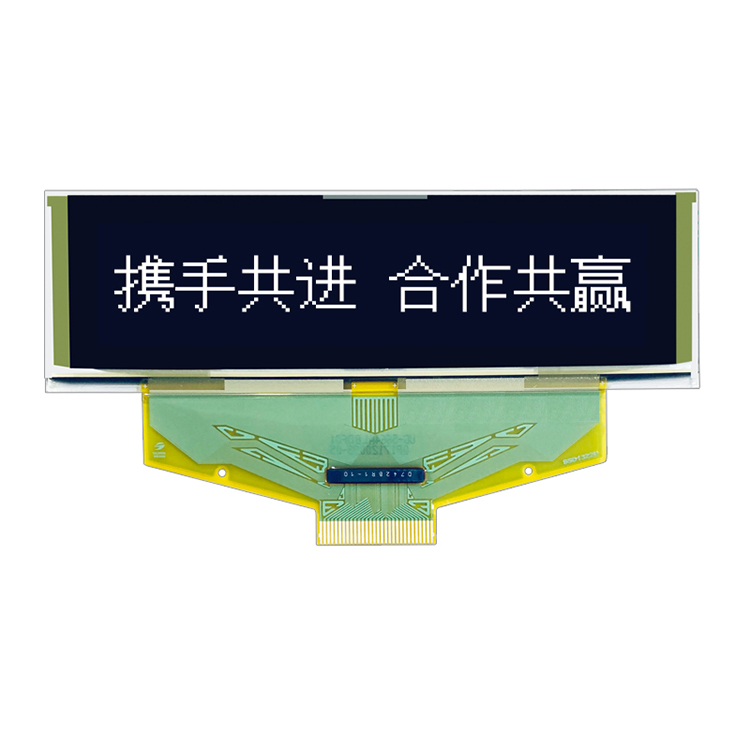

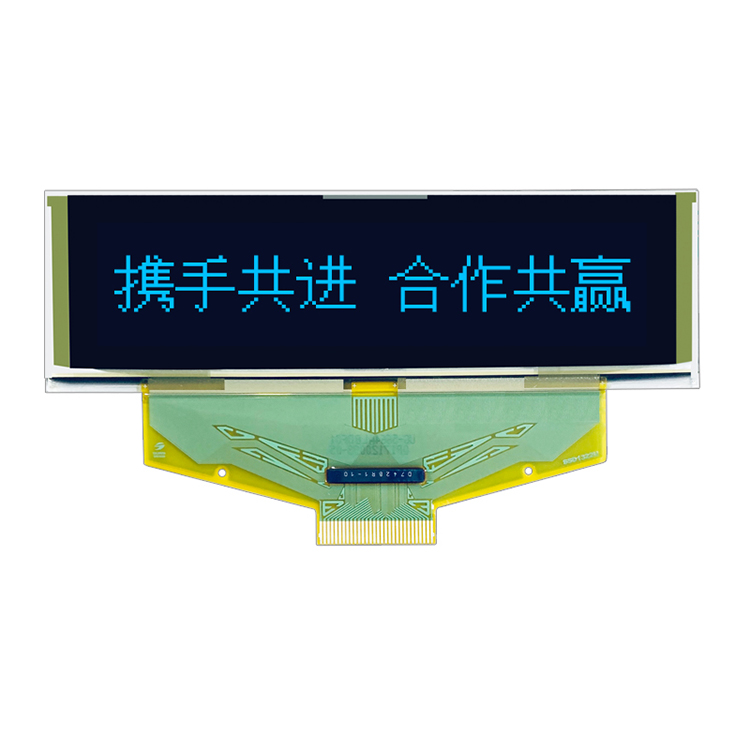

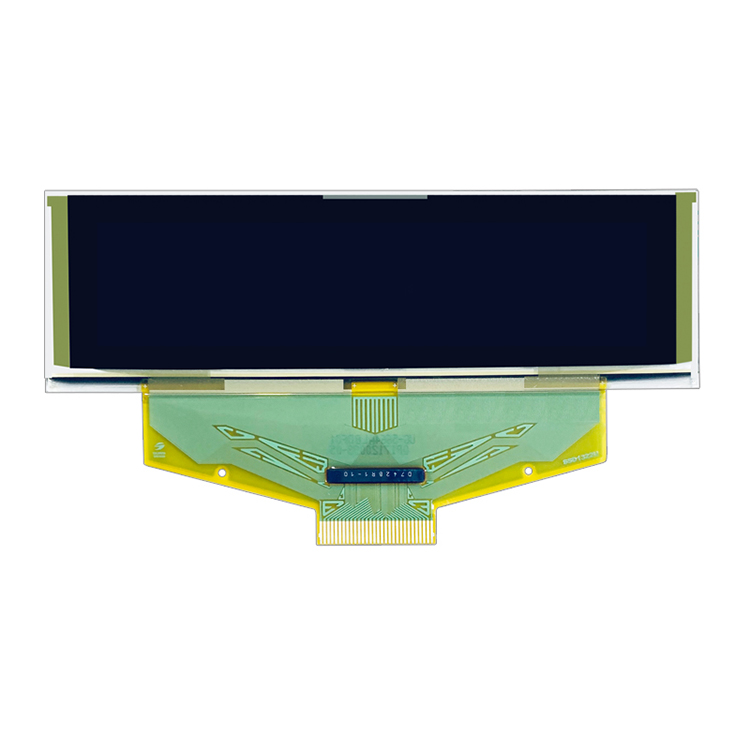

  • Product description: OLED Graphic Display 2.81", 256X64
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 2.81 is a  passive matrix micro OLED display module which is made of 256x64 dots. It has the module dimension of 84 × 45.8 × 2 mm and Active Area size 69.104 × 17.264 mm. This OLED micro display is built in with SSD1322 IC, it supports 6800/8080/SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 2.81 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                         oled display  (White/Blue/Yellow/Green)
Display Mode: Passive Matrix
Model Number:

HG-5664ASYDF01

Diagonal Screen size: 2.81 inch
Interface:

6800/8080/SPI

Drive Duty:

1/64 Duty

Number of Pixels:

256x64

Panel Size

84 × 45.8 × 2 (mm)

Driver IC:

SSD1322

Active Area:

69.104 × 17.264 (mm)

Pixel Pitch:

0.23 x 0.23(mm)

Pixel Size:

0.254 x 0.254(mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°


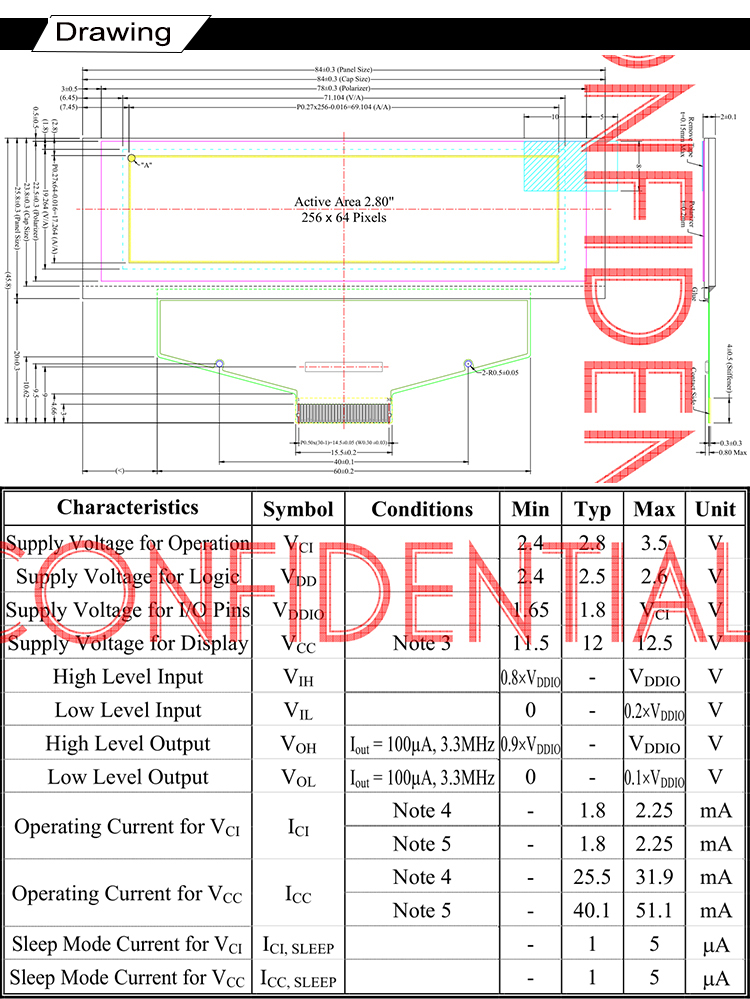

DRAWING







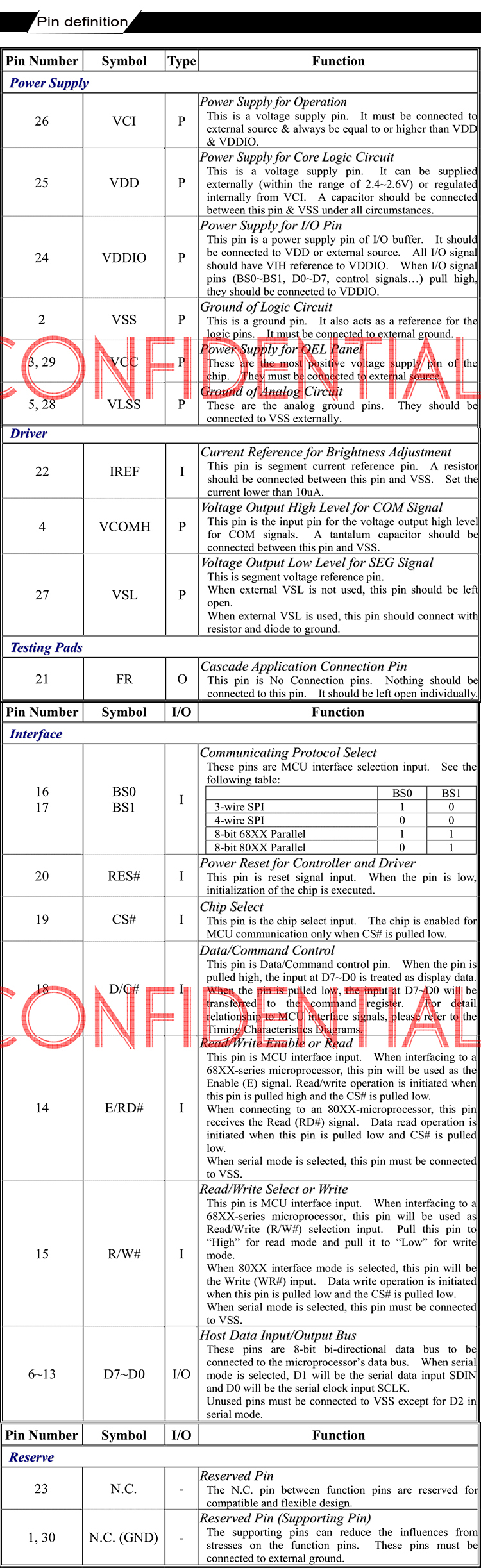

INTERFACE PIN FUNCTION
