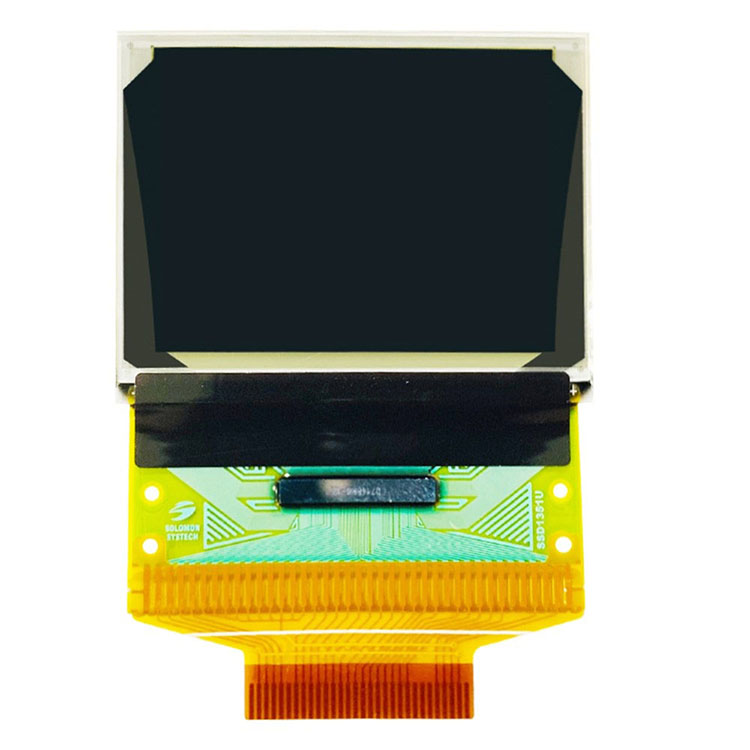

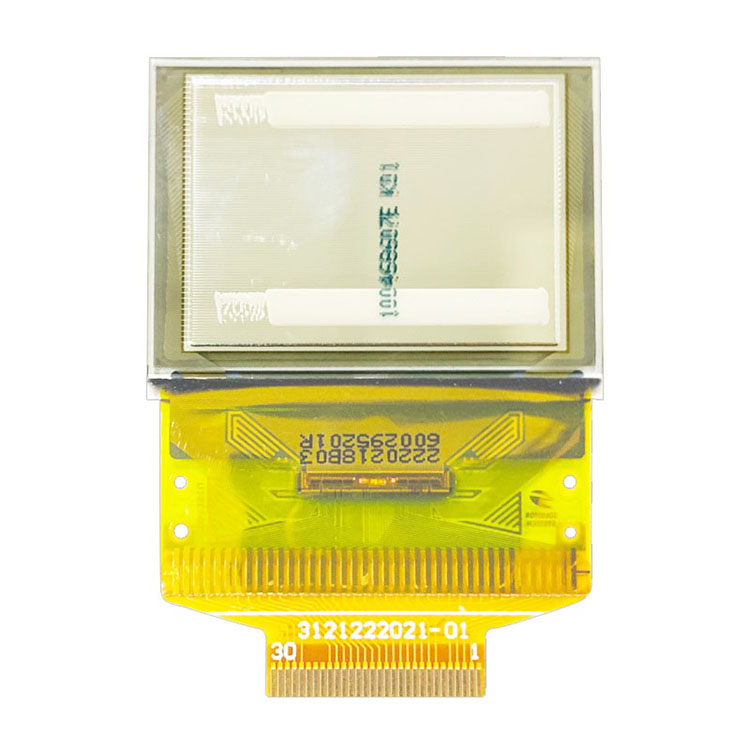

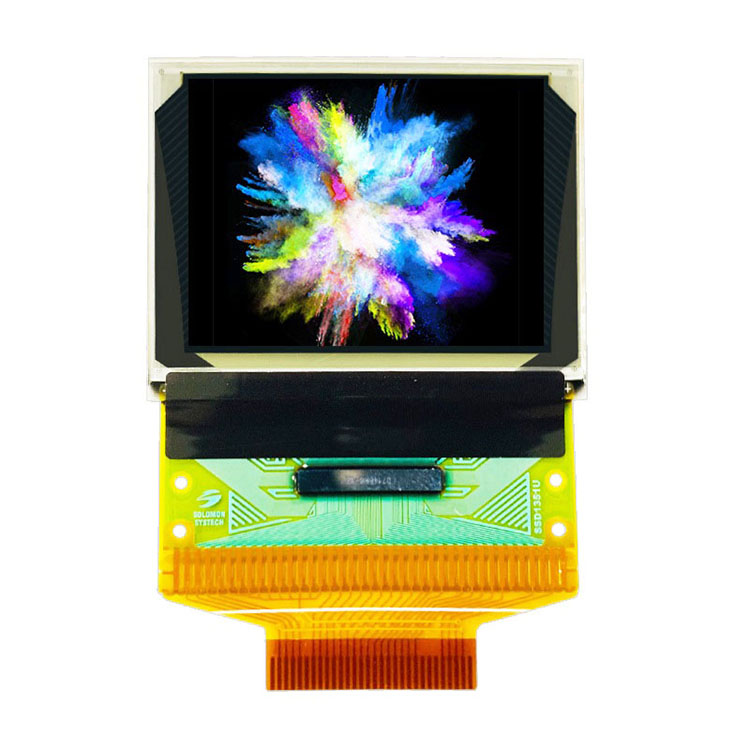

DESCRIPTION

HICENDA OLED 1.31 is a  passive matrix micro color OLED display module which is made of 26.466 ×20.14 dots. It has the module dimension of 30.90x67.17 ×1.21 mm and Active Area size 19.852 ×19.852 mm. This OLED micro display is built in with SP8242 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.31 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display   (full color)
Display Mode:	Passive Matrix
Model Number:	HG--131-96KSWEG15
Diagonal Screen size:	1.31 inch
Interface:	MCU 30P
Drive Duty:	1/96 Duty
Number of Pixels:	128x96
Panel Size	30.90x67.17 ×1.21 (mm)
Driver IC:	SP8242
Active Area:	26.466 ×20.14 (mm)
Pixel Pitch:	0.17 x 0.17(mm)
Pixel Size:	0.154 x 0.154 (mm)
Weight:	1.54 (g)
Operating Temperature:	-40~85°

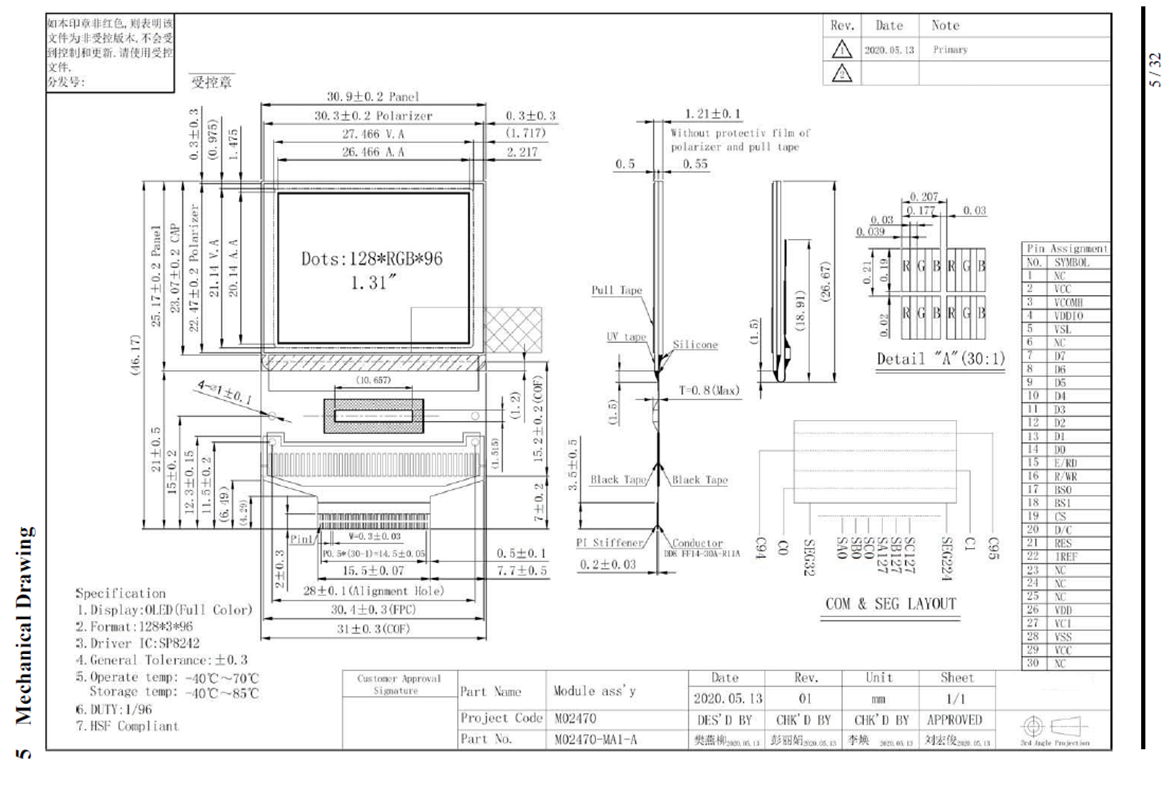

DRAWING

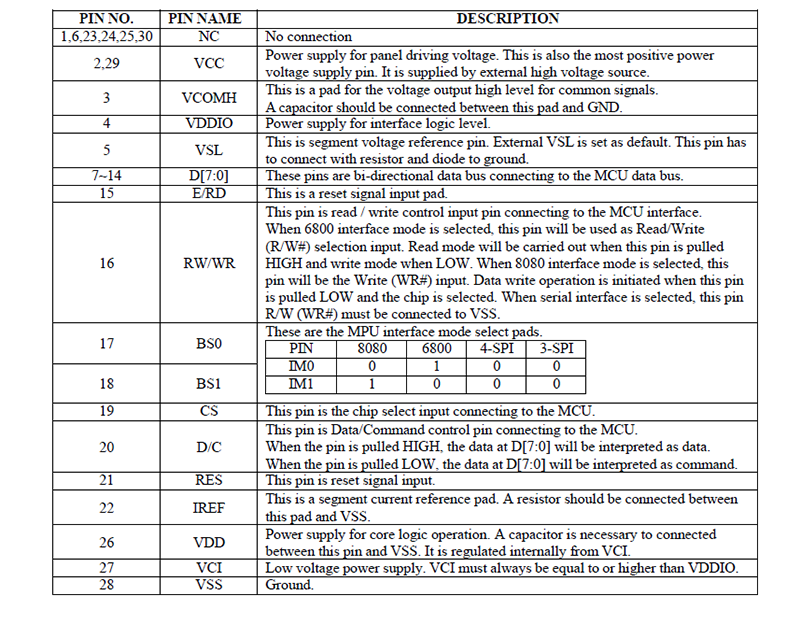

INTERFACE PIN FUNCTION
