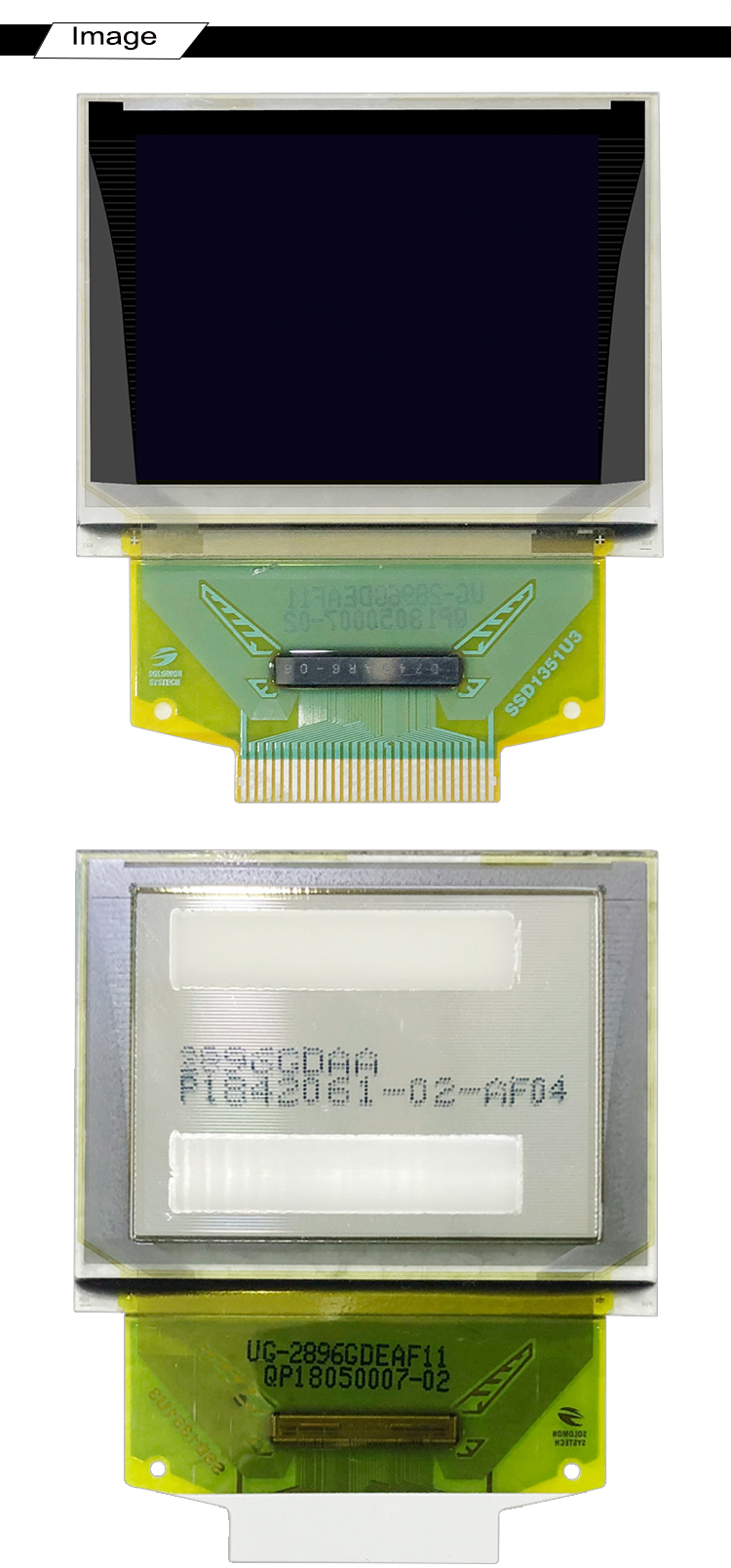

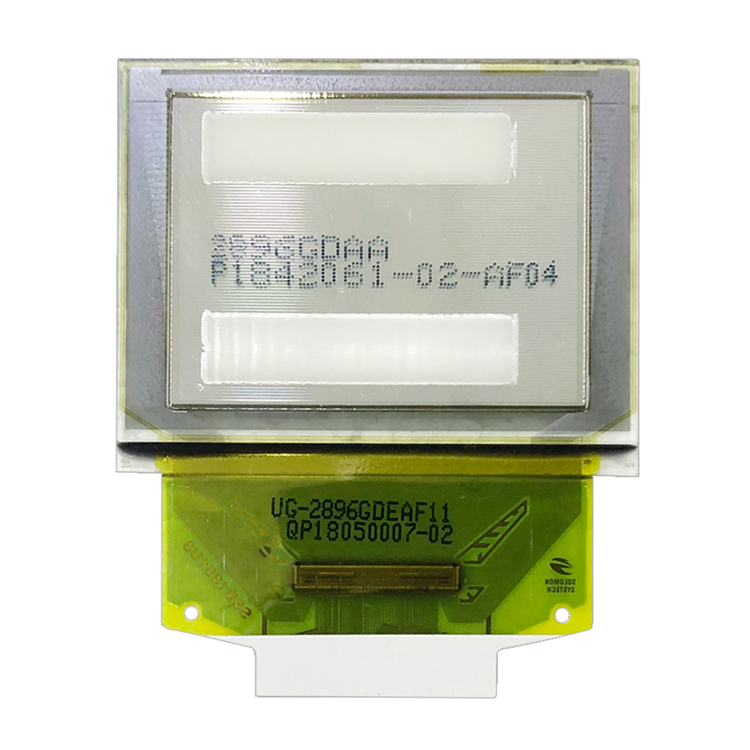

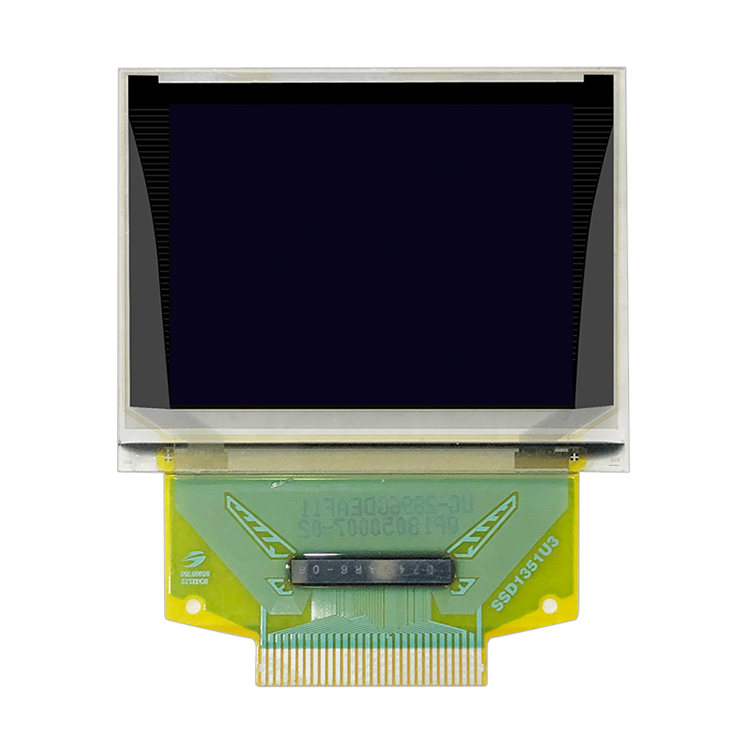

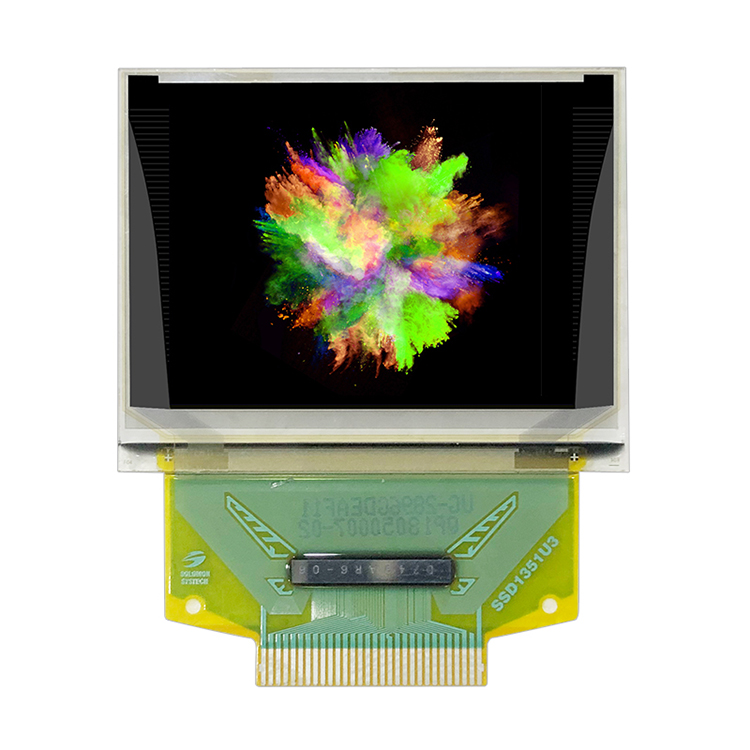

OLED COLOR Display 1.27", 128X96

  • Size:1.27 color OLED
  • Controller IC:SSD1351
  • Resolution: 128*96
  • Interface: 6800/8080/SPI 30P
  • Product description: OLED COLOR Display 1.27", 128X96
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.27 is a  passive matrix micro color OLED display module which is made of 128x96 dots. It has the module dimension of 33.7 x 41.25 ×1.6 mm and Active Area size 25.708 ×19.28 mm. This OLED micro display is built in with SSD1351 IC, it supports 6800/8080/SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.27 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                                  oled display   (full color)
Display Mode: Passive Matrix
Model Number:

HG--127-12896KSWEG15

Diagonal Screen size: 1.27  inch
Interface:

6800/8080/SPI/30P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

128x96

Panel Size

33.7 x 41.25 ×1.6 (mm)

Driver IC:

SSD1351

Active Area:

25.708 ×19.28 (mm)

Pixel Pitch:

0.067X0.067(mm)

Pixel Size:

0.047 x 0.185 (mm)

Weight:

2.92 (g)

Operating Temperature:

-40~85°

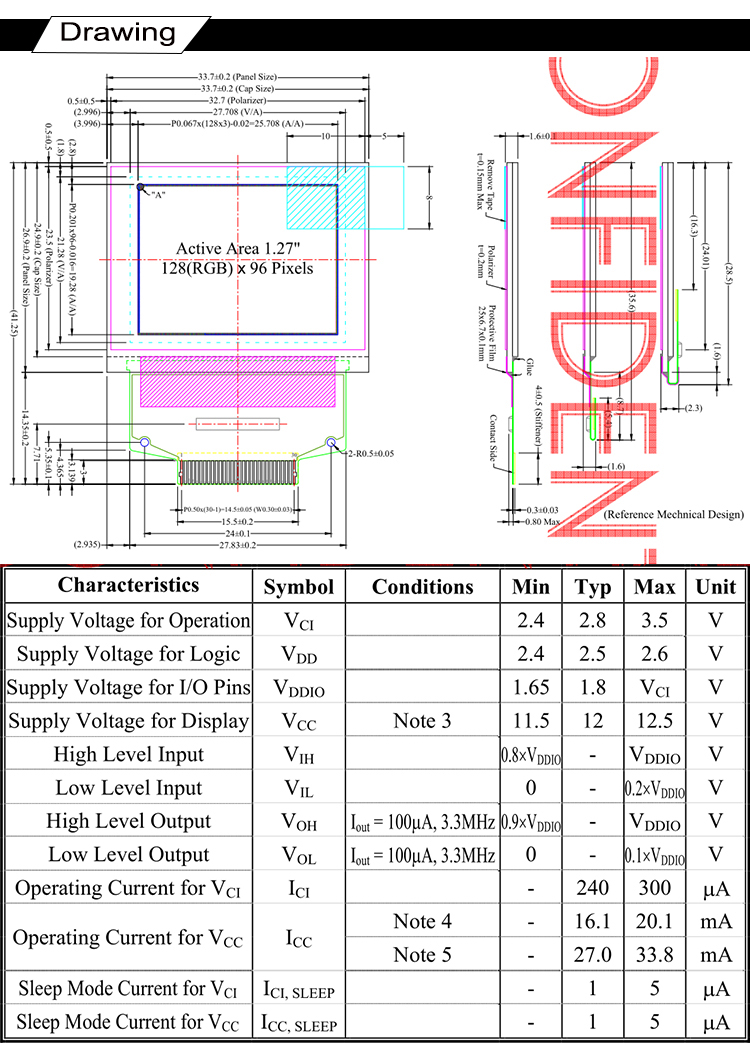

DRAWING



INTERFACE PIN FUNCTION
