0.87" 128x32 OLED Micro Display 15P

  • Size: 0.87 OLED
  • Controller IC: SSD1316
  • Resolution: 128x32
  • Interface:SPI 15p
  • Product description: Micro OLED Display, 0.87" 128x32 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.87 is a  passive matrix micro OLED display module which is made of 1286x32 dots. It has the module dimension of 29.0(W)x8.7(H)x1.22(D) mm and Active Area size 21.356 (W) x5.324 mm. This OLED micro display is built in with SSD1316 IC, it supports I2C interface, 3V-5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.87 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION



Diagonal Screen Size
0.87 inch
Color
Mono(White)
Model number
HT--071OLED6
Resolutions
128x32
Outline dimension
29.0(W)x8.7(H)x1.22(D) mm
Active area
21.356 (W) x5.324(H)mm
Pixel pitch
0.147(W) x0.147(H) mm
Pixel size
0.182x0.182mm
Driver IC
SSD1316
Voltage
3-5V
Interface
I2C
Operating temperature
-40~70℃
Storge Temperature
-40~80℃
Assemble
Connector
Pins
15 P

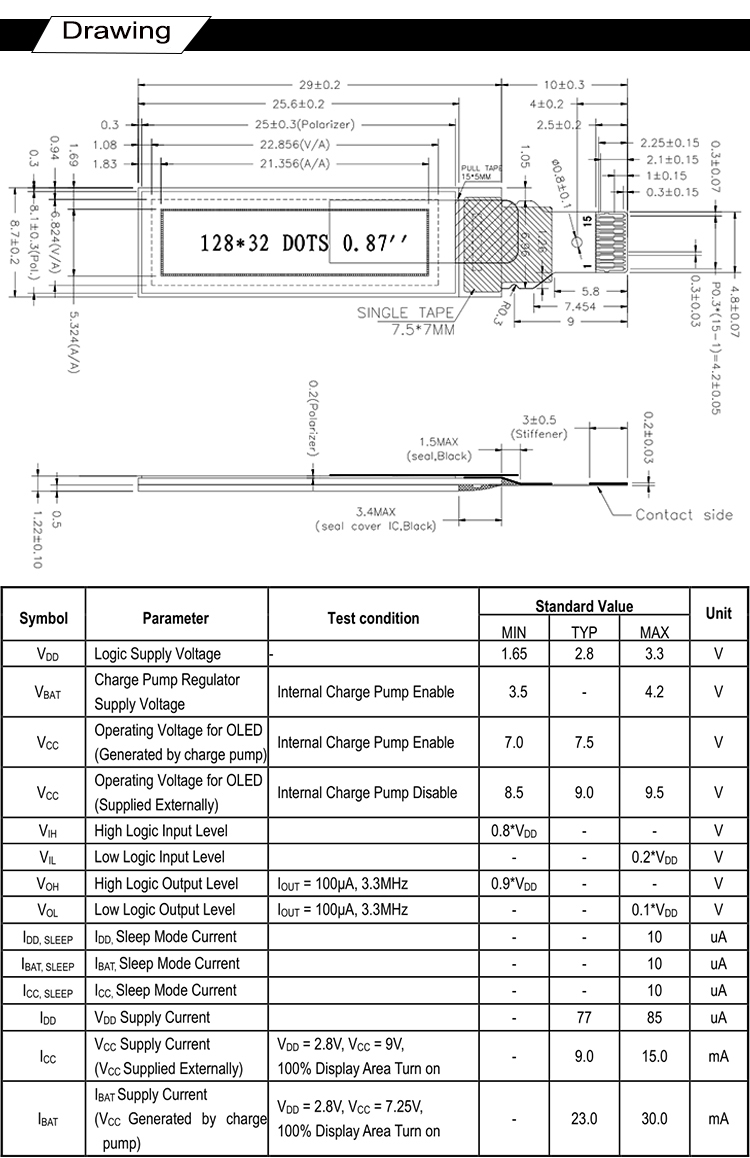

DRAWING

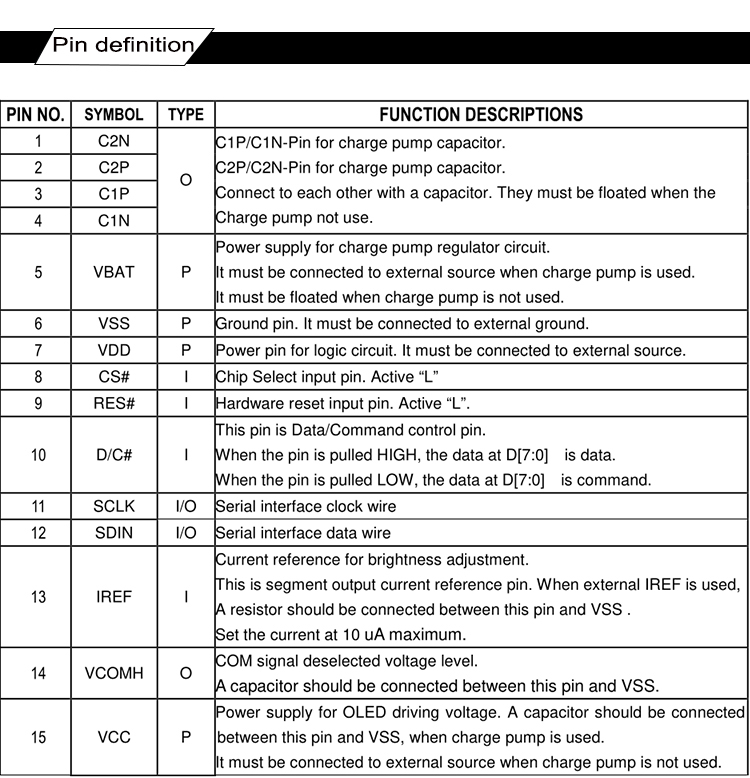

INTERFACE PIN FUNCTION
