7.0"

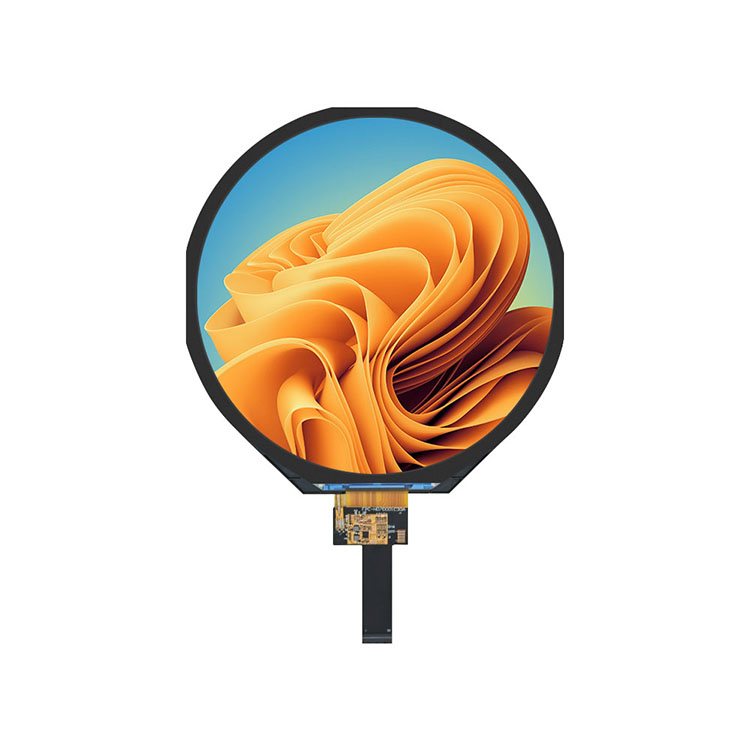

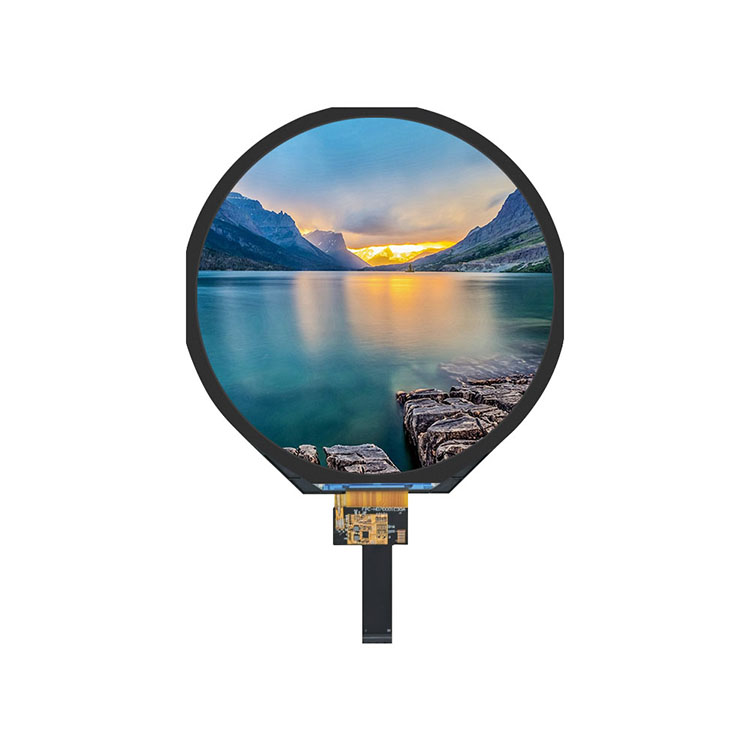

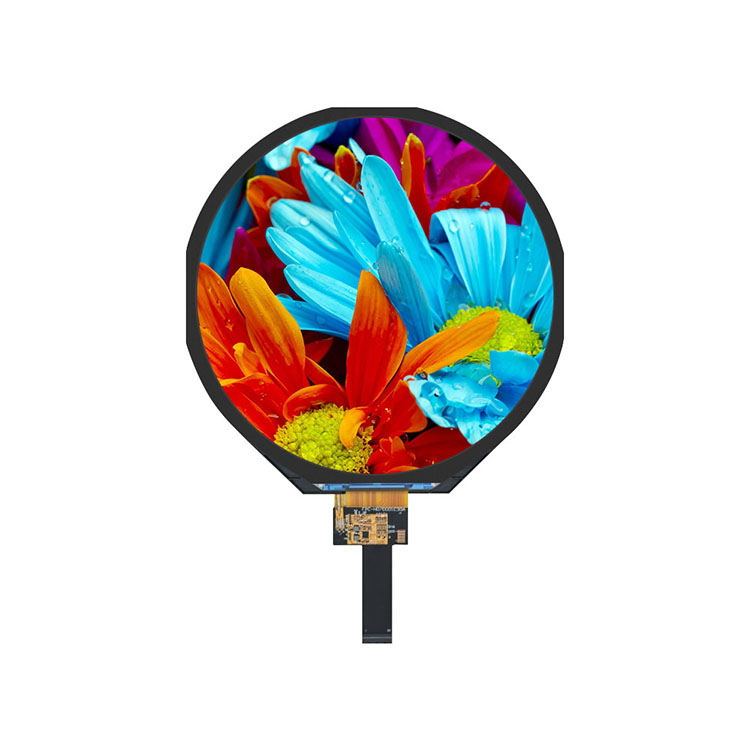

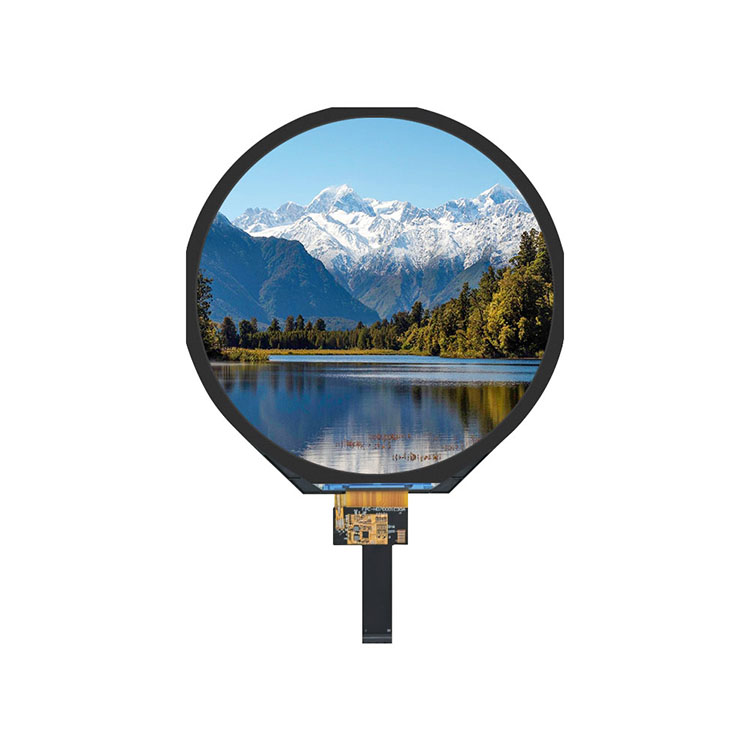

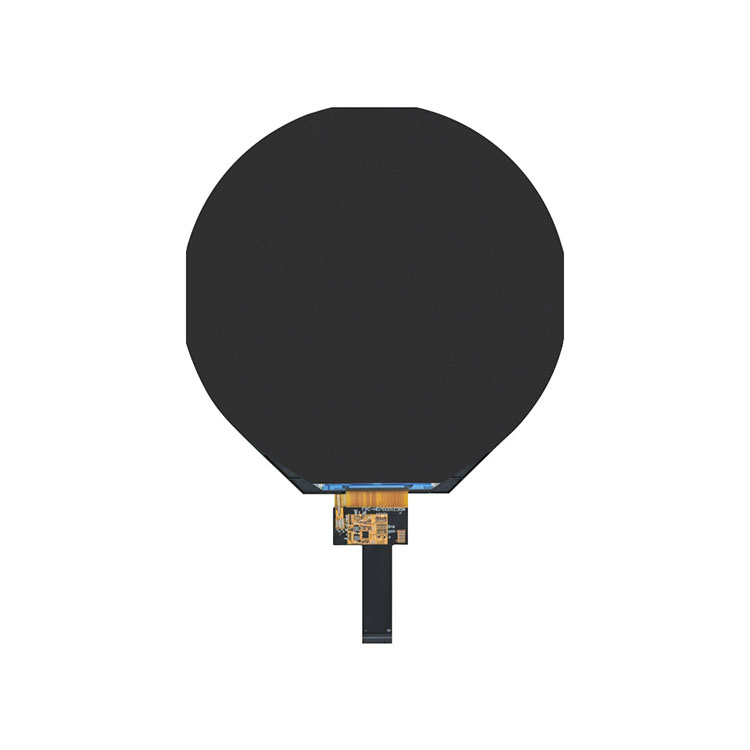

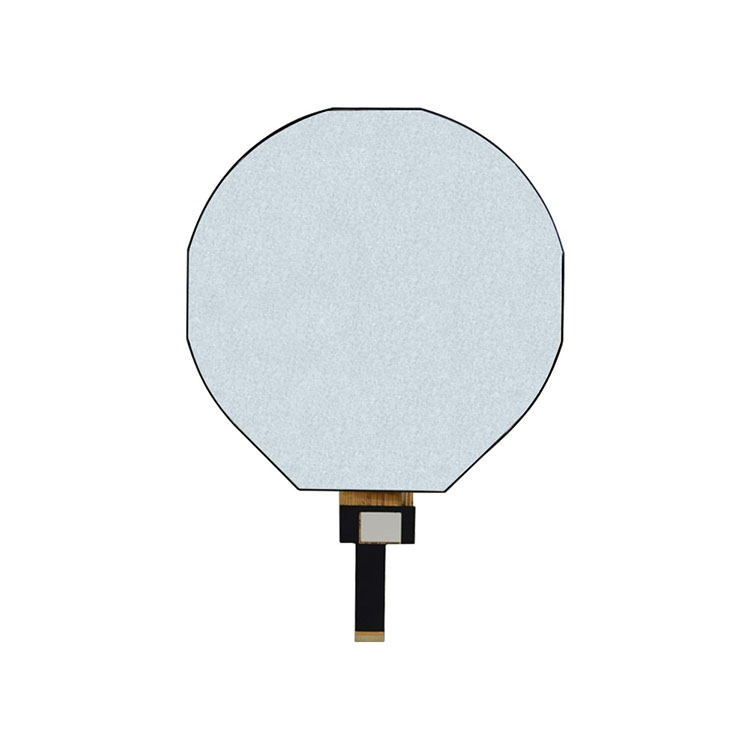

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Round TFT Display 7 inch LCD circular display 1080x1080 MIPI

Size: 7 round tft
Controller IC:FL5893
Resolution: 1080(RGB) x1080
Interface: MIPI interface
Product description: Round TFT Display 7 inch LCD circular display 1080x1080 MIPI
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HD70001C30-Y is a transmissive type color active matrix TFT (Thin Film Transistor) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is

composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The

resolution of 7.0" contains 1080RGB X1080 pixels and can display up to 16.7m colors.

GENERAL SPECIFICATION

Display Type:	Normally Black Transmissive LCD
Display Mode:	COLOR TFT
Model Number:	HD70001C30-Y
Diagonal Screen size:	7 inch
Interface:	MIPI interface
Drive Duty:	1/64 Duty
Number of Pixels:	1080(RGB) x1080
Panel Size	186.15 (H) x 191.28(V)(mm)
Driver IC:	FL5893
Active Area:	177.55 (H) x177.55 (V)(mm)
Viewing direction:	IPS(Full View)
Colors:	16.7m
Backlight Type:	3 LED Parrallel
Input voltage:	2.8~3.2V

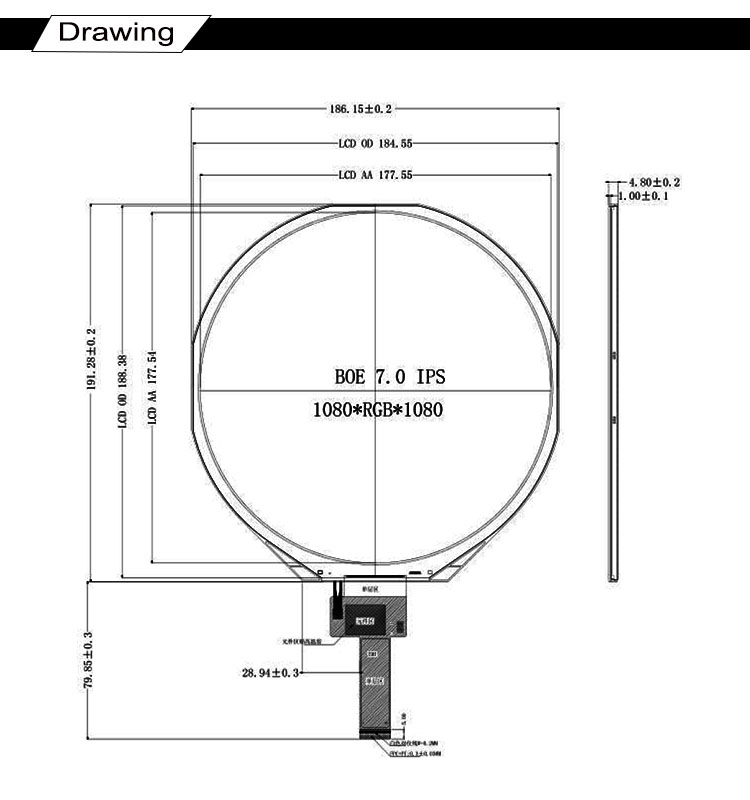

DRAWING

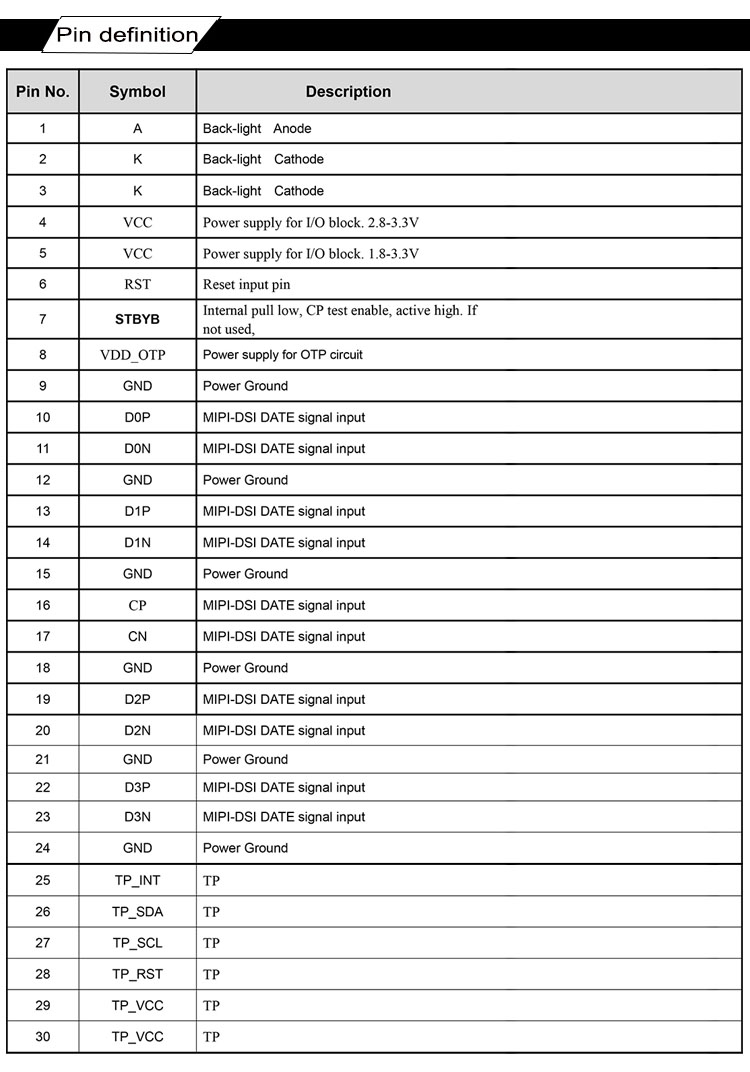

INTERFACE PIN FUNCTION
