5" Square TFT

5 Inch 720x720 Square LCD oncell Capacitive Touch with HDMI

5 Inch 720x720 Square LCD oncell Capacitive Touch with HDMI

Size: 5.08 inch TFT
Viewing Direction:IPS
Resolution:720 (RGB) x720
Interface: MIPl 4lane
Product description: Wholesale 5 inch square TFT LCD display (720x720 resolution) with integrated on-cell touch screen. HDMI driver board option available. Contact us for datasheet!
INQUIRY

Please kindly contact us for full data sheet of the display.

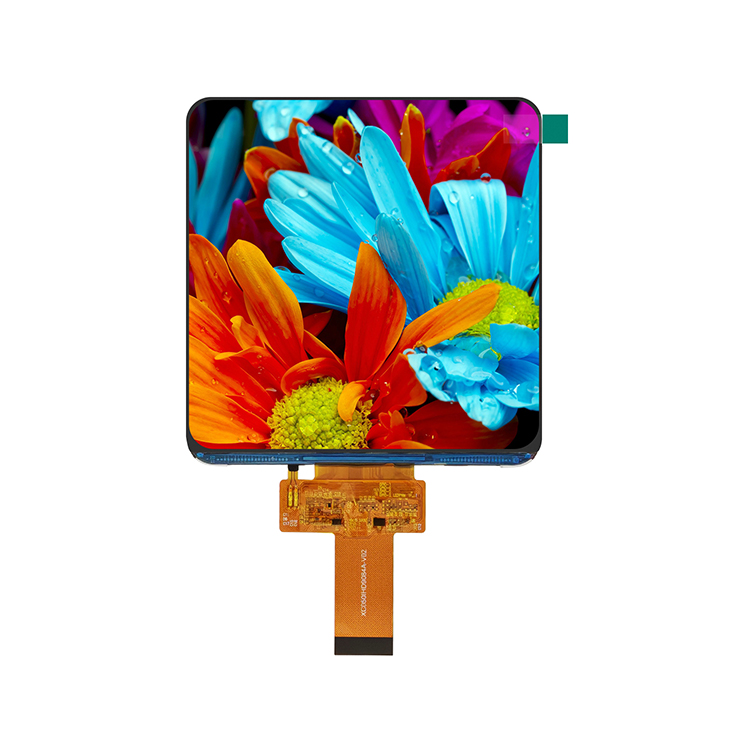

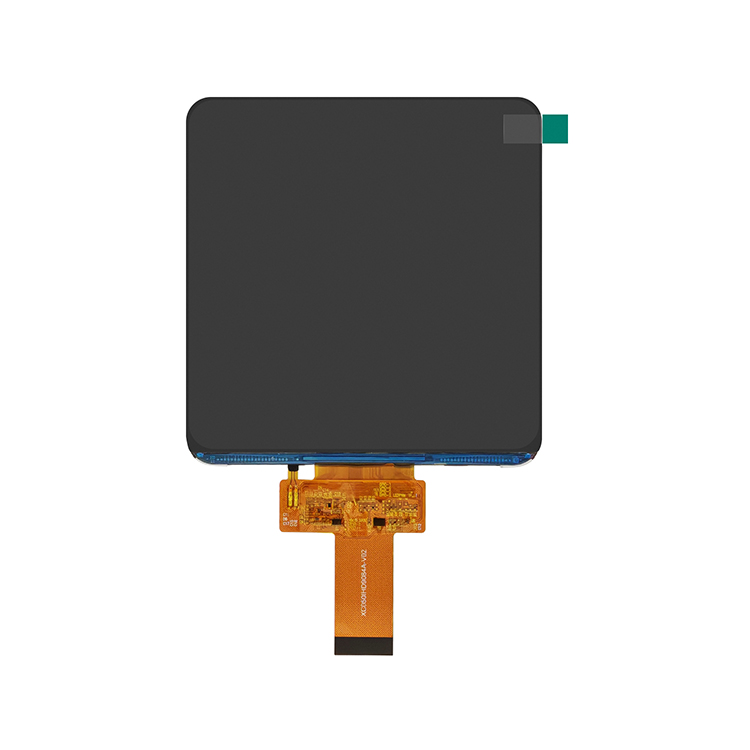

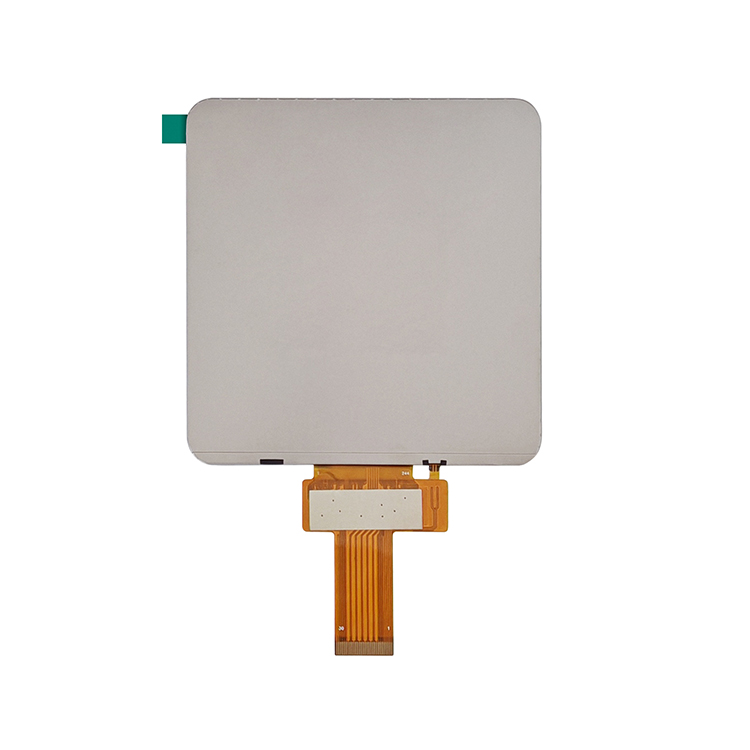

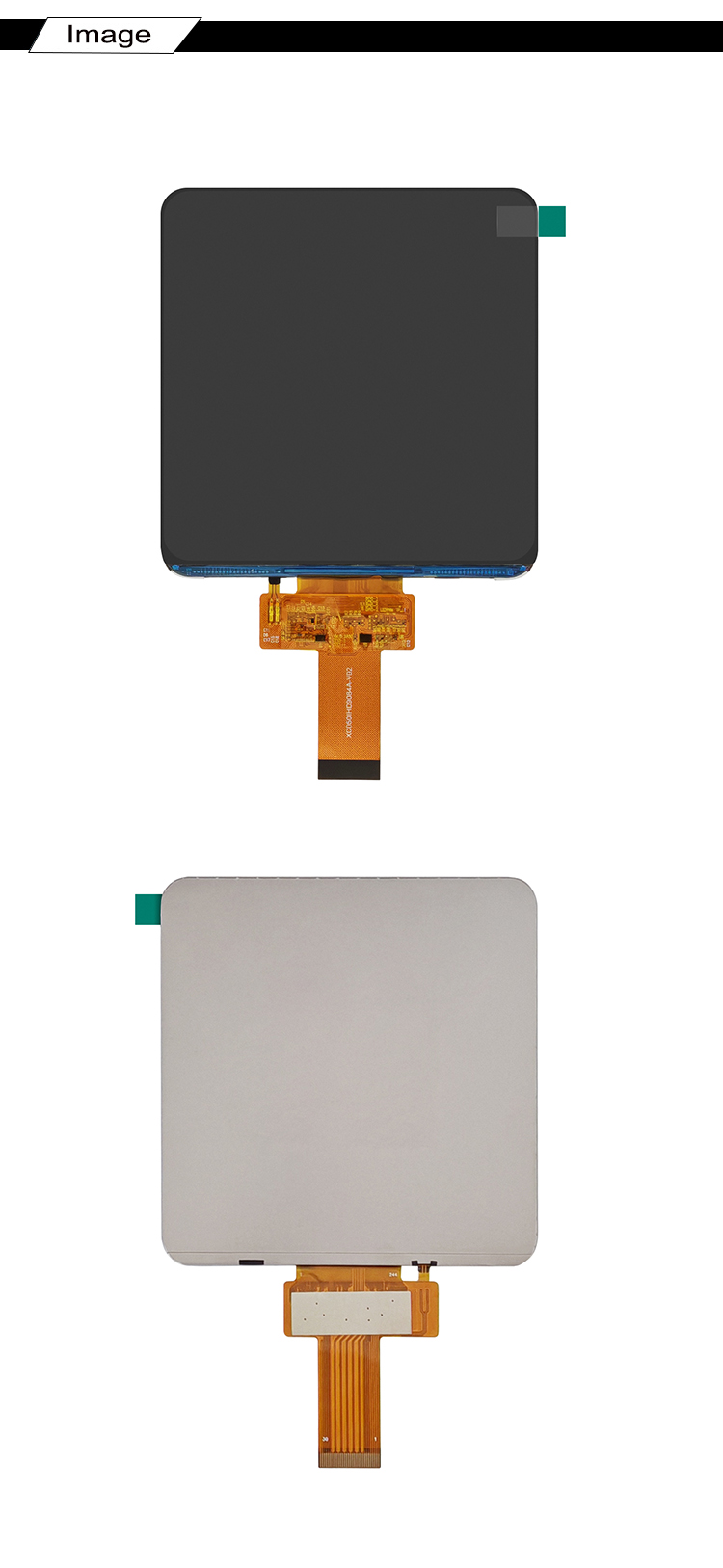

5 Inch 720x720 Square TFT oncell Capacitive Touch Screen for Smart Home

Elevate your smart device design with our premium 5-inch square TFT LCD display module. Featuring a crisp 720x720 high resolution and a perfectly balanced 1:1 aspect ratio, this display delivers stunning, ultra-sharp visuals and wide viewing angles.

Equipped with cutting-edge On-Cell capacitive touch technology, it ensures a slimmer profile, higher optical clarity, and highly responsive touch performance compared to traditional touch screens.

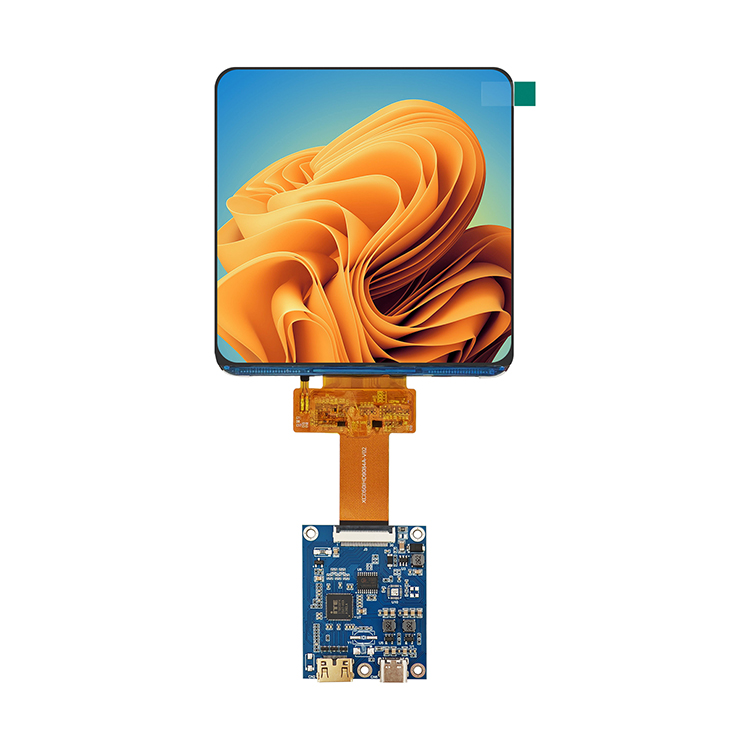

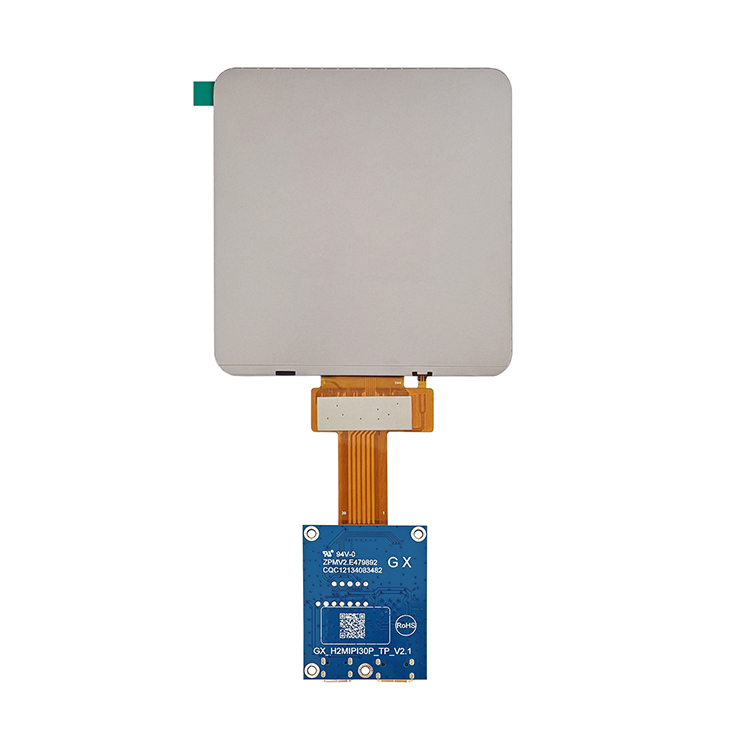

To simplify your development process, we offer a dedicated plug-and-play HDMI driver board option, allowing you to easily connect the display to Raspberry Pi, Single Board Computers (SBCs), or PCs for rapid prototyping and seamless integration.

GENERAL SPECIFICATION

Item	Specification	Unit
LCD size	5.08	inch
Display Mode	Normally Black	--
Resolution	720(RGB)x720	Pixel
Pixel pitch	0.1269RGB0.1269	mm
Pixel Arrangement	RGB Stripe

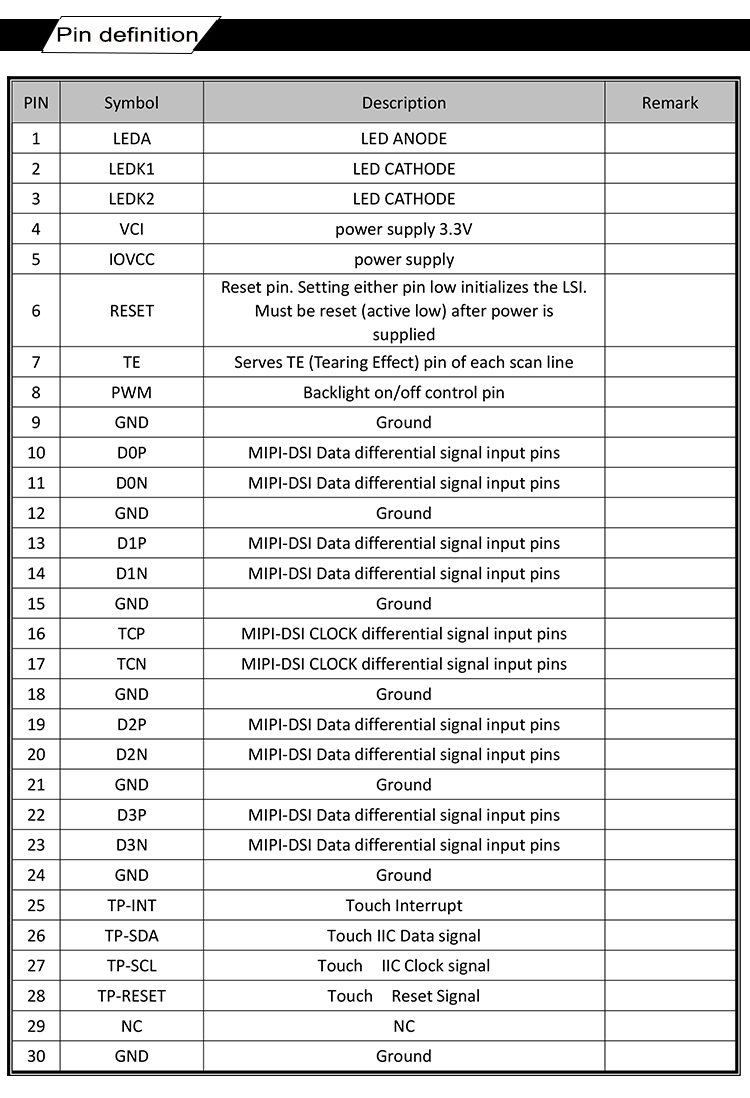

Pin Number	30P	Pin
Viewing direction	ALL	-
Luminance	460	cd/m²
Contrast Ratio	1200	-

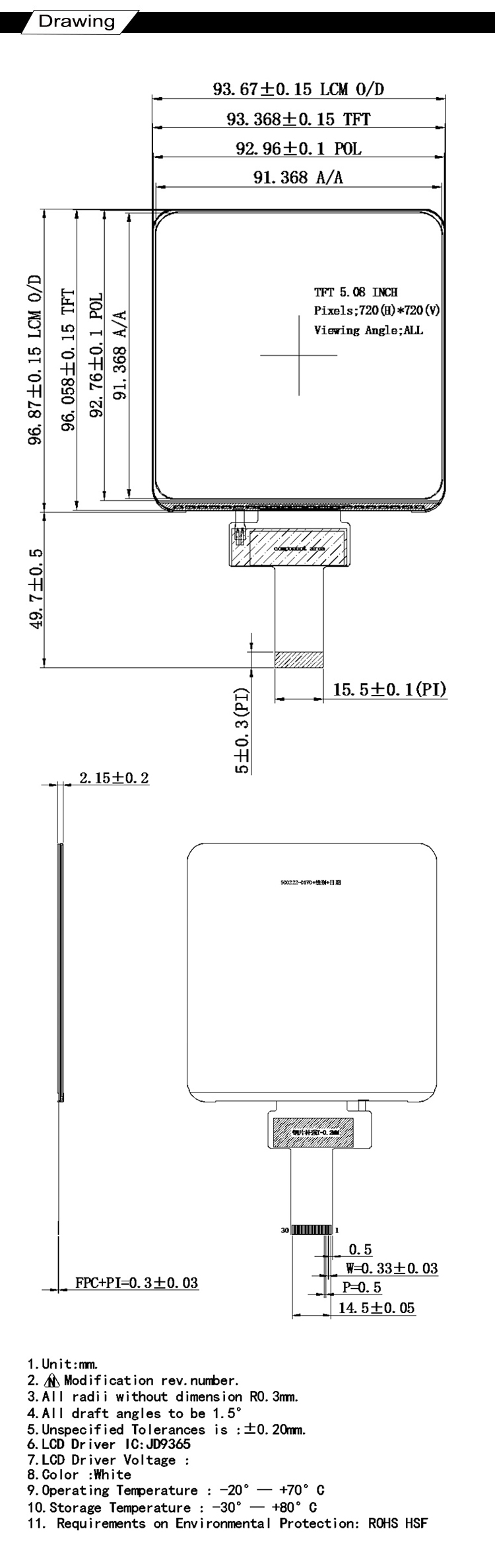

Module outline dimension	93.67(H)96.87(V)2.15(D)	mm
LCD AA	91.368*91.368	mm
Colors	16.7M	-
Driver IC	JD9365TX	-
Interface	MIPI 4lane	--
Backlight	White LED	--
Operating Temperature	-20℃ ~ +70℃	--
Storage Temperature	-30℃ ~ +80℃	--

Features of 5 inch square tft panel

Vibrant 1:1 Square Aspect Ratio: Features a unique 5-inch 720x720 square TFT LCD display, ideal for modern HMI, smart thermostats, and design-forward IoT control panels.

Advanced On-Cell Touch Technology: Integrated capacitive touchscreen offers a thinner display profile, superior optical clarity, and ultra-responsive multi-touch performance.

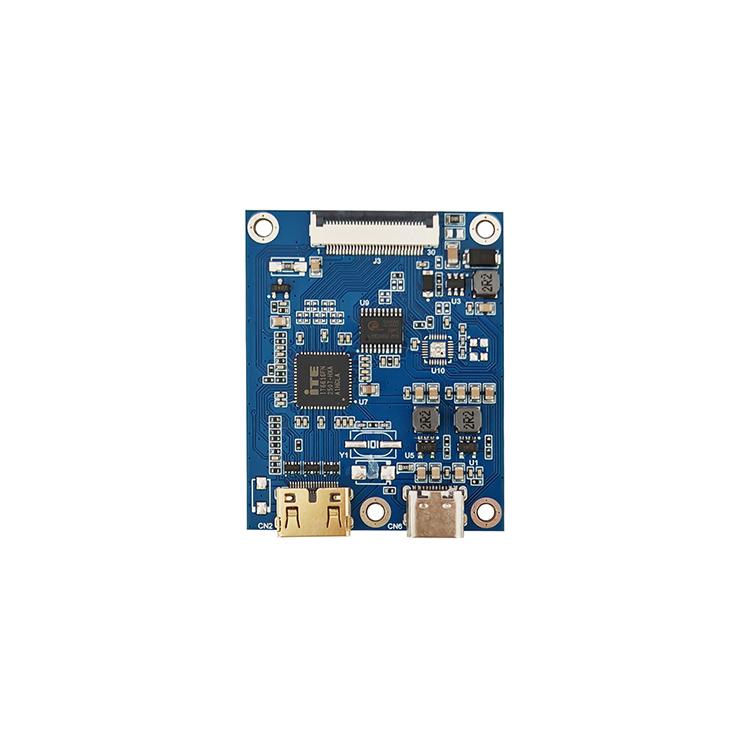

Optional Plug-and-Play HDMI Driver Board:Available with a custom MIPI-to-HDMI controller board for seamless compatibility with Raspberry Pi, SBCs, and PCs—perfect for rapid prototyping.

Superior IPS Wide Viewing Angle: Equipped with IPS screen technology, ensuring consistent color accuracy and perfect readability from up to 170°/170° viewing angles.

High Contrast & Sharp Visuals:Delivering a high contrast ratio and crisp resolution, making user interfaces look clean, sharp, and highly professional.

Industrial-Grade Reliability:Designed for 24/7 stable operation in harsh environments with a wide temperature range, ensuring a long lifecycle for OEM/ODM projects.

Fully Customizable Solutions:Supports tailoring options for backlight brightness (sunlight-readable high-brightness), custom cover glass shape/thickness, and FPC designs.
