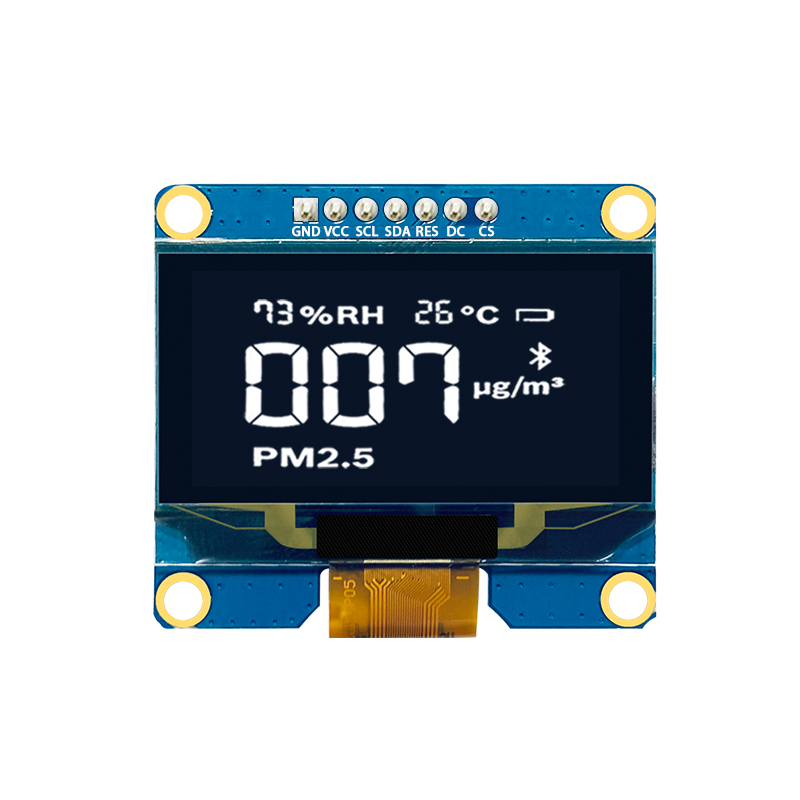

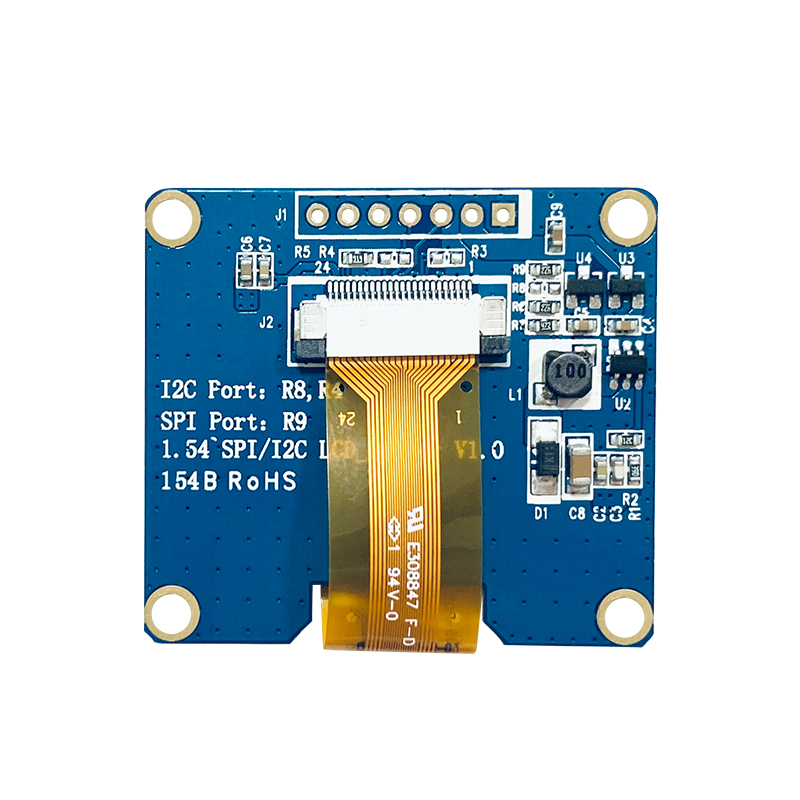

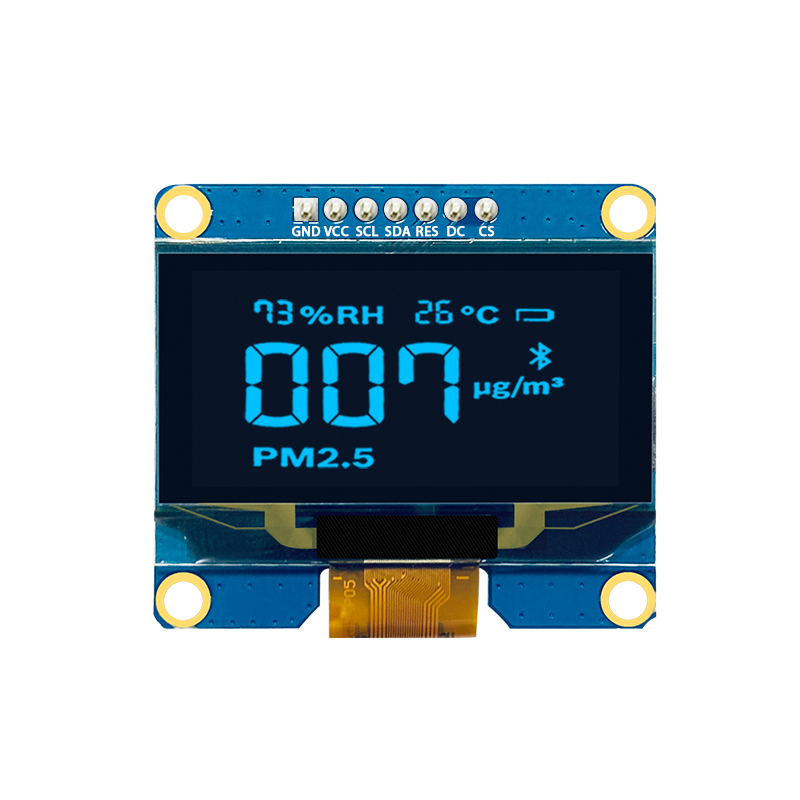

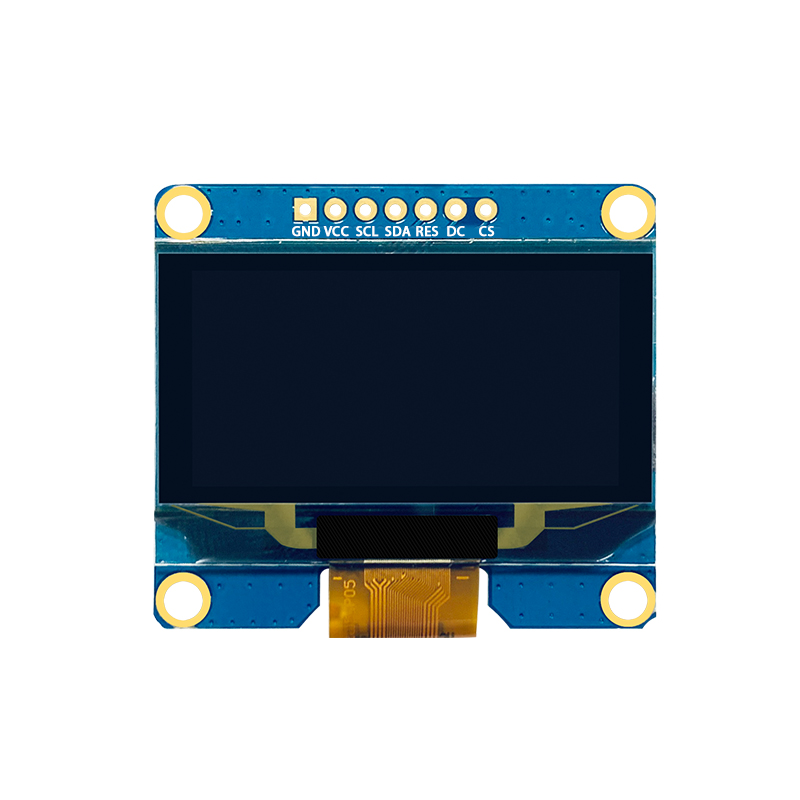

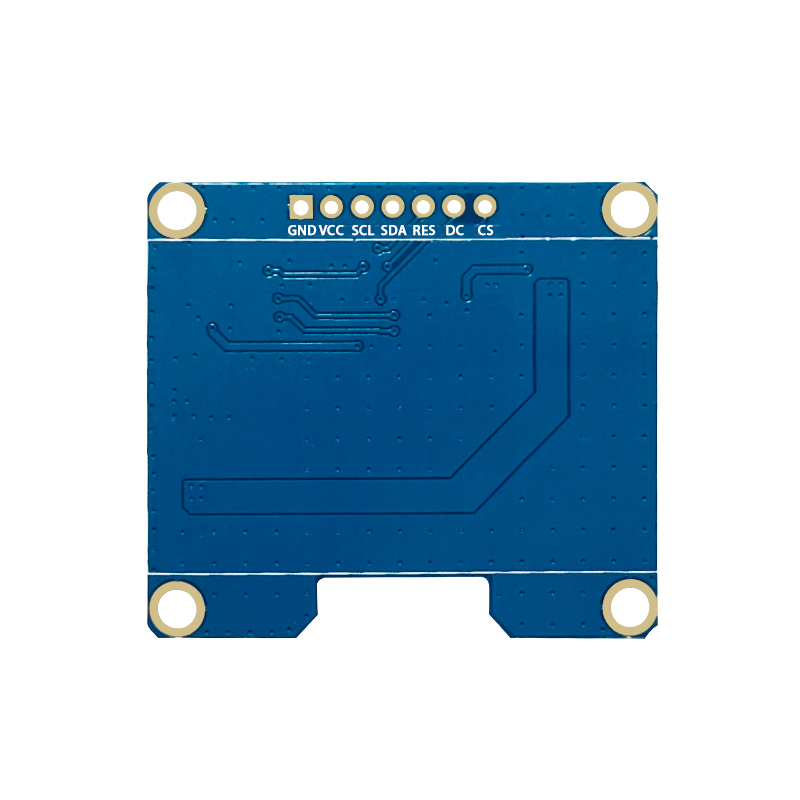

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

1.54 inch 128*64 OLED Display Module I2C SPI 7pin interface SSD1309 Driver Chip

Price: $7.59-$8.59
Size:1.54
Resolution: 128*64
Interface: I2C SPI
Product description: Hicenda Technology Co., Ltd can supply 1.54 inch oled display module white or blue or yellow color with 7 pin SPI/I2C interface for medical or industrial device.
INQUIRY

1. Display Specifications

LCD Size: 1.54 inches
Dot Matrix Size: 128*64
LCD Color: White/Blue/Yellow
Hardware Interface: I2C/SPI interface
Driver IC: SSD1309
Operating Temperature: -30 - 80
Working Power Supply: 3.3V
PIN NO: 7Pin
Viewing Direction: Full viewing angle

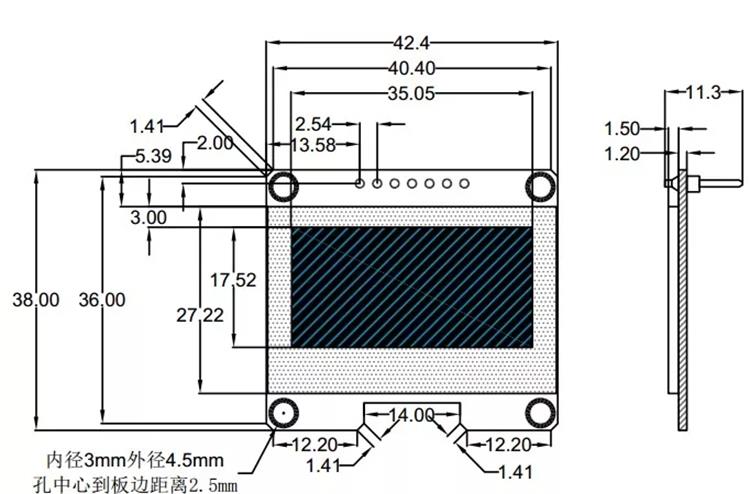

2. Mechanical Specifications

Dot Matrix:	128X64
Dots Size:	0.254 (W) x 0.254 (H) mm
Dots Pitch:	0.274 (W) x 0.274 (H) mm
Aperture Rate:	83.3%
Active Area:	35.052 (W) x 17.156 (H) mm
Display:	White/Blue/Yellow
IC:	SSD1309
Panel Size:	34.5 (W) x 23 (H) mm
Module Size:	42.4 (W) x 38 (H) x 1.5 (D) mm
