The 2.42-inch monochrome OLED display module, configured in a 128×64 dot matrix and driven by the SSD1309 controller, presents a compact and efficient visual solution for embedded systems. Featuring a passive matrix design, wide viewing characteristics, and flexible communication options such as IIC and SPI interfaces, the module combines stable optical performance with practical mechanical dimensions, making it suitable for a wide range of industrial and consumer applications.
| Parameter | Specification |
|---|---|
| Display Mode | Passive Matrix |
| Display Format | 128 × 64 Graphic Dot Matrix |
| Screen Size | 2.42 inches |
| Resolution | 128 × 64 dots |
| Emission Color | Monochrome (White / Yellow / Green) |
| Drive Duty | 1/64 Duty |
| Viewing Direction | All-direction viewing |
| Driver IC | SSD1309 |
| Interface | IIC / 4-wire SPI |
| Outline Dimensions | 72.0 × 43.0 × 5.9 mm (max) |
| Viewing Area | 57.01 × 29.5 mm |
| Effective Area | 55.01 × 27.49 mm |
| Pixel Size | 0.39 × 0.39 mm |
| Pixel Pitch | 0.43 × 0.43 mm |
| Pin Count | 7 Pins |
| Operating Temperature | -40°C to 80°C |
| Storage Temperature | -40°C to 85°C |

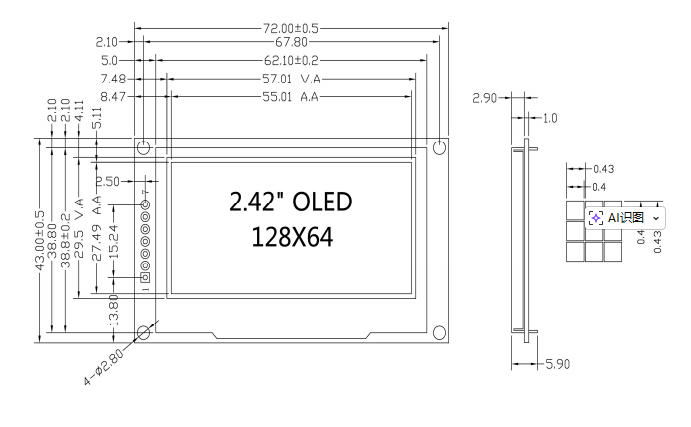

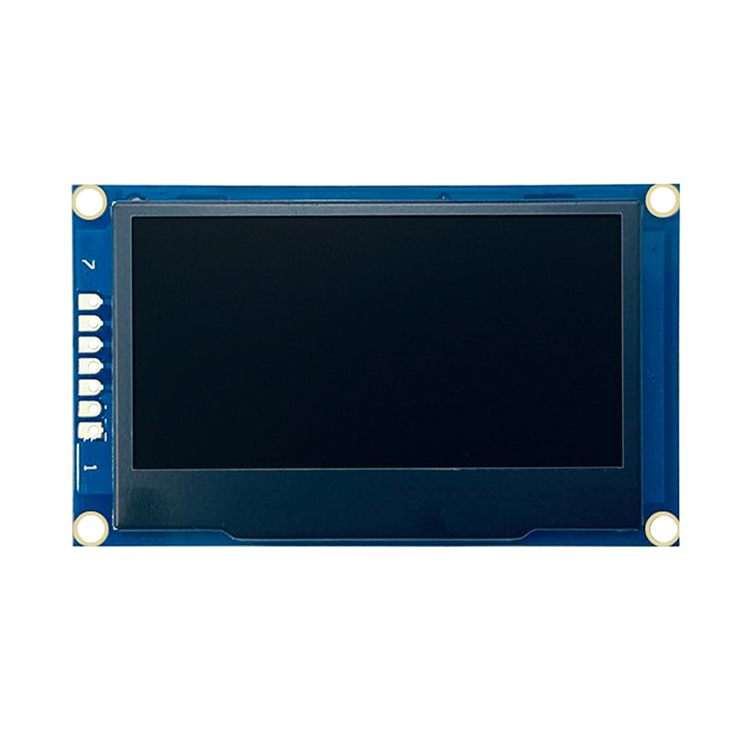

The module adopts a well-proportioned mechanical structure, with an outline dimension of 72.0 × 43.0 × 5.9 mm (maximum). Within this compact footprint, the display integrates a viewable area of 57.01 × 29.5 mm and an effective pixel area of 55.01 × 27.49 mm, ensuring efficient utilization of panel space while maintaining clarity and uniformity.
The pixel architecture is defined by a pixel size of 0.39 × 0.39 mm and a pitch of 0.43 × 0.43 mm, enabling precise rendering of graphical content. The 1/64 duty driving scheme supports stable multiplexing, contributing to consistent luminance across the panel.

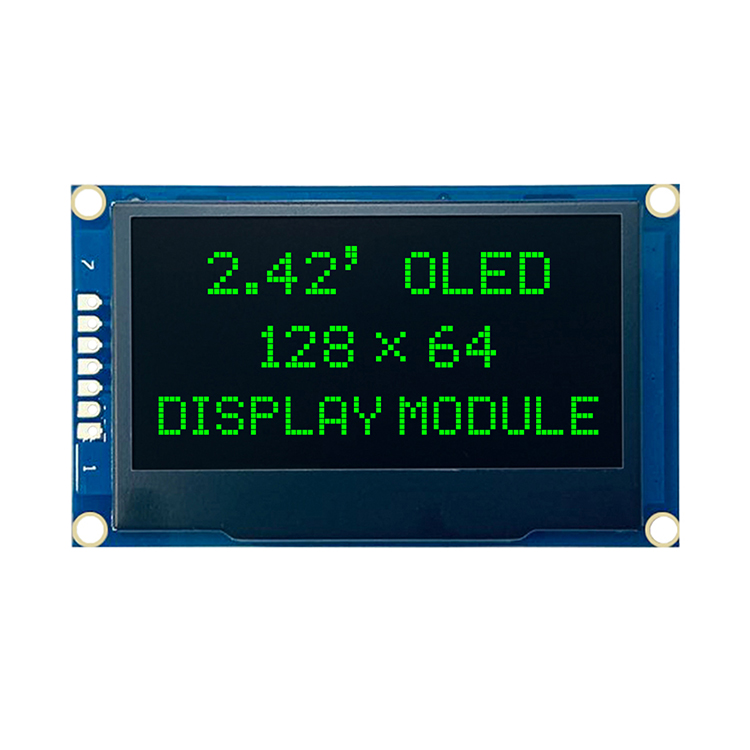

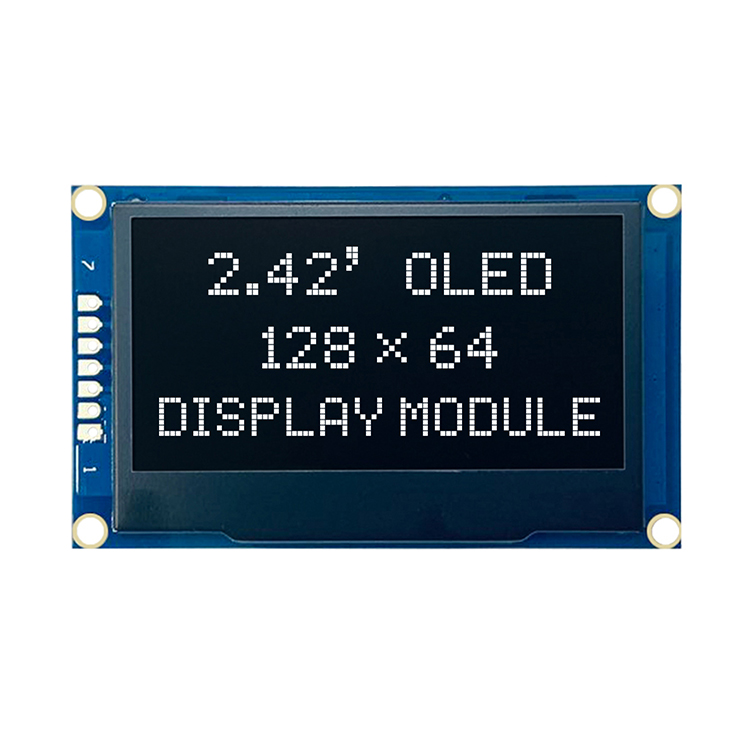

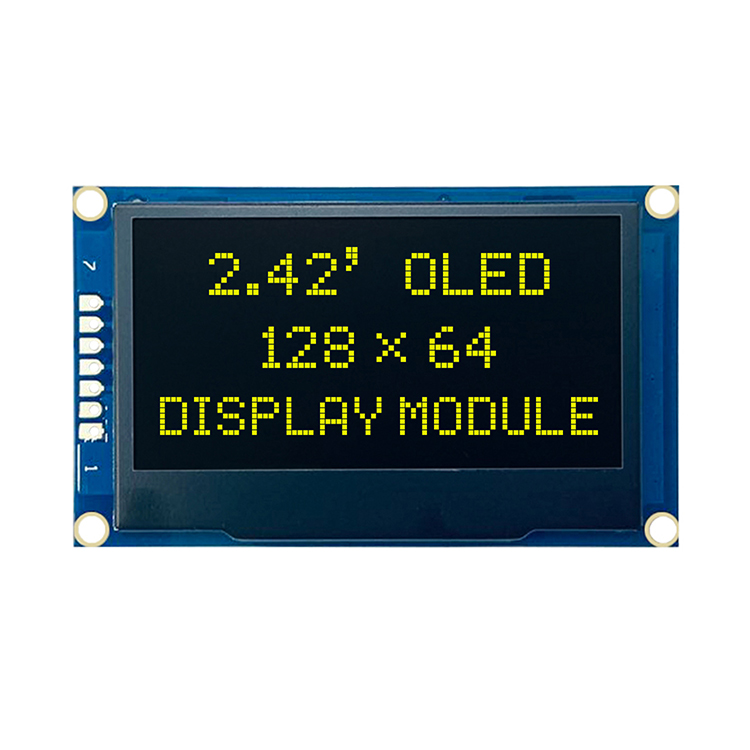

As a monochrome OLED module, the display supports multiple emission colors, including white, yellow, and green. The self-emissive nature of OLED technology eliminates the need for a backlight, resulting in high contrast ratios and excellent readability even under low ambient lighting conditions. Additionally, the module maintains an “all viewing direction” characteristic, allowing flexible installation without significant degradation in visual performance.

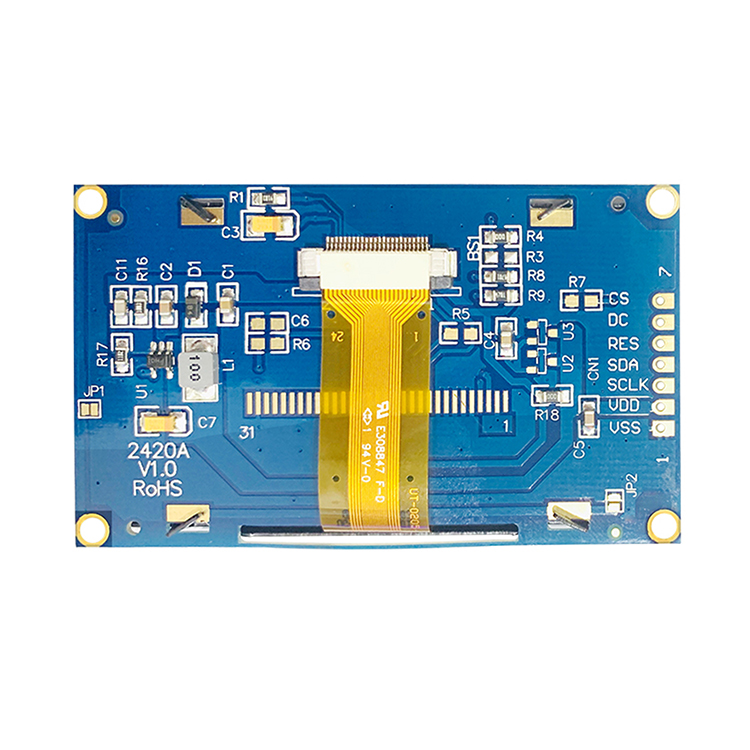

At the core of the module lies the SSD1309 driver IC, a mature and widely adopted controller optimized for graphic OLED displays. It supports efficient memory mapping for 128×64 resolution and enables smooth control of pixel addressing, contrast adjustment, and display timing.

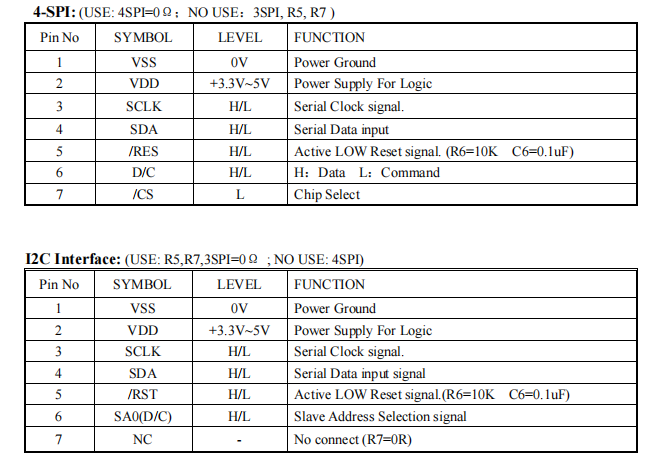

The module offers both IIC (Inter-Integrated Circuit) and 4-wire SPI communication interfaces, allowing designers to select the most suitable protocol based on system requirements. IIC provides a simplified wiring approach with fewer pins, while SPI offers higher data throughput for faster screen updates.
Designed for reliability across diverse conditions, the module operates within a temperature range of -40°C to 80°C, with a storage range extending to -40°C to 85°C. This wide tolerance ensures stable performance in both industrial and outdoor environments, where temperature fluctuations are common.
Owing to its moderate resolution and compact dimensions, the 2.42-inch OLED module is well-suited for embedded applications such as industrial control panels, handheld instruments, smart home interfaces, and medical devices. Its low power consumption and high contrast make it particularly effective in battery-powered systems.
The combination of a standardized controller (SSD1309) and dual-interface support simplifies firmware development and hardware integration. Engineers can readily implement display functions using existing libraries, reducing development time while maintaining system stability.
The 2.42-inch OLED display module with SSD1309 driver represents a refined balance between performance, adaptability, and integration simplicity. Its stable optical output, flexible interfacing, and robust environmental tolerance collectively position it as a dependable component in modern electronic designs. With its mature technology and practical specifications, the module continues to support efficient and elegant display solutions across a broad spectrum of applications.
