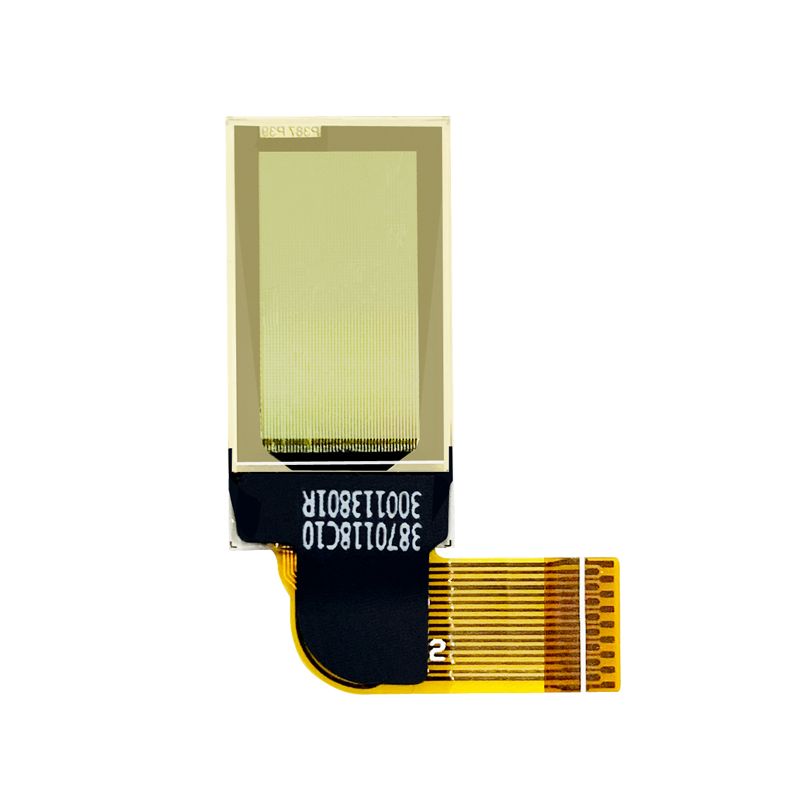

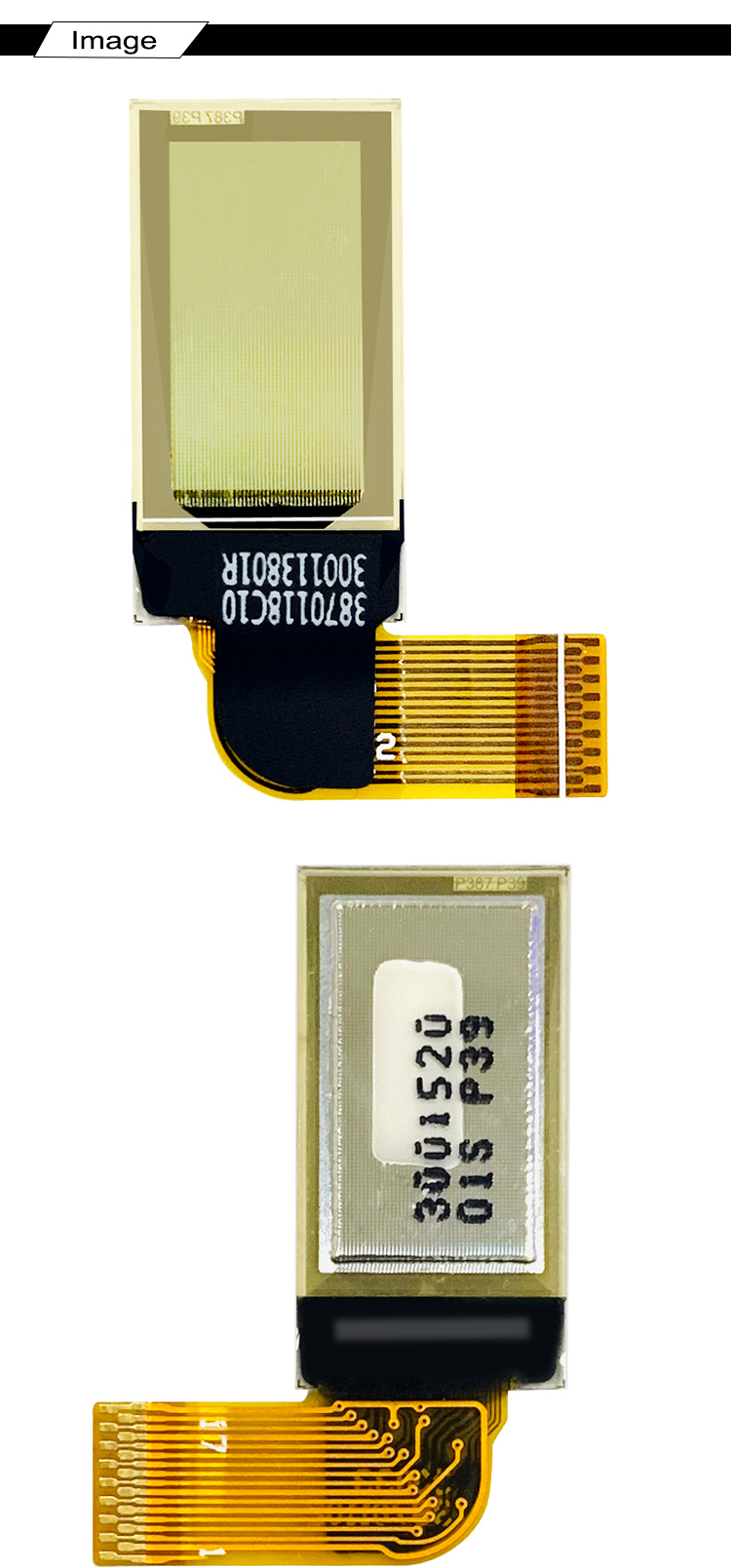

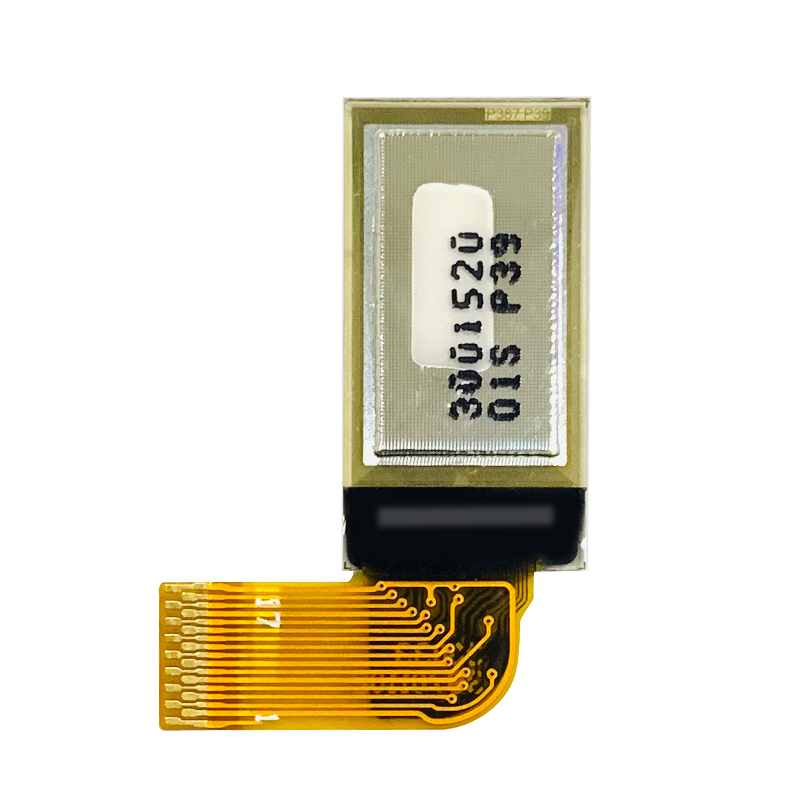

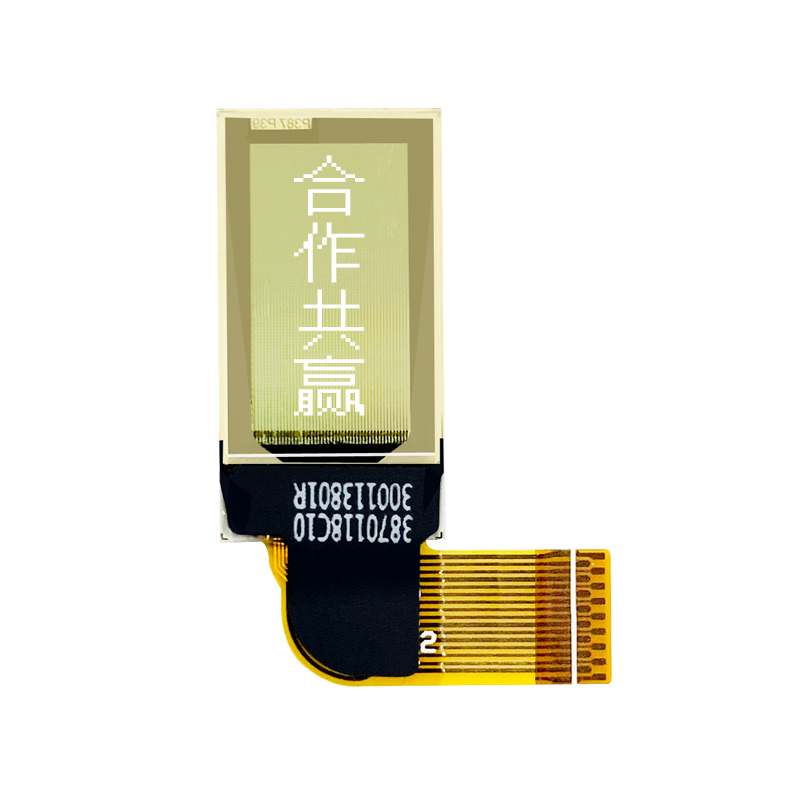

Micro OLED Display,0.5"48x88 OLED Micro Display

  • Size: 0.50 OLED
  • Controller IC: CH1115
  • Resolution: 48*88
  • Interface: SPI
  • Product description: Micro OLED Display,0.5"48x88 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.50 is a  passive matrix micro OLED display module which is made of 64x32 dots. It has the module dimension of 8.928x17.1x1.227mm mm and Active Area size 6.124X11.244mm mm. This OLED micro display is built in with CH1115 IC, it supports I2C interface, 3.5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.50 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION

0.5 Inch OLED Display 48x88 CH1115 OLED I2C
Diagonal Screen Size
0.5 Inch
Color
Monochrome (White)
Number of Pixels
48X88
Module Construction
COG
Panel Size
8.928x17.1x1.227mm
Active Area
6.124X11.244mm
Pins
14
Drive IC
CH1115
Interface
I2C
Pixel pitch
0.128x 0.128mm
Assembly
Connector

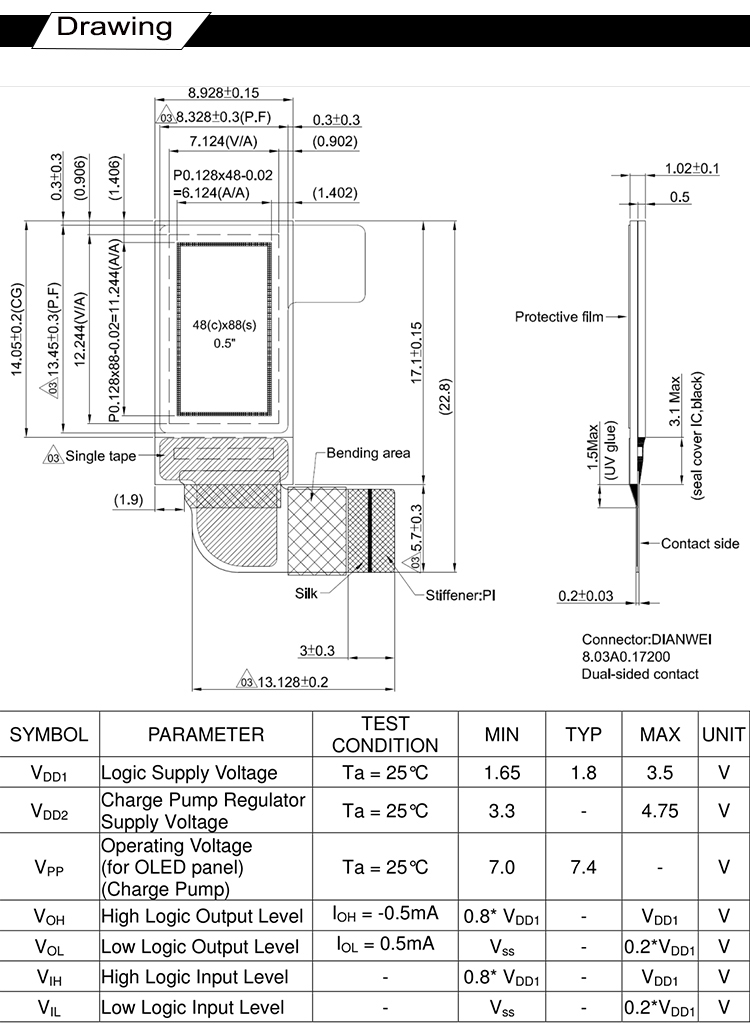

DRAWING

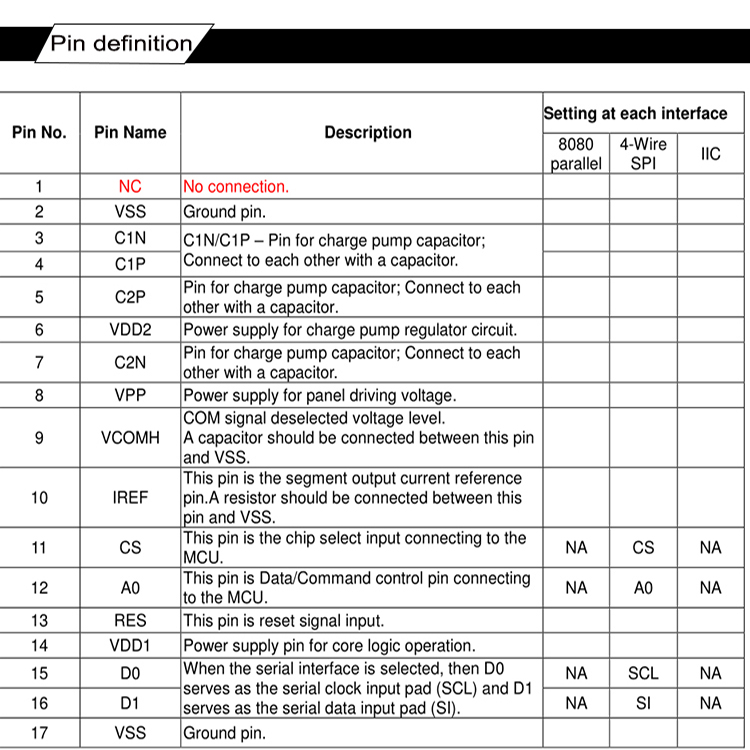

INTERFACE PIN FUNCTION
