  • Display mode:Passive Matrix
  • Size: 2.2
  • Resolution: 176*220
  • Interface: SPI
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.2 inch small tft display for medical or industrial device.tit colorful display High High responsiveness 2.2 inch tft Display
  • INQUIRY

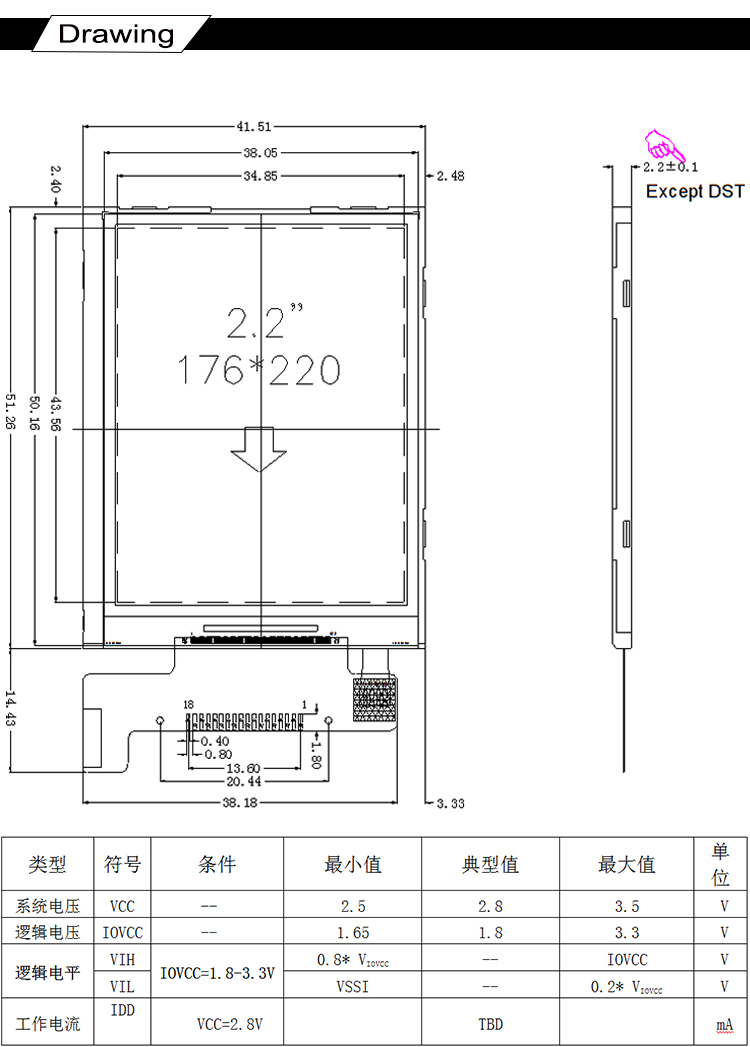

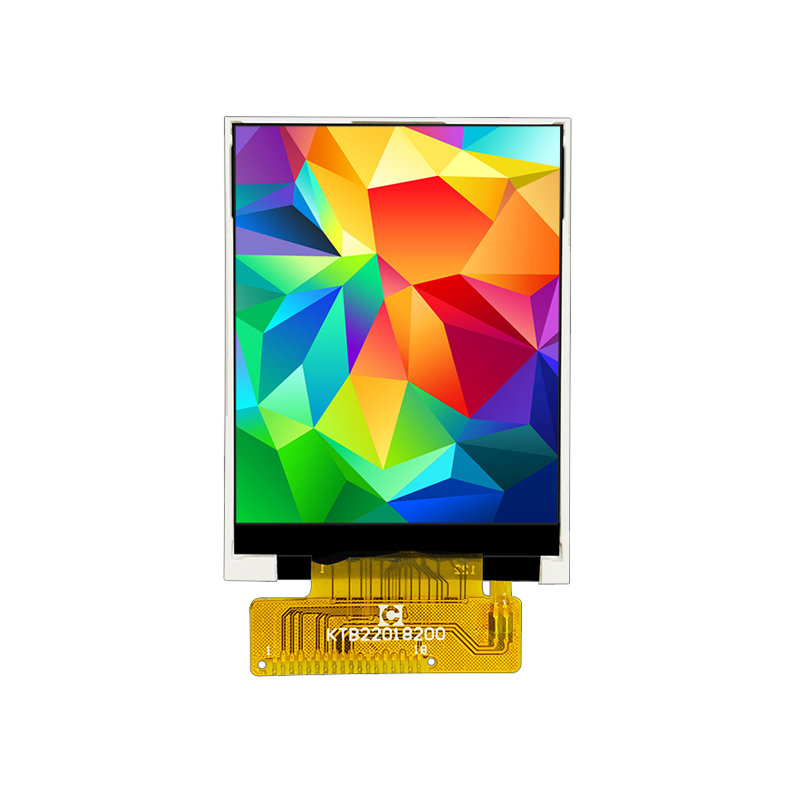

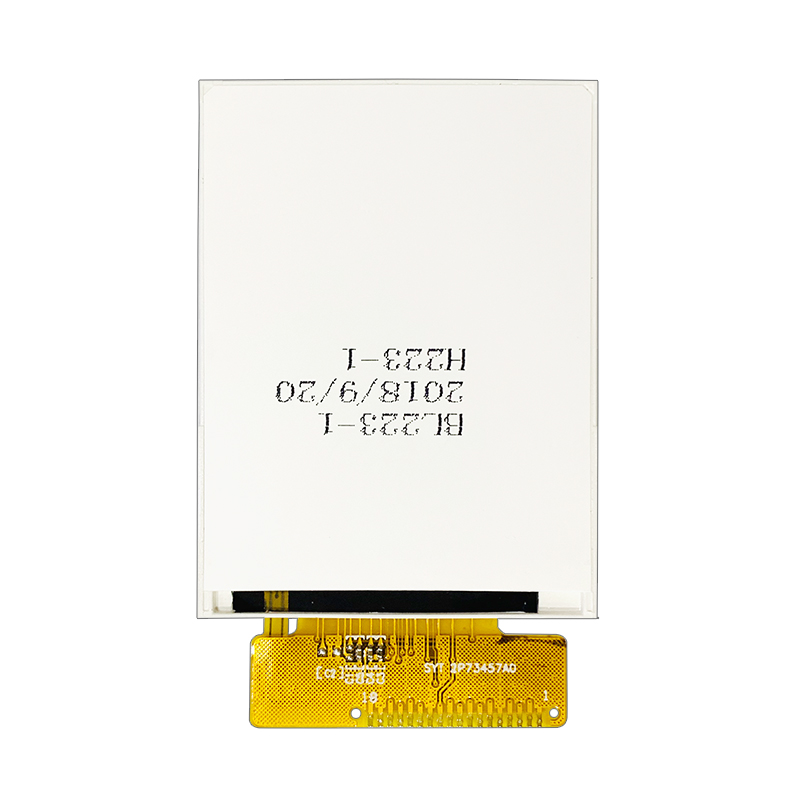

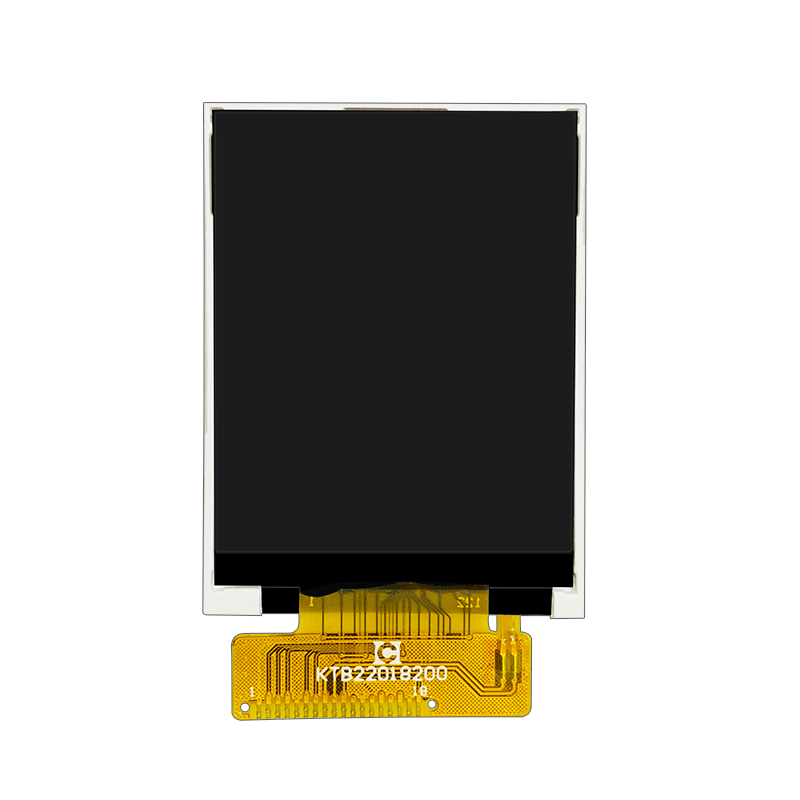

1. Display Specifications

  • LCD Size: 2.2 inches
  • Dot Matrix Size: 176*220
  • LCD Color: 262K Full Color
  • Hardware Interface: SPI interface
  • Driver IC: ST7775
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V
  • PIN NO: Welding 18Pin
  • Display Area: 34.85*43.56mm
  • Size: 41.51*51.26*2.2mm
  • Viewing Direction: 12 o'clock

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
