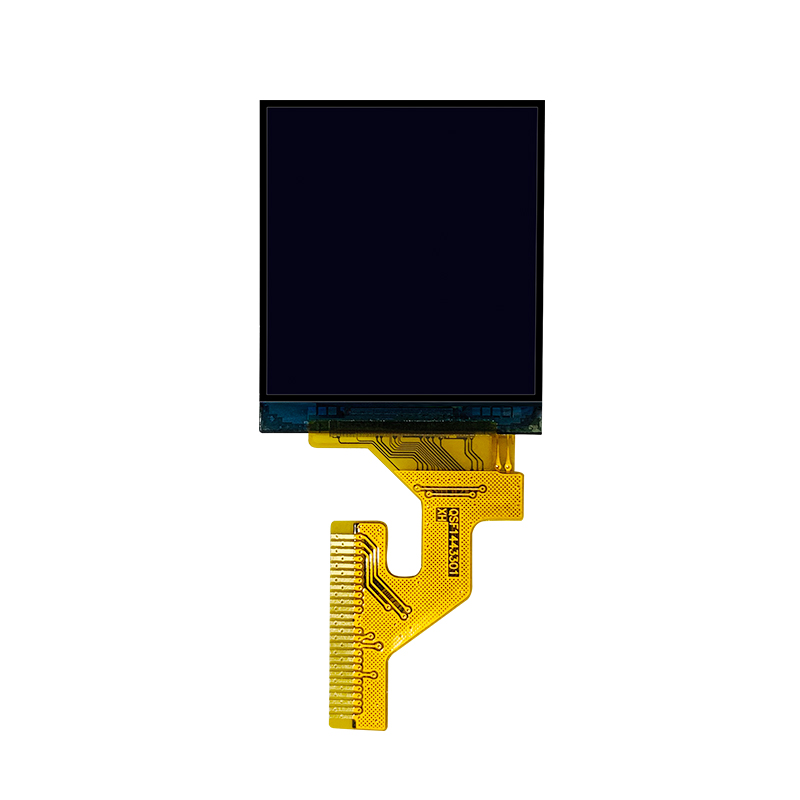

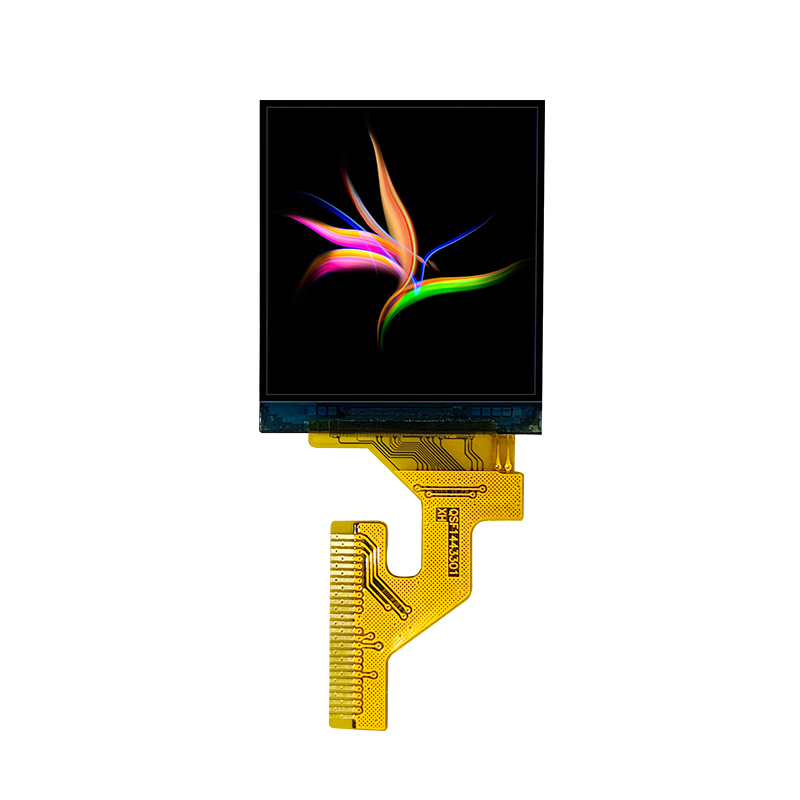

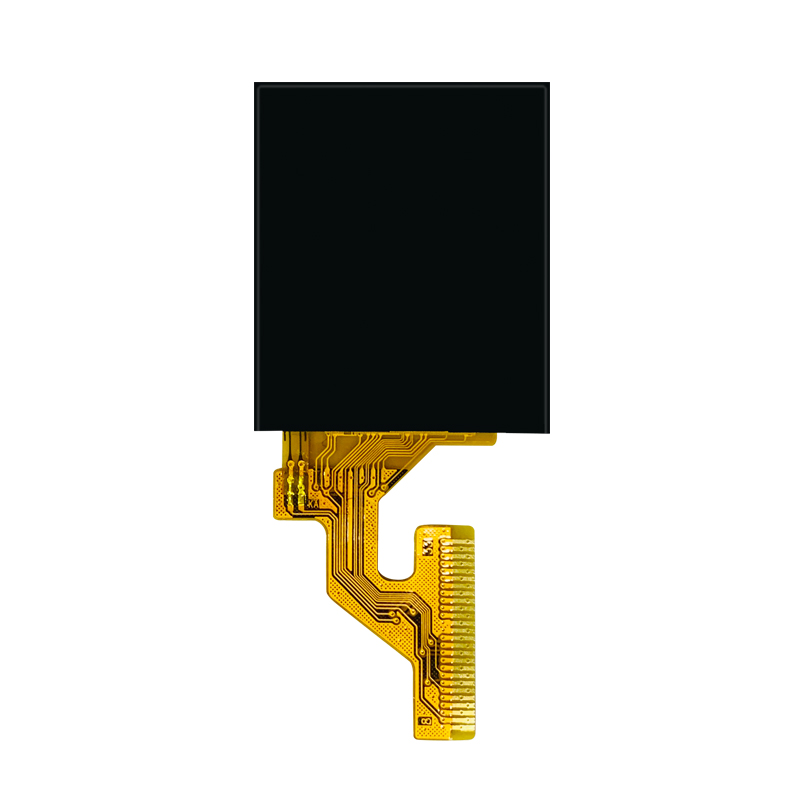

1.44 Inch Color TFT LCD Display customized 128*128 dots tft lcd display for industrial application with ST7735

  • Price: $1.89-$2.59
  • Size: 1.44
  • Resolution:128*128
  • Interface: serial port
  • Product description: Hicenda Technology Co., Ltd can supply high quality 1.44 inch small tft display for consumer electronics,SPI port tft display 1.44 inch,tft lcd display 1.44''
  • INQUIRY


1. Display Specifications

  • LCD Size: 1.44 inches
  • Dot Matrix Size: 0.199(H)*0.207(V)
  • LCD Color: rgb
  • Hardware Interface: SPI interface
  • Driver IC: ST7735
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.2V
  • PIN NO: welding 33Pin
  • Display Area: 26.5*25.5mm
  • Size: 27.9*32.5*1.95mm
  • Number of pixels:128*128

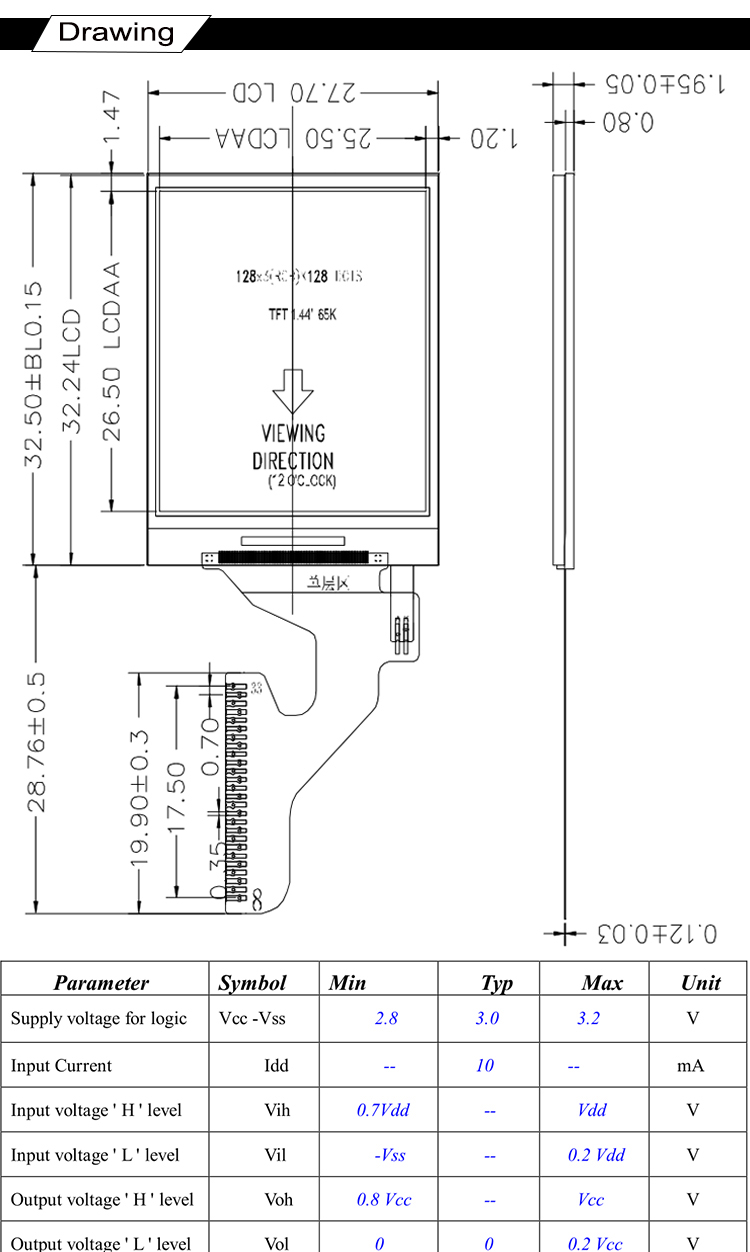

2. Mechanical Specifications

Product Name 1.44 Inch TFT Mini LCD  Screen Color LCD Dispaly
Active Area (WxH) 26.5*25.5mm
Display Outline Size 36.5(H) x 29.5(V) x 2.5(D)
Resolution 128RGBx128DOTS
Polarizer Mode RGB Stripe
Backlight White backlight, two in a row
Interface Type SPI
Technology Type a-Si TFT active matrix
Controller / Driver ST7735
