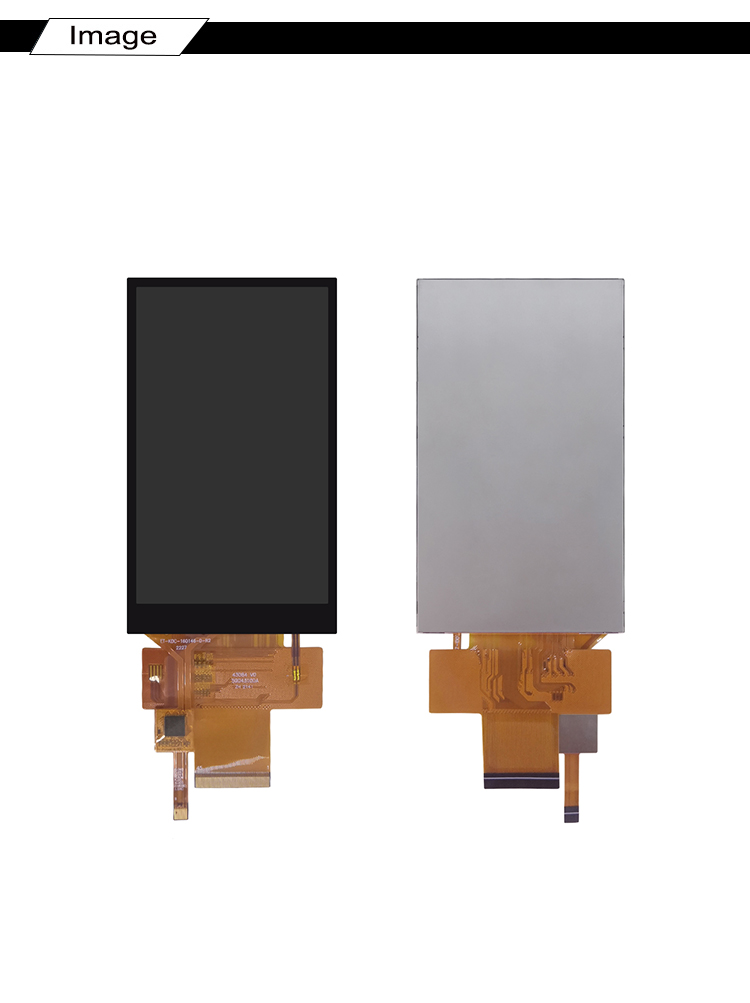

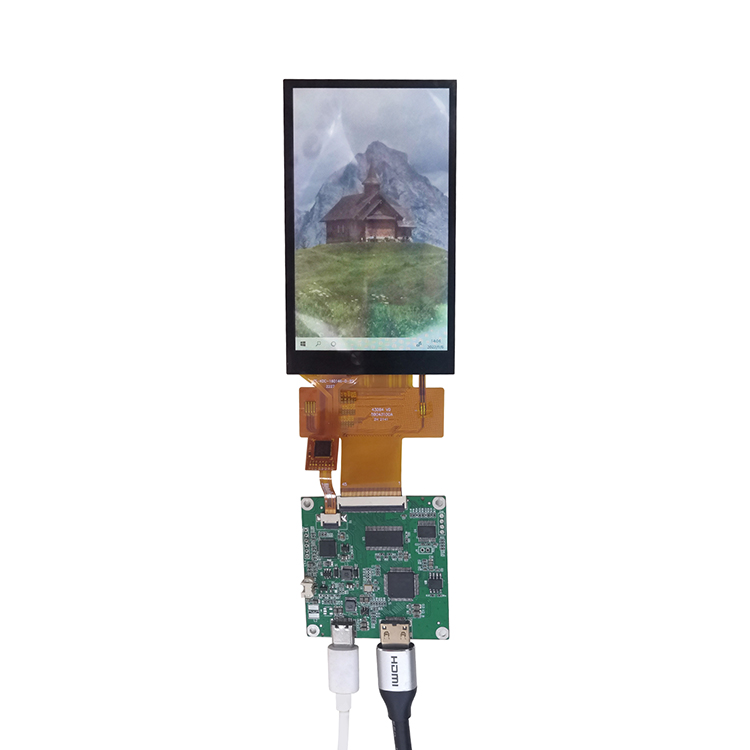

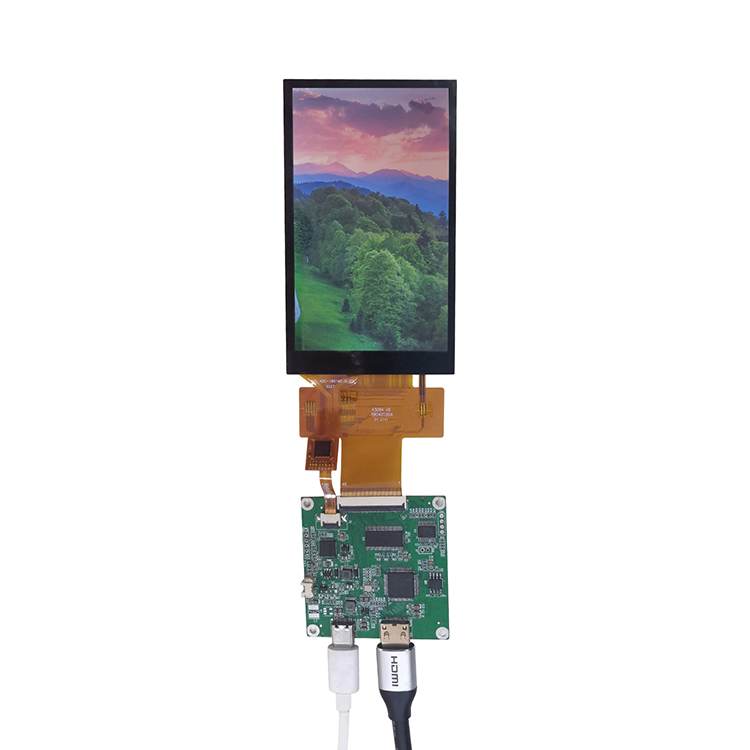

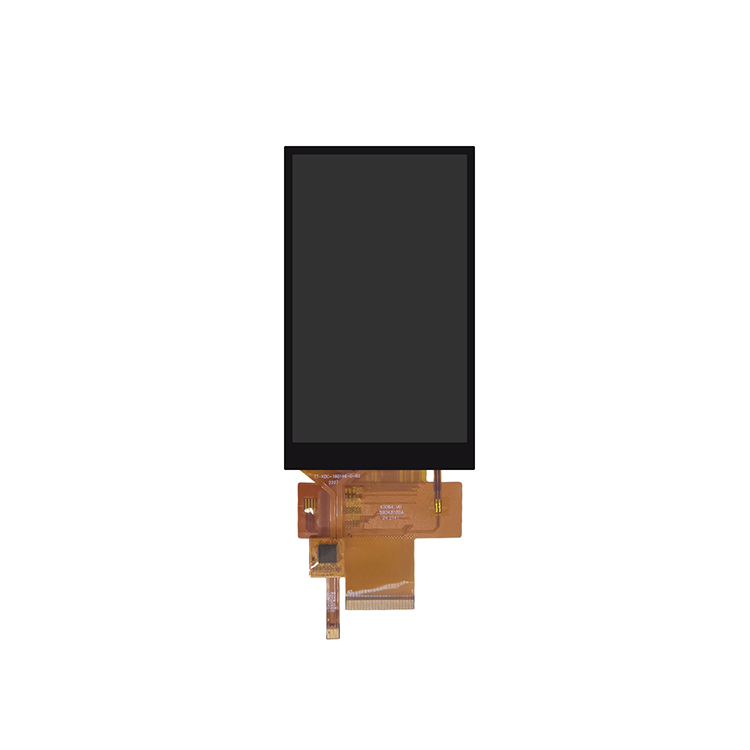

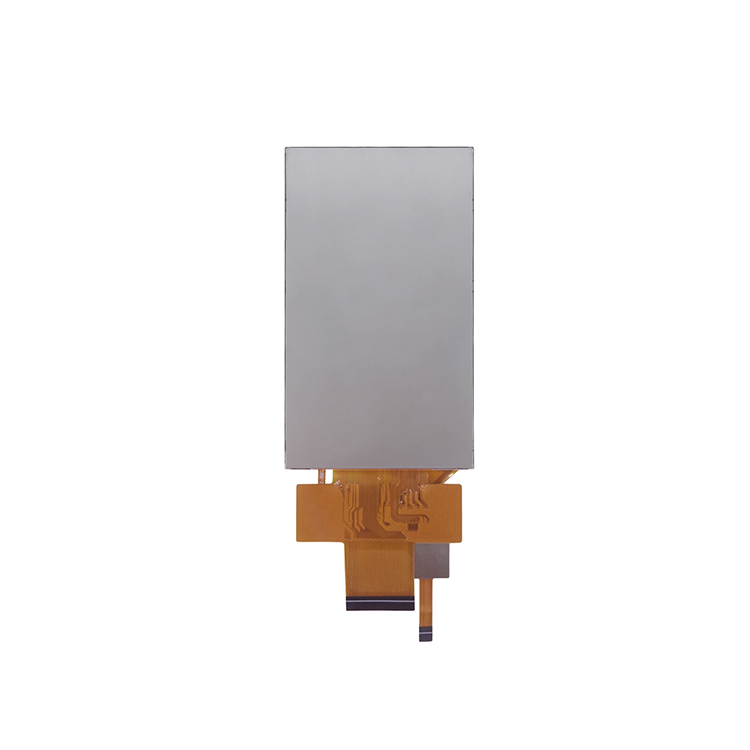

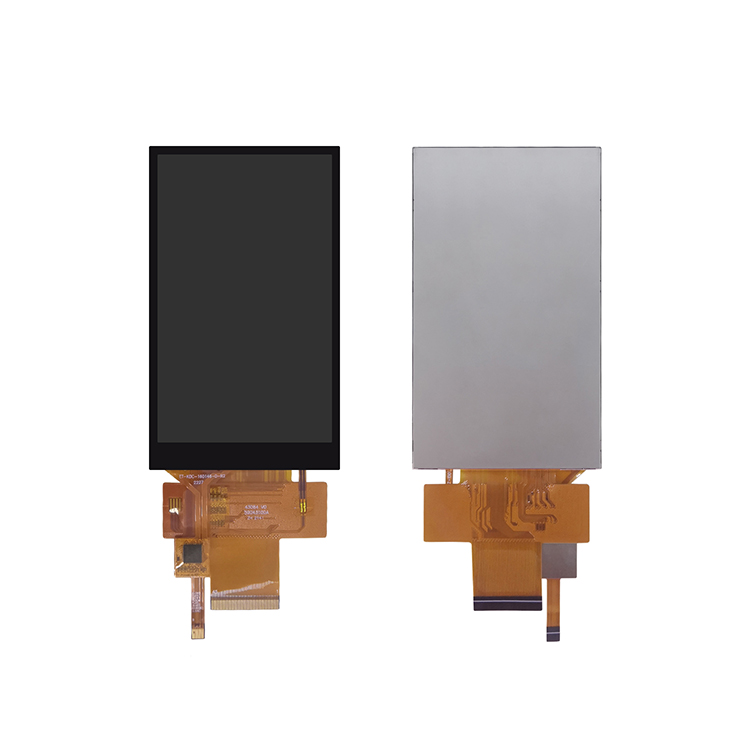

TFT LCD Display 4.3 inch,480(RGB)x800 with CTP+ HDMI Driver Board

  • Size: 4.3 TFT
  • Controller IC:ILI9806
  • Resolution:480(RGB)x800
  • Interface: 3-Line SPI+16/18/24 BIT RGB
  • Product description: TFT LCD Display 4.3 inch,480(RGB)x800 with CTP+ HDMI Driver Board
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 4.3"TFT-LCD contains 480*800 pixels, and can display up to 65K/262K/16.7Mcolors.






GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT043WVFPA084-02-C015B
Diagonal Screen size: 4.3 inch
Interface:
3-Line SPI+16/18/24 BIT RGB
Backlight:

10-LEDs (white)
Number of Pixels:

800(RGB)x480

Panel Size:

105.50(H)x67.20(V)x2.80(T) (mm)
Driver IC:

ILI9806

Active Area:

56.16(H)*93.60(V)(mm)
Display Mode:

Normally white/Transmissive
Pixel pitch:

0.117(H)*0.117(V)MM

Weight:

TBD

Operating Temperature:

-20~70°

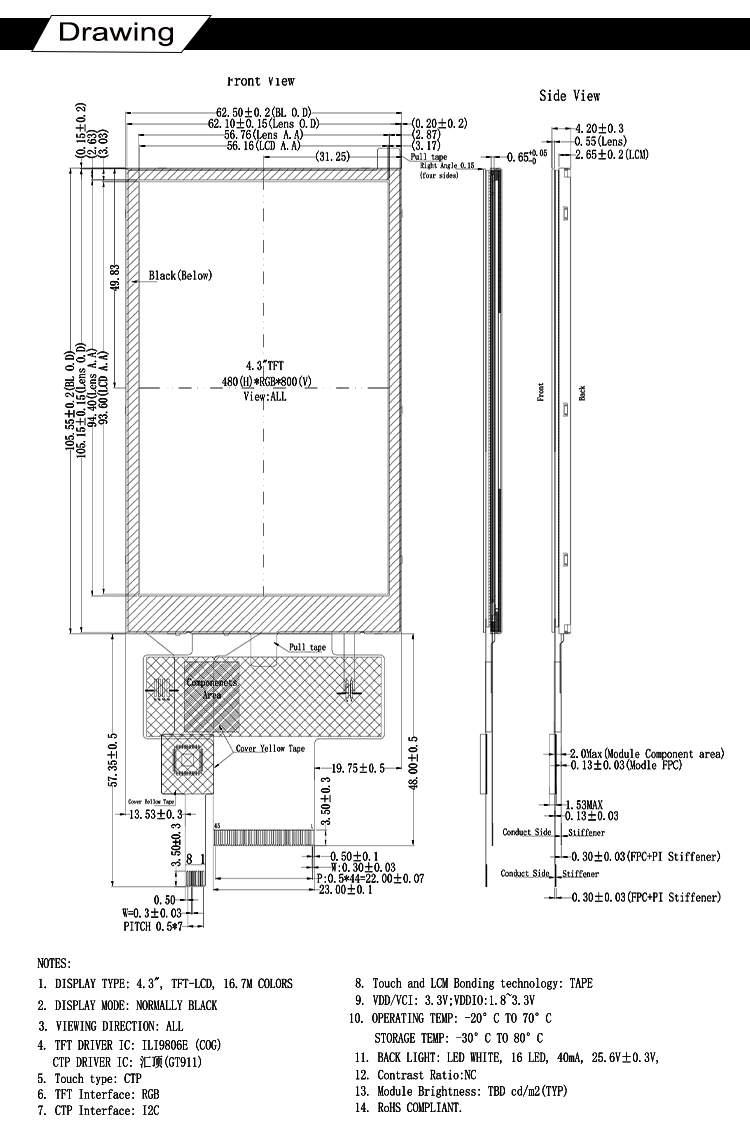

DRAWING

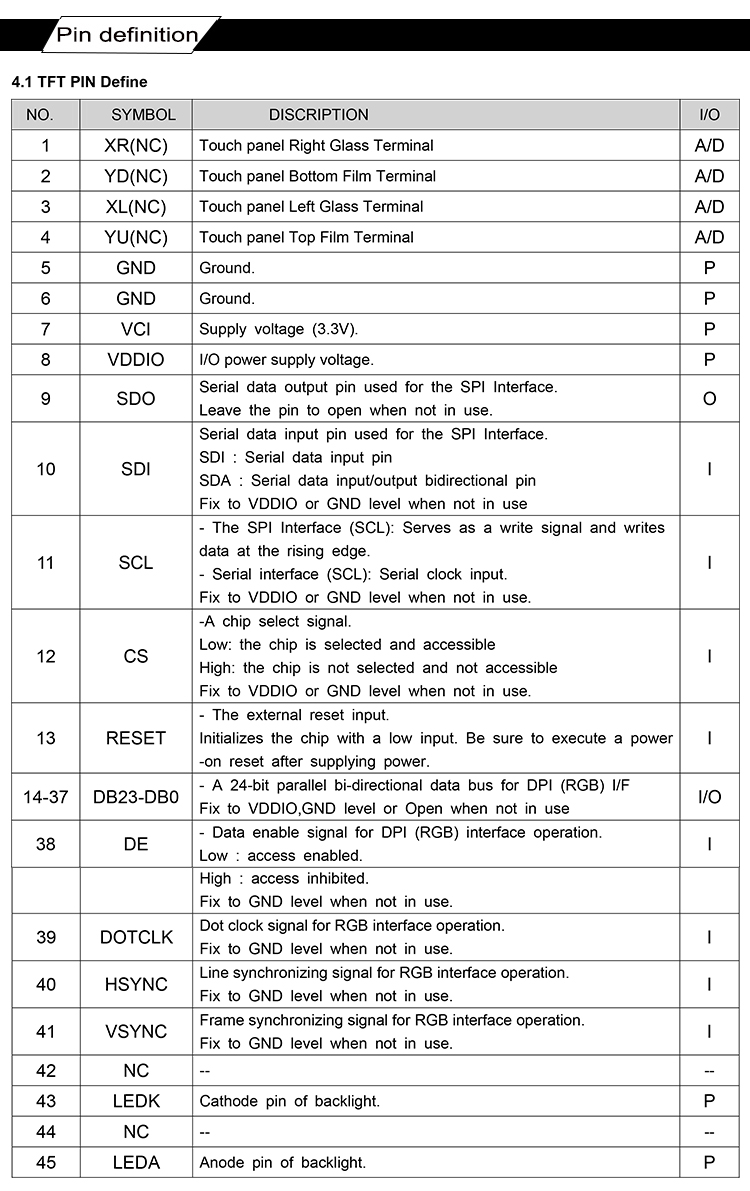

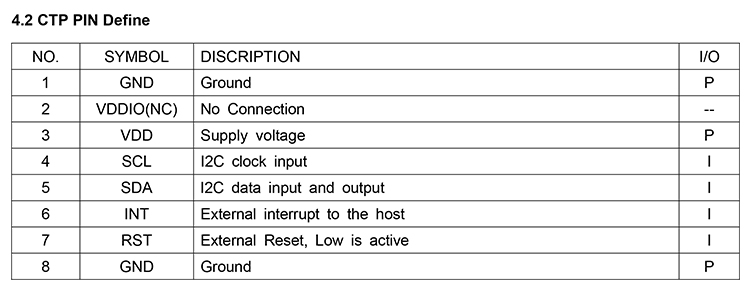

INTERFACE PIN FUNCTION
