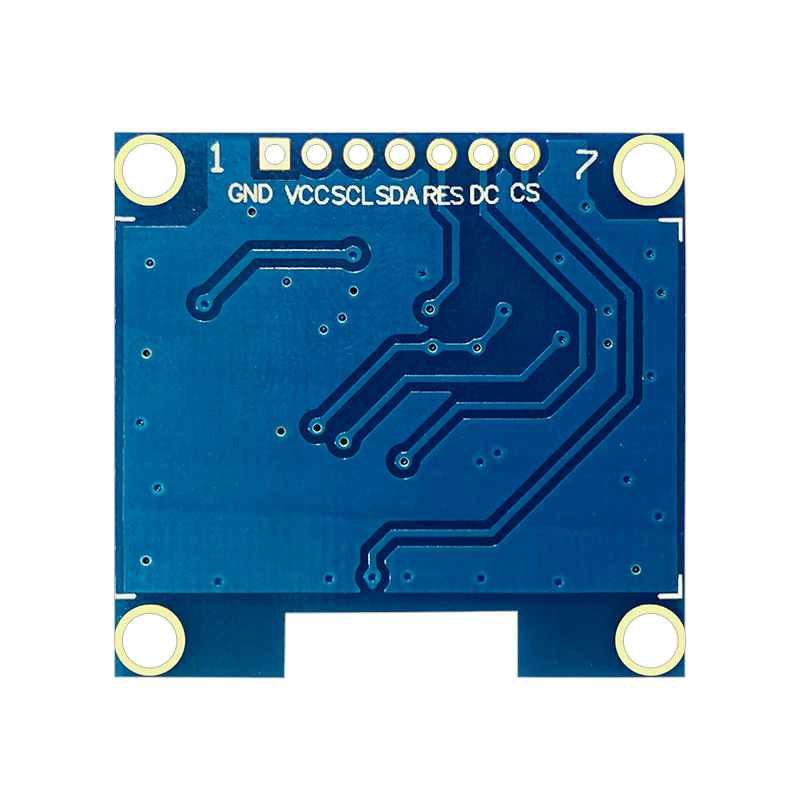

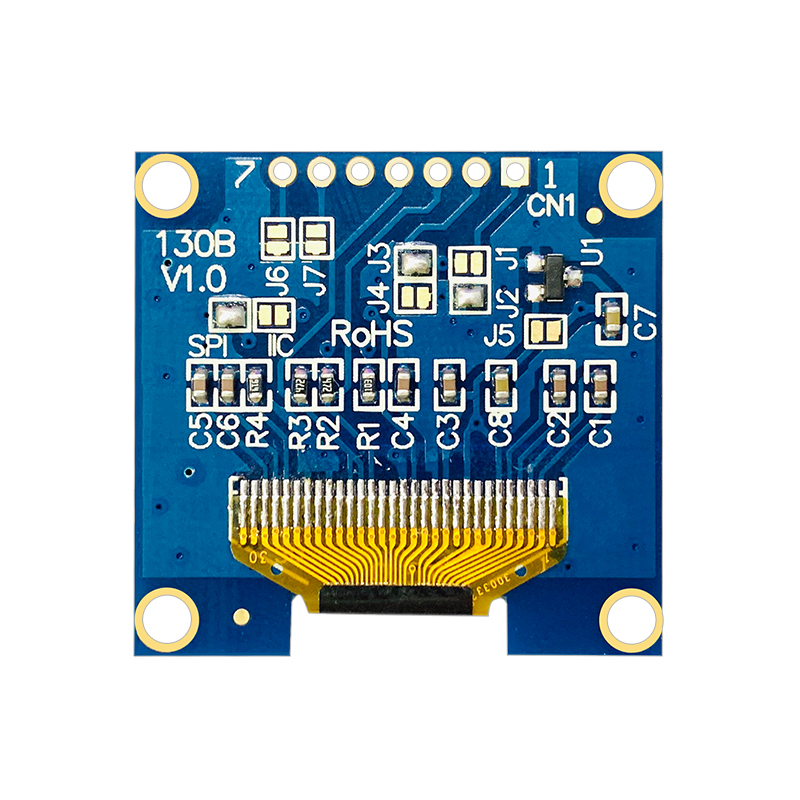

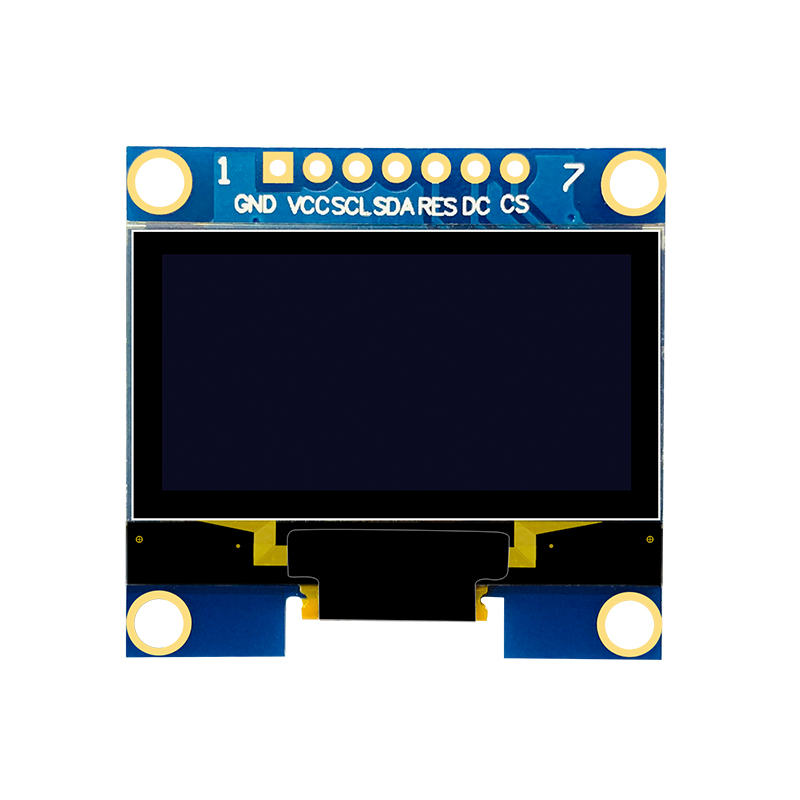

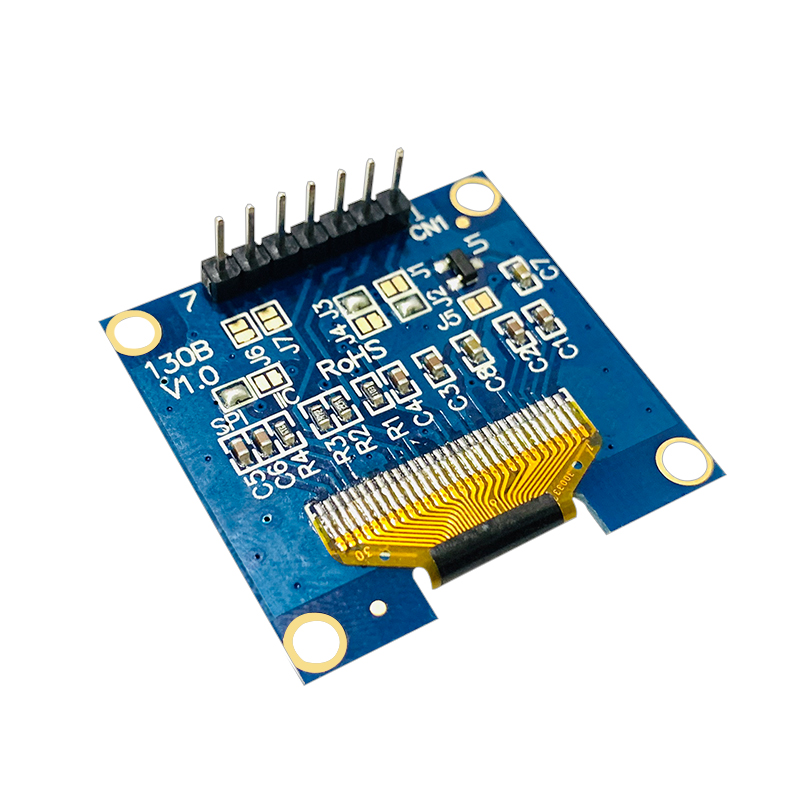

1.3 inch 128*64 OLED Display Module I2C SPI 7pin interface SH1106 Driver Chip

  • Price: $3.59-$4.59
  • Size:1.3
  • Resolution: 128*64
  • Interface: I2C SPI
  • Product description: Hicenda Technology Co., Ltd can supply 1.3 inch oled display module white or blue color with 7 pin SPI/I2C interface for medical or industrial device.
  • INQUIRY



1. Display Specifications

  • LCD Size: 1.3 inches
  • Dot Matrix Size: 128*64

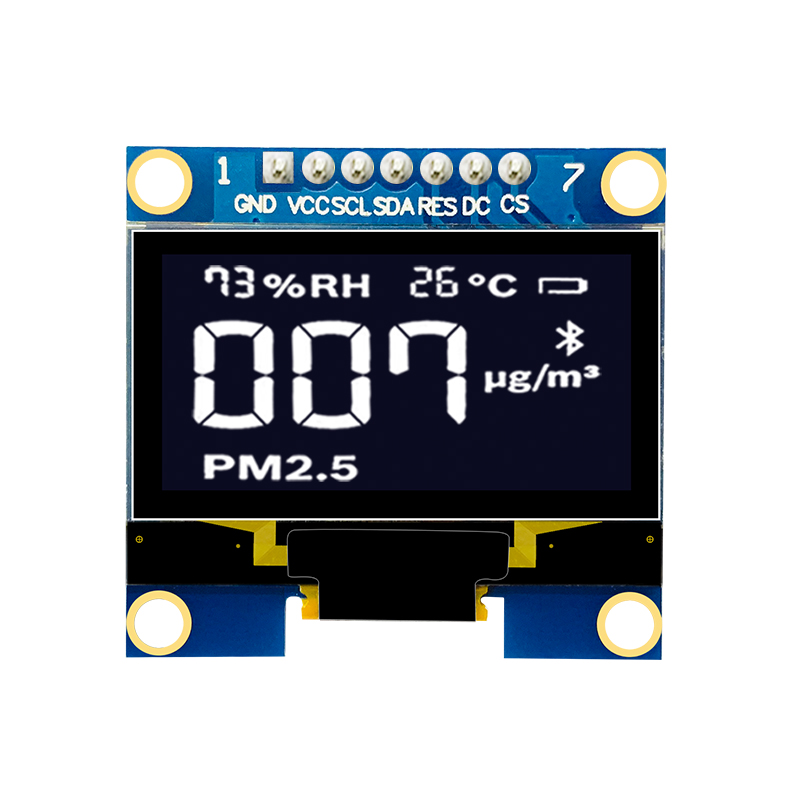

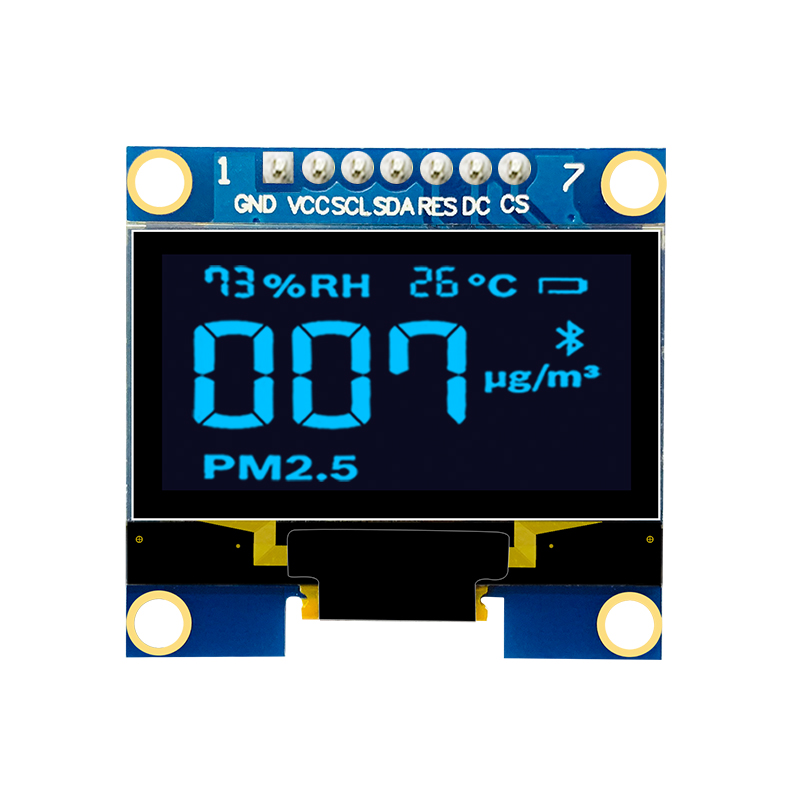

  • LCD Color: White/Blue
  • Hardware Interface: SPI interface
  • Driver IC: SH1106
  • Operating Temperature: -30 - 80
  • Working Power Supply: 3.3V
  • PIN NO: 7Pin
  • Viewing Direction: Full viewing angle

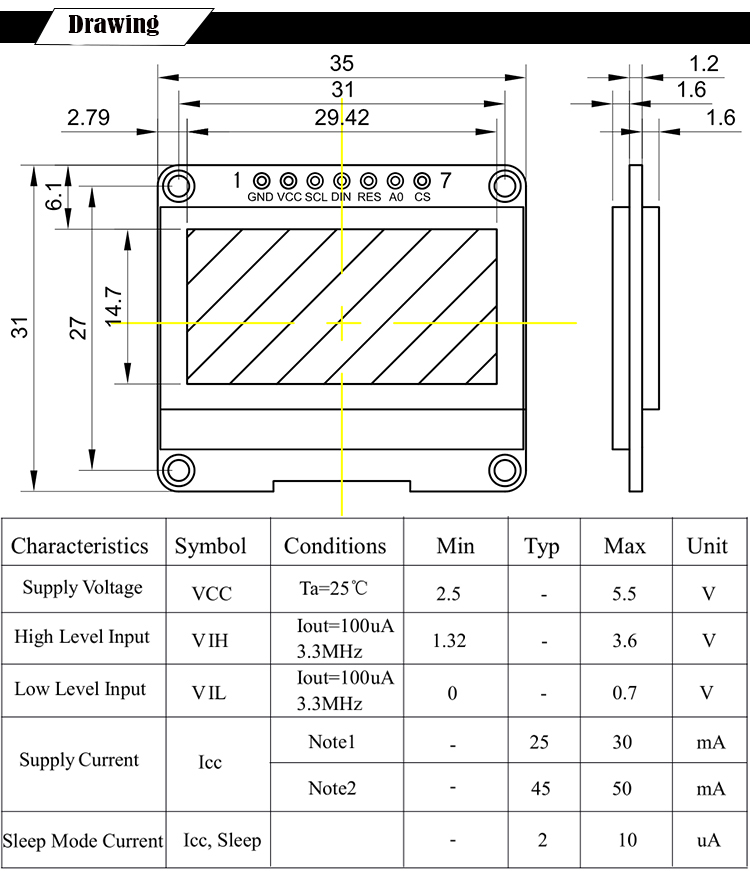

2. Mechanical Specifications

Dot Matrix:

128X64

Dots Size: 0.21 (W) x 0.21 (H) mm
Dots Pitch:

0.23 (W) x 0.23 (H) mm

Aperture Rate:

83.3%

Active Area:

29.42 (W) x 14.7 (H) mm

Display:

LED(WHITE)

IC:

SH1106

Panel Size:

34.5 (W) x 23 (H) mm

Module Size:

34.5 (W) x 35 (H) x 1.427 (D) mm
