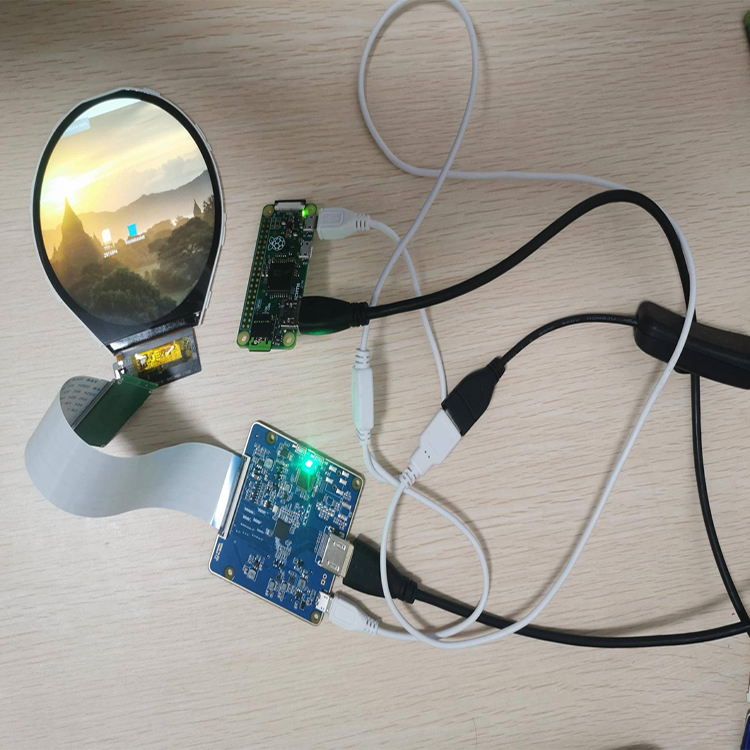

Round tft lcd display 3.4 inch 800x800 MIPI interface with touch screen +HDMI Board

  • Size: 3.4
  • Resolution:800(RGB)*800
  • Interface:MIPI
  • Driver IC:ILI9881
  • Product description: 3.4 inch IPS round lcd display, diagonal sizes: 3.4 inch, it is IPS circular tft viewing area shape with 800x800 pixels, MIPI interface, ILI9881C driver ic, with round capacitive touch/CTP and HDMI dr
  • INQUIRY

Round tft lcd display 3.4 inch 800x800 MIPI interface with touch screen +HDMI Board


DESCRIPTION

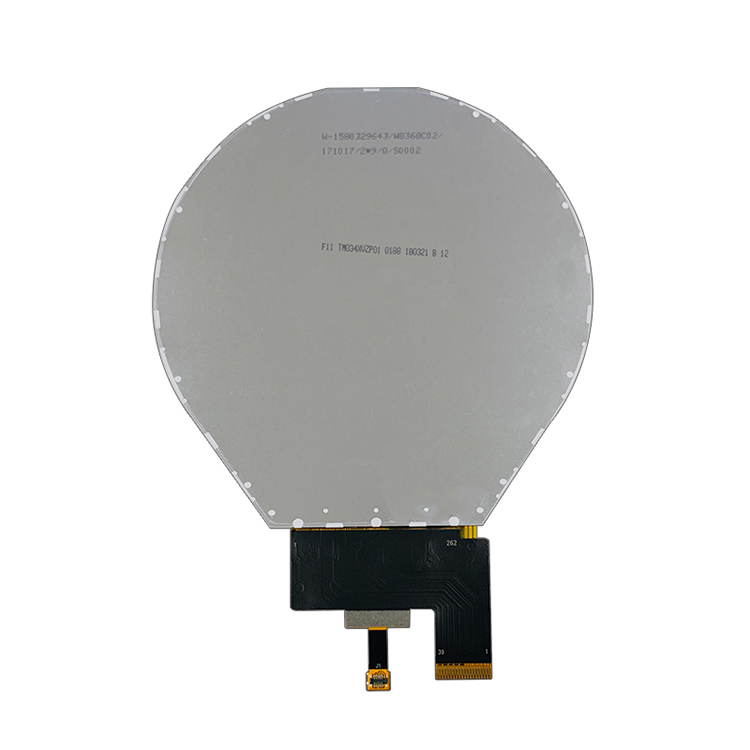

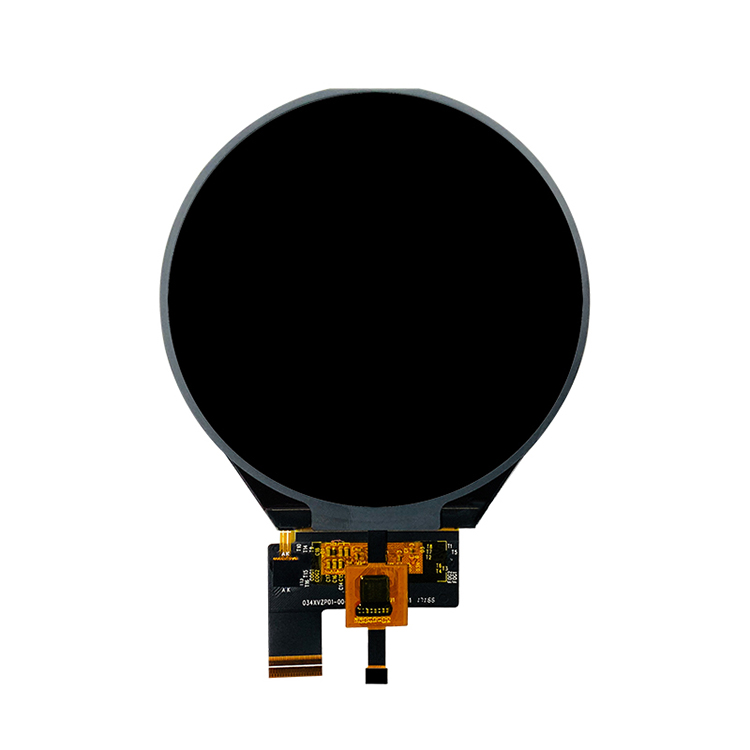

TFT LCD display 3.4 inch is a color IPS round tft lcd display panel which is made with 800RGBx800 resolution.

The sunlight readable 3.4’’ IPS tft lcd panel is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit ,capacitive touch panel and HDMI Board.

This round 3.4 round tft lcd screen is with full viewing angel display, and built in with ILI9881C controller IC, it supports MIPI interface.

Circular capacitive touch optional for this 3.4 inch round tft lcd display module




DRAWING

SPECIFICATIONS

Interface Pin Function


General Specification


Brand Name:
Hicenda
Place of Origin:
Shenzhen,China
Model Number:
HG-340
Resolution:
800*800 pixels
Brightness:
500CD/m2
Interface:
  MIPI
Pins
39pin
Active area:
87.6 (H) X 87.6 (V) mm
Outline size:
99mm*96.6mm*3.98mm
Operating temperature:
-20~+70 °C
Storage temperature:
-20~+80 °C
power supply
3.3V
Contrast Ratio:
800:1
