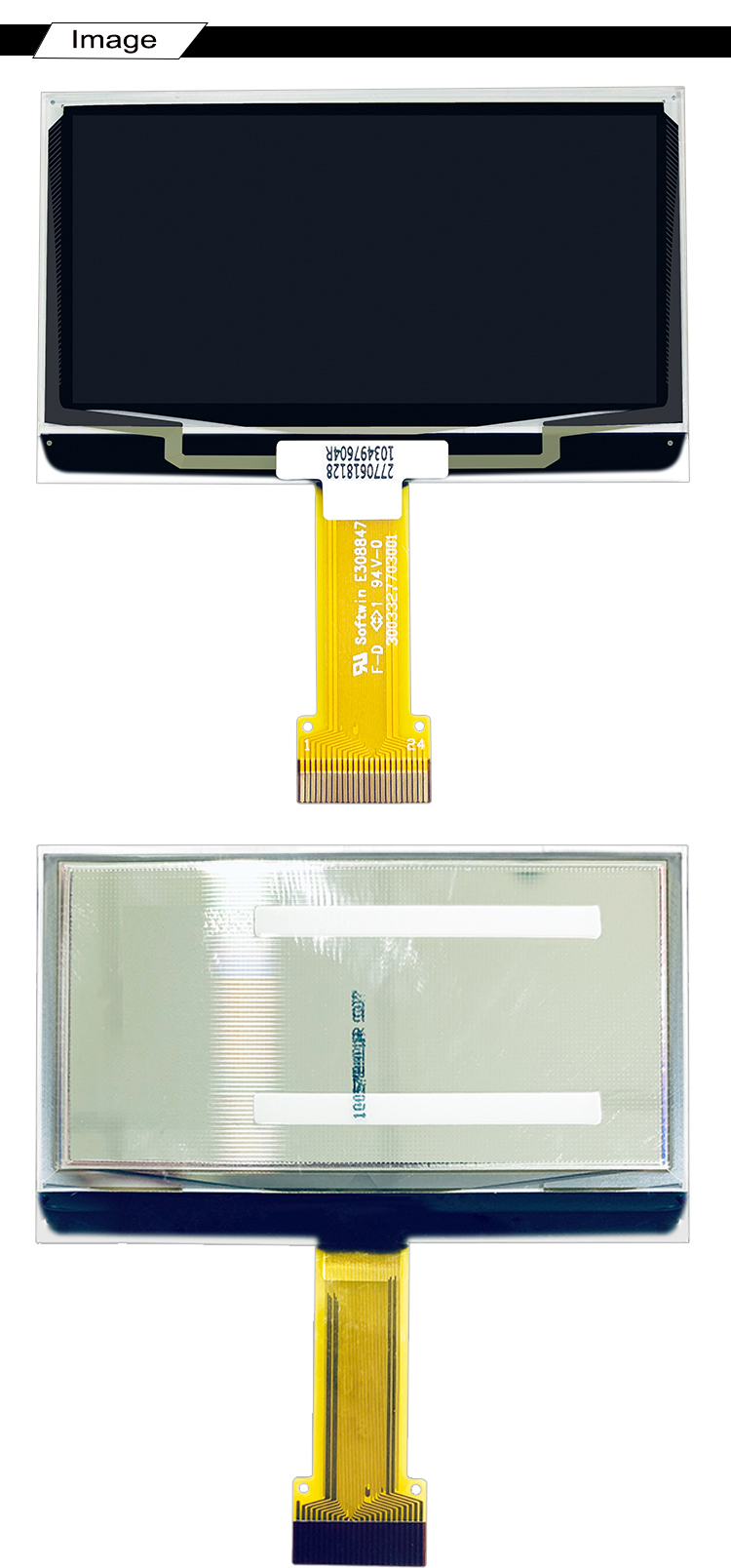

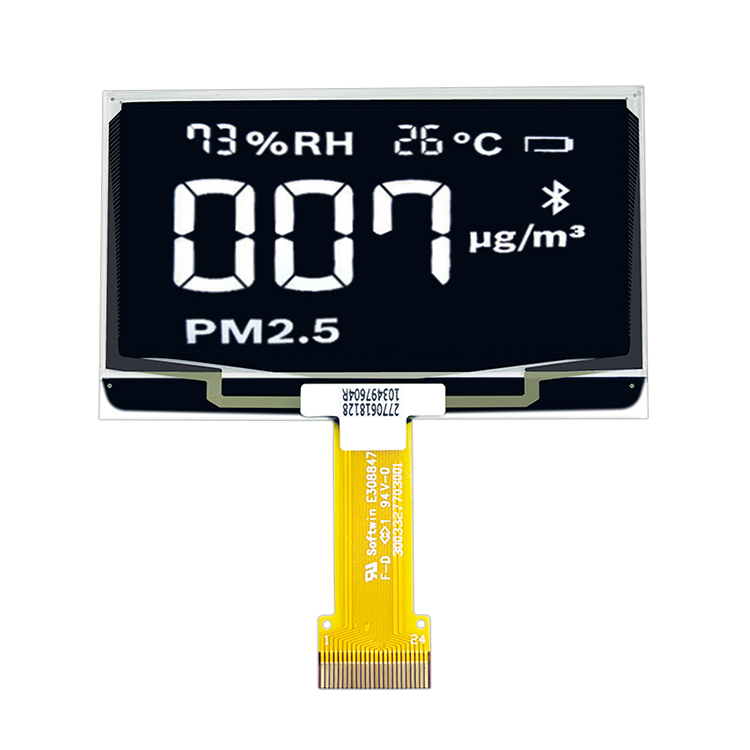

2.4-inch OLED display with 128×64 resolution and an SPD0301 driver IC. Listed interfaces include 6800, 8080, SPI, and I2C for embedded equipment integration. Confirm the interface configuration and connector pinout before ordering.
The HG–24-12864KSWEG18 is a 2.4-inch OLED display with a 128×64 pixel matrix for presenting text, icons, and simple graphics. Its passive matrix architecture and SPD0301 driver IC support compact visual interfaces, while the 55.01 x 27.49 mm active area provides space for equipment status information and menu navigation.

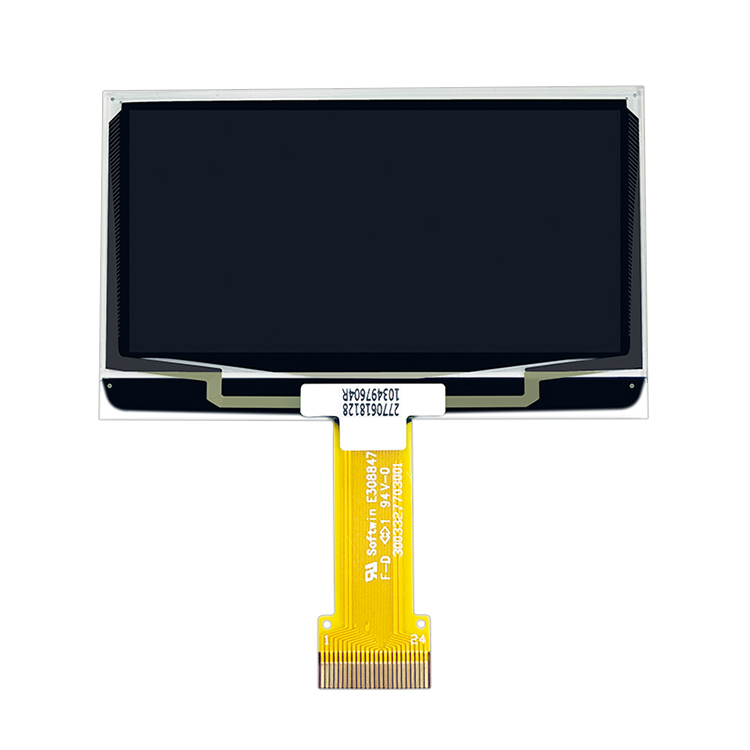

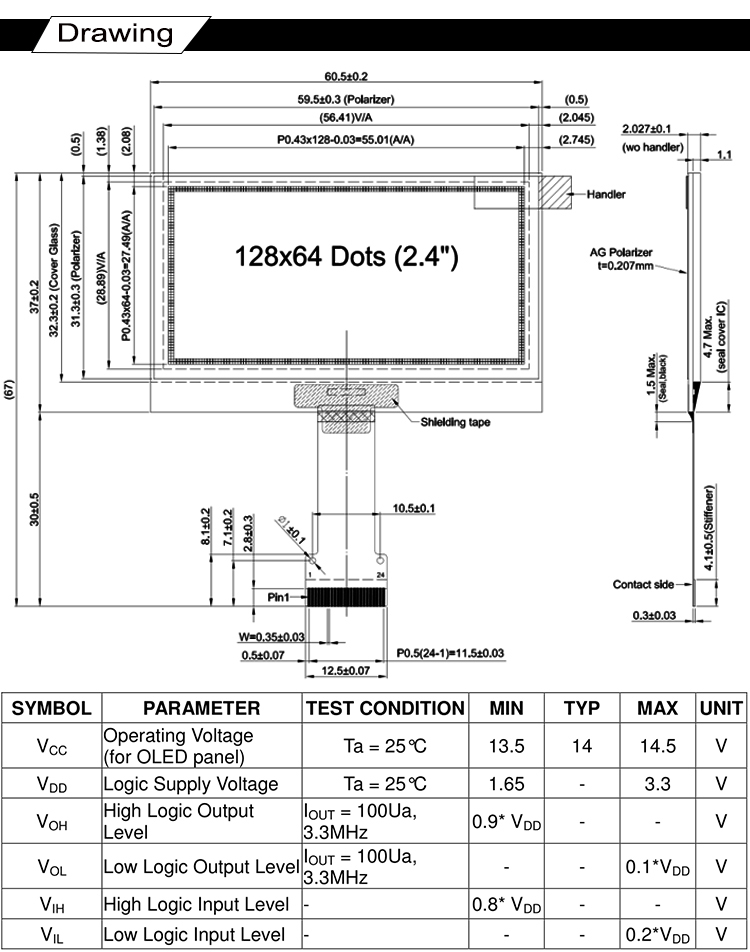

Potential applications include portable instruments, equipment controls, and embedded user interfaces. The listed interface options are 6800, 8080, SPI, and I2C. Before integration, confirm the selected interface configuration, connector pinout, and emission color with the supplier, and check the mechanical drawing against the intended enclosure and cable routing.
| Brand | HICENDA |
|---|---|
| Model Number | HG–24-12864KSWEG18 |
| Product Type | Graphic OLED display module |
| Display Technology | Passive matrix OLED (PMOLED) |
| Display Shape | Rectangular |
| Screen Size | 2.4 inches nominal |
| Resolution | 128 × 64 pixels |
| Active Area | 55.01 × 27.49 mm |
| Pixel Pitch | 0.43 × 0.43 mm |
| Pixel Size | 0.258 × 0.258 mm |

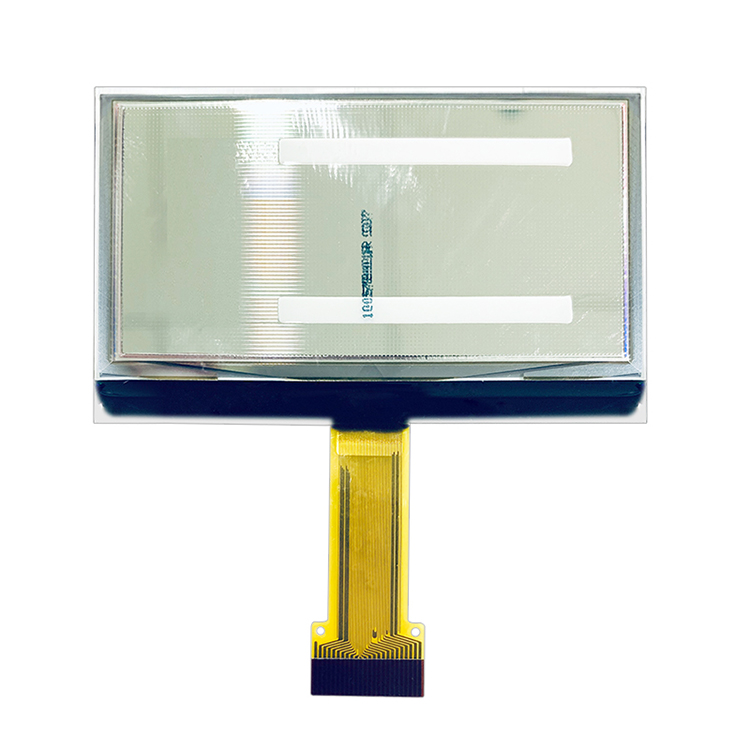

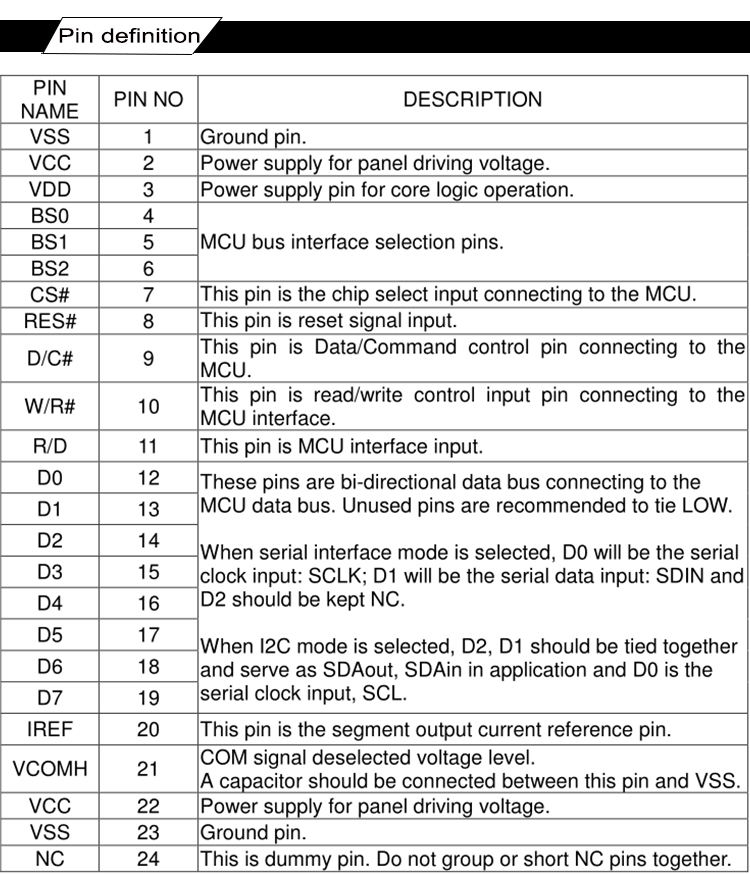

| Interface Type | 6800 / 8080 parallel; SPI; I2C |
| Driver IC | SPD0301 |
| Drive Duty | 1/64 |
| Supply Voltage | 3 V |
| Backlight Type | None; self-emissive |
| Construction | Chip-on-glass (COG) |
| Panel Dimensions | 60.5 × 47 × 2.027 mm |
| Weight | 5.15 g |
| Storage Temperature | −40 to +85 °C |
