Character LCD Display 16x1

  • Outline dimension: 80X36X11.2
  • Resolution:16x1 dots
  • Display mode: STN/FSTN
  • Pins No: 16 pins
  • Product description: HL1601A is character type LCD display module 16x1 with module dimension is 80.0x36.0 mm. This monochrome display LCD 16x1 has built-in IC ST7066. Default interface of HL1601Amodule is 6800;
  • INQUIRY

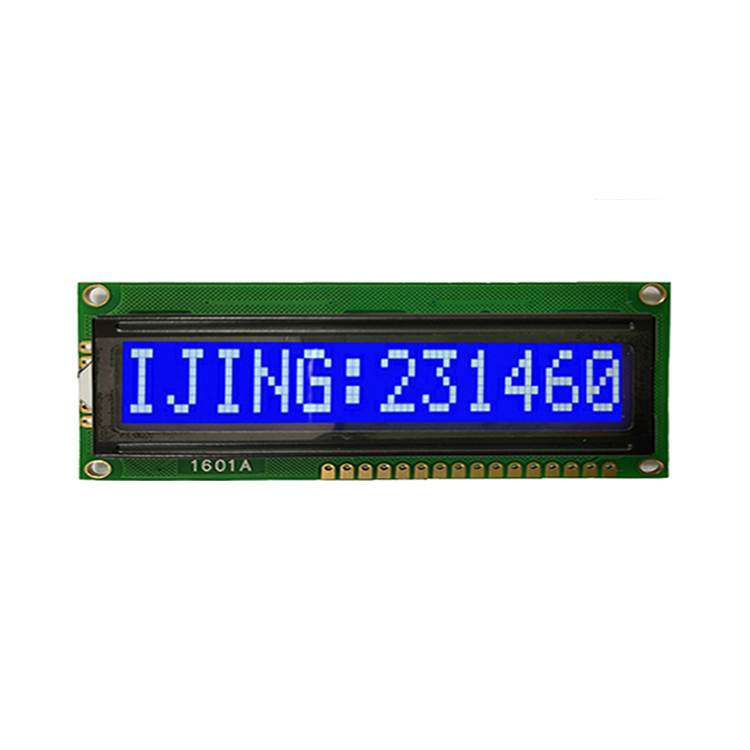

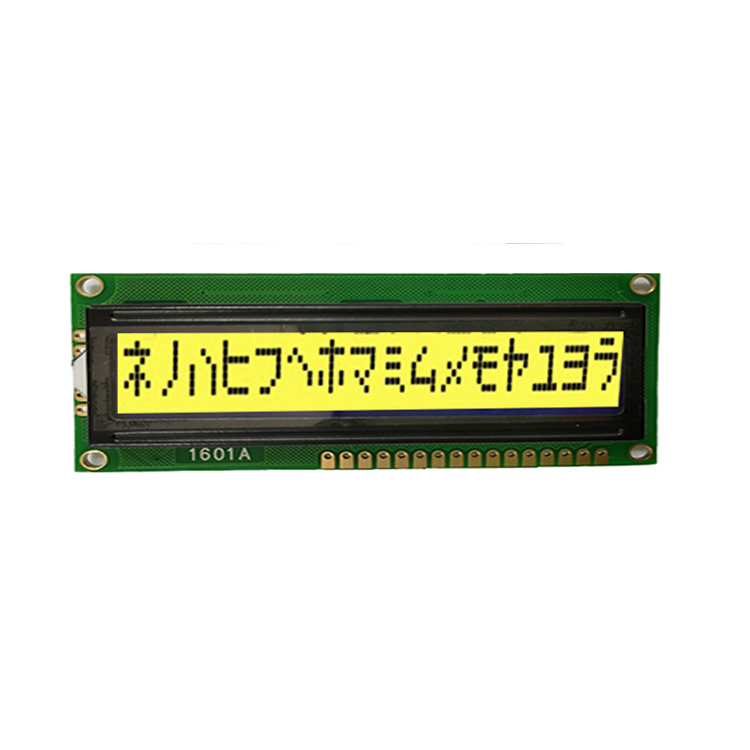

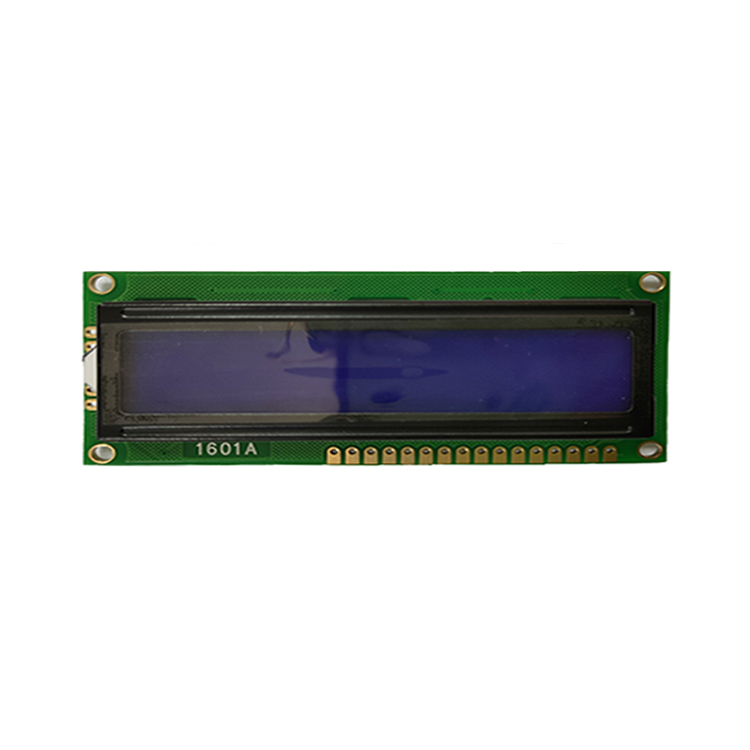

1601 Dot Matrix Character LCD Display Module Panel


DESCRIPTION

This model no. HL1601A Character LCD Display is made of 16 x 1 dots matrix. This display 16x1 character model is built-in ST7066 or equivalent which default interface is 6800 4/8-bit parallel. It’s also available in SPI and I2C interface by using RW1063 controller IC.  The LCD panels are available in STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, blue, green, amber, and RGB LEDs as well as no backlight option.

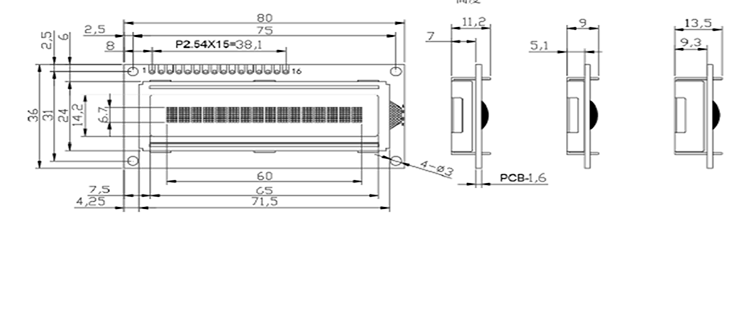

DRAWING

SPECIFICATIONS

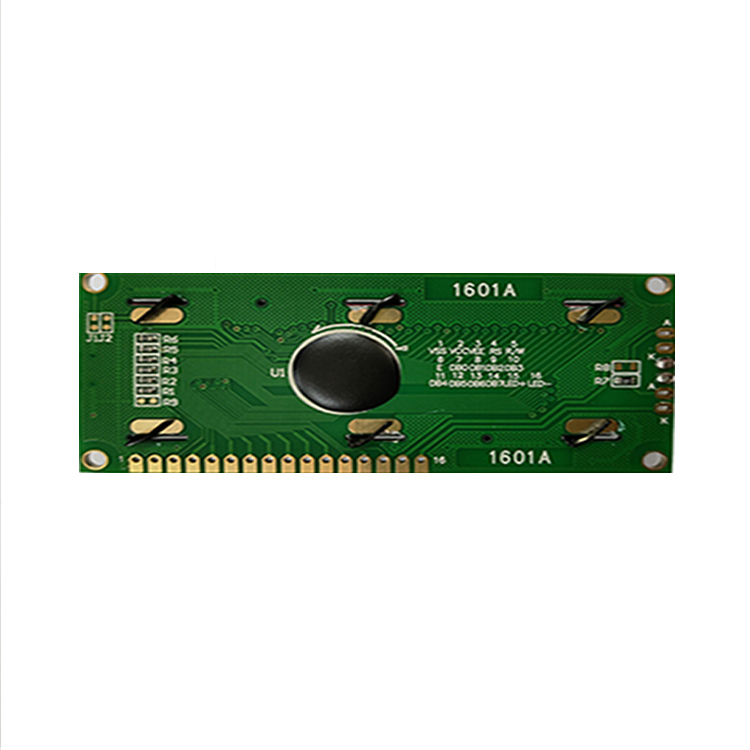

Interface Pin Function

Pin No. Symbol Description
1                                            VSS                                  Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



General Specification


Product Name
1601A character lcd display screen
Model
HL1601A
Type
COB LCD Display, Character Display
Dot Format
16x1 Dots
Display format
16character*1line
Display mode
STN, Transmissive , Negative
Color
White Display Dot
Blue Background
Backlight
White Backlight
Brightness
500cd/m2
Outline Dimension
80X36X11.2mm
Viewing Area
65X14.2mm
Active Area
56.21x11.50mm
Dot Size
0.54X0.6mm
Dot Pitch
0.60x0.70mm
Viewing Direction
6 O'Clock
Interface
4-bit or 8-bit MPU, 16 Pin
Driving Method
1/16 Duty, 1/5 Bias
Supply Voltage
5.0V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃

Electrical Characteristics

Item Symbol Standard Value
typ.
Unit
Input Voltage                                     VDD                                  3/5                        V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V
