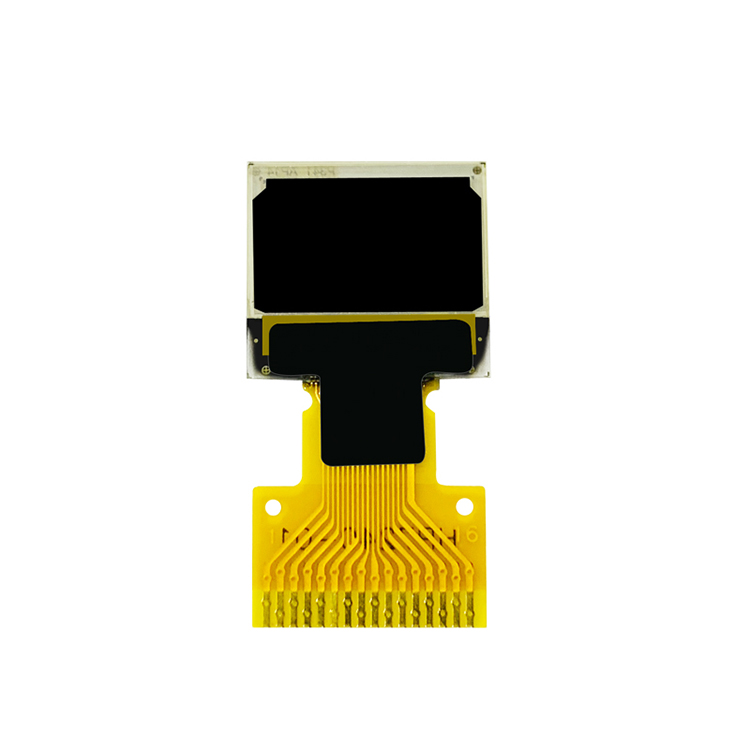

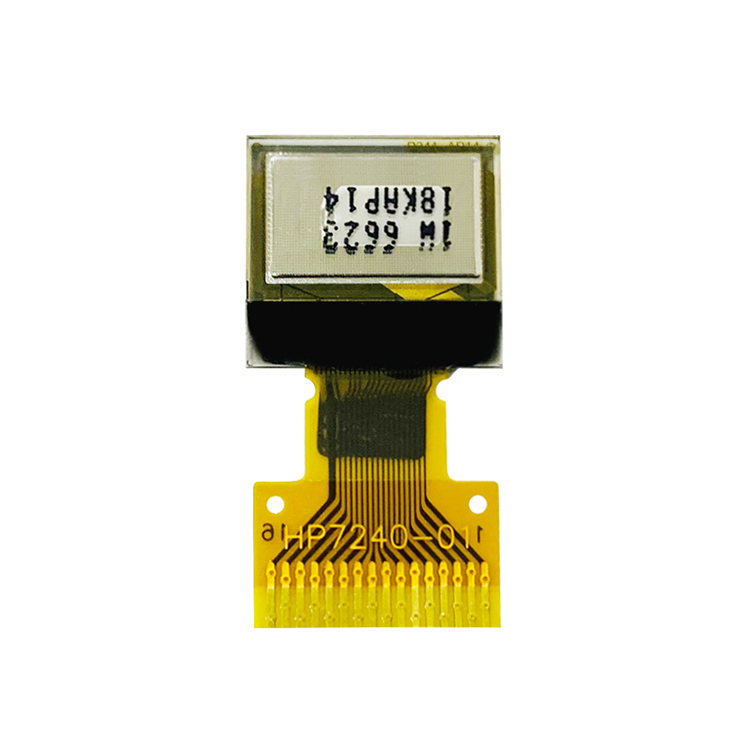

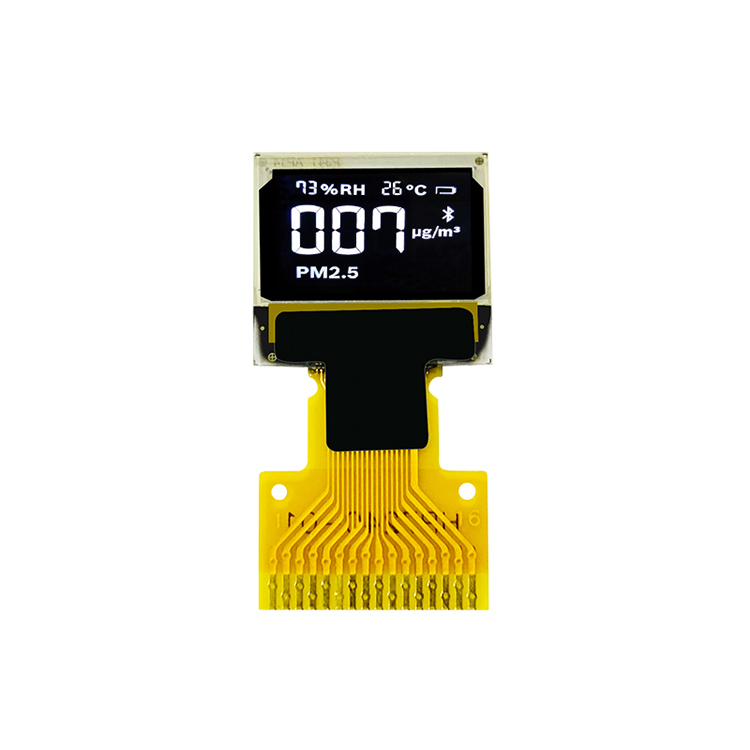

Micro OLED Display, 0.42" 72x40 OLED Micro Display

  • Size: 0.42 OLED
  • Controller IC:SSD1306/SH1106
  • Resolution: 72X40 Dot Matrix OLED
  • Interface: I2C/SPI
  • Product description: 0.42" 72x40 OLED Micro Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.42 is a  passive matrix micro OLED display module which is made of 72x40 dots. It has the module dimension of 14.5x 11.6 x 1.26 mm and Active Area size 11.18 × 5.58 mm. This OLED micro display is built in with SSD1306/SH1106  IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.42 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION

0.42" Small Sized OLED Display

Diagonal Screen Size

0.42"
Color
White/Blue
Module Construction
COG
Number of Pixels
72×40
Active Area
9.196×5.18mm
Pins
16-pin
Drive IC
SSD1306/sh1106
Interface
4-wire SPI/I2C

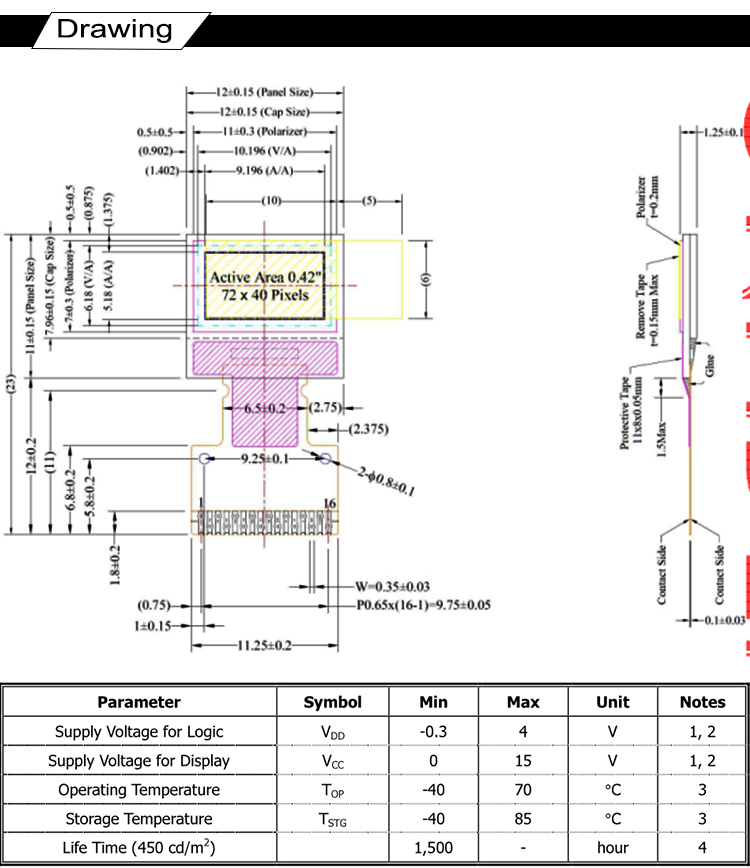

DRAWING

SH1106


SSD1306

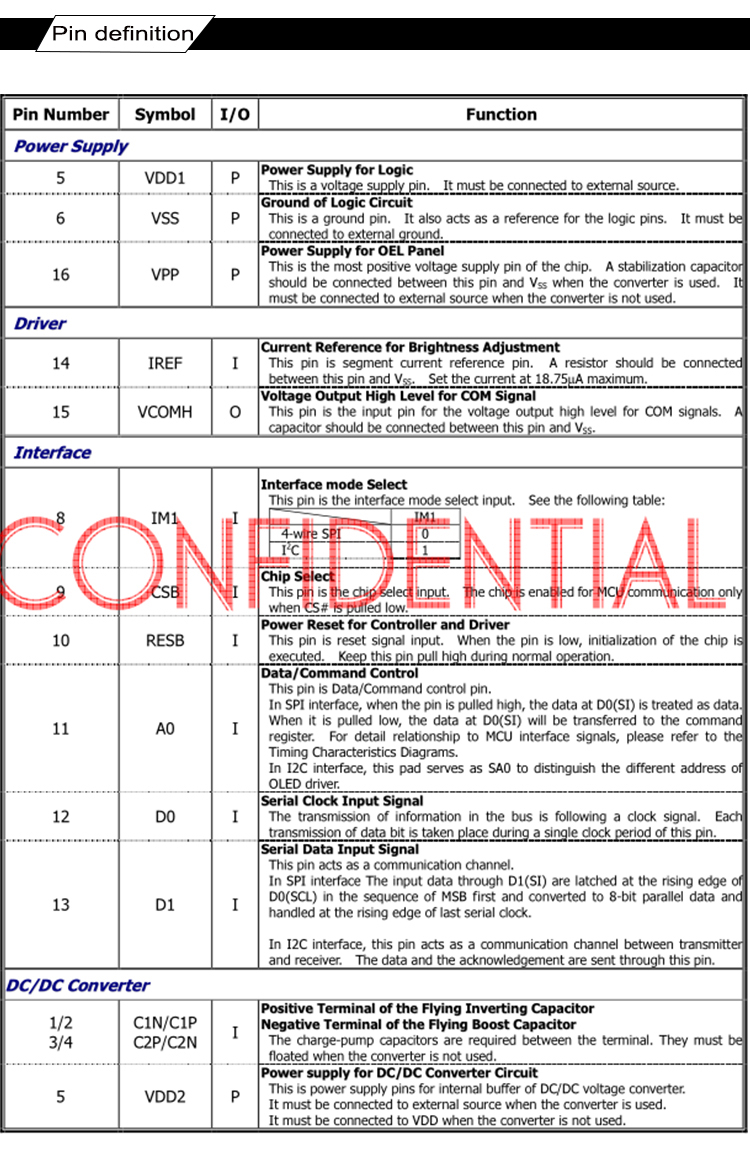

INTERFACE PIN FUNCTION


SH1106


SSD1306
