TFT Displays

  • Hicenda 2.0
  • Hicenda 2.0
  • Hicenda 2.0
Hicenda 2.0Hicenda 2.0Hicenda 2.0

Hicenda 2.0

  • LCD Type: TFT , Transflective , Positive
  • Size: 2.0
  • Resolution: 176*220
  • Interface: MCU
  • Product description: Hicenda Technology Co., Ltd can supply IPS 2.0 Inch TFT LCD Screen Display 176*220 dots IPS Full Color with 22Pin MCU Interface ST7789v IC Driver for electronic devices
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.0 inches
  • Dot Matrix Size: 176*220
  • LCD Color: 262K Full Color
  • Hardware Interface: MCU interface
  • Driver IC: ST7789V
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.3V

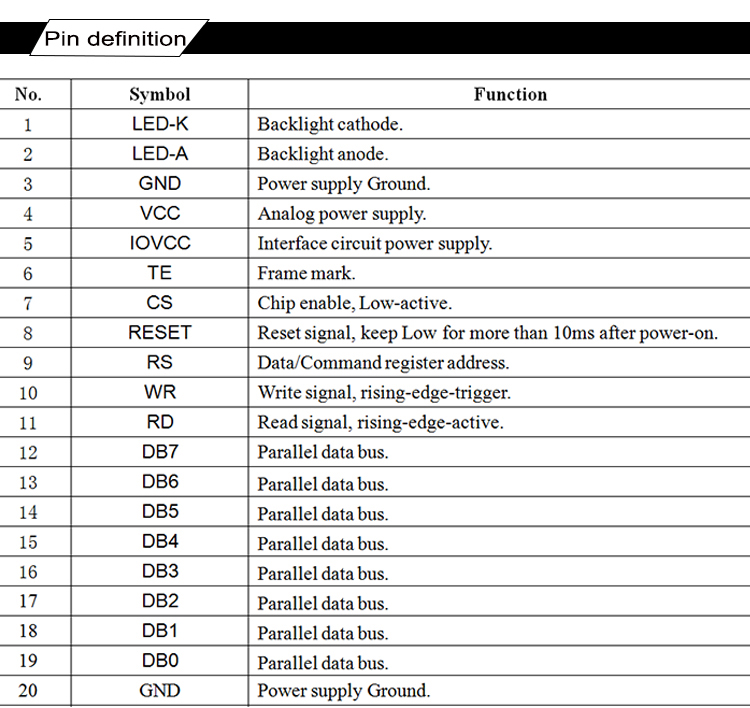

  • PIN NO: 20Pin
  • Display Area: 39.6*31.68mm
  • Size: 51.3(H)*37.68(V)*2.2(D)mm

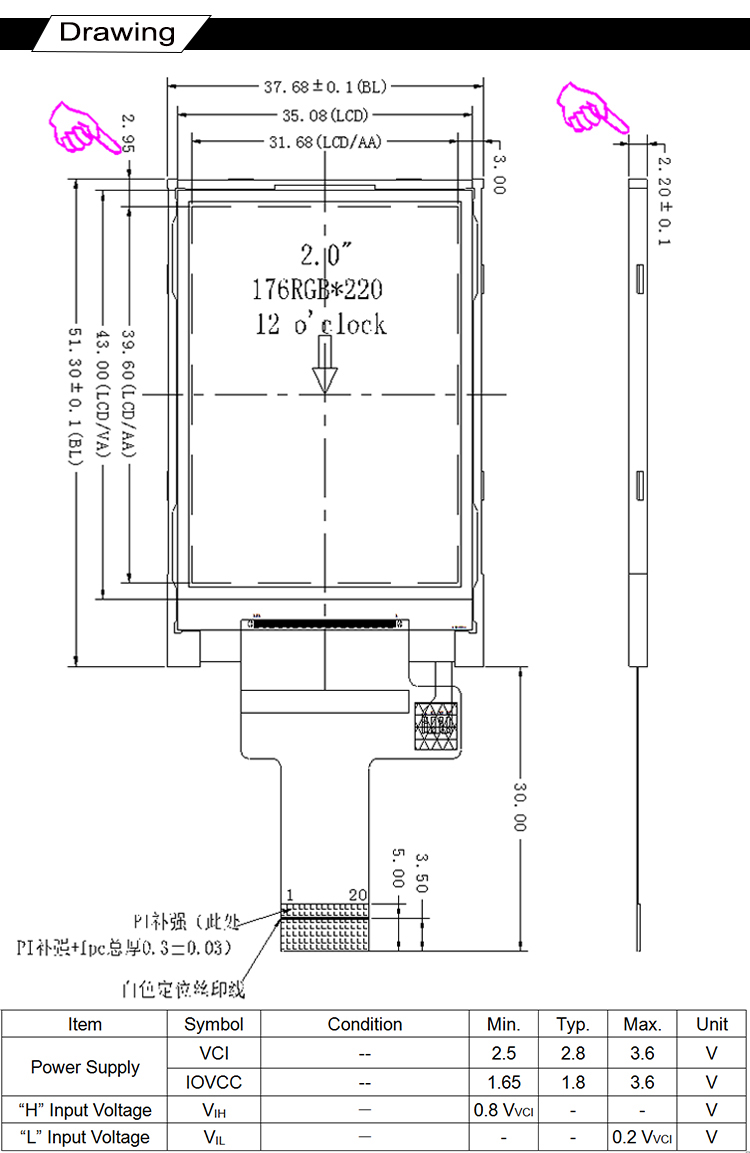

2. Mechanical Specifications

Product Name 2.0 Inch TFT
Active Area (WxH) 39.6(H) x 31.68V)

Display Outline Size


51.3(H) x 37.68(V) x 2.2(D)
Resolution 176RGBx320DOTS
Polarizer Mode RGB Stripe
Backlight Black
Interface Type MCU
Technology Type a-Si TFT active matrix
Controller / Driver ST7789V
